Cab/Chassis Components

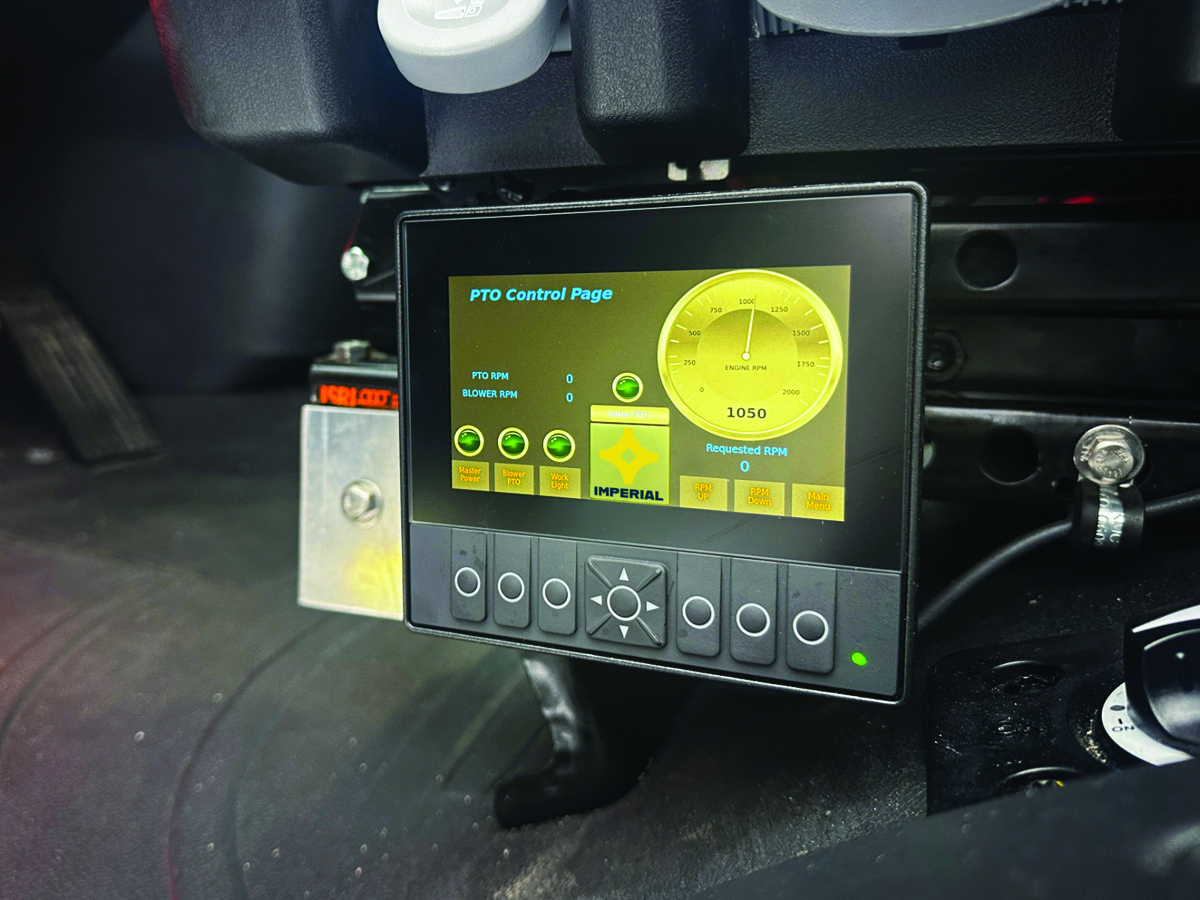

Imperial NEXUS Integrated Control System
Imperial’s NEXUS Integrated Control System is a modern control platform designed to simplify truck and equipment operation while improving reliability, visibility and serviceability. It replaces scattered switches, gauges and custom wiring with a single centralized interface that connects controls, engine data and diagnostics through the truck’s CAN network. This approach reduces electrical complexity and creates a cleaner, more consistent build. Operators gain real-time access to RPMs, temperatures, tank levels and preset warnings from one screen, often without returning to the cab. Built-in alerts and hour-tracking support preventive maintenance and help reduce downtime. Because it is software-driven, new features and setpoints can be added without additional wiring, allowing the system to evolve as job requirements change. The result is a flexible, future-ready control platform that delivers smarter operation today and long-term value tomorrow. 800-558-2945; www.imperialind.com
Hose Reels
COXREELS V-100 Series
The COXREELS V-100 Series product line includes a 1 1/4-inch vacuum hose reel V-112-735 without hose and the V-112H-735 with hose. It is a smaller frame size featuring 12-inch-diameter discs instead of the original 17-inch discs and is designed for use with 35 feet of 1 1/4-inch vacuum hose. The outlet connecting to the hose remains 1 1/2 inches and our 1 1/4-inch hose comes equipped with 1 1/2-inch slip cuffs on both ends for maximum flow. The swivel has been improved on the entire product line; its design still allows for the connection of multiple hose sizes by using the inside and the outside of the housing, but a greater gradual taper has increased the amount of compatible inlet hose cuffs. The swivel also includes an enhanced O-ring sealing system for greater vacuum consistency and performance. 800-269-7335; www.coxreels.com

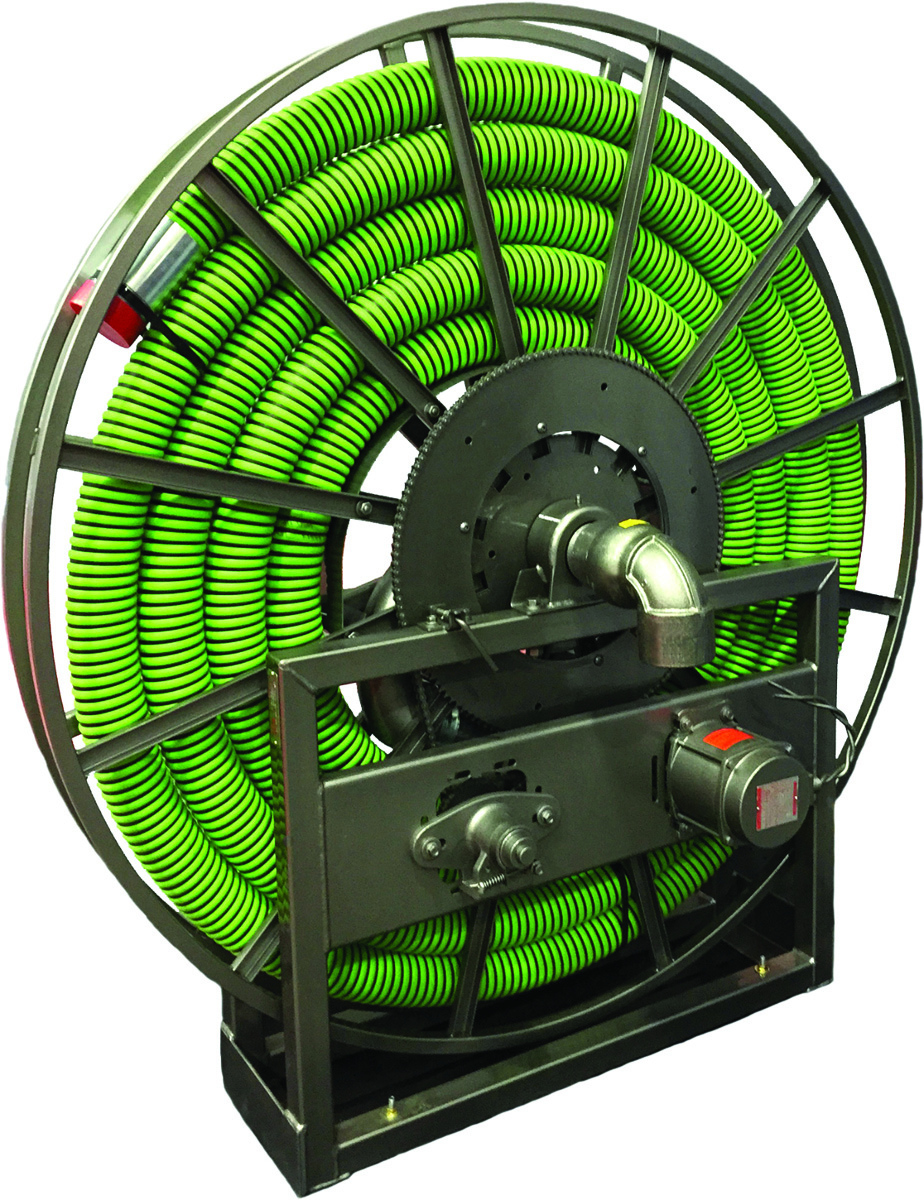

Hannay Reels VAC-5000 Single Wrap Hose Reel
The Hannay Reels VAC-5000 Single Wrap Hose Reel is a heavy-duty reel specifically engineered for longer lengths and large diameters of vacuum and suction hose. A single-wrap configuration is available where width dimension is minimal and narrow, allowing easy mounting and installation on work trucks and convenient access to the hose from either side of the vehicle. There is the option of choosing a gear-driven crank or chain-and-sprocket drive powered by an electric, hydraulic or compressed air motor. It provides effortless, quick rewinding and wrapping of the hose while preventing kinks and damage from constant dragging. 877-467-3357; www.hannay.com

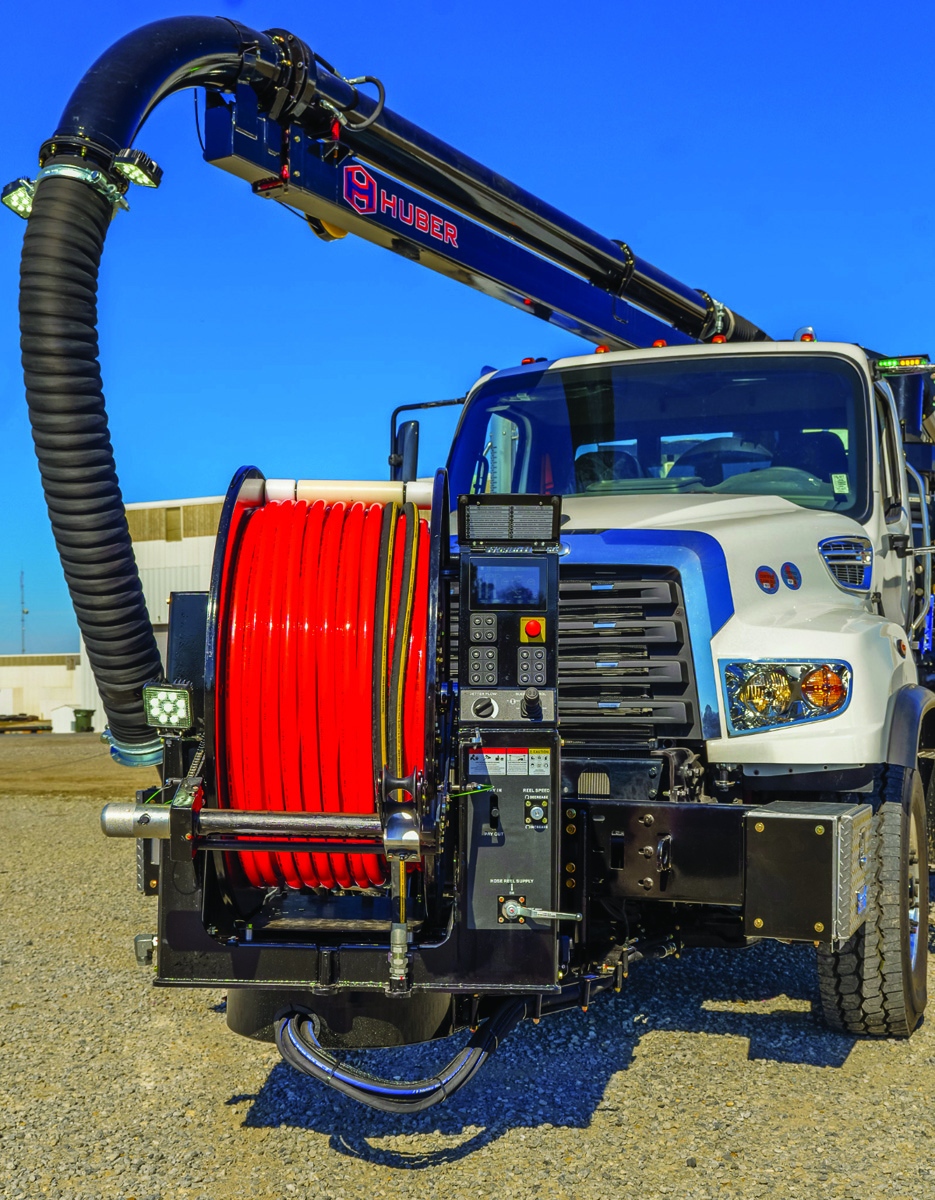

Huber hydraulically extendable hose reel
Huber’s hydraulically extendable hose reel for Lancer Series combination trucks features a manual 275-degree swivel base with 19 inches of extension, allowing operators to position the reel directly over manways for improved alignment during service calls. This design reduces manual hose handling and minimizes physical strain on operators throughout the workday. The hydrostatic drive system is self-contained and lube-free, eliminating routine maintenance requirements while ensuring continuous, reliable operation. Heavy-duty construction is engineered for demanding field environments, with emphasis on manual, operator-driven controls that maximize reliability in harsh conditions. Serviceability features include accessible components and simplified maintenance points designed to reduce downtime and extend equipment life. The hose reel offers flexible mounting configurations for integration into Lancer Series builds or retrofitting onto existing units. Optional cab-mounted camera systems enable precise positioning from the driver’s seat, reducing truck spotting time and improving operational efficiency on residential septic and municipal vacuum service routes. 800-334-8237; www.keithhuber.com

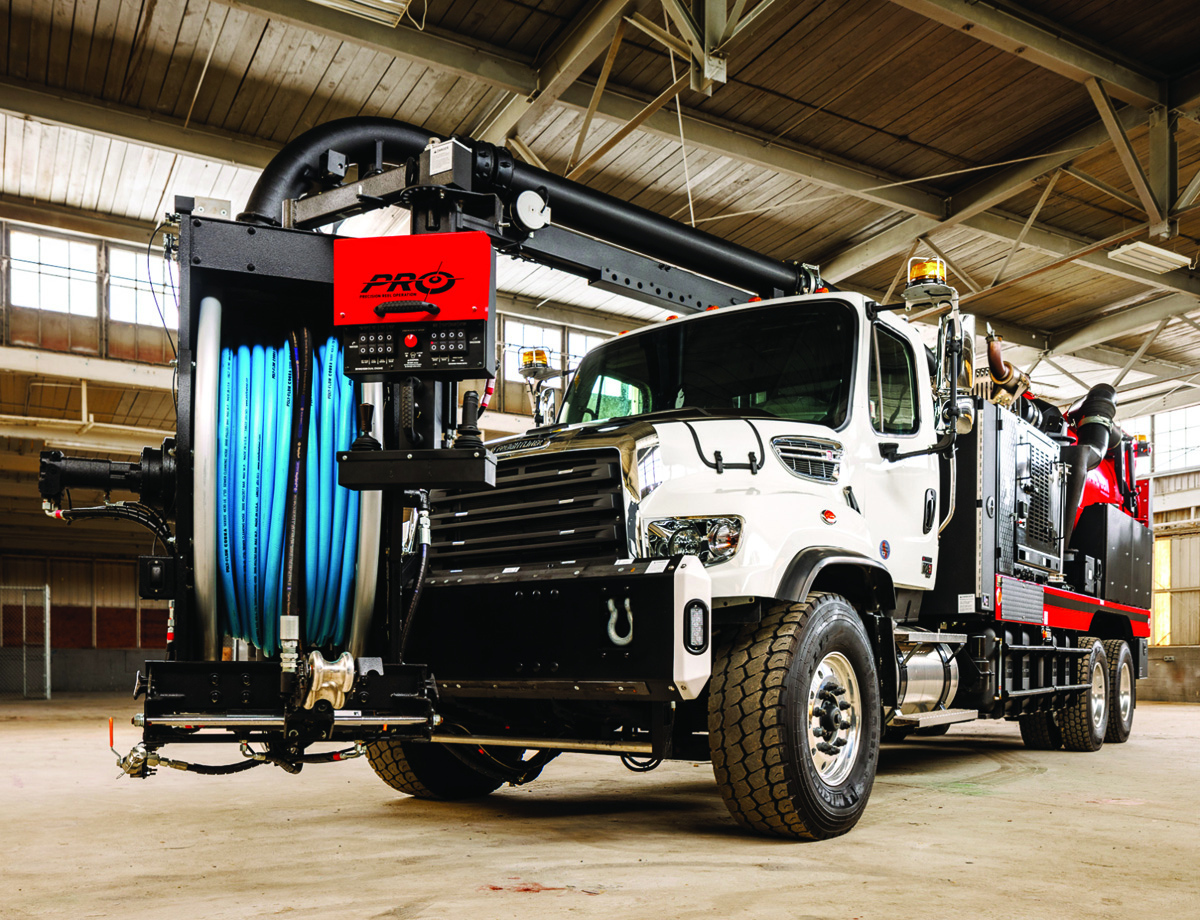

Vac-Con PRO Reel
The PRO Reel from Vac-Con is designed to optimize operator efficiency and system performance. With 16 feet of lateral traverse, it expands the effective work area by 270%, offering nearly 70 square feet of coverage. Integrated in-cab guidance and camera systems reduce setup time by 50%, enabling precise manhole alignment without leaving the cab. Bolt-on all-aluminum construction reduces the unit weight by 500 pounds. It includes a 7-inch digital operator interface with real-time system feedback, a planetary gear drive for controlled hose payout/retrieval, a rotary actuator that enables smooth reel articulation, one-touch jet hose activation, a dual camera system (front/rear) for enhanced visibility, digital sensors for hose footage, water level and debris tank monitoring, and an emergency auxiliary hydraulic pump for back-up operation. 888-920-2945; vac-con.com
Lighting

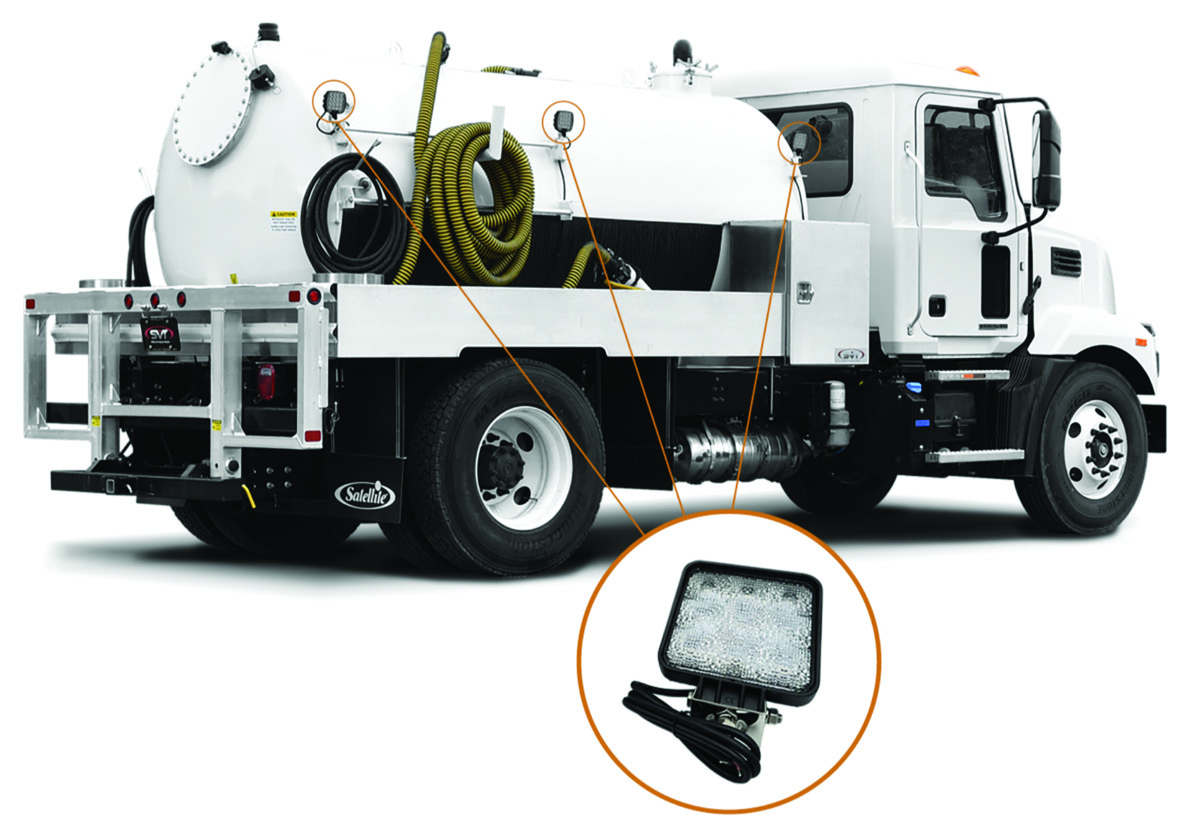

Satellite LED Flood Lights
Extend your service day with confidence using high-performance LED Flood Lights from Satellite. Each light features 16 clear LEDs and a durable clear lens. It operates on 12-24-volt systems, delivering an impressive 3,120 lumens of powerful, consistent illumination. Strategically mounted throughout the truck, multiple service lights create a fully illuminated work zone, ensuring technicians have ample visibility. Whether you’re servicing routes after dark, responding to emergency calls or working through shorter winter days, these flood lights reduce shadows and improve overall safety. Bright, energy-efficient and built for demanding conditions, this LED lighting setup enhances productivity while supporting safer operations. 800-883-1123; www.satelliteindustries.com
Level Indicators

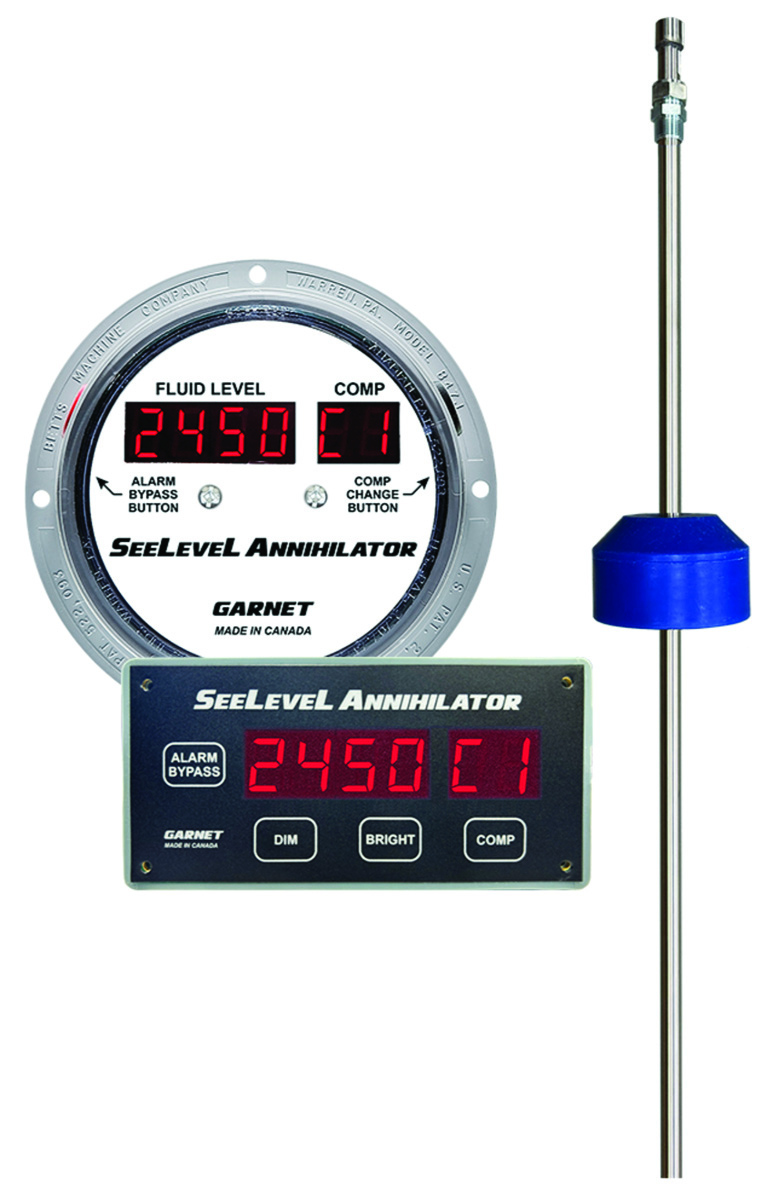

Garnet Instruments SeeLeveL Annihilator Series
The SeeLeveL Annihilator series from Garnet Instruments features a Rise Alarm upgrade that provides an essential safeguard for tank trucks and trailers by alerting operators when fluid levels rise unexpectedly in a compartment that is not selected — helping prevent costly spills and ensuring compliance with safety standards. This smart feature integrates seamlessly with existing systems, adding a critical layer of protection without complexity. Models will soon complement the upcoming 806-TE (temperature-enabled) sender bar, introducing fluid temperature monitoring and CAN communication connectivity, giving fleets deeper insight and improved integration capabilities. Combined with the trusted Rise Alarm, these enhancements will transform this series into a fully connected, intelligent monitoring platform. 780-617-7384; www.garnetinstruments.com
Truck-Mounted Jetters

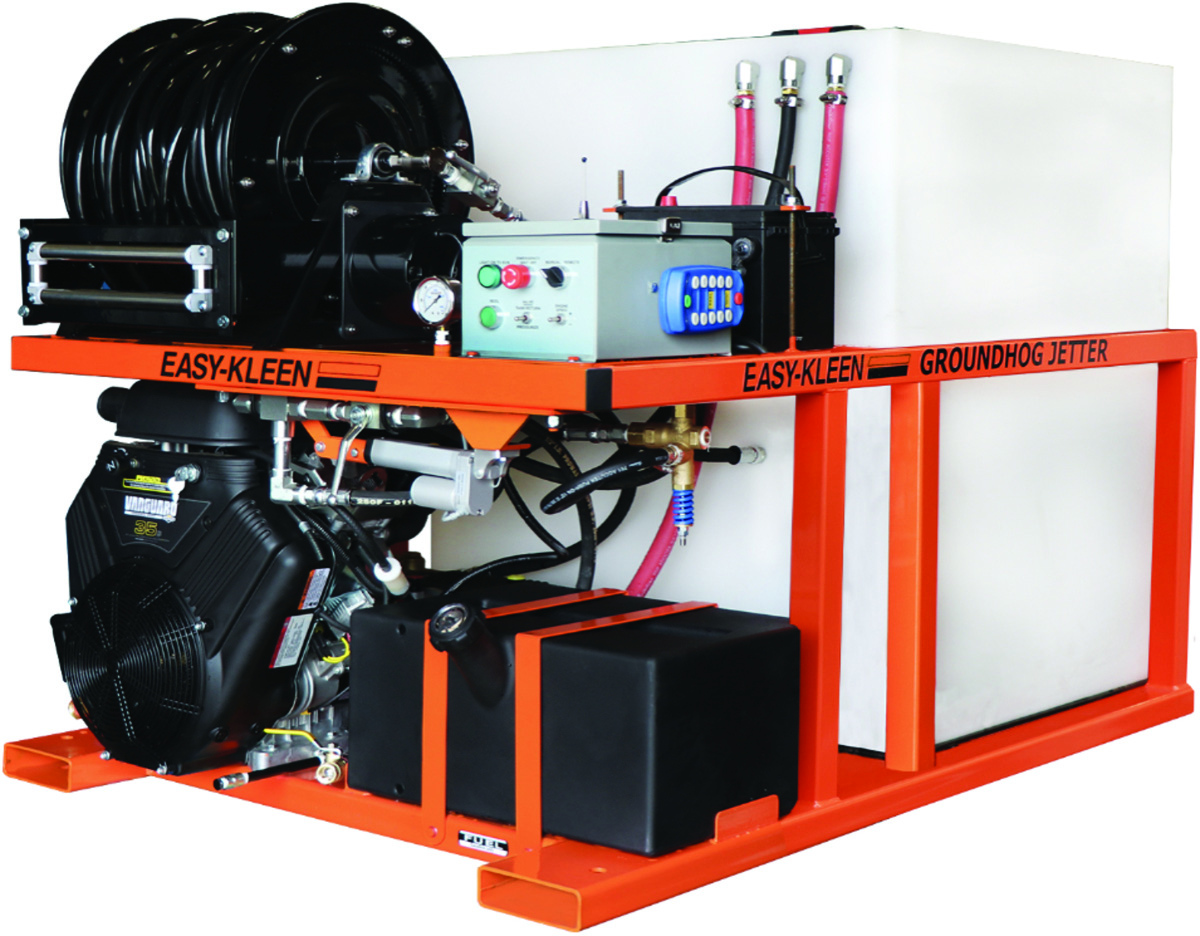

Easy-Kleen Pressure Systems Van Pack Jetters
Van Pack Jetters from Easy-Kleen Pressure Systems bring high-output jetting performance to any service vehicle, delivering the power contractors need for heavy root intrusion, grease and debris. Built around gearbox-driven triplex pumps and 35 hp Vanguard engines, these compact units supply up to 12 gpm at 3,500 psi with a fully integrated 200-gallon water tank, making them a turnkey solution for municipal, commercial and residential line cleaning. The series can be equipped with the Reaper Nozzle, engineered for aggressive cutting action that blasts through roots, scale and heavy organic buildup while maintaining exceptional pulling power, according to the maker. Combined with jetter hose reels, heater packs and wireless remote options, operators gain a highly maneuverable system designed for fast, controlled removal in challenging pipe conditions. 800-315-5533; www.easykleen.com

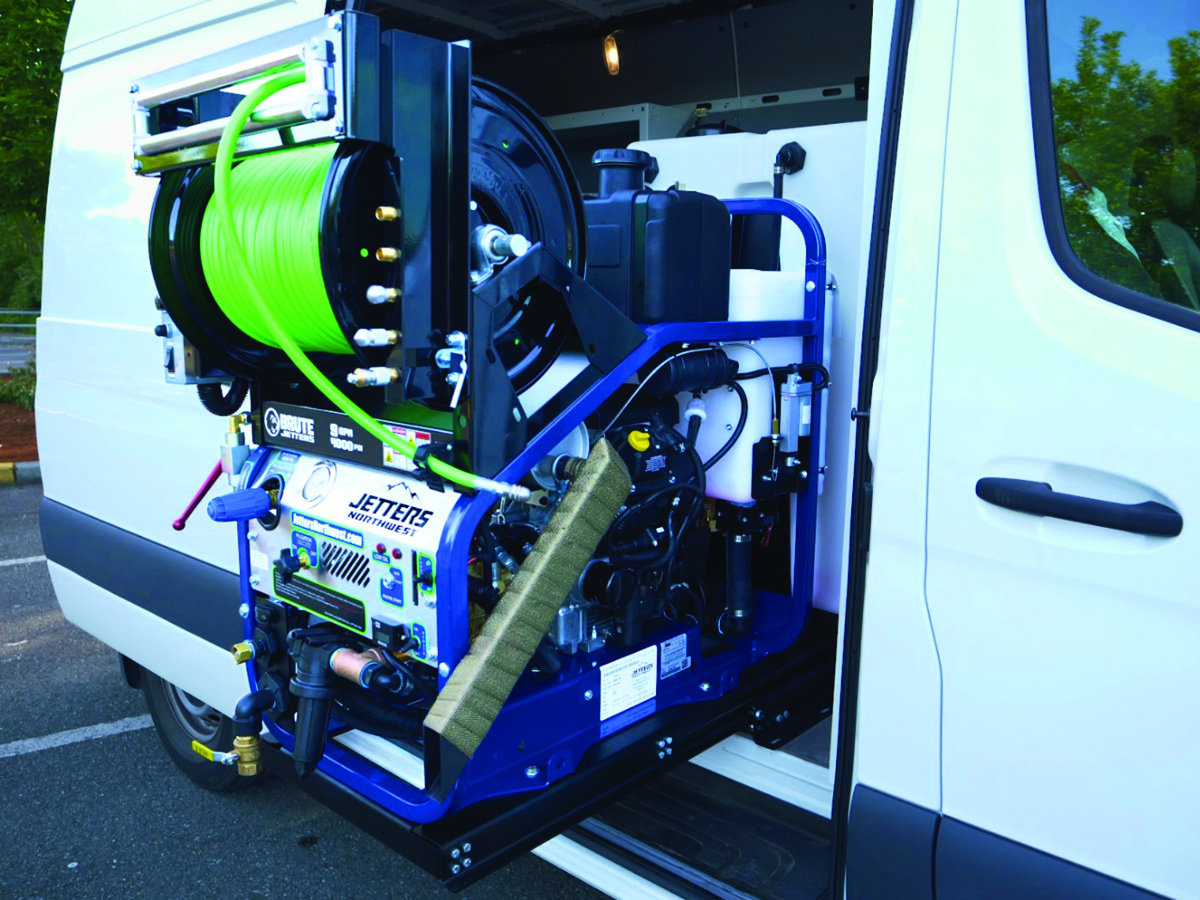

JETTERS NORTHWEST Brute POWERSLIDE Van-Packs
Brute POWERSLIDE Van-Packs from JETTERS NORTHWEST are fully integrated hydrojetting systems built on an electric slide-out base for pros who need compact size with true “rooter-class” power. The powered base extends the jetter 30 inches outside the van for open access to fueling, operation, maintenance and winterizing without losing floor space. Its bolt-in design requires no plumbing or electrical hookups, keeping installation quick and clean. Each package pairs any Brute Jetter — commonly the 9 gpm, 4,000 psi “4009” — with a 100-gallon tank on a single van skid. The Deluxe Wireless Remote provides premium control of flow, psi, engine start/stop/throttle and reel windup. Features include a variable-speed electric reel with 300-foot hose (400-foot optional), nozzle rack, fuel-injected Kohler engine, adjustable pressure and pulsation, Super-Duty UDOR pump and four stainless nozzles. Optional Reaper, Warthog, RootRanger and other root/grease nozzles are available. 877-901-1936;
www.jettersnorthwest.com
Vacuum Pumps/Blowers

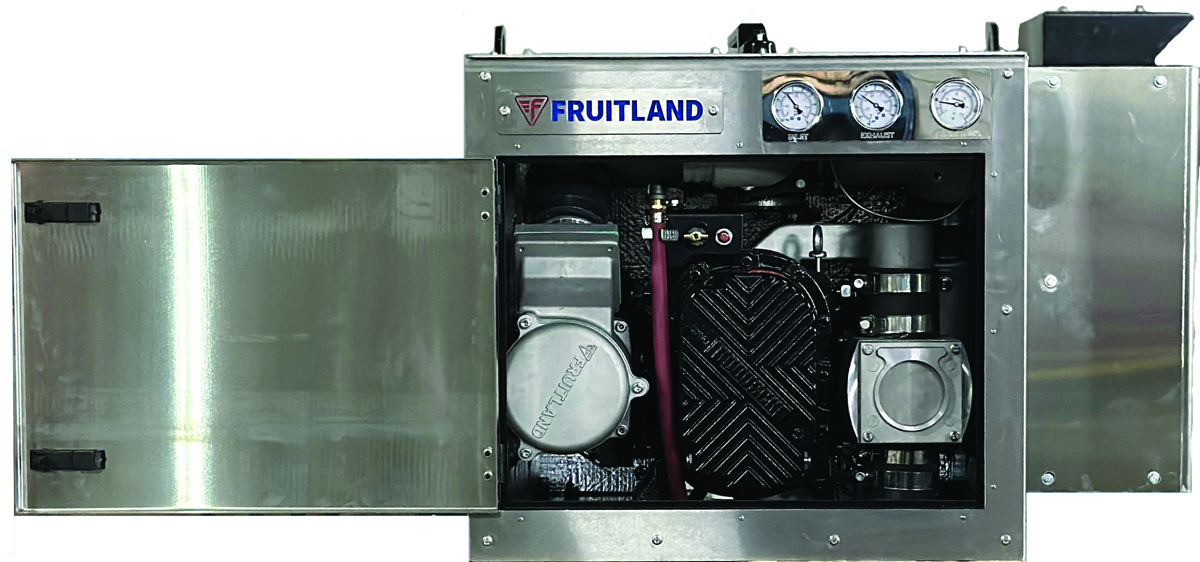

Fruitland Ready-To-Rig Eliminator RB-DV 65
Fruitland’s Ready-To-Rig Eliminator RB‑DV 65 is a compact, modular rotary‑lobe blower package designed for easy installation onto mobile vacuum tank trucks. Built around the RB‑DV 65 three‑lobe positive displacement blower, it delivers up to 912 cfm free airflow, with a maximum vacuum of 28 inches Hg and pressure up to 15 psig, all while maintaining optimal thermal performance during sustained operation. Enclosed in a corrosion‑resistant stainless‑steel housing, it’s engineered for sturdy outdoor and side‑chassis mounting. The vacuum blower package includes an integrated four‑way valve for seamless pressure‑or‑vacuum switching, an external secondary shut‑off and built-in silencers to reduce noise. It supports up to 4,800 rpm, weighs approximately 1,000 pounds and connects via a 4-inch port. Optional right‑angle gearbox or C‑face hydraulic adapters enable flexible installation. 866-254-3150;
www.fruitlandmanufacturing.com
National Vacuum Equipment Challenger 4310
The Challenger 4310 from National Vacuum Equipment is a quiet, environmentally friendly machine that offers a ballast cooling and porting design to allow for continuous pumping at full vacuum without overheating. It is capable of airflow to 940 cfm at 4,500 rpm with no oil mess. It is a tri-lobe design with precision machining and includes a ballast port manifold that cools the blower through air injection. It provides a range of airflow options with performance available to accommodate needed power. It includes 4-inch hose connections with barbed adjustable porting for intake and exhaust. An integrated final filter provides easy access for cleaning. The blower also includes a four-way pressure/vacuum changeover valve. 800-253-5500; www.natvac.com
Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763; www.presvac.com
Westmoor Conde PowerPaks
Conde PowerPak units from Westmoor are suitable for slide-in tank sizes from 50 to 2,000 gallons. They are compact and available in either belt- or direct-drive configurations, and either vacuum and pressure or vacuum-only models. Direct-drive units incorporate a centrifugal clutch that allows throttling down the engine and disengaging the vacuum pump. Throttle up and the pump is in action. Diesel-powered units are also available for applications where nonsparking engines are required. 800-367-0972; www.westmoorltd.com
Vacuum Trucks/Tanks - Septic

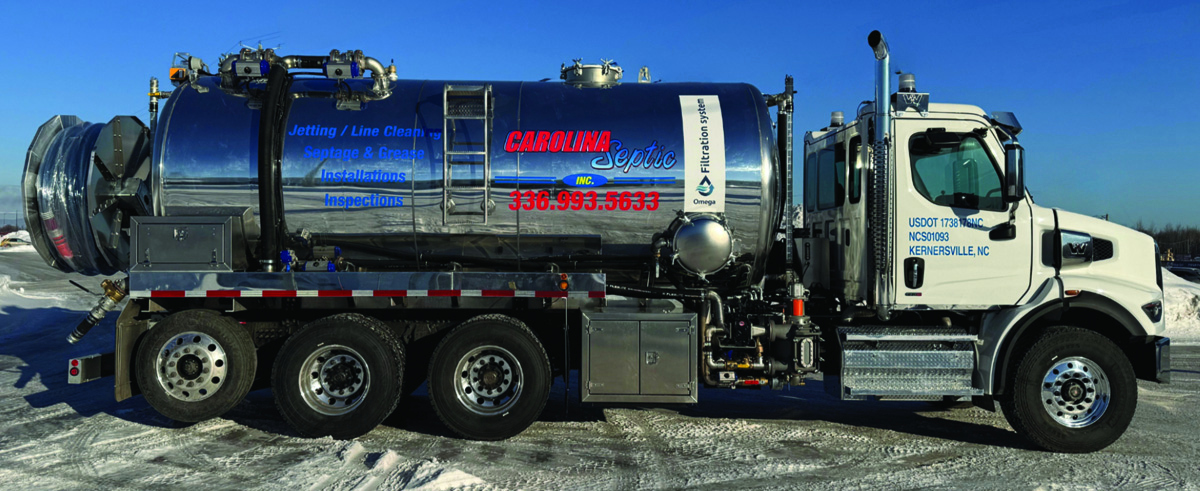

Omega Liquid Waste Solutions Vacuum Truck
Imagine doing a full pumpout of a septic tank or grease trap — but only hauling a fraction of what you removed to the wastewater treatment facility for disposal. That’s what vacuum trucks from Omega Liquid Waste Solutions can do. They are equipped with a two-compartment tank that separates liquids from solids during pumpout. Once the tank or trap has been completely emptied, the onboard filtration system is engaged: wastewater passes through a self-cleaning stainless steel membrane rated at 100 microns, with no chemicals or additives. The clarified wastewater is returned to the same system it came from, eliminating cross-contamination. For septic tanks, returning the original water also helps keep the tank’s natural bacteria in place. Only the retained sludge and grease are hauled away. By reducing the volume transported, operators can cut disposal trips, fuel use and unloading downtime — helping them stay productive as treatment facility access tightens and disposal costs continue to rise. 450-651-0444; www.omega-lws.com

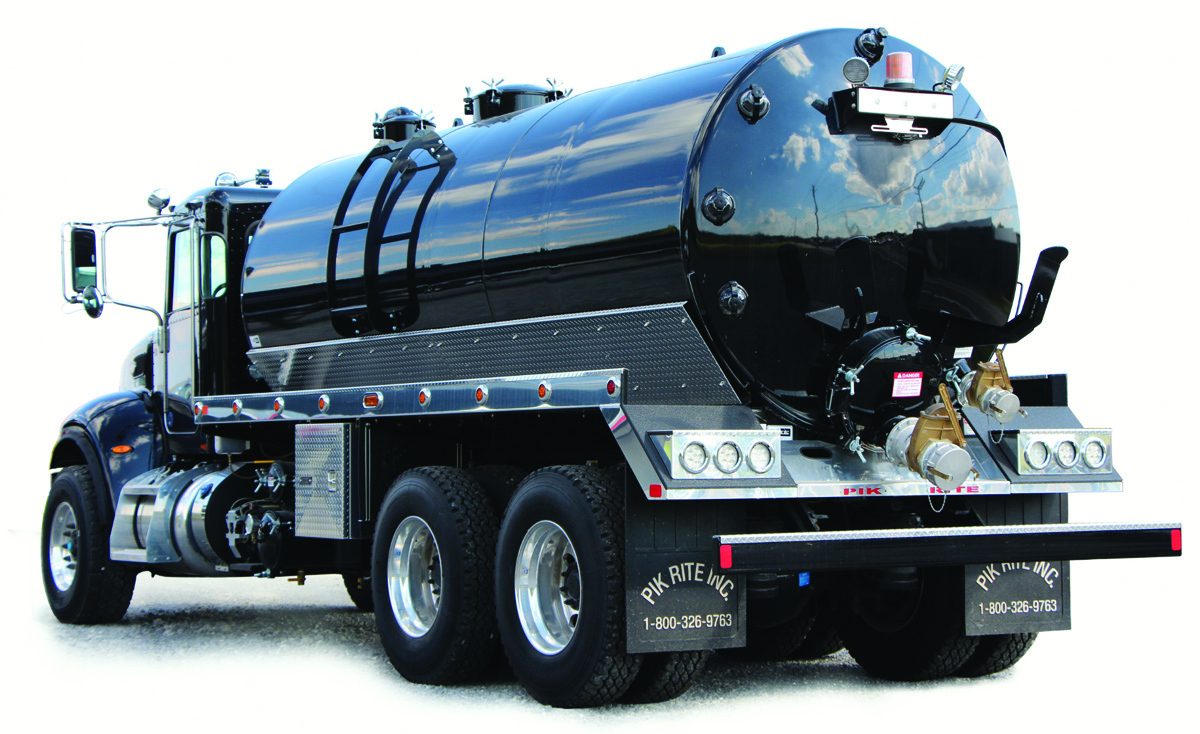

Pik Rite steel 3,600-gallon vacuum tank
The Pik Rite steel 3,600-gallon vacuum tank is designed for strength and reliability. Its 3-inch internal plumbing keeps the exterior clean and simple. The vacuum pump mount is attached to both frame rails and easily supports pumps from any major manufacturer. It has four sight eyes for the waste compartment. The tank interior is equipped with walkthrough baffles and a 20-inch rear manway for easy clean-out. The LED running light kit is installed with a fully molded wiring harness. Operator work lights and a strobe light are mounted on the top rear lighting bracket. Polished aluminum hose trays and low hose hooks are coated with protective liner. 800-326-9763; www.pikrite.com

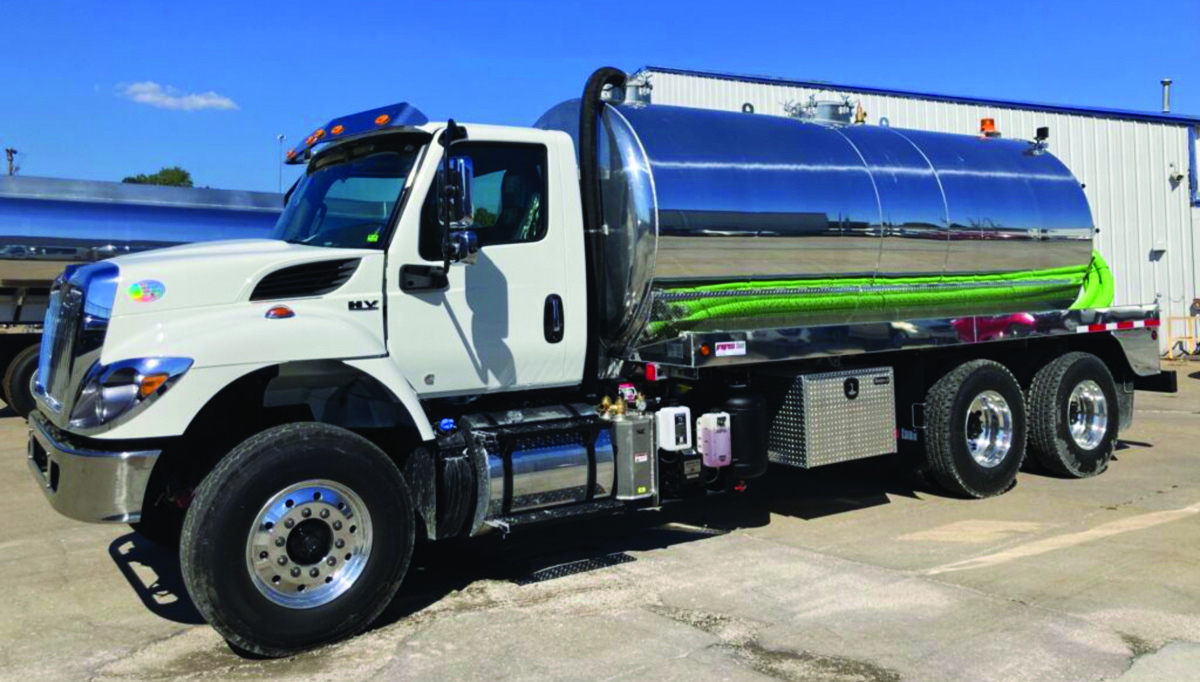

Progress (Powered by Garsite) Vacuum Truck
The Progress (Powered by Garsite) Vacuum Truck is equipped with a 4,000-gallon aluminum tank and a National Vacuum Equipment Challenger 4310 blower (940 cfm), designed for optimal efficiency and reliability. Key features include full-flanged and dished heads for baffles, a soft-start PTO, a 4-inch vacuum inlet with a lever valve, a 6-inch discharge with a lever valve and three 5-inch sight glasses on the rear tank head. Additionally, the truck offers full-length aluminum hose trays, a SeeLevel indicator, a 24-by-24-by-36-inch aluminum toolbox, an LED light package, two rear LED work lights, a backup camera and a DOT bumper, combining top-tier functionality with enhanced safety features. 800-467-5600;
www.progresstank.com

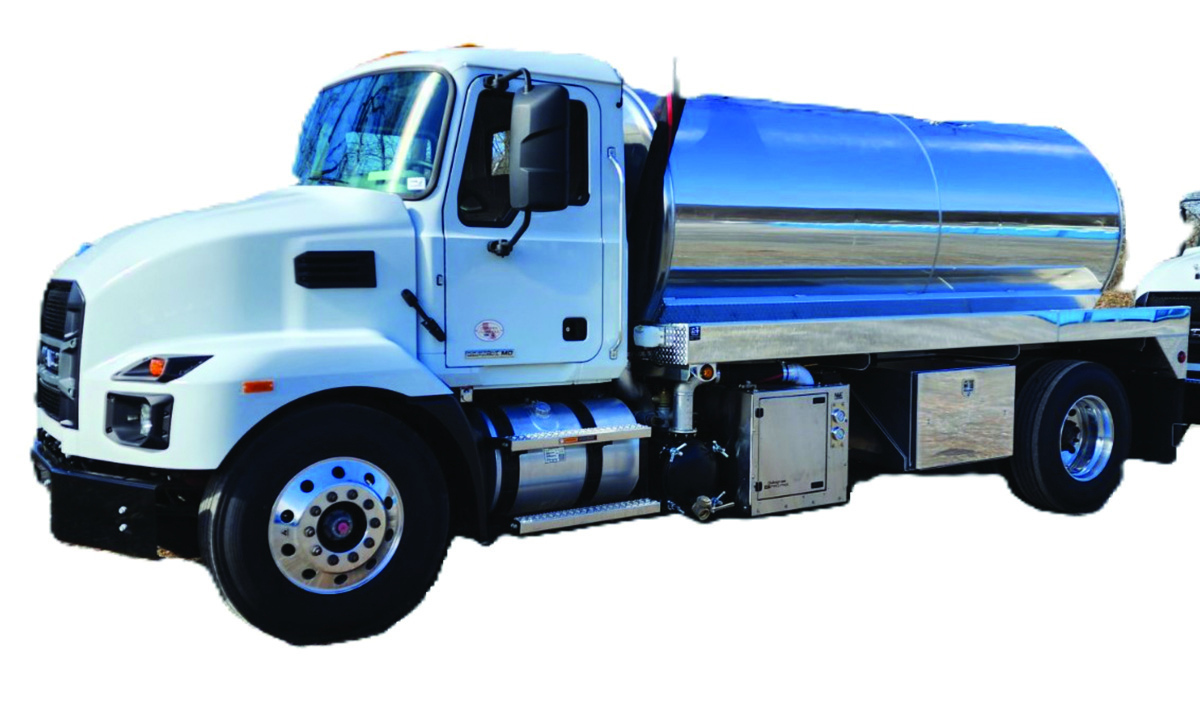

Robinson Vacuum Tanks VAC2500
The aluminum VAC2500 from Robinson Vacuum Tanks can ride on a single-rear-axle vehicle. Features include a 20-inch top manway with passenger side ladder, 20-inch rear manway with 4-inch TTMA flange and 4-inch brass lever valve for discharge, and a heavy-duty steel bumper with aluminum diamond plate cover.
814-933-0927; www.robinsontanks.com

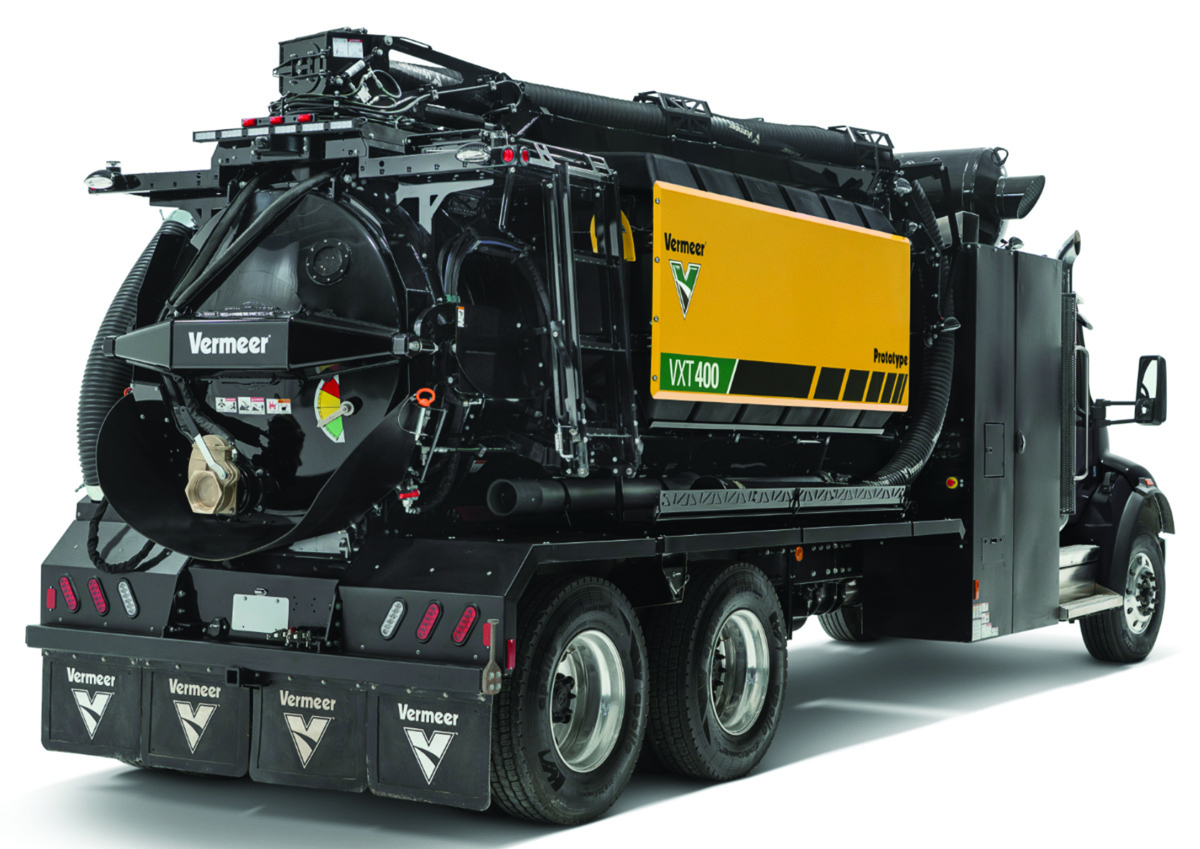

Vermeer VXT400
The Vermeer VXT400 vacuum truck combines powerful performance with a compact, lightweight design ideal for navigating busy city streets and tight work areas. With 4,131 cfm airflow and 18 in Hg vacuum capacity, it efficiently handles demanding vacuum excavation applications. Available in 8- or 12-cubic-yard spoil tank capacities with GVWR options of 58,000 or 86,000 pounds, the unit offers flexibility for various job requirements. Boom configurations include 6- or 8-inch-diameter options with telescoping or hose-handling capabilities.
352-728-2222; www.vermeer.com
Washdown Pumps

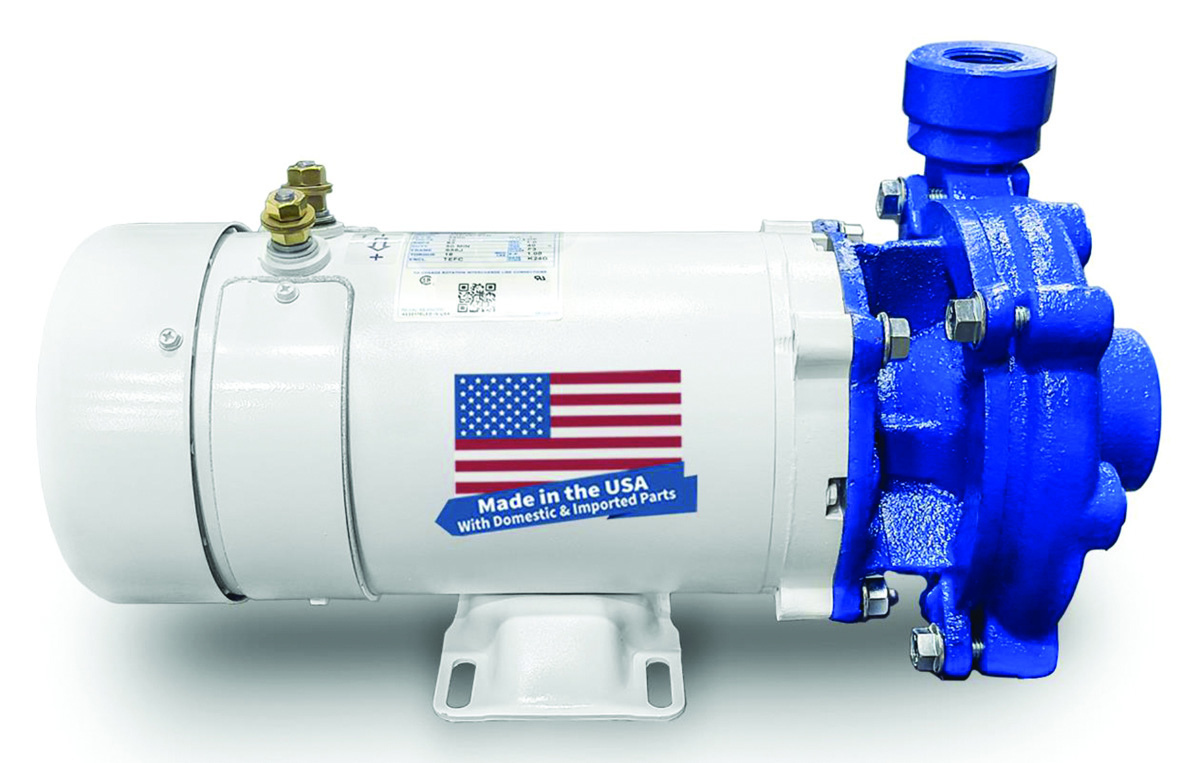

Moro USA DC Washdown Pumps
Moro USA DC Washdown Pumps achieve a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. These centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12-volt DC motor, stainless steel impeller, four front drain plugs and a carbon/ceramic/VITON mechanical seal. They require installation of an in-line circuit breaker and a 12-volt Solenoid. Full washdown pump kits include a 12-volt solenoid, pressure switch and in-line circuit breaker. 866-383-6304;
www.morousa.com
Water Pumps

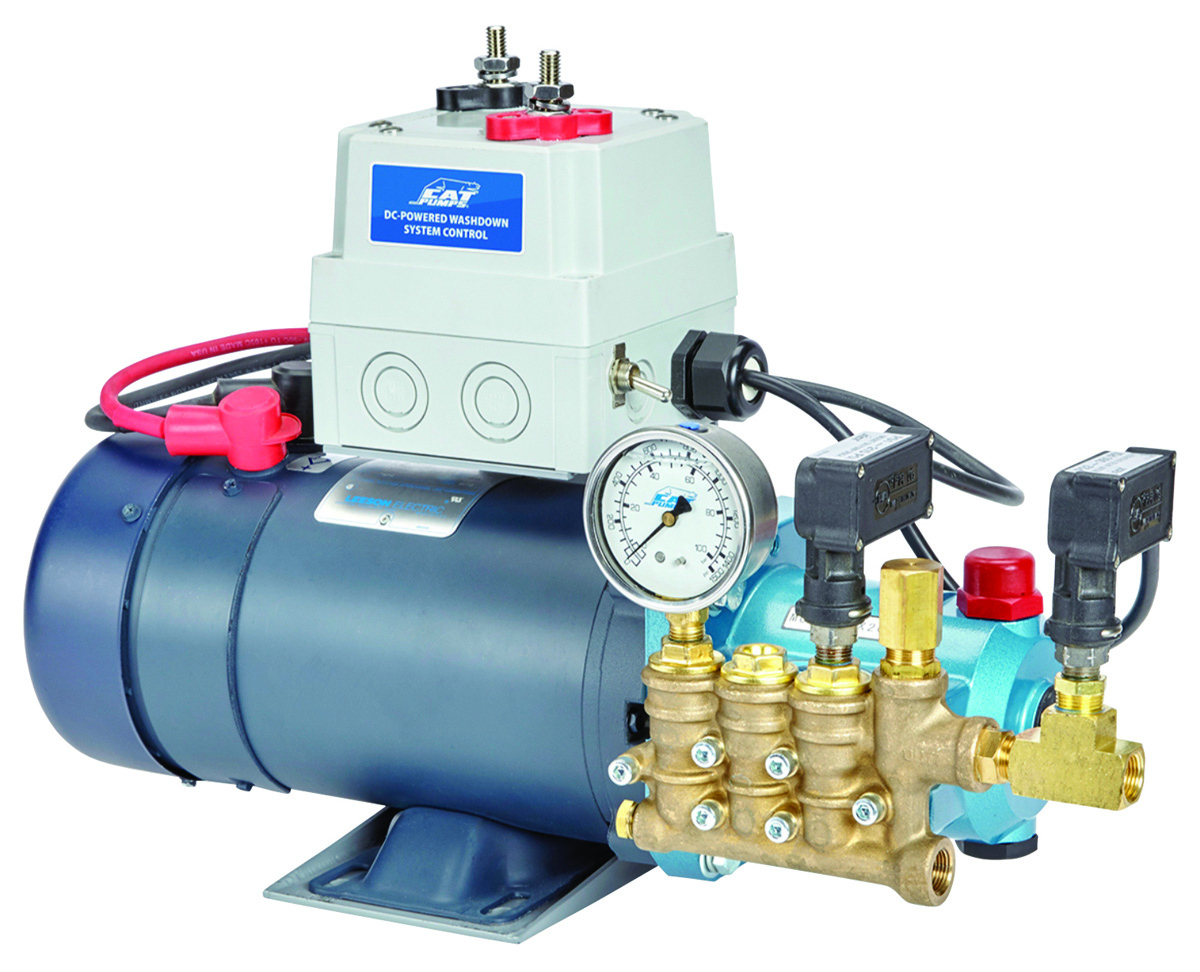

Cat Pumps 4SP and 4DX Series
Cat Pumps pairs its 4SP and 4DX Series high-pressure pumps with DC electric motors to deliver dependable, on-the-go cleaning power. Designed for applications such as restroom servicing, equipment washdown and surface cleaning, these compact systems provide up to 3 gpm at pressures ranging from 400 to 1,000 psi while operating on standard DC power sources. An integrated auto start/stop control runs the system only when there is demand, reducing wear on the pump and motor while extending service life. Built-in unloaders accurately maintain pressure and divert flow during bypass, minimizing system load and improving overall durability. Each pump ships with prefilled crankcase oil, allowing for immediate installation and operation. Multiple build-to-order configurations are available to meet specific application requirements. 763-780-5440; www.catpumps.com

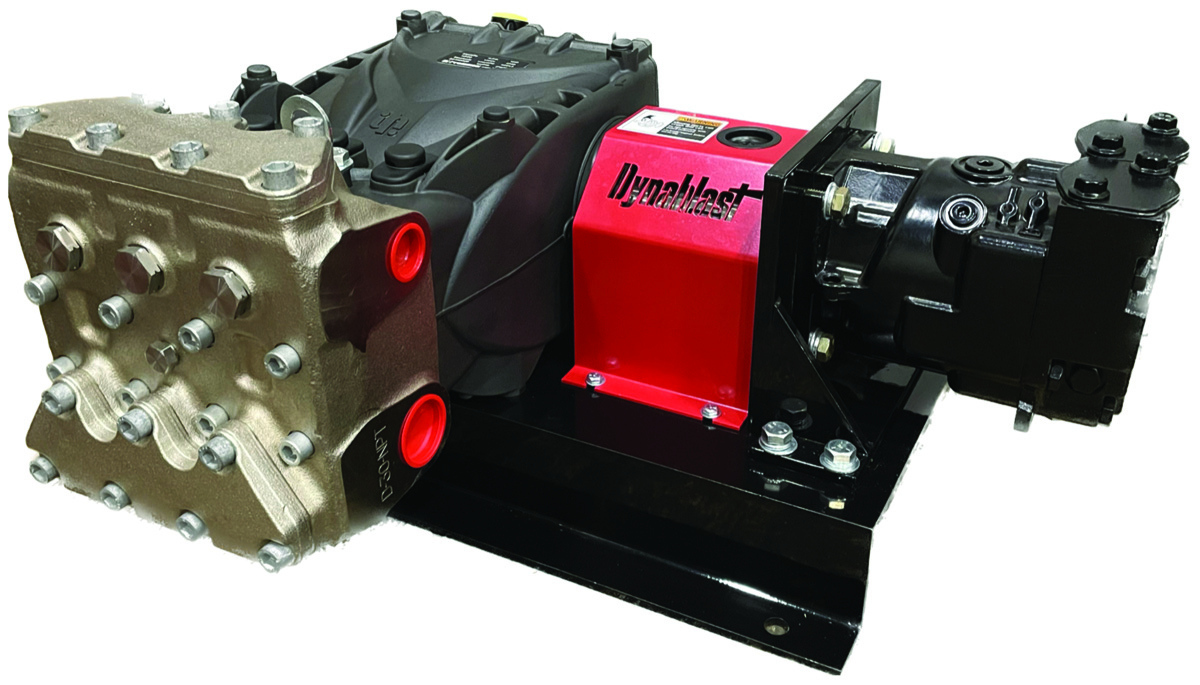

Dynablast Pratissoli KFR25
The Pratissoli KFR25 water pump, distributed by Dynablast, offers 19.4 gpm at 3,200 psi at 1,000 rpm. It is available on a coupler-driven hydrovac skid or T14 female spline shaft input and SAE C 2/4 bolt flange for direct mounting to the hydraulic motor. It has run-dry seals, Kevlar graphite rope, a 420 stainless steel manifold for protection from cavitation, stainless steel valve cages for protection from cavitation, a self-lubricating design with no weekly oil lubrication required, a symmetrical crankcase that makes it easy to reverse-shaft the pump, internal fins on its aluminum crank case to provide cooling to lower the oil temperature, a tapered roller bearing for improved lateral loading and two bore ceramic plungers that are thicker ceramic on the water end to prevent thermal shock. 905-867-4642; www.dynablast.ca
