Dewatering Equipment

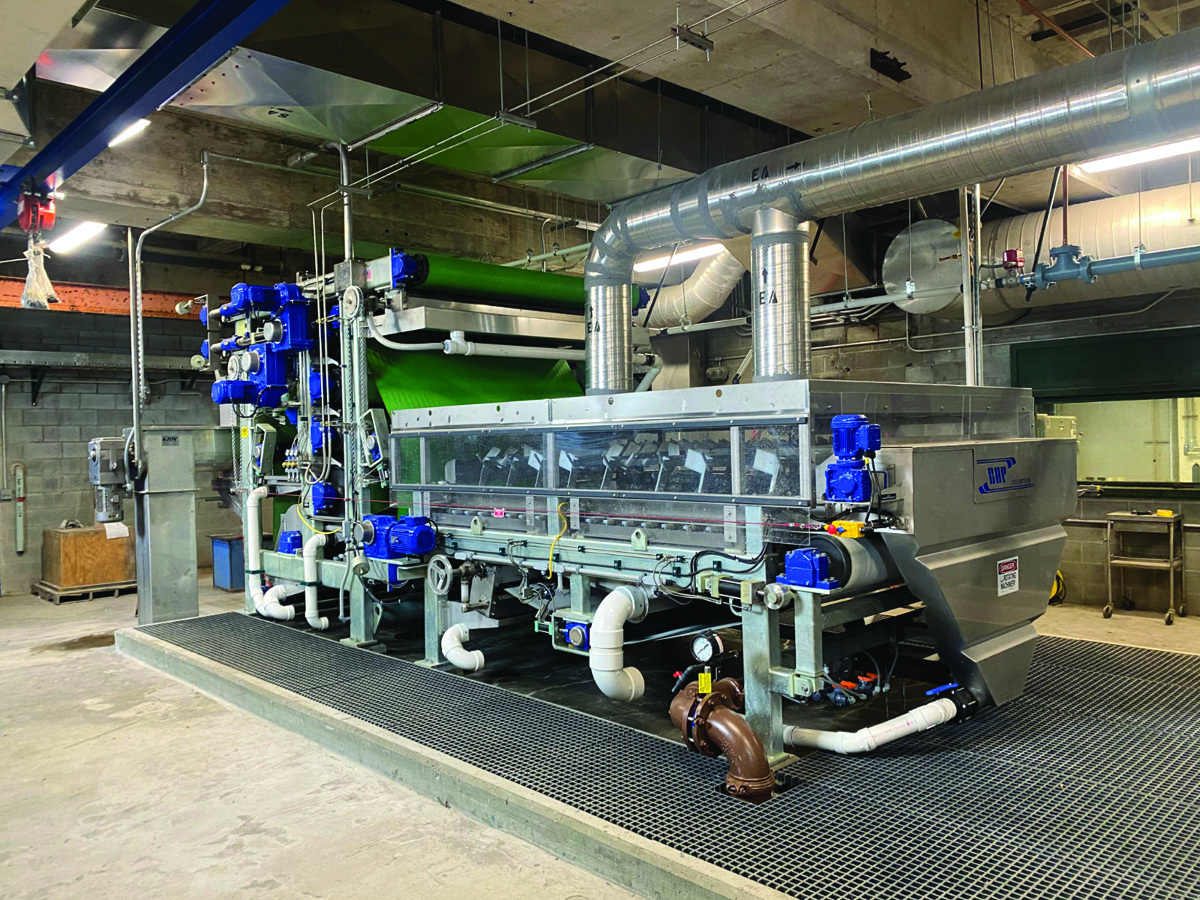

BDP Industries 3DP Belt Press
The 3DP Belt Press from BDP Industries is a modern belt press with recent improvements designed for increased odor control and solids containment. New features include odor hoods, mist reducing showers, piped away filtrate and increased automation. The increased containment of material has led to an even more efficient machine while also becoming more operator-friendly. 518-695-6851; www.bdpindustries.com

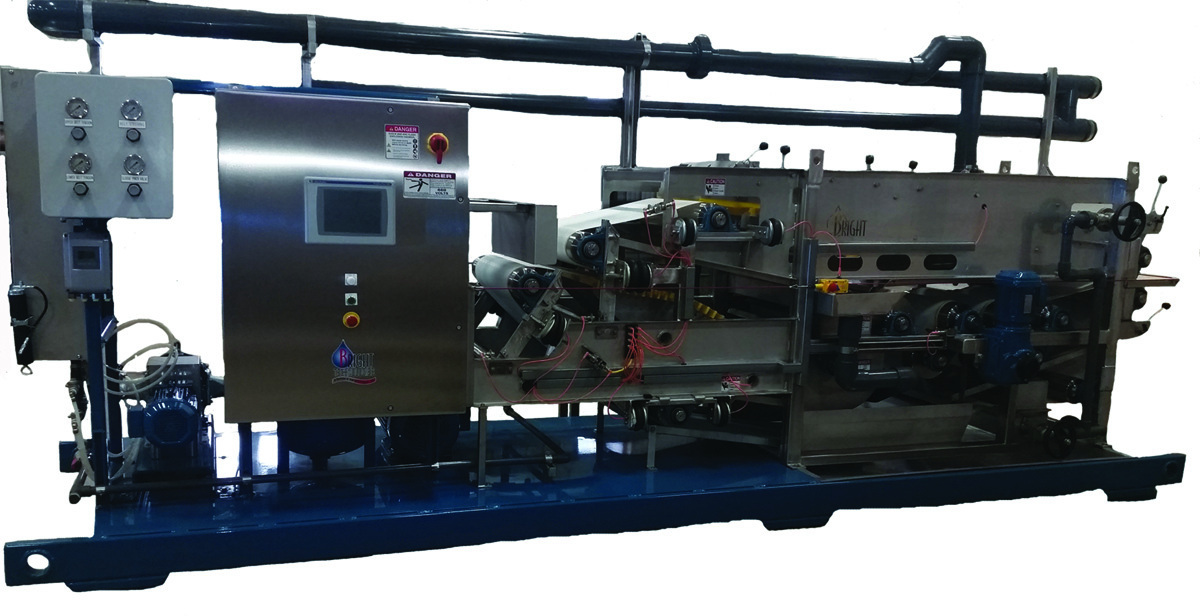

Bright Technologies, Division of Sebright Products, 0.6-meter skid-mounted belt filter press
The compact 0.6-meter skid-mounted belt filter press from Bright Technologies, Division of Sebright Products, has stainless steel frame and roller construction as well as radius wedge zone and wing roller for sludge dewatering. Components include a sludge pump, polymer system and washwater booster pump. Options include a sludge flowmeter, air compressor and discharge conveyors. With a compact, walk-around skid design, it can be utilized in as little as a 10-by-20-foot floor area. The Boerger rotary lobe sludge pump has a maintain-in-place design. Cake solids of up to 35% can be achieved. Rates of 25 to 50 gpm make it suitable for small applications or when a processor has outgrown dewatering containers. 800-253-0532; www.sebrightproducts.com

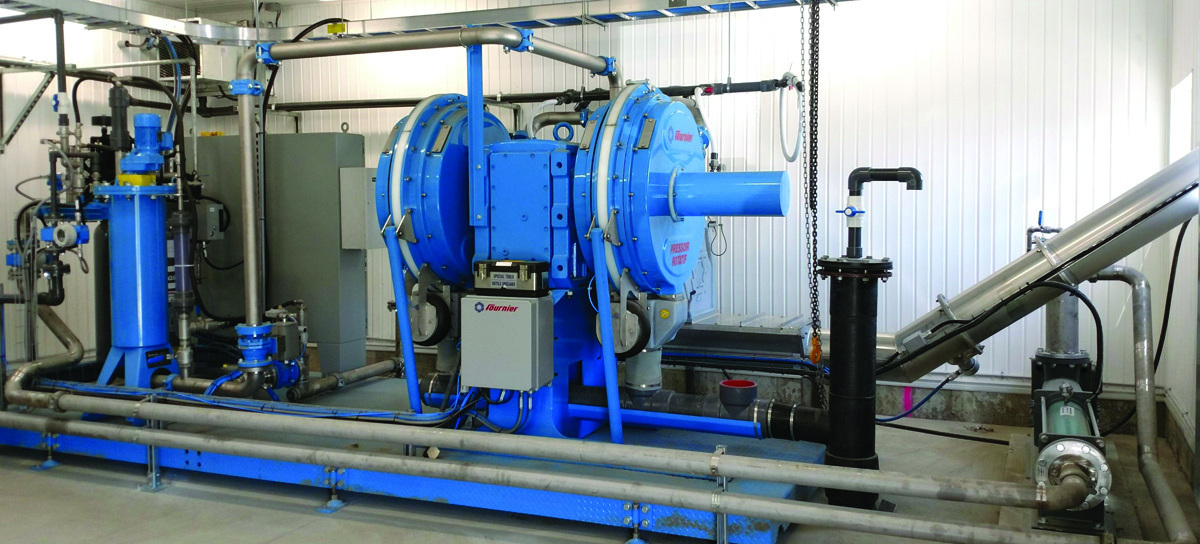

Fournier Rotary Press
The Fournier Rotary Press is automated and requires minimal supervision. The variable-speed flocculator diminishes polymer usage, resulting in cost reduction and improved cake dryness. Low rotation speed reduces wear and tear. It does not require any wash water during operation. Modular design accommodates growing needs by adding extra dewatering channels in the future to increase production without any added footprint or change in process design. 800-463-6328; www.fournierdewatering.com

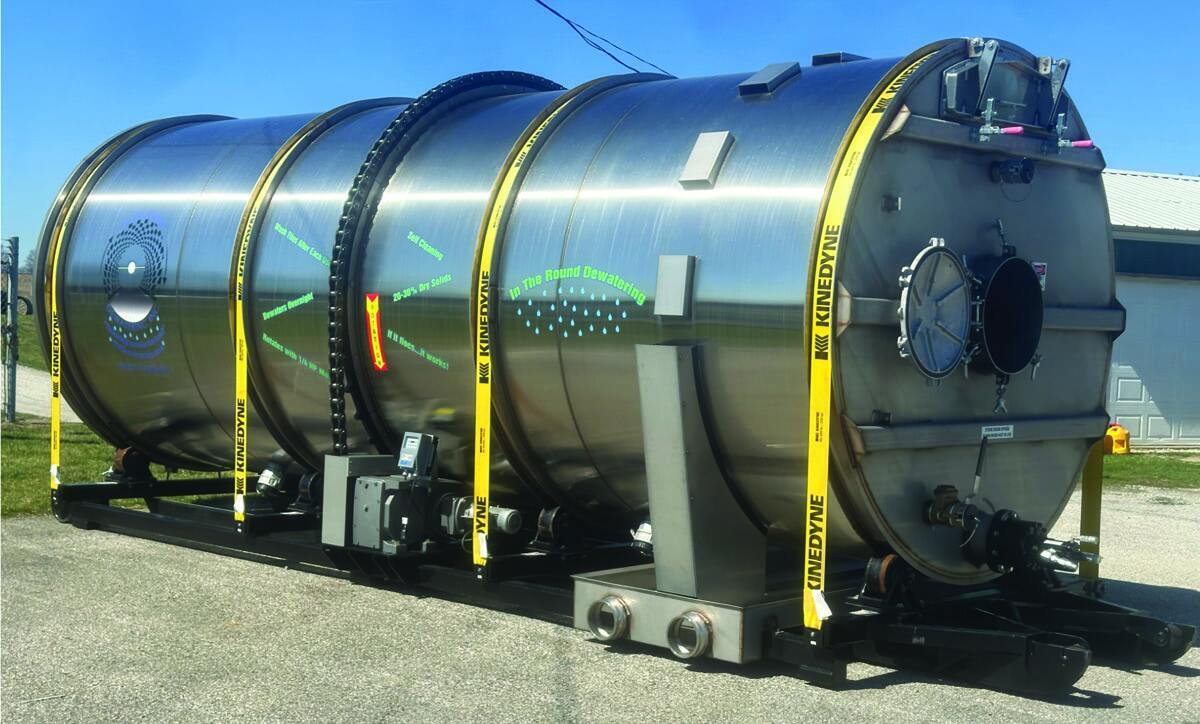

In the Round Dewatering horizontal drum
The horizontal biosolids dewatering system from In the Round Dewatering provides the flexibility of dewatering at different locations and transporting dewatered solids to any unloading location. Open the door, raise the hoist and material comes out. The unit has a 12-inch auger permanently secured to the floor of the drum. The unloading process begins when the hydraulic power pack is connected to the hydraulic motor that turns the auger, then the drum rotates in the opposite direction, allowing the material to slide into the auger and have a controlled rate of discharge. The drum rotates one turn every two hours overnight, then material is liquid-free in the morning. The unit has a power flex nozzle that is inserted after the drum has been emptied to wash the entire drum in 30 minutes. The unit is constructed of a stainless steel drum sitting on heavy-duty roller bearings on a powder-coated frame and lined with PVC filter tiles. 317-563-2072; www.itrdewatering.com

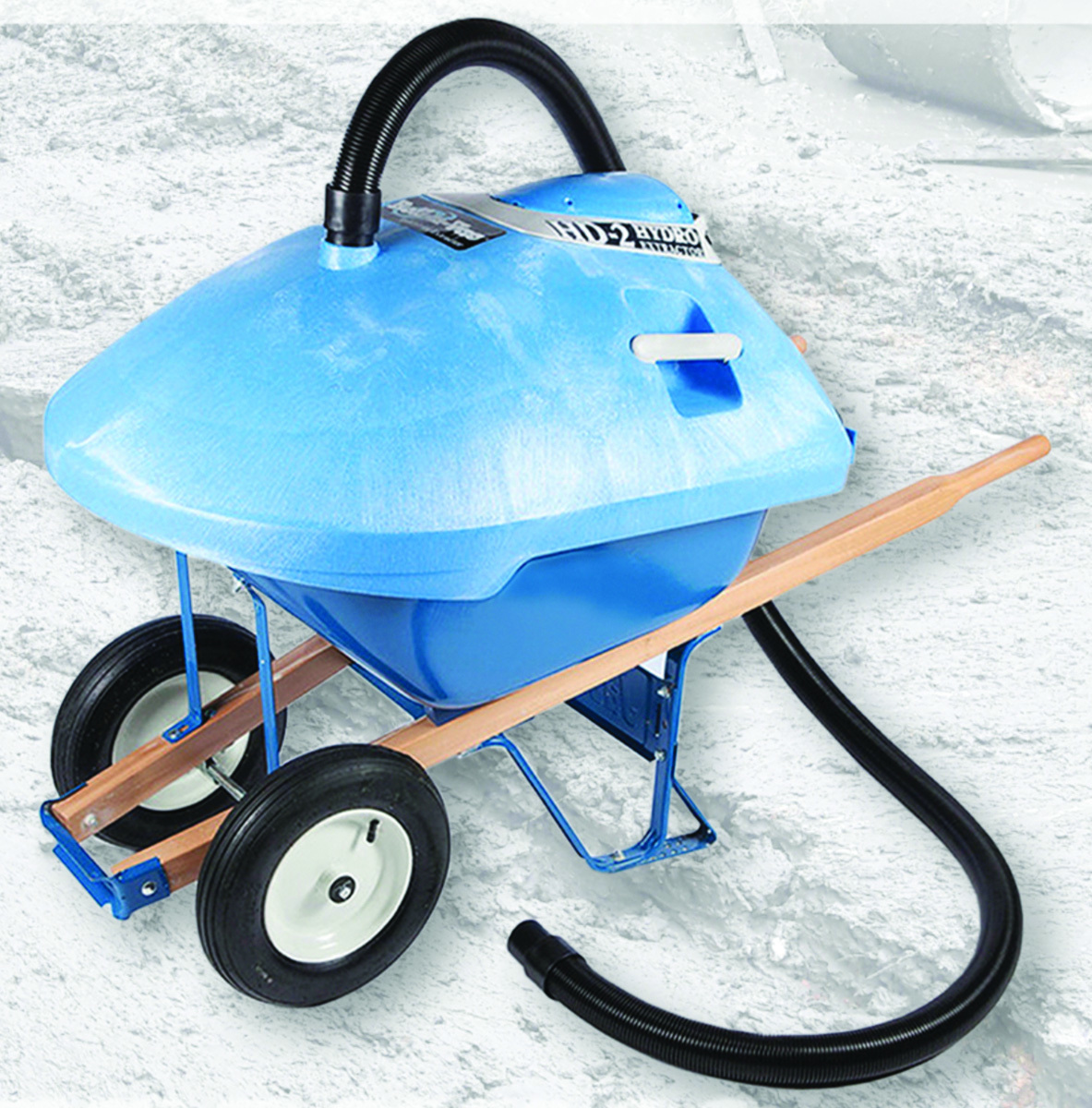

RNV Hydrovac2
The RNV Hydrovac2 can be placed on an RNV-approved 6-cubic-foot steel construction-grade wheelbarrow to create a portable hydrovac. It can vacuum down vertically to 12 feet to convey effluent sludge, sand and small aggregate. It can be combined with a pressure washer or air spade for another excavation solution. The unit weighs 42 pounds, requires a 120-volt AC, 15-amp power outlet and will run on a 2,200-watt generator or inverter. 607-786-2139; www.rnvac.com
Dewatering/Bypass Pumps

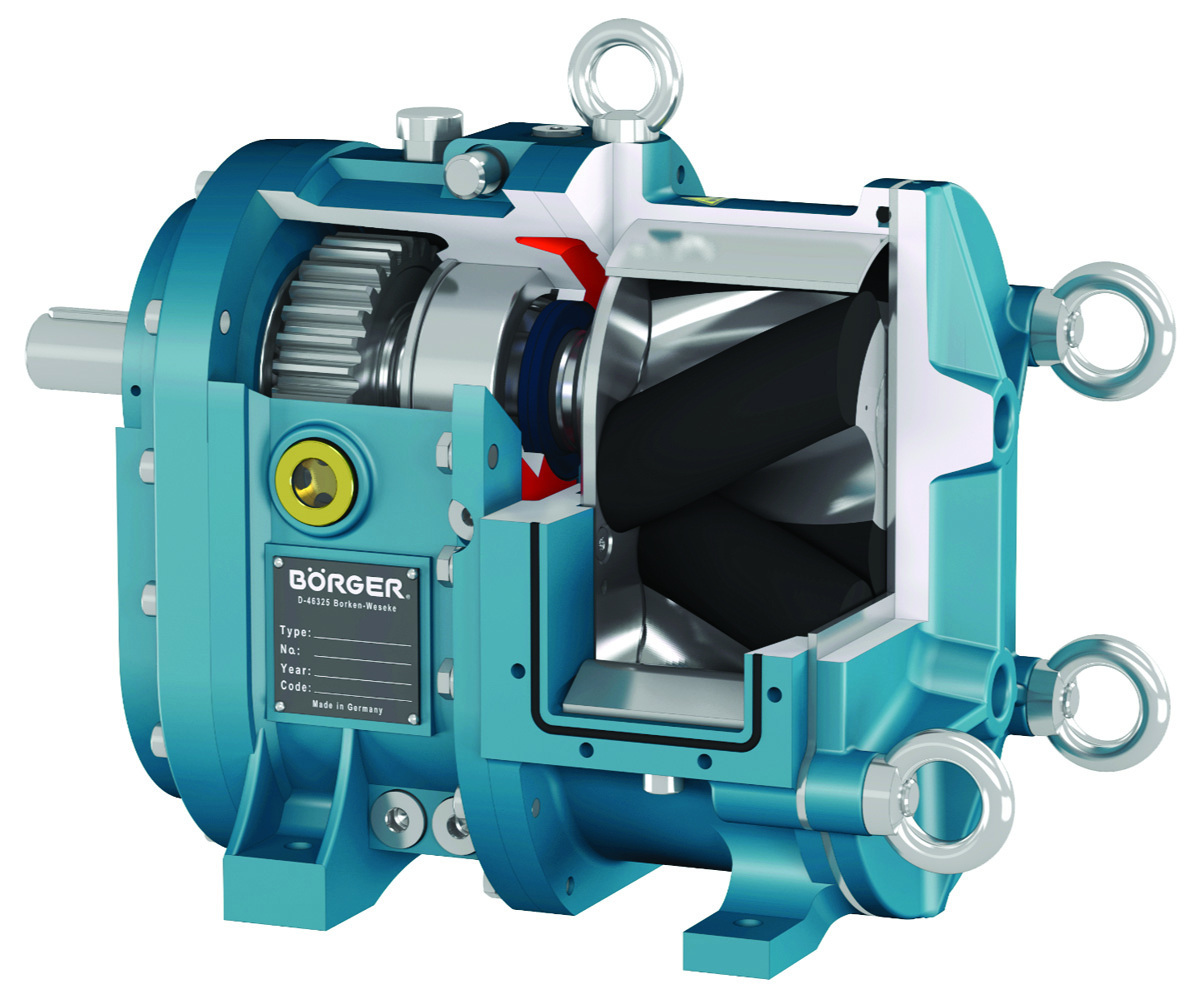

Boerger BLUEline
Boerger BLUEline rotary lobe pumps are a self-priming, valveless, positive displacement pump used for conveying viscous and abrasive materials. They are resistant to wear and provide pulsation-free operation. Operation is fully reversible, with dry-run capability and flow rates up to 7,000 gpm. They are constructed with maintenance-in-place design, allowing for all wetted parts to be easily replaced through the front cover without removing pipe or drive systems. The pump conveys biosolids (primary, waste activated sludge, return activated sludge, digested, thickened, etc.), grease, sewage, scum, lime slurry, alum sludge, permeate and polymers. 612-435-7300; www.boerger.com

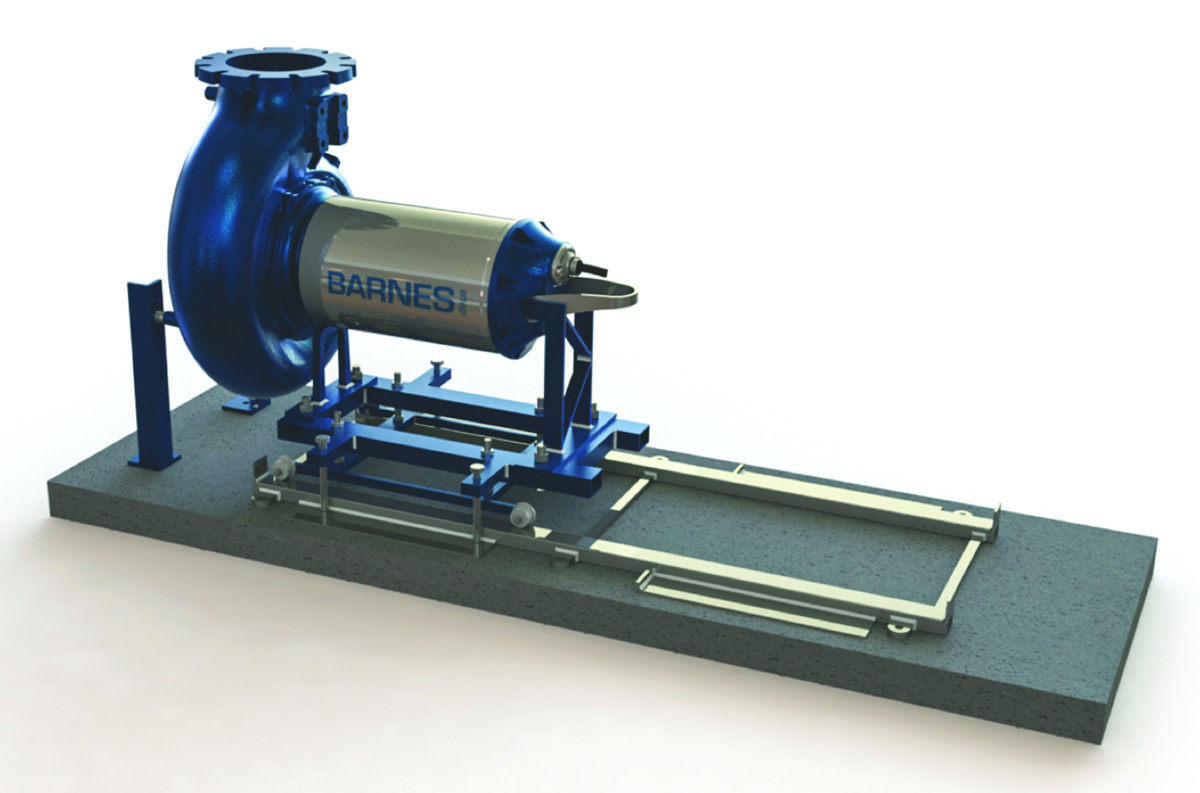

Crane Pumps & Systems envie3
The envie3 air-filled motor series dry pit submersible pump from Crane Pumps & Systems can run in wet applications and in dry pits. These pumps outfit Barnes’ and Deming’s nonclog and chopper wet ends with a premium efficient/IE3 motor that can run in both vertical and horizontal configurations. The closed-loop glycol cooling system allows for easy maintenance and installation in demanding applications. For easy serviceability, the horizontal installation options include a cart system, which creates a back pullout option as well as a fixed bracket configuration. Install horizontally for a smaller footprint. Vertical installation configurations include a metal and concrete stand that allow for 360-degree rotation for adapting to existing piping, including tangential discharge pumps. 937-214-9008; www.cranepumps.com

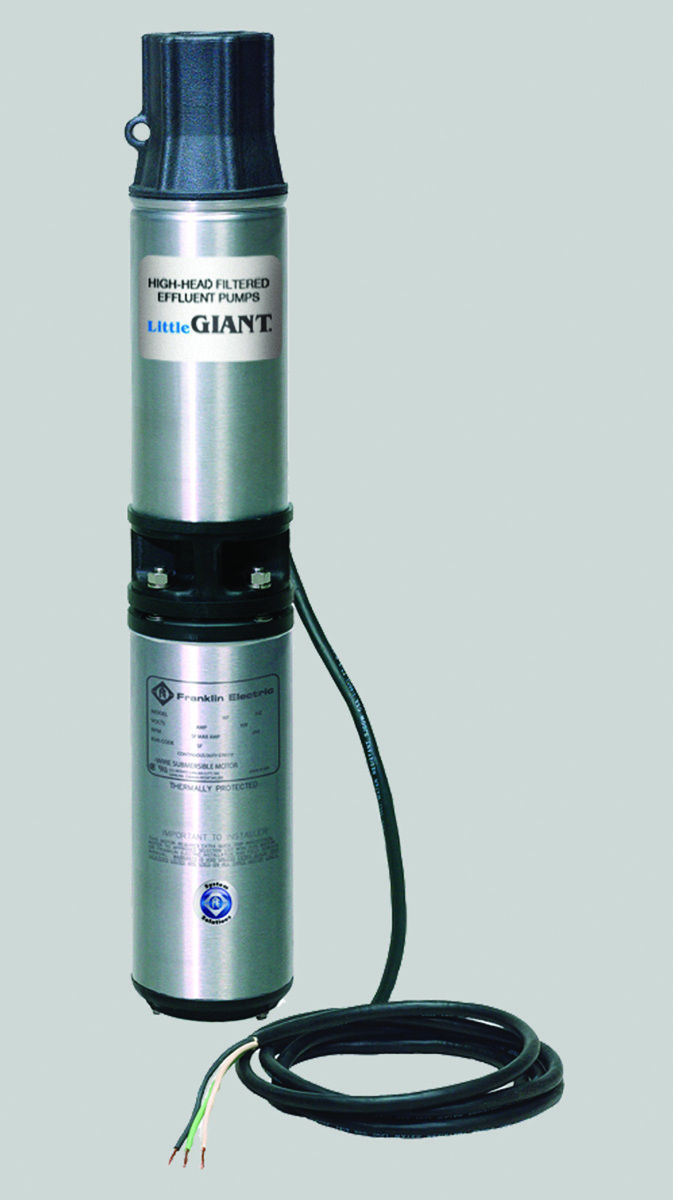

Franklin Electric Little Giant WE Series
The Little Giant WE Series is built with a Franklin Electric submersible motor, designed to provide maximum durability and years of reliable service. It consists of a high-head filtered effluent pump powered by a 1/2 hp submersible motor and includes a removable built-in check valve. The quality top bearing and stainless steel upthrust washer provide durability and reliability, according to the maker. 800-437-6897; www.littlegiant.com
Grit Handling

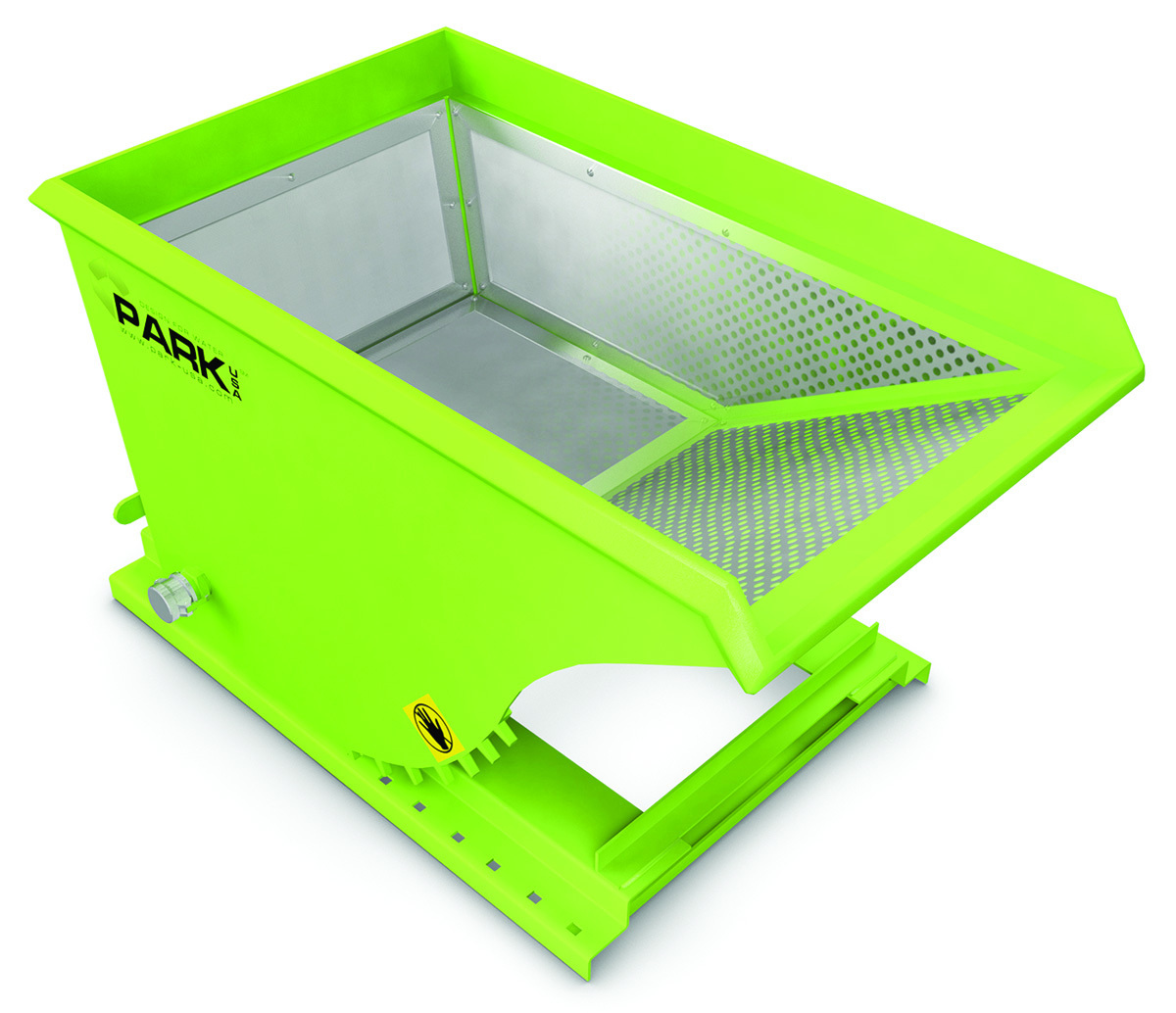

Park Process GritCat
The GritCat from Park Process is a dewatering container designed to process waste streams containing gritty, sandy solids or any type of nondeformable solids. Its filter media is permanently installed over porous support panels in the container and is reusable and cleanable. A variety of types of filter media are available, including stainless steel wire mesh, polyester woven material, nylon mesh and polypropylene monofilament. The product is simple to operate and maintain, according to the maker. Units are built as roll-off containers, self-dumping hoppers or front loaders. 855-511-7275; www.parkprocess.com
Roll-Off Containers

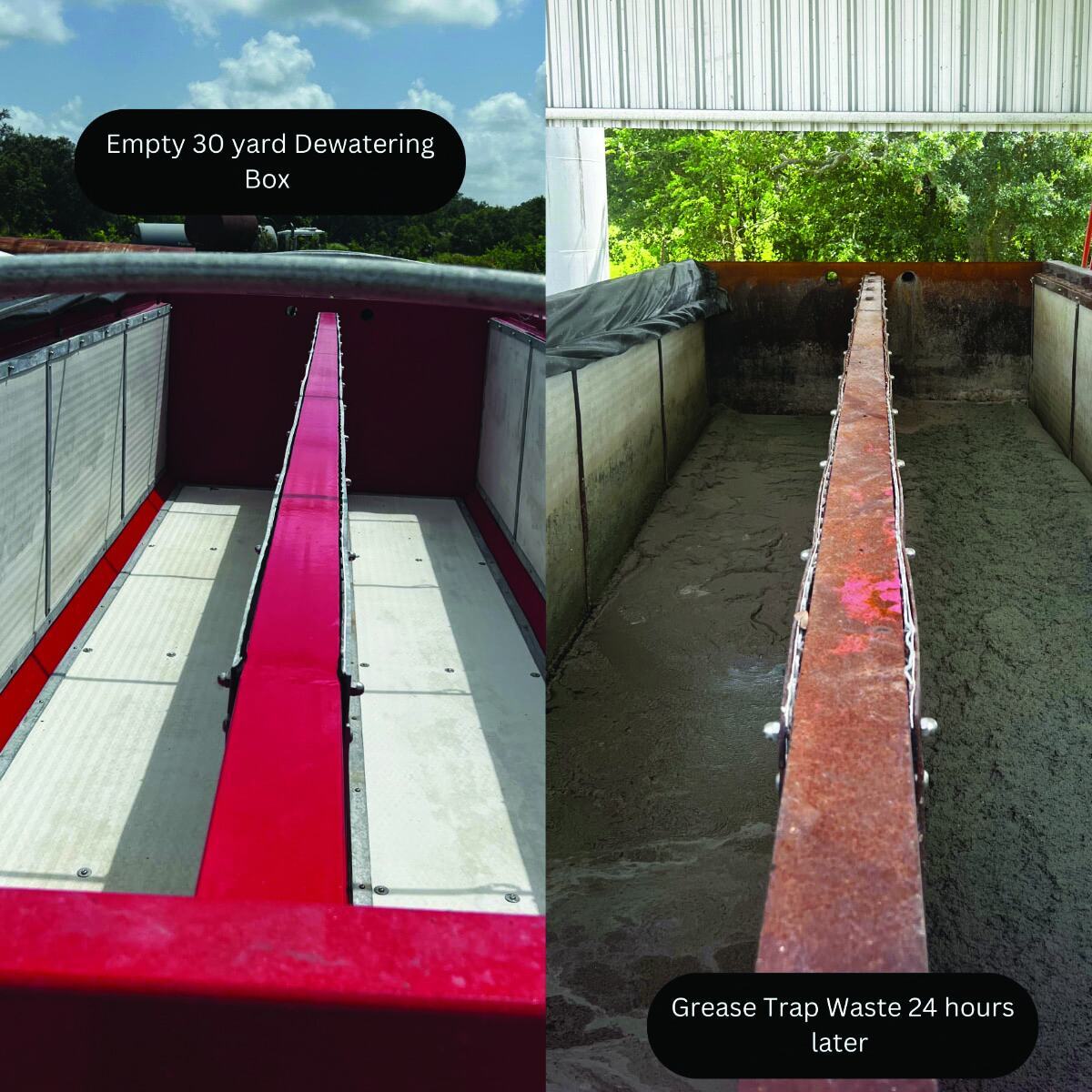

AQUA-Zyme Disposal Systems ADS
The ADS 30-yard open-top roll-off dewatering unit from AQUA-Zyme Disposal Systems can be filled with 22,000 to 25,000 gallons of biosolids at 1% to 2% solids in about two hours. After draining for 24 hours, the unit can be picked up using a standard-capacity roll-off truck and transported for solids disposal. Sludge volume can be reduced by 80% with reductions to 98% in BOD, COD, FOG and TSS. Effluent is clear, the unit has few moving parts, and the size of filter media can be selected according to job requirements. Standard equipment includes a roll-over tarp system; side, floor and center screens; 1/4-inch floor plate; 7-gauge side plates; four door-binder ratchets; eight drain ports; two inlet ports; and a long-handle scraper. Units are also available in a 15-yard size. 979-245-5656; www.aqua-zyme.com

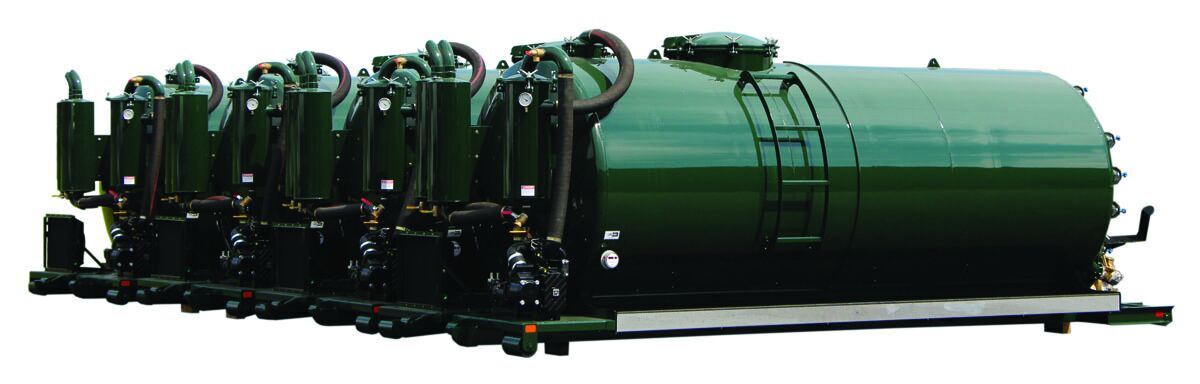

Pik Rite self-contained roll-off unit
Pik Rite self-contained roll-off units are fully operational at the pumping site without a chassis. The heavy-duty front platform holds the user’s choice of pump and a Kohler 25 hp electric-start engine. The tank is set up with a level indicator, rear-sight eyes, 36-inch top opening, 20-inch rear opening, 3-inch intake with an internal 3-inch standpipe, and a 4-inch discharge. The low-profile, 12-inch primary shut-off is paired with a 10-gallon secondary shut-off. Spray-on protective liner protects hoses and promotes durability. Work lights and a safety beacon are mounted on the rear tank head, and a ladder is mounted on the side. Polished aluminum hose trays and custom paint finish are standard. Other customizable options are available. 800-326-9763; www.pikrite.com

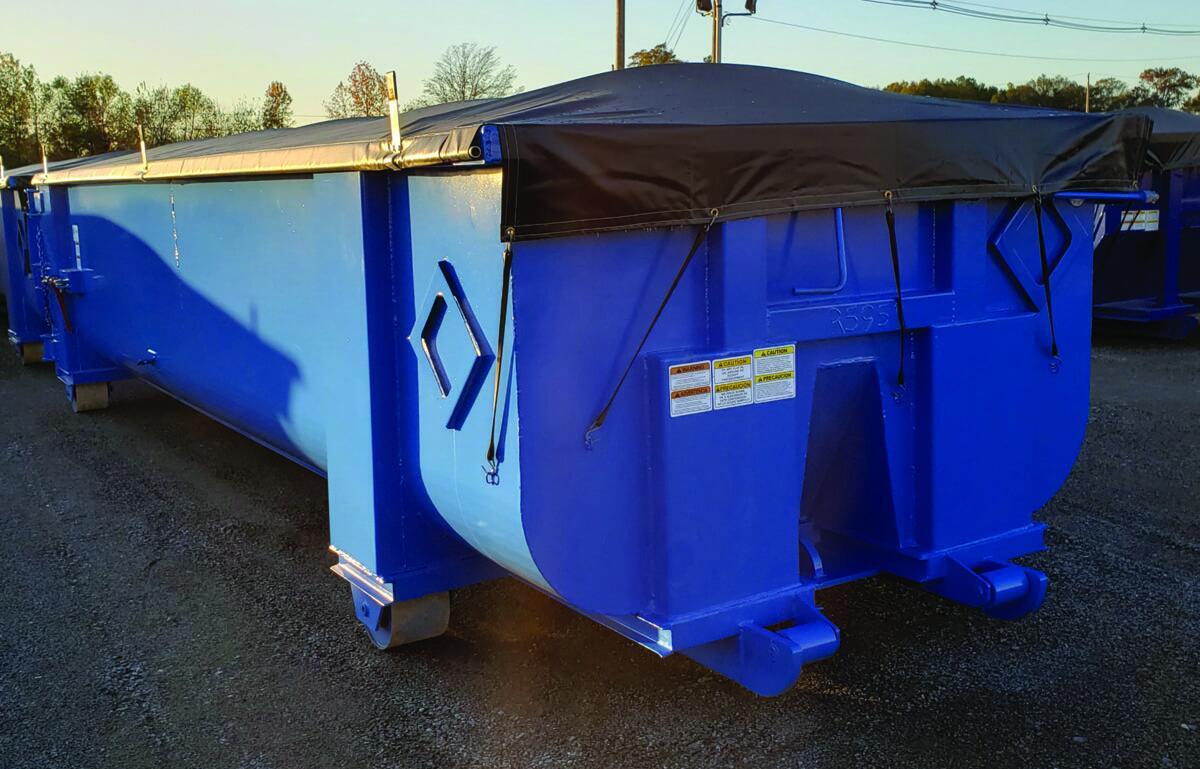

Pinnacle roll tarp sludge container
Roll tarp sludge containers from Pinnacle come standard in 20-, 25-, 30- and 40-cubic-yard capacities. The radius-bottom containers have 1/4-inch floors and 3/16-inch sidewalls. Containers are water-tested to the top of the container for 30 to 45 minutes and come standard with a side-roll tarp. Custom sizes, dewatering baskets and other modifications are available. Units are blasted prior to painting and the shell is powder coated. 256-840-8031; www.pinnaclemfg.net
Screens/Strainers/Screening Systems

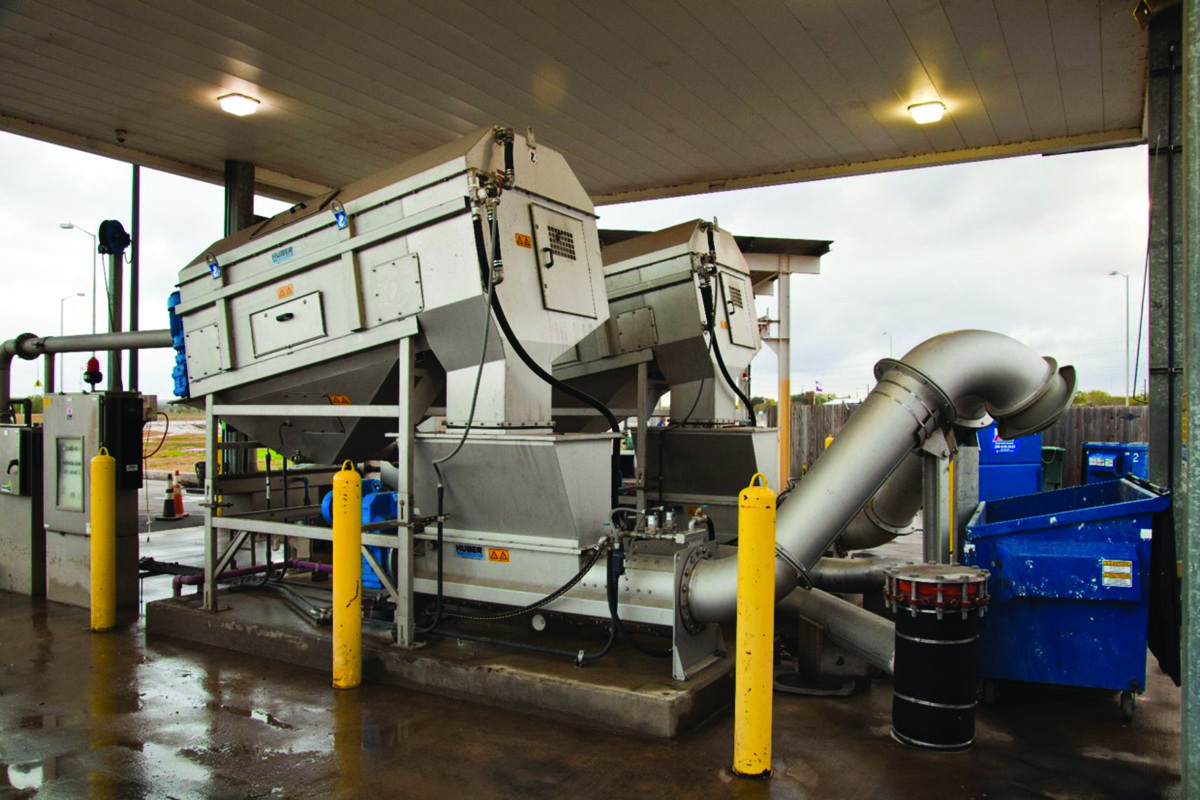

HUBER Technology RotaShield
The RotaShield coarse material separator from HUBER Technology provides protection for septage receiving and hauler dump stations. It incorporates a rotating perforated drum and wash bar to receive loads from septic tanks and portable restroom waste. The nonclog drum is designed to handle large foreign material often found in portable restroom waste. With high throughput capabilities (400, 700 and 1,000 gpm), waste haulers can unload faster and with less complications. In addition to the receiving wash drum, the systems are equipped with a quick cam lock connection, inlet flowmeter, computer access, monitoring and billing software and options for further treatment of separated material. 704-949-1010; www.huber-technology.com

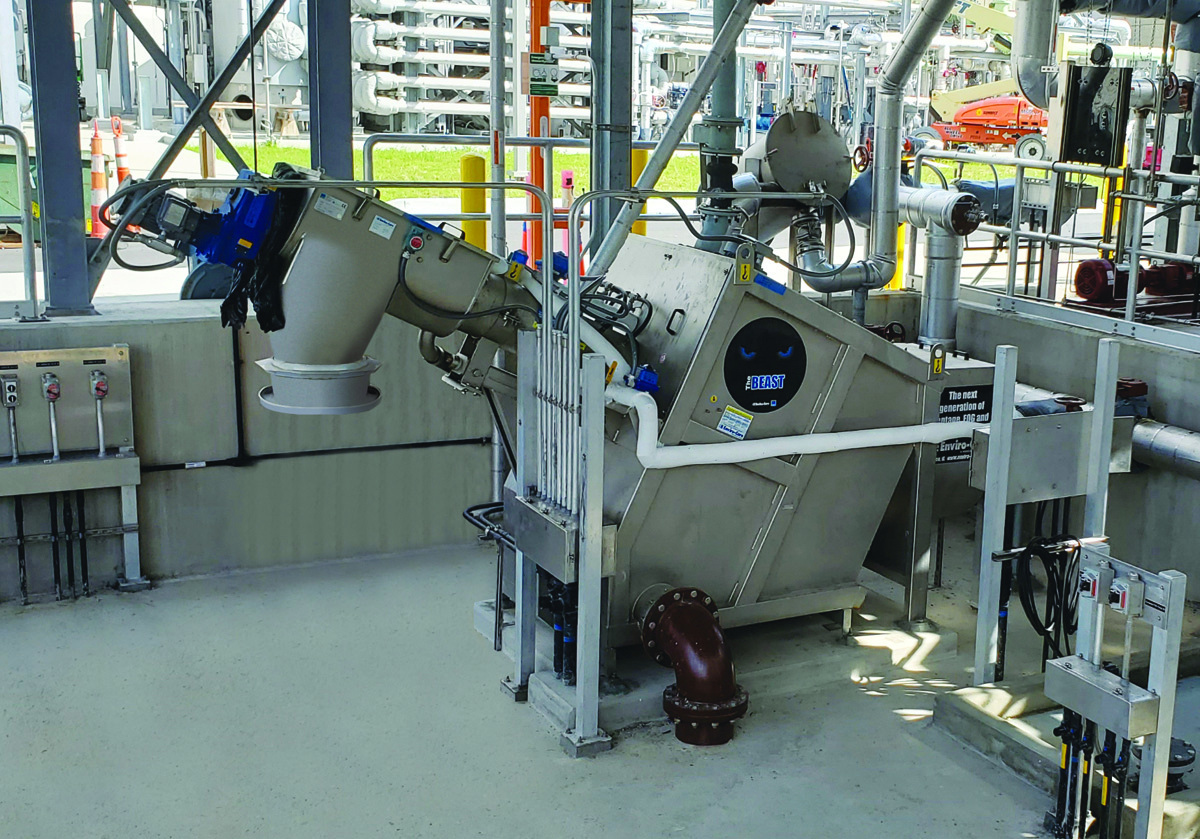

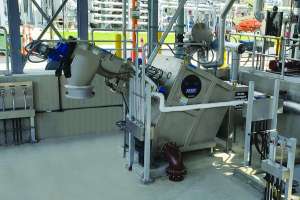

SAVECO North America BEAST
Designed for septage receiving and other high-solids applications, the SAVECO North America BEAST can be a solution for a facility’s high strength organic waste receiving program. It incorporates a dual-drive screening system that allows for independent operation of the screen and transport auger. This design allows the drum speed and auger speed to be controlled independently, allowing for shorter unload times, as well as higher capture efficiency. A sloped inlet and U-shaped flushing header keeps the screen inlet area free of sedimentation and debris buildup. The drum is supported from the top with an oversized slewing ring bearing, which also features an auto-lube system, decreasing routine maintenance requirements and downtime. It doesn’t require ancillary equipment such as rock traps or grinders, providing high performance and low lifecycle costs, according to the maker. 815-636-8306; www.savecowaterna.com

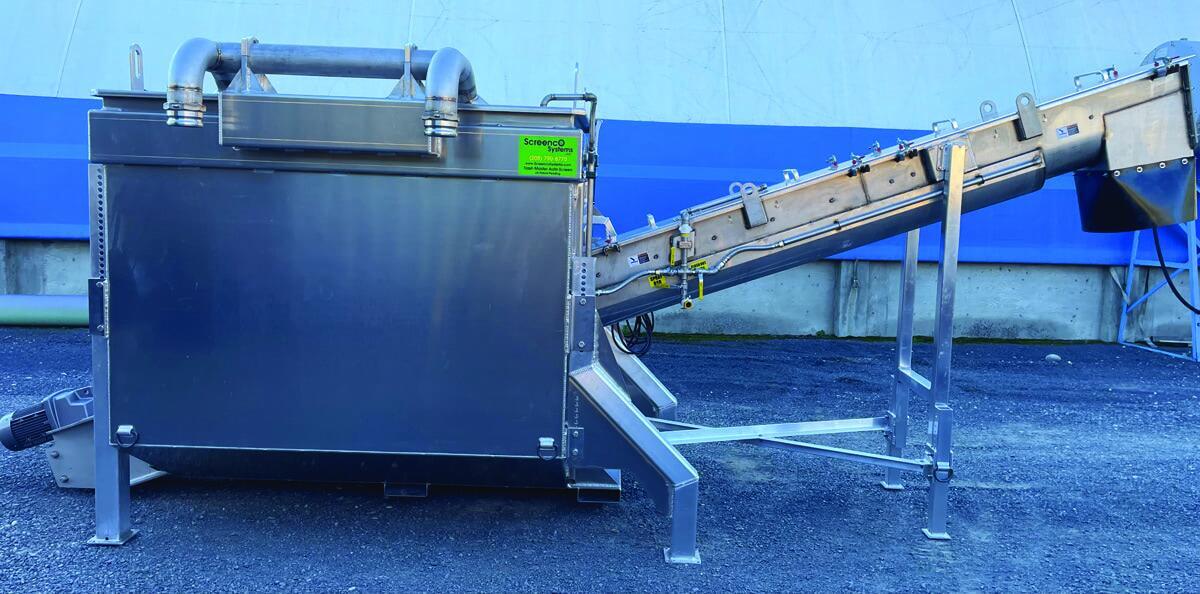

ScreencO Systems Trash Master 600 Auto Screen
The Trash Master 600 Auto Screen receiving station from ScreencO Systems uses gravity to separate trash from the flow stream through a 6-inch inlet with dual fan spreaders, offloading trucks with a single 6- or two 4-inch cam inlets at a rate of up to 800 gpm. It includes an aluminum hopper with 8-inch outlet cam and 3/8-inch gaped 1/4-inch stainless steel bar screen. Its stainless steel U-channel is lined with Titanium UHMW with a high-strength alloy steel 11 1/2-inch shaftless screw conveyor. The U-channel has slotted drain holes and a center channel bar screen to promote cleaner, dryer trash. Custom-built cleaning tools are included. A hopper spray bar with 1 gpm nozzles keep the unit clean and free of buildup. The lower cover has two built-in nozzles for cleaning trash. It has a 3 hp Nord drive with variable frequency drive control, 220 single-phase power for plug-and-play functionality, adjustable legs, fork skids, and a OSHA-compliant catwalk. 208-790-8770; www.screencosystems.com
