Hose and Fittings

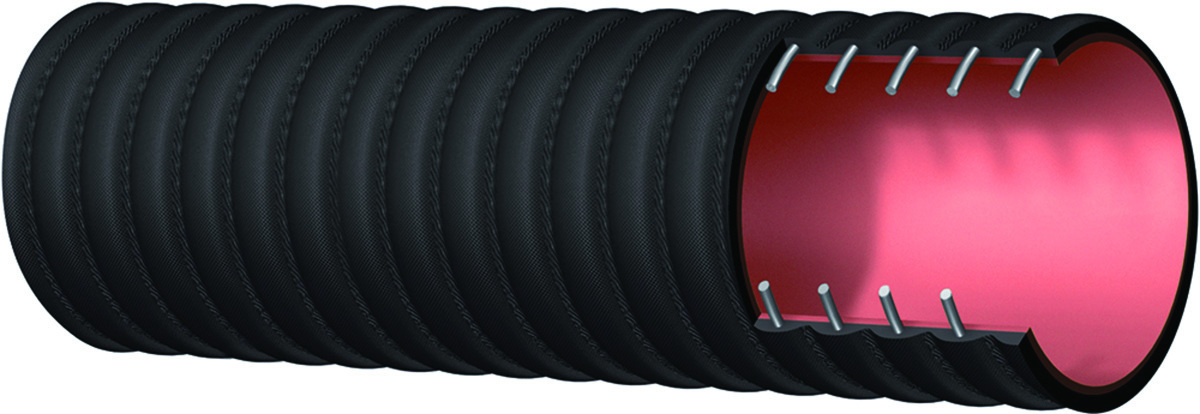

Kuriyama of America Alfagomma T704HA Series THE BOOMER
Corrugated Alfagomma T704HA Series THE BOOMER industrial sewer vacuum hose from Kuriyama of America is made with a 1/4-inch-thick red gum rubber tube designed for wet or dry applications where severe abrasion is a factor. The corrugated black conductive styrene-butadiene/natural rubber blend cover provides abrasion and ozone resistance. The hose can be grounded. All sizes are rated to full vacuum and a pounds-per-square-inch safety factor of 3-to-1 for 2- to 8-inch hose and 2.5-1 for 10-inch hose. The hose remains flexible in temperatures from 40 degrees below zero to 212 degrees F. It is available with soft-cuffed ends for easy installation and clamping. 847-755-0360; www.kuriyama.com
Hose Reels

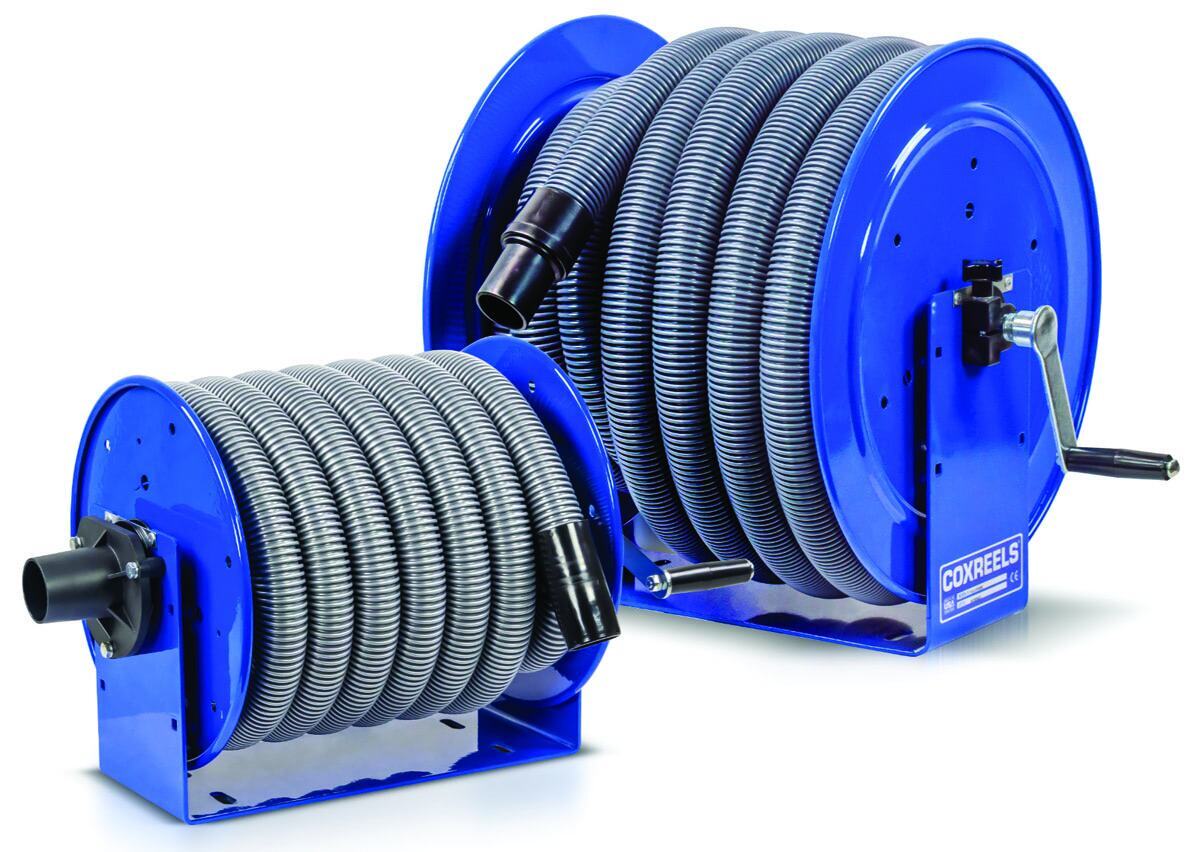

COXREELS V-100 Series
The COXREELS V-100 Series product line has been expanded with the new 1 1/4-inch vacuum hose reel V-112-735 without hose and the V-112H-735 with hose. The new model has a smaller frame size featuring 12-inch-diameter discs instead of the original 17-inch-diameter discs and is designed for use with 35 feet of 1 1/4-inch vacuum hose. The outlet connecting to the hose remains 1 1/2 inches and the 1 1/4-inch hose comes equipped with 1 1/2-inch slip cuffs on both ends for maximum flow. The new swivel design still allows connection of multiple hose sizes by using the inside and the outside of the housing, but a greater gradual taper has increased the amount of compatible inlet hose cuffs. 800-269-7335; www.coxreels.com

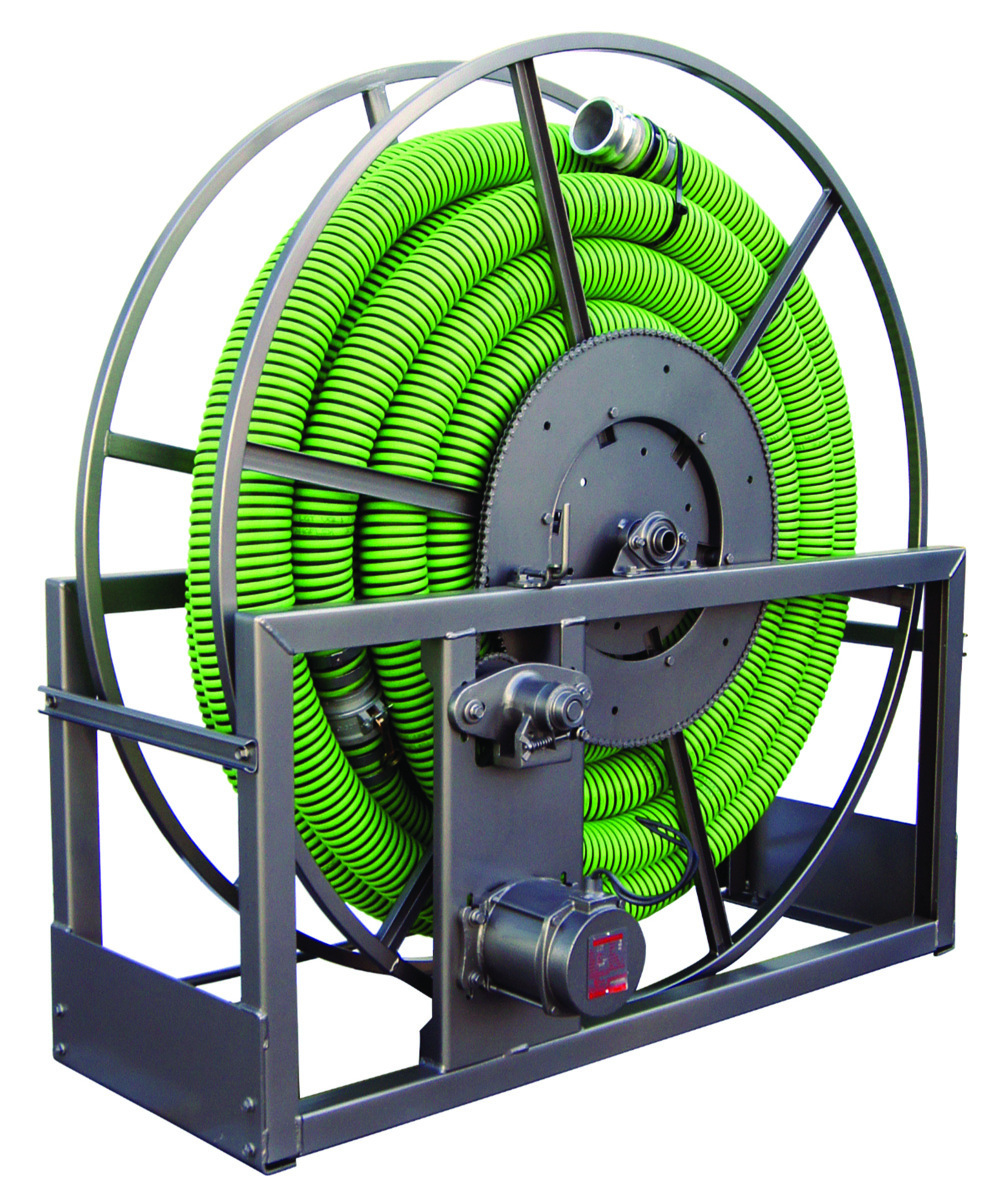

Hannay Reels VAC Series
The Hannay VAC Series is a heavy-duty, single-wrap reel engineered to store large-diameter vacuum and suction hose up to 4 inches. With a narrow footprint, this storage reel can be mounted alongside the tank or between the cab and tank, providing access from either side of the vehicle. Available in either manual or power rewind, this reel provides effortless and fast unwind and rewind operation of the hose while preventing kinks and damage from constant dragging. 877-467-3357; www.hannay.com
Truck-Mounted Jetters

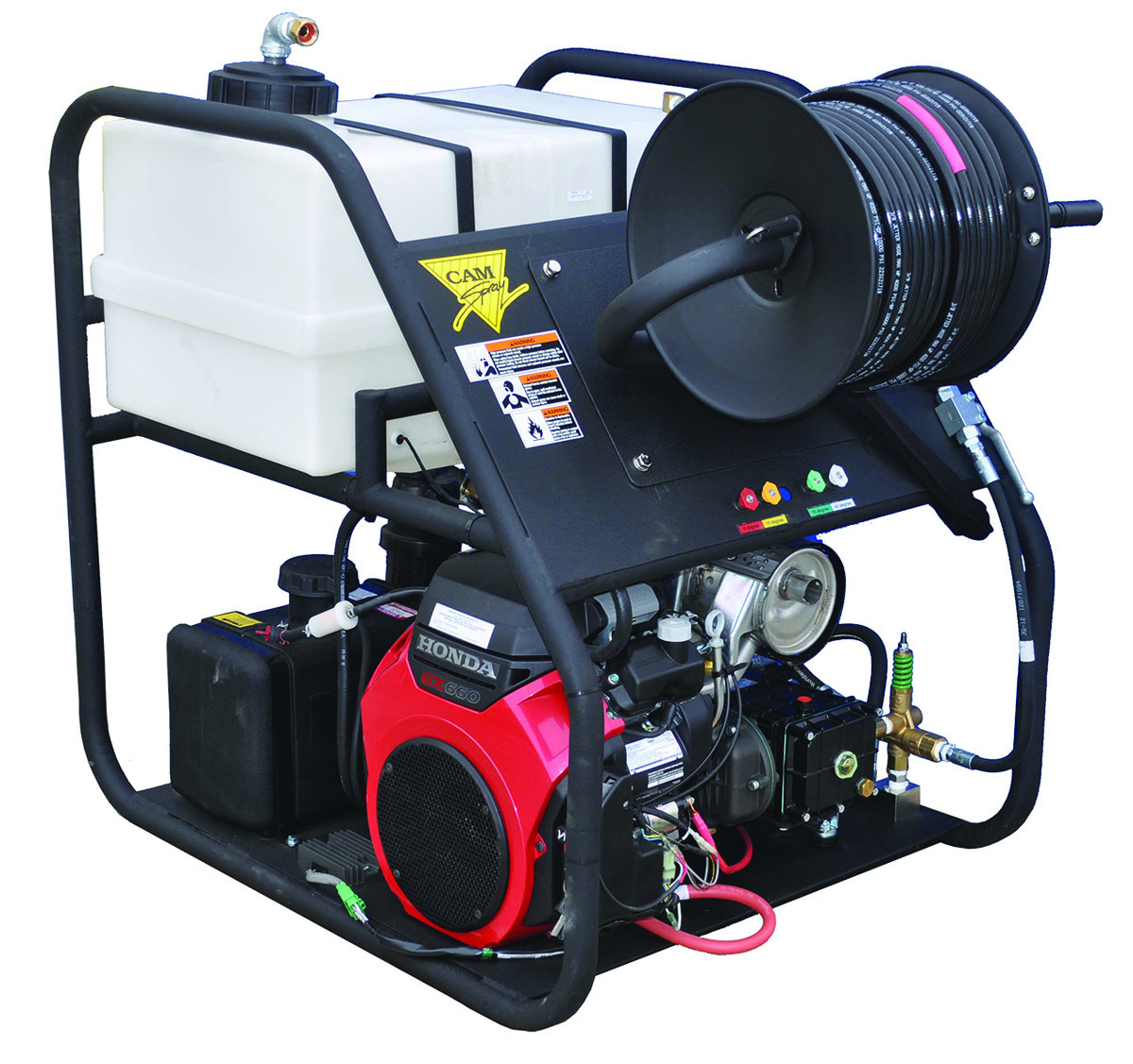

Cam Spray RCJ Series
RCJ Series skid-mounted jetters from Cam Spray are offered in flows and pressures of 8 gpm at 3,500 psi and 7 gpm at 4,000 psi. A three-plunger industrial pump with pulse is powered by a 688 cc Honda engine. Its 200 feet of jetter hose can be used to supply an optional 200DS4 portable reel cart with 200 feet of 3/8-inch jet hose. It comes with a 35-gallon buffer water tank with float control, powder-coated heavy tube frame, washdown gun and a four-nozzle set. It easily mounts in the side door of a cargo van, on a truck bed or inside a service truck. 800-648-5011; www.camspray.com

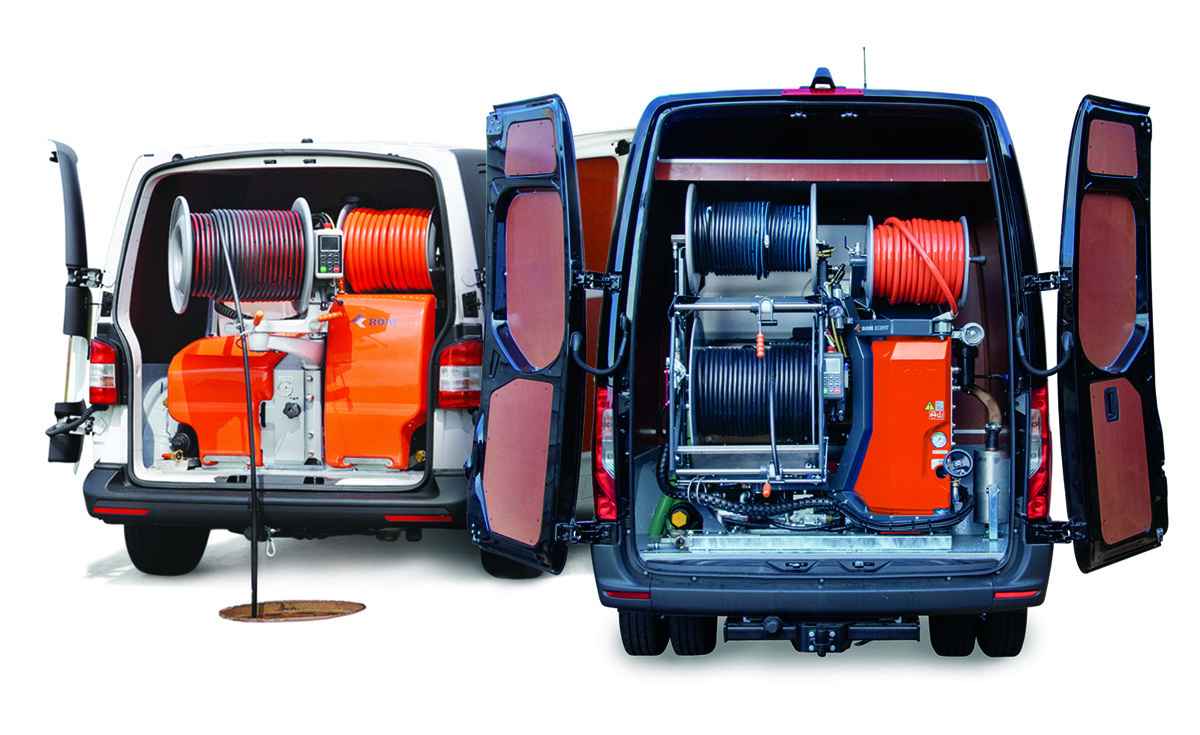

MyTana ROM compact jetters
MyTana offers two compact ROM-built truck-mounted jetters suitable for house connections and light industrial work. Both models fit medium-duty commercial vehicles and deliver 15 gpm at 4,000 psi for work in lines up to 24 inches. The smaller Economic has a hydraulic hose reel that swivels 225 degrees and holds 300 feet of 1/2-inch hose. A second reel is for a water fill hose. The EcoFit features three reels. Two hydraulic hose reels swivel 270 degrees along with the control panel, each with a hose entry guide. The main reel has 300 feet of 1/2-inch hose but could hold up to 550 feet. The second reel can hold up to 300 feet of 1/2-inch hose. A third reel houses the water fill hose. Both models include a handheld remote control unit and pulse action. 800-328-8170; www.mytana.com
Vacuum Pumps/Blowers

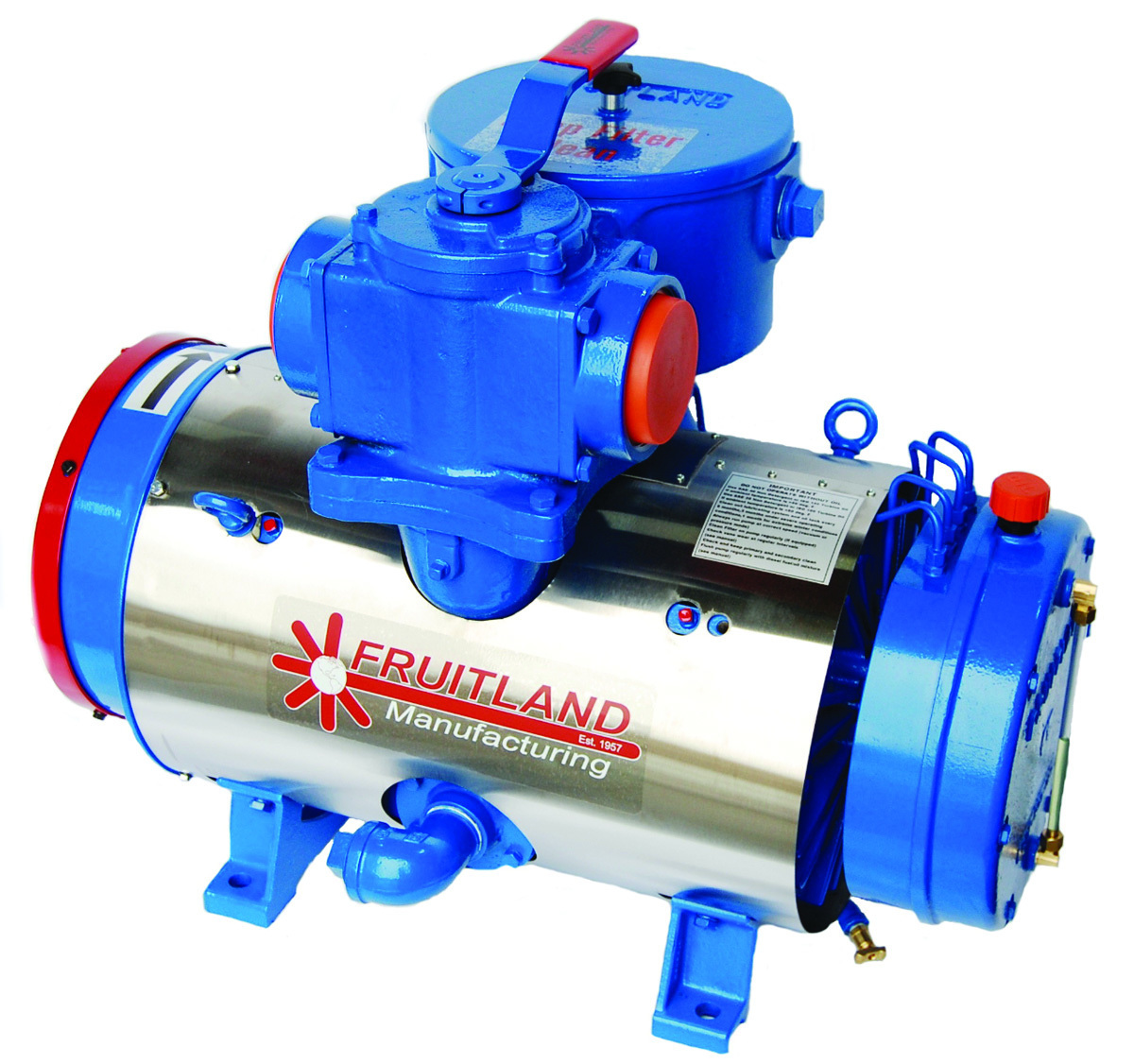

Fruitland 870 Series
Fruitland’s 870 Series pump allows vacuum levels of 28.5 inches Hg and continuous vacuum of 27 inches Hg. It is capable of 30 psi pressure for offloading. Oil consumption is 1 gallon for 18 hours of operation to reduce environmental impact. Locally sourced, nonproprietary oil may be used. The pump delivers 510 cfm (free air) through 4-inch porting. 905-662-6552; www.fruitlandmanufacturing.com

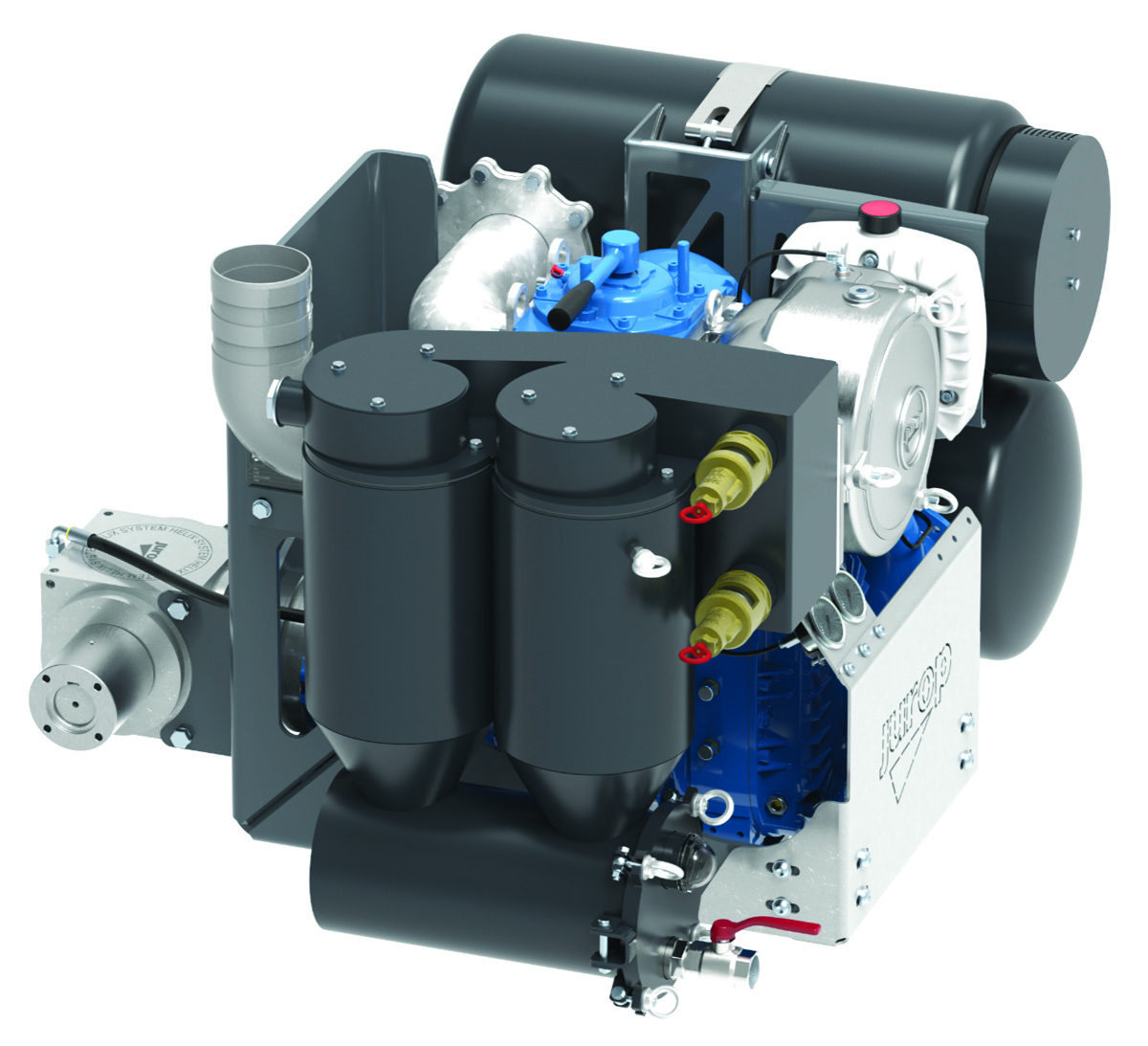

JUROP HELIX
HELIX blowers incorporate the third generation of JUROP helical tri-lobes with air injection porting designs and internal paths to decrease noise and heat. They eliminate the requirement to enclose the blower within a noise debating box. The frame rail-mounted HELIX 300 system delivers a true 1,089 cfm and 15 psi at 1,400 rpm input. The industrial-duty integrated gearbox eliminates everyday dilemmas with drive-coupling failures. The system includes electronic optical gearbox oil level sensors and an integrated thermostat providing safety for the system and team. www.jurop.it

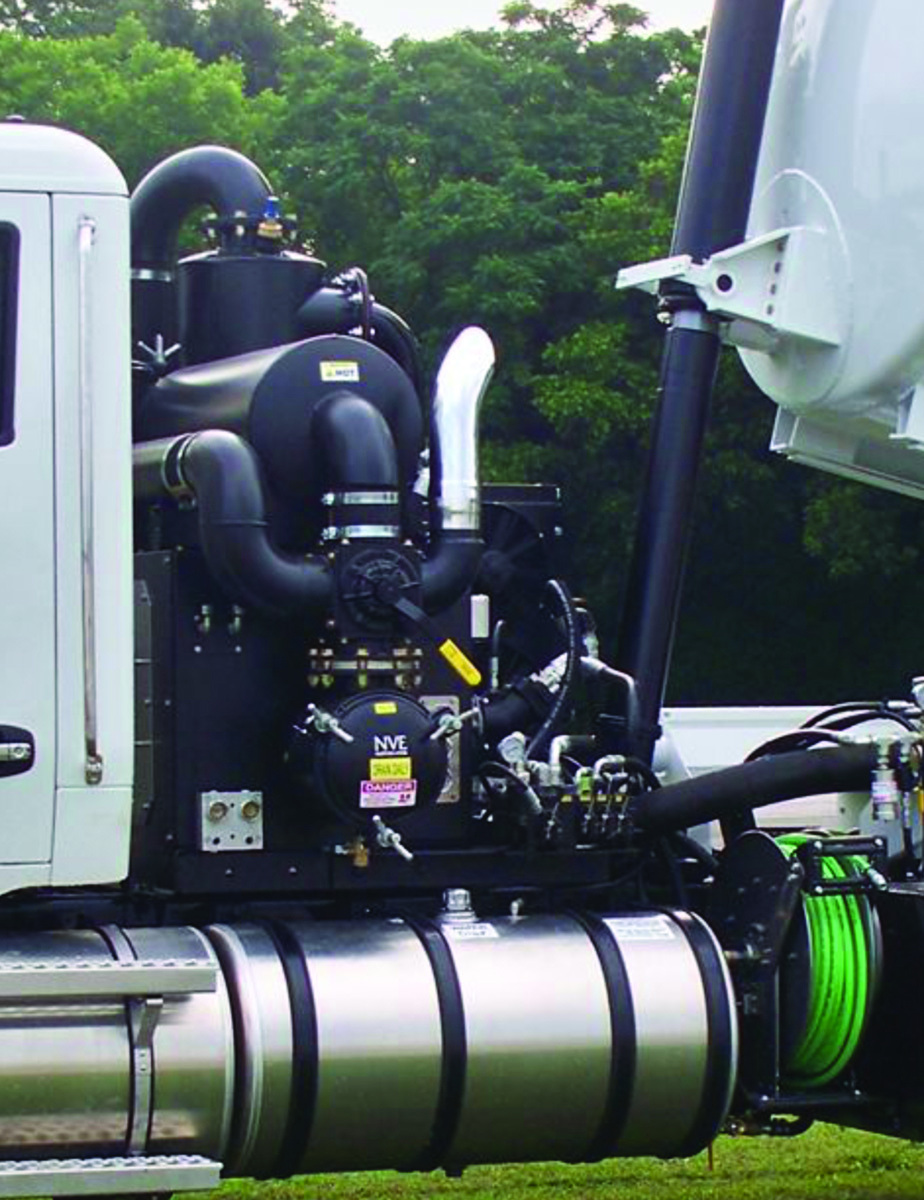

National Vacuum Equipment Challenger 1600
The Challenger 1600 from National Vacuum Equipment is a 1,600 cfm tri-lobe blower designed for continuous duty at maximum vacuum. Rotors are designed to improve vacuum efficiency and reduce mechanical noise. The blower has a ballast air-cooling design and typical maximum vacuum of 27 inches Hg. 800-253-5500; www.natvac.com

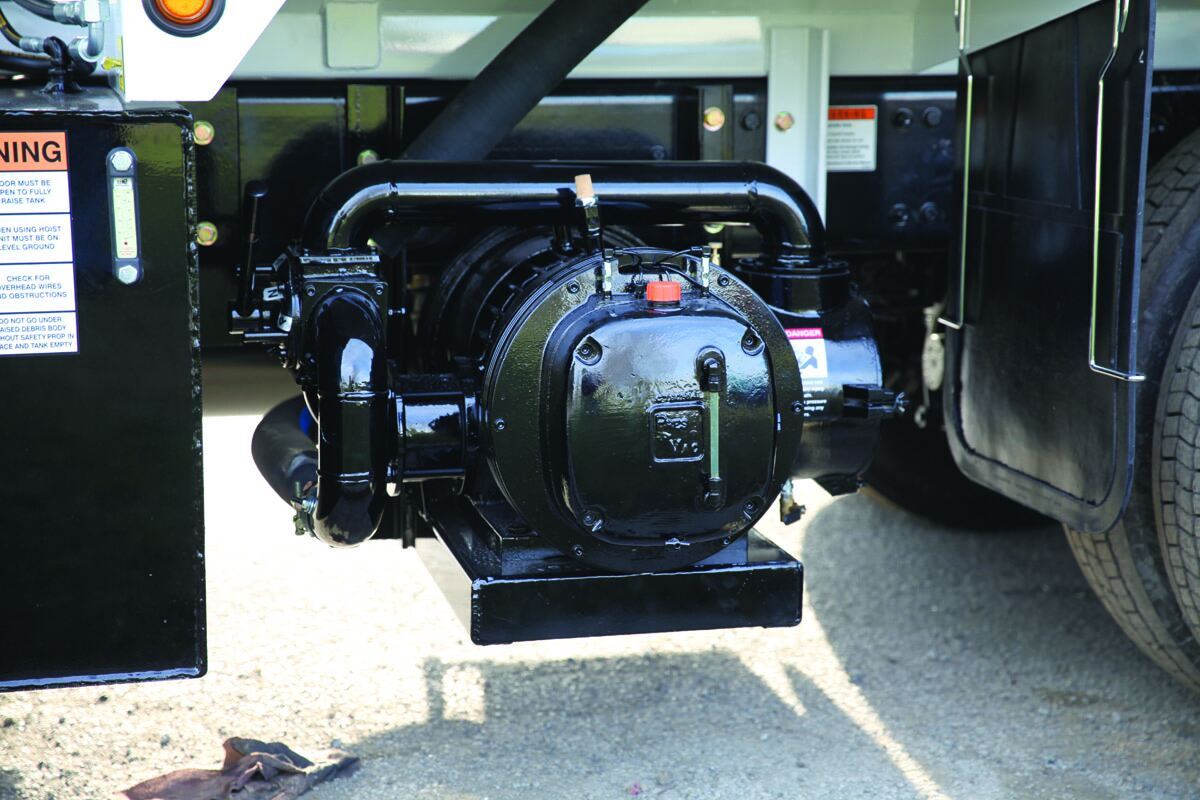

Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763; www.presvac.com

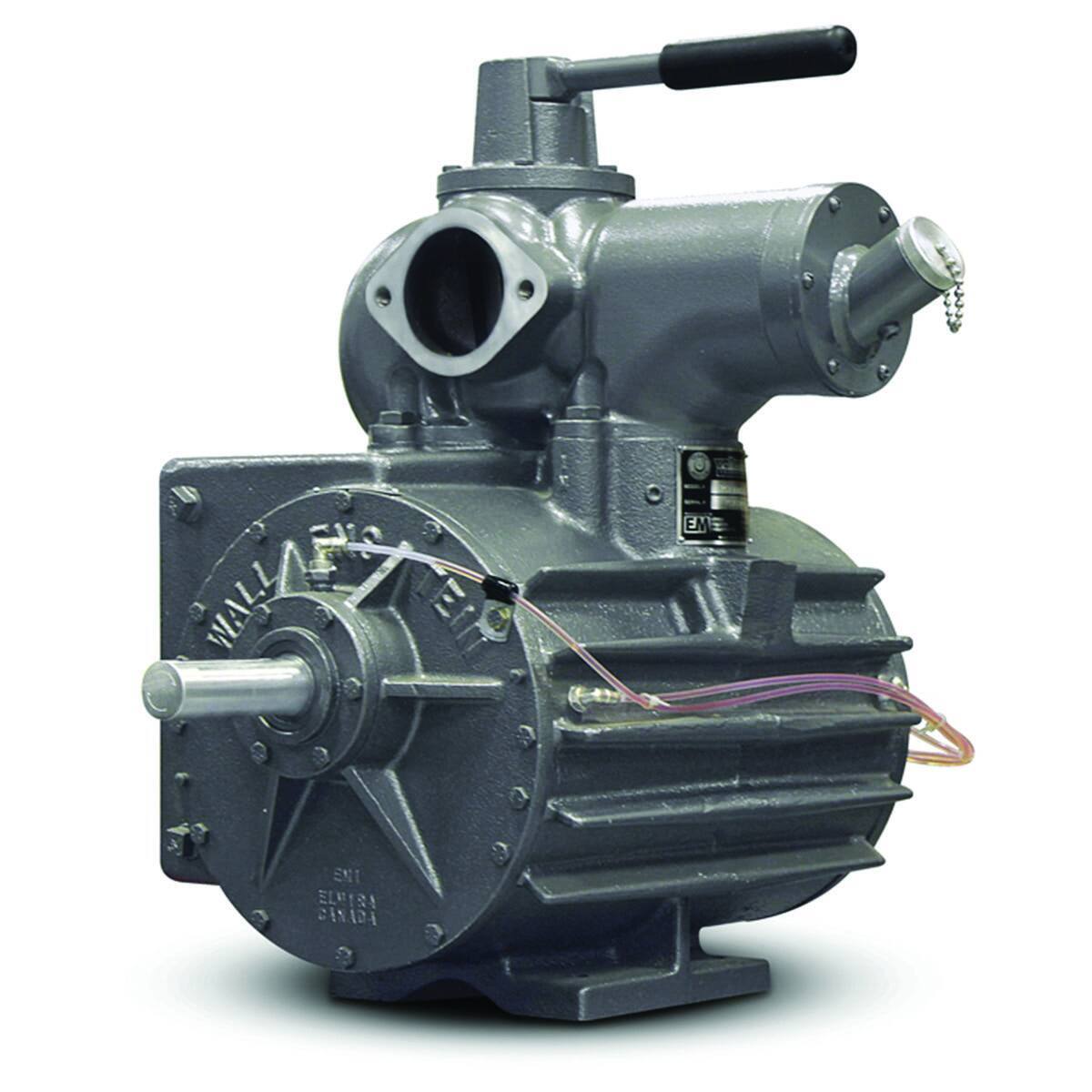

Wallenstein Vacuum 753 Series
The 753 Series vacuum pump from Wallenstein Vacuum is designed for longer service life, incorporating wide vanes that allow up to an inch of wear. It provides 422 cfm airflow at 1,200 rpm and vacuum levels up to 28 inches Hg. Options include air-, liquid- or dual-cooling systems where air injection is combined with liquid cooling. A pump-flushing port is included on the top valve for convenient maintenance. The quick-access housing end plate allows for easy internal inspection with no bearings to pull. Oil lubrication is via a mechanical piston pump driven by shaft rotation or available with a sight-feed valve oil regulator system using vacuum/pressure to draw oil with no moving parts. 800-801-6663; www.wallenstein.com

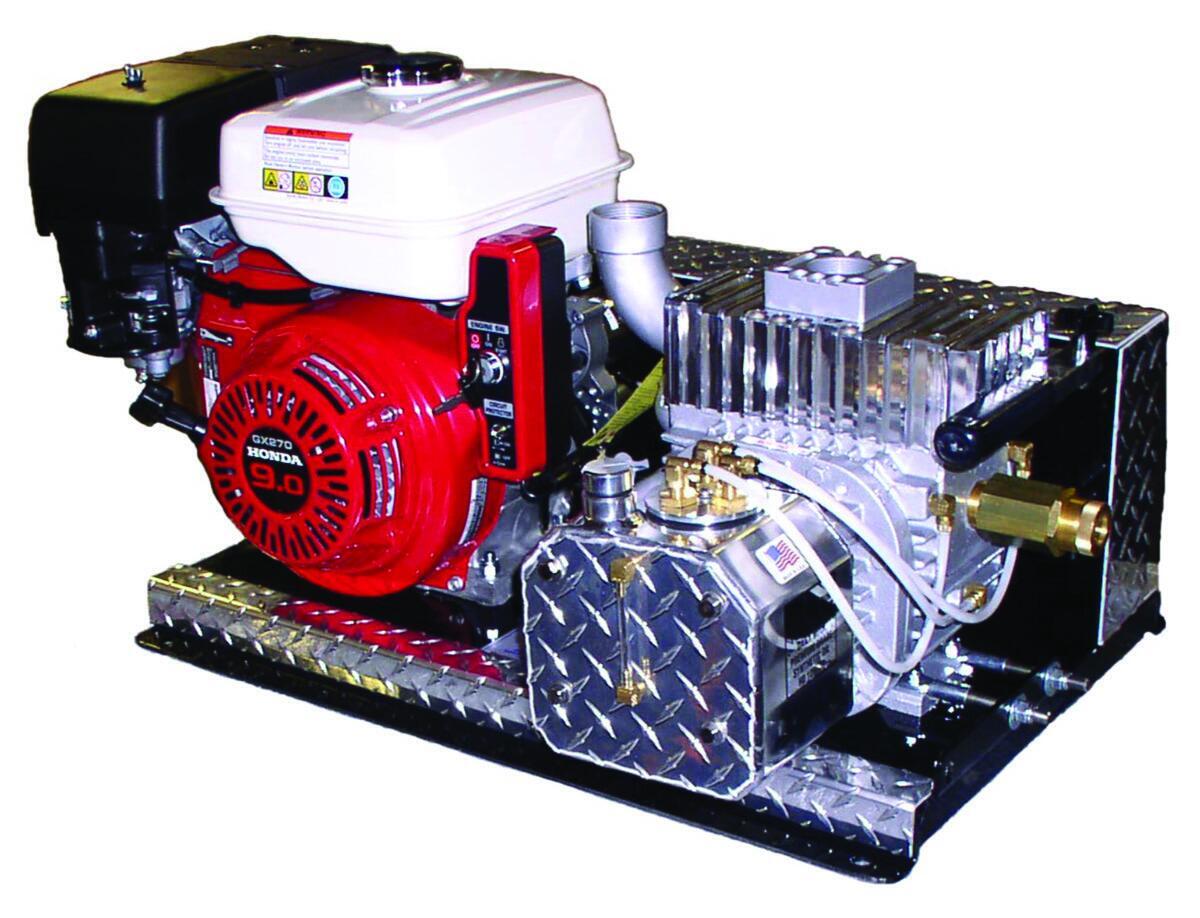

Westmoor Conde PowerPaks
Westmoor Conde PowerPaks are preassembled gasoline or diesel-powered vacuum pump units. They are easy to install, according to the maker, and include a heavy-duty steel base with aluminum diamond plate trim and belt guard. Rigid assembly is designed to ensure minimum vibration and maximum power. They are available with either vacuum only or vacuum/pressure pumps. A range of cfm options ensure the PowerPak is matched to the tank size and application. Units are powered with optional Honda GX Commercial Series gasoline engines or Hatz industrial air-cooled diesel engines. Units can be easily transferred to another tank system when needed. 800-367-0972; www.westmoorltd.co
Vacuum Trucks/Tanks

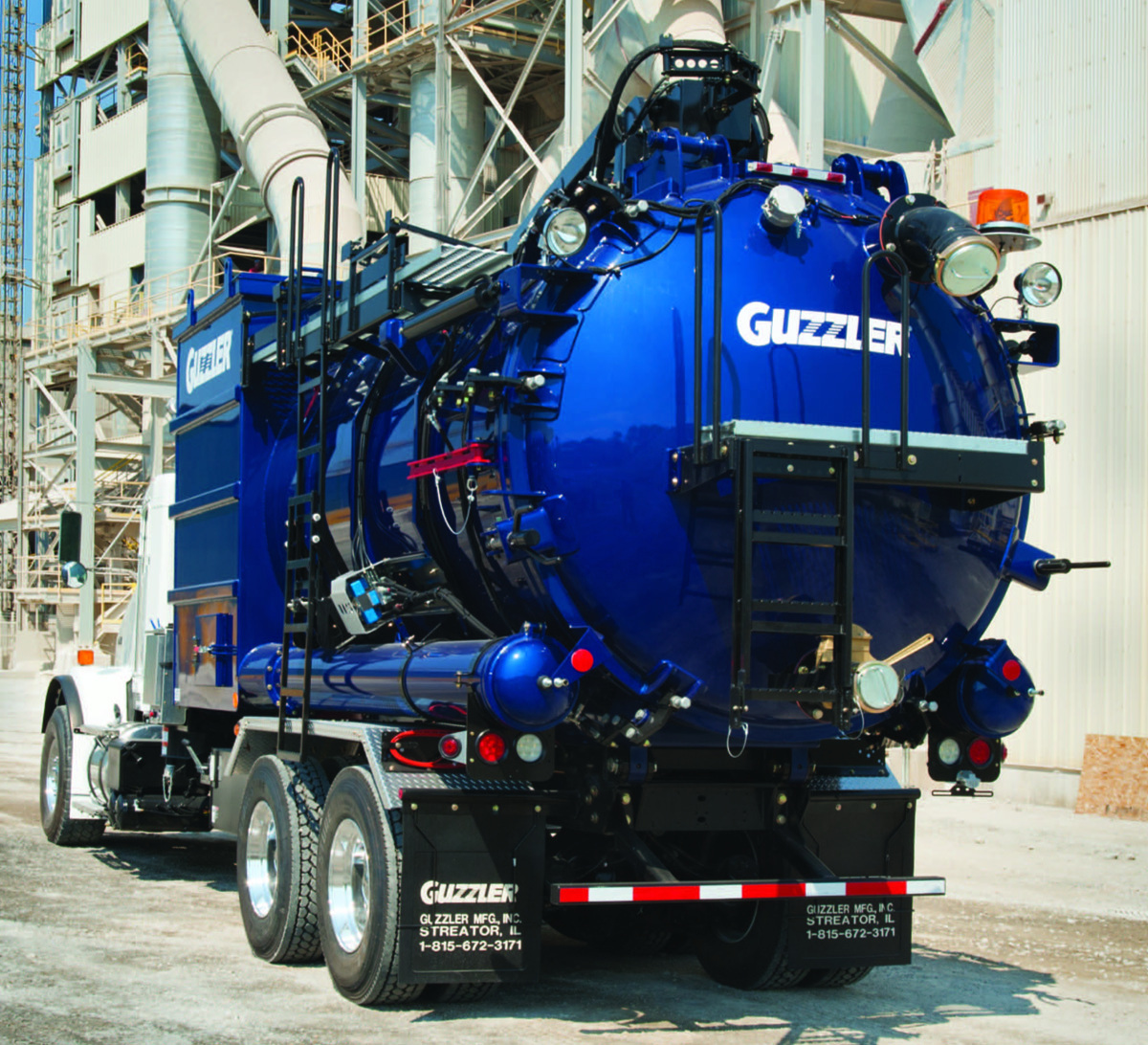

Guzzler CL
The CL (Classic) industrial vacuum loader from Guzzler is designed to recover, contain and carry solids, dry bulk powders, liquids, slurries and thick sludge from hard-to-reach areas. The truck offers upgraded operator ergonomics; improved air routing, filtration and maintenance; a longer body for improved material separation; an enlarged baghouse; and cyclone cleanout access doors for easier access. Its modular design allows for a wide selection of off-loading configurations, including a rear door-mounted sludge pump for unloading sludges from the debris body, an XCR system with a swing-out cyclone that allows material discharge into collection vessels while vacuuming, and a high-rail system (available in three configurations) with a loading boom, hydraulic creep drive and rear-mounted operator chair. Options include a telescoping boom, vane pressure offload system (high pressure, low airflow) for liquids and slurries, and a full-opening rear door for improved dumping. 800-627-3171; www.guzzler.com

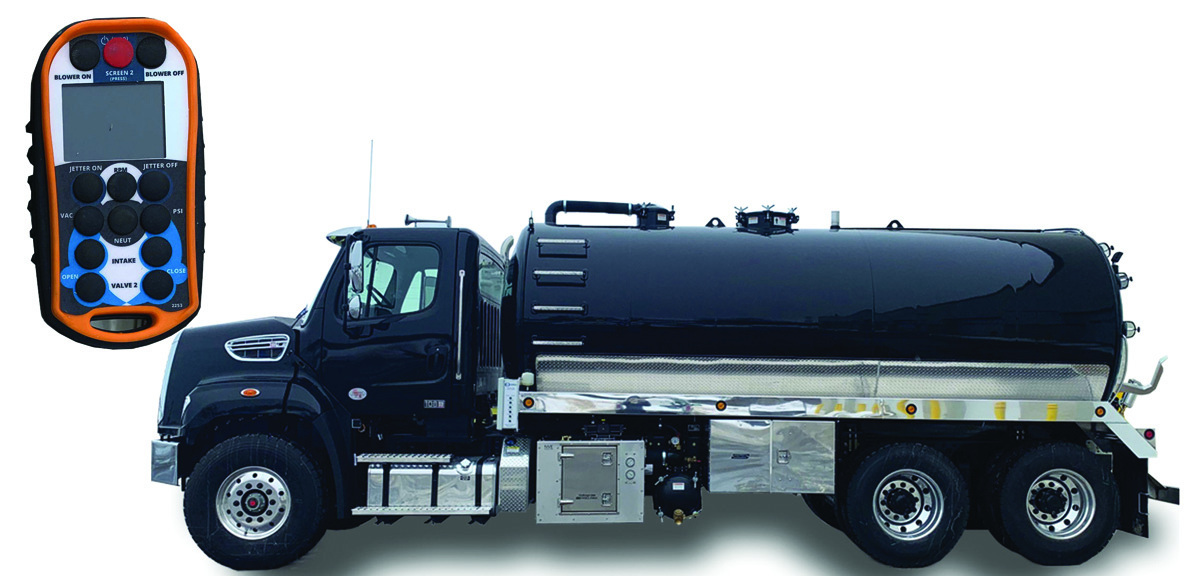

Imperial Industries’ Freightliner 108SD
Imperial Industries’ Freightliner 108SD includes a fully remote-controlled vacuum system. It comes with a 4,200-gallon painted aluminum tank with a National Vacuum Equipment Challenger 4310 blower (940 cfm). Functionality includes full control of the tank’s PTO and pneumatic valves, providing the ability to switch between vacuum, neutral and pressure modes without leaving a septic tank access point. The bottom third of the tank is double-plated, and the tank is painted black with a diamond plate chip guard, full-flanged and dished heads for baffles, a hot shift PTO, one 4-inch vacuum inlet with lever valve, one 6-inch discharge with piston valve with a handle, three 5-inch sight glasses on the rear tank head, full-length aluminum hose trays, a SeeLevel indicator, a 24-by-24-by-24-inch aluminum toolbox, U.S. Department of Transportation LED light package, two rear LED work lights and an adjustable stainless steel rear bumper. 800-558-2945; www.imperialind.com

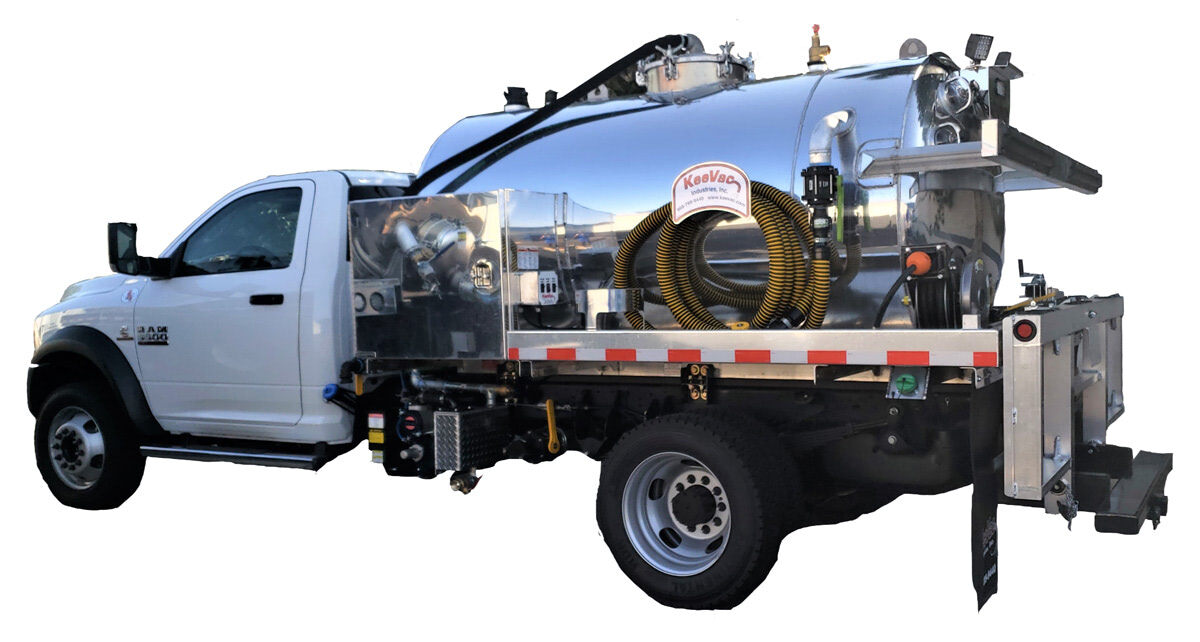

KeeVac Industries KV999
The KV999 from KeeVac Industries carries a 999-gallon vacuum tank for operators who want to stay under the U.S. Department of Transportation tanker endorsement requirement. It is available in steel, stainless steel and aluminum, with single- or dual-side service, holds 699 gallons of waste and 300 gallons of freshwater, and includes a two-unit fold-down restroom carrier with trailer hitch. The tank can be mounted on a variety of chassis and with a variety of pumps. Each unit comes with an upgraded DC-10 washdown pump and hose reel from Hannay Reels. Exterior controls and dual cabinets are designed for operator safety and convenience. An arctic package and safety lighting are available. 866-789-9440; www.keevac.com

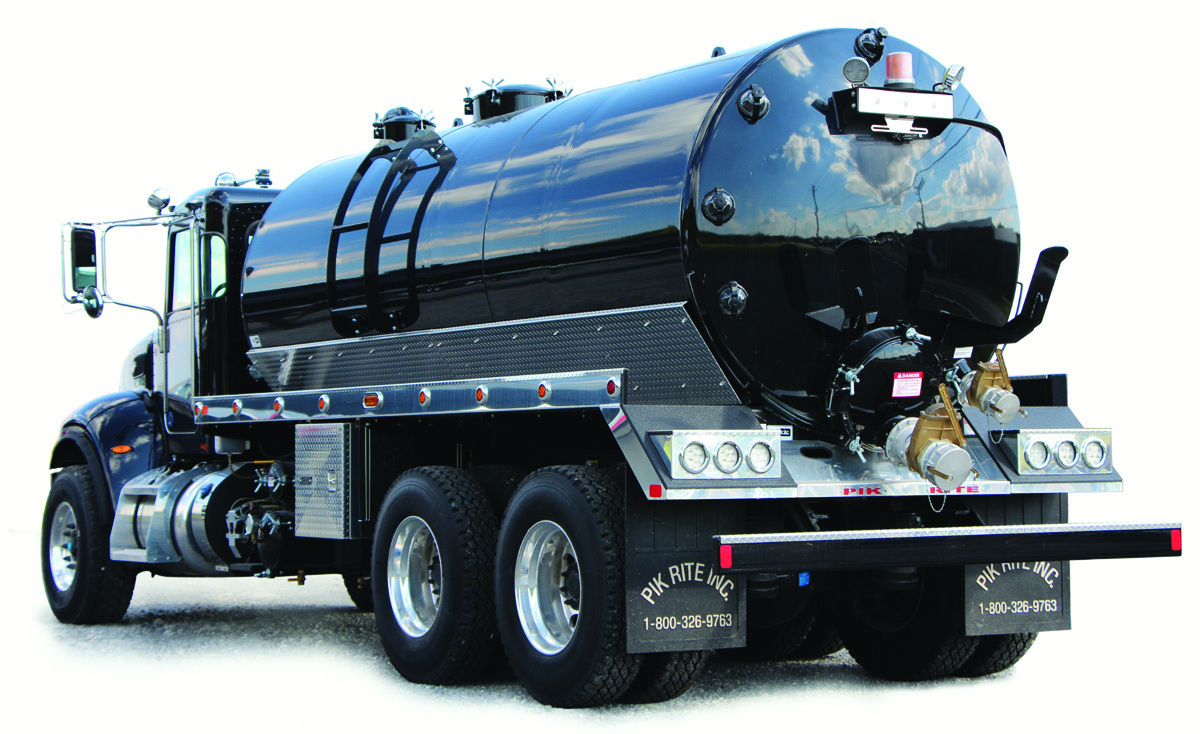

Pik Rite steel 3,600-gallon vacuum tank
The Pik Rite steel 3,600-gallon vacuum tank is designed for strength and reliability. Its 3-inch internal plumbing keeps the exterior clean and simple. The vacuum pump mount is attached to both frame rails and easily supports pumps from any major manufacturer. It has four sight eyes for the waste compartment. The tank interior is equipped with walk-through baffles and a 20-inch rear manway for easy clean-out. The LED running light kit is installed with a fully molded wiring harness. Operator work lights and a strobe light are mounted on the top rear lighting bracket. Polished aluminum hose trays and low hose hooks are coated with protective liner. 800-326-9763; www.pikrite.com

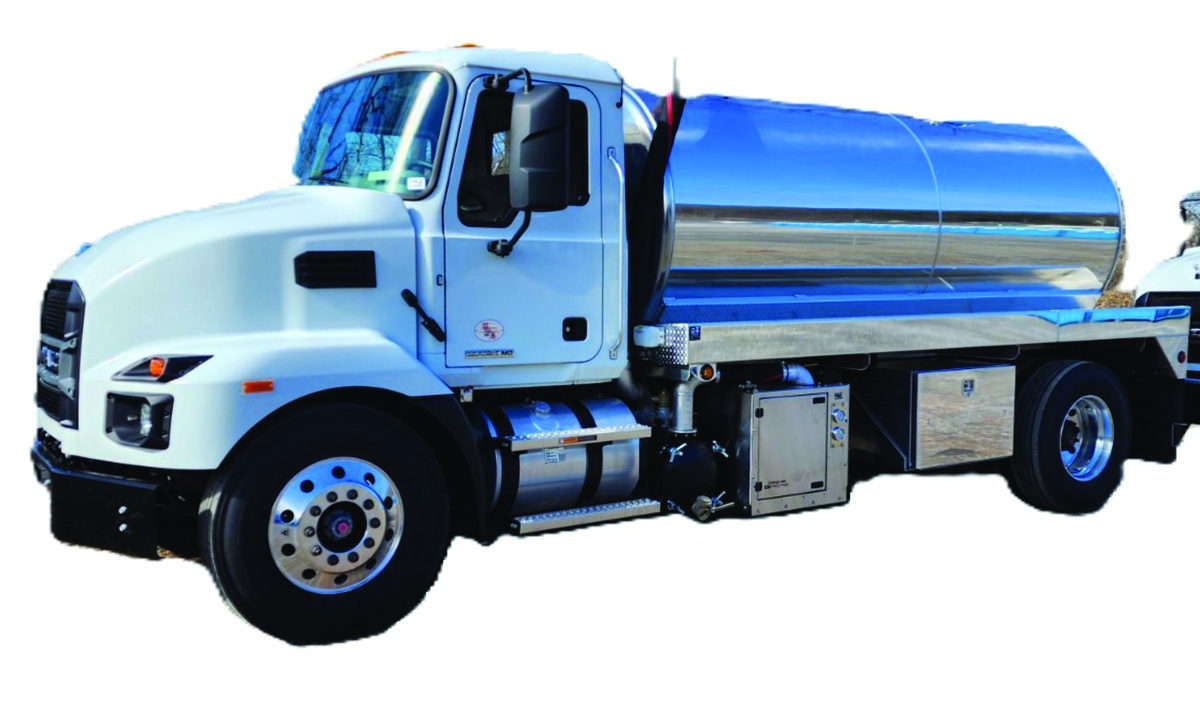

Robinson Vacuum Tanks VAC2500
The aluminum VAC2500 from Robinson Vacuum Tanks can ride on a single-rear-axle vehicle. Features include a 20-inch top manway with passenger side ladder, 20-inch rear manway with 4-inch TTMA flange and 4-inch brass lever valve for discharge, and a heavy-duty steel bumper with aluminum diamond plate cover. 814-933-0927; www.robinsontanks.com

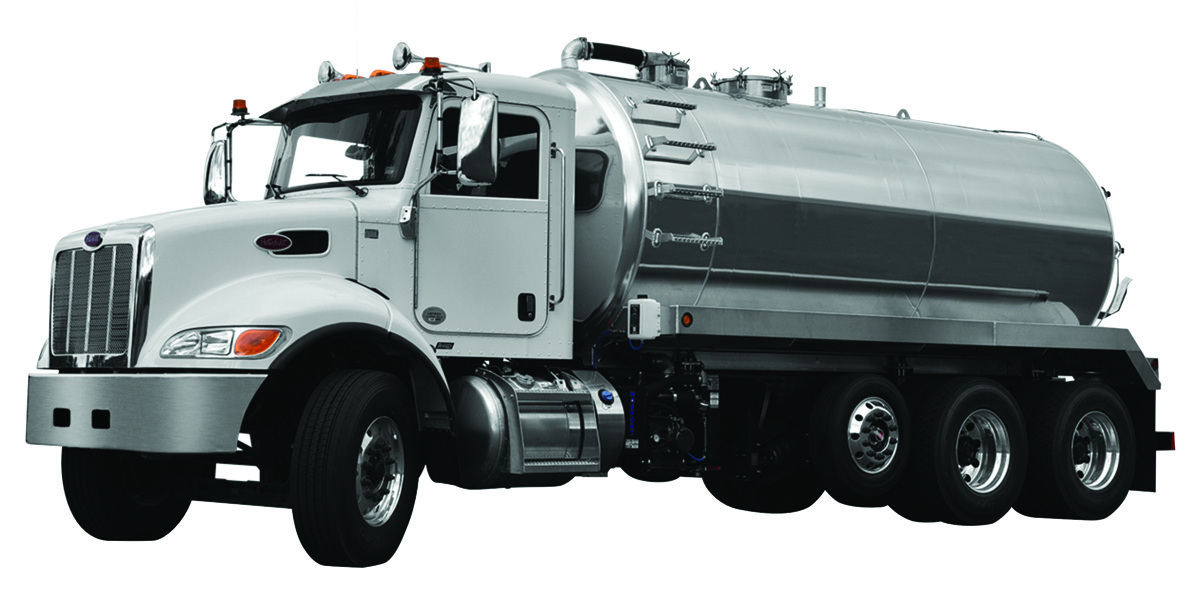

Satellite Vacuum Trucks MAL 4000
The Satellite Vacuum Trucks MAL 4000 maximizes payload capacity with lightweight aluminum tanks, minimizing the overall truck length and weight, eliminating the need for additions like a lift or tag axle. It can be used to pump up to five average-sized septic tanks before needing to dump. The open frame design provides extra space for storage cabinets or an optional washdown jetter system. Hose hooks at the rear of the tank allow the operator to efficiently store and access hoses. Intake and evac ports are also located at the rear of the truck to make pumping and waste disposal easy. A variety of pumps allows flexibility to customize the truck. 800-883-1123; www.satelliteindustries.com

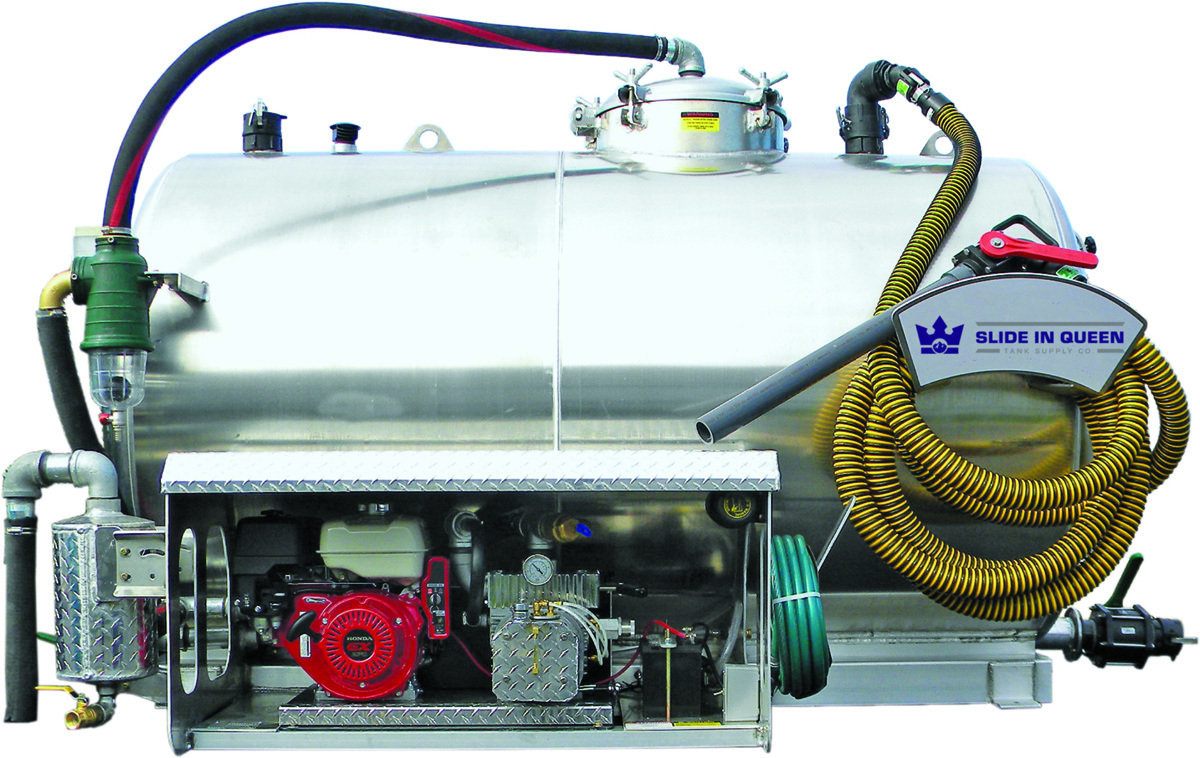

Slide In Queen 999-Gallon Tank
Slide In Queen 999-gallon Tanks are constructed from marine-grade aluminum, stainless steel, or steel. These tanks are mounted onto a variety of chassis. They are small enough to eliminate the need for a CDL license and tanker endorsement. They can be driven with either PTO or a pump/motor package. A variety of vacuum and water pumps are available. Slide-in units are offered in standard sizes from 300 to 1,500 gallons. 833-475-4334; www.slideinqueen.com

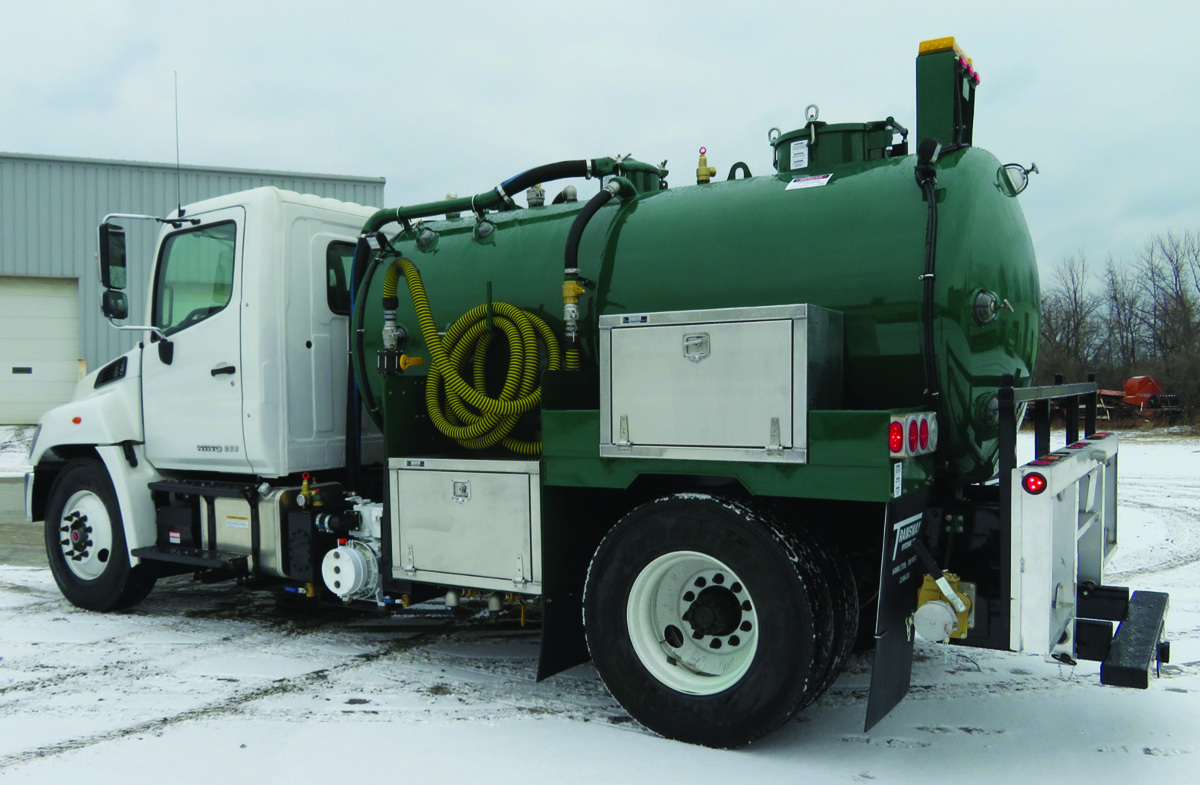

Transway Systems stainless steel body septic/toilet truck
Cold winters can cause many problems when it comes to portable restrooms, from protecting the restroom itself from freezing damage, to the wear and tear of the vehicle transporting and cleaning the restrooms. Transway Systems offers an entirely stainless steel body septic toilet truck, equipped with multiple heated water compartments, a lightweight aluminum folding restroom rack and space to carry tools and equipment. The use of stainless steel in piping, heated valves, fittings, tank shell, tank heads and hose trays ensures longer life span while resisting corrosion caused by brine solutions. Segmented heated water compartments provide ample freshwater for cleaning units as well as corrosive brine. 800-263-4508; www.transwaysystems.com
Valves

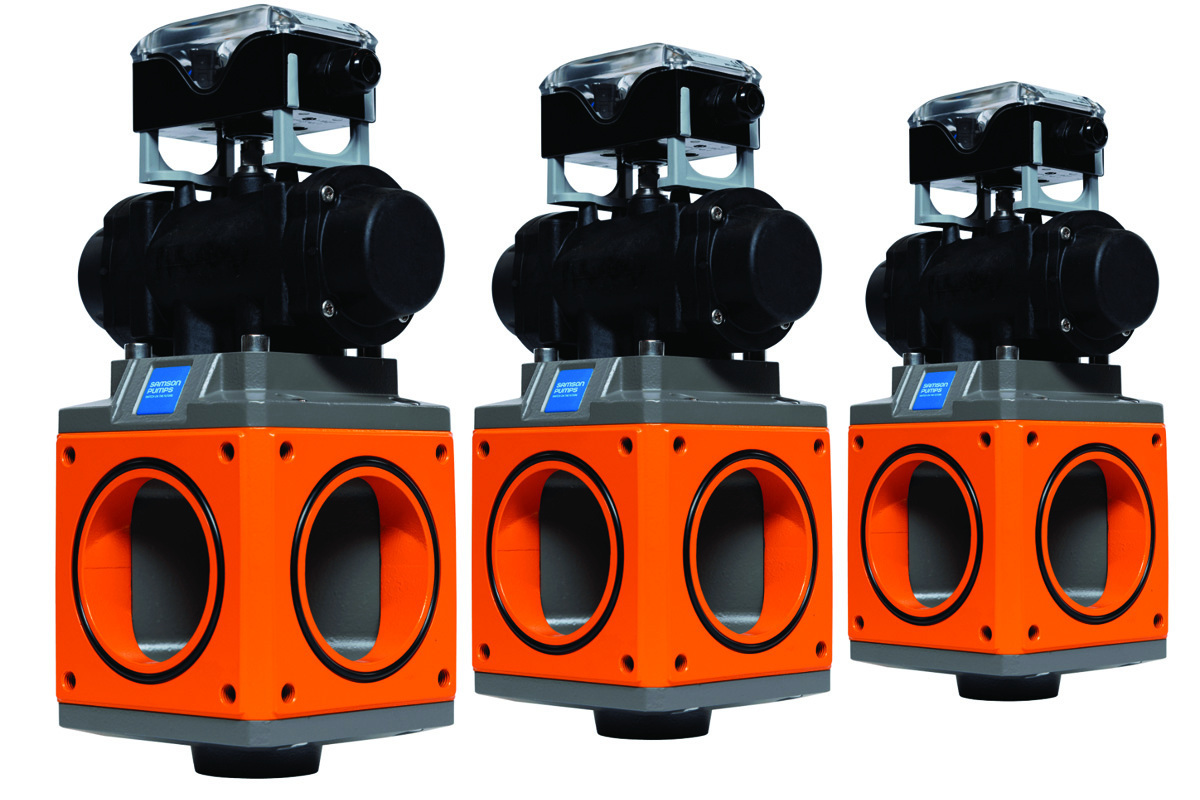

Samson Pumps Generation 2.0 Cast Iron Valve
Generation 2.0 Cast Iron Valves from four-way valves from Samson Pumps are designed for vacuum truck applications. They are forged from cast iron and internally coated with chemical nickel, ensuring durability, resistance to corrosion and longevity. The internal design secures smooth operation. They fit seamlessly with 3-, 4- and 5-inch internal vacuum piping systems. They come with an actuator for pneumatic controls, a handlebar for hydraulic operation or a handle for manual operation. They have a maintenance-free design and lifetime lubricated bearings. Designed with dual flow positions and enhanced with a neutral position, the valves allow for precise control. www.samson-pumps.com
Washdown Pumps

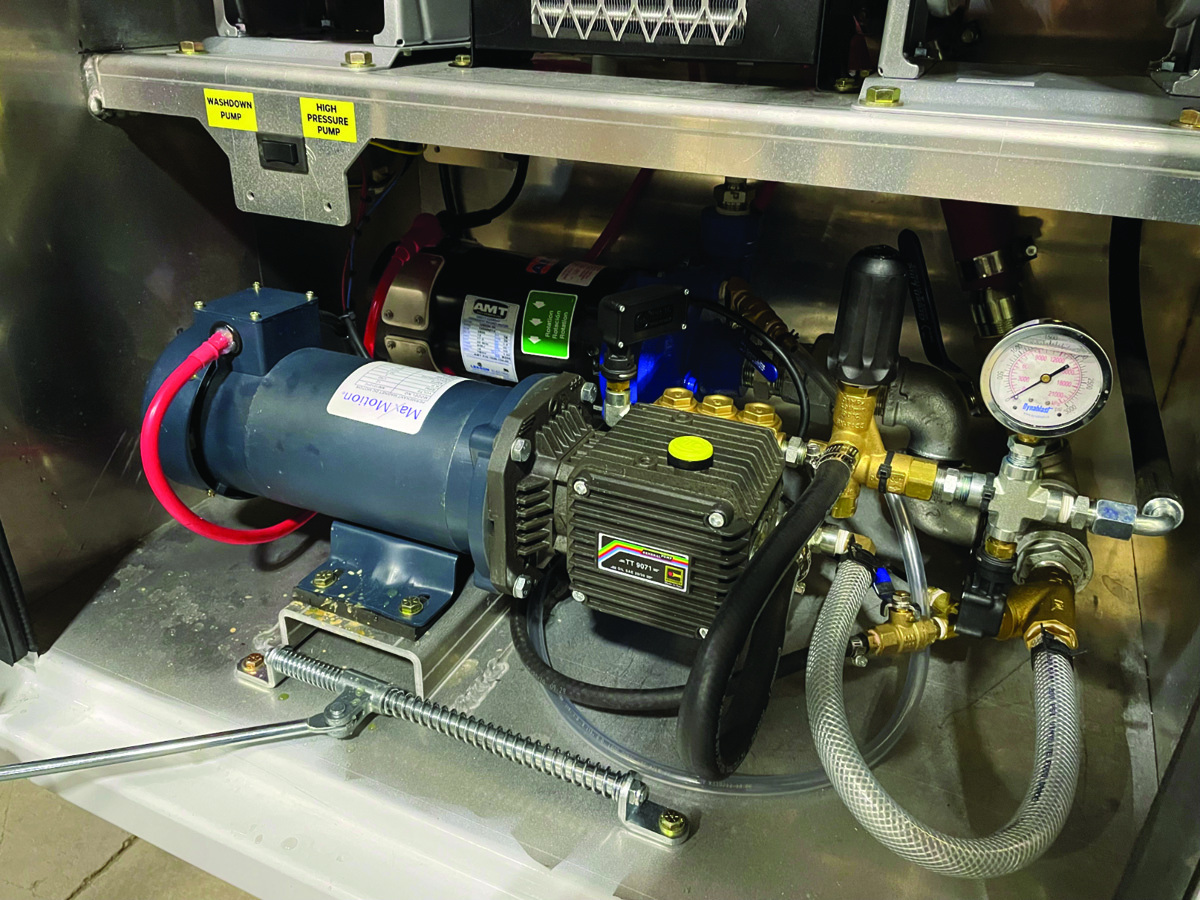

Dynablast MPU1.31000E12VDC
The MPU1.31000E12VDC washdown water pump system from Dynablast is suitable for cleaning portable restrooms with a vac truck. The pump package includes an Interpump 9071 1 hp, 12-volt motor with an output of 1.3 gpm at 900 psi. 905-867-4642; www.dynablast.ca

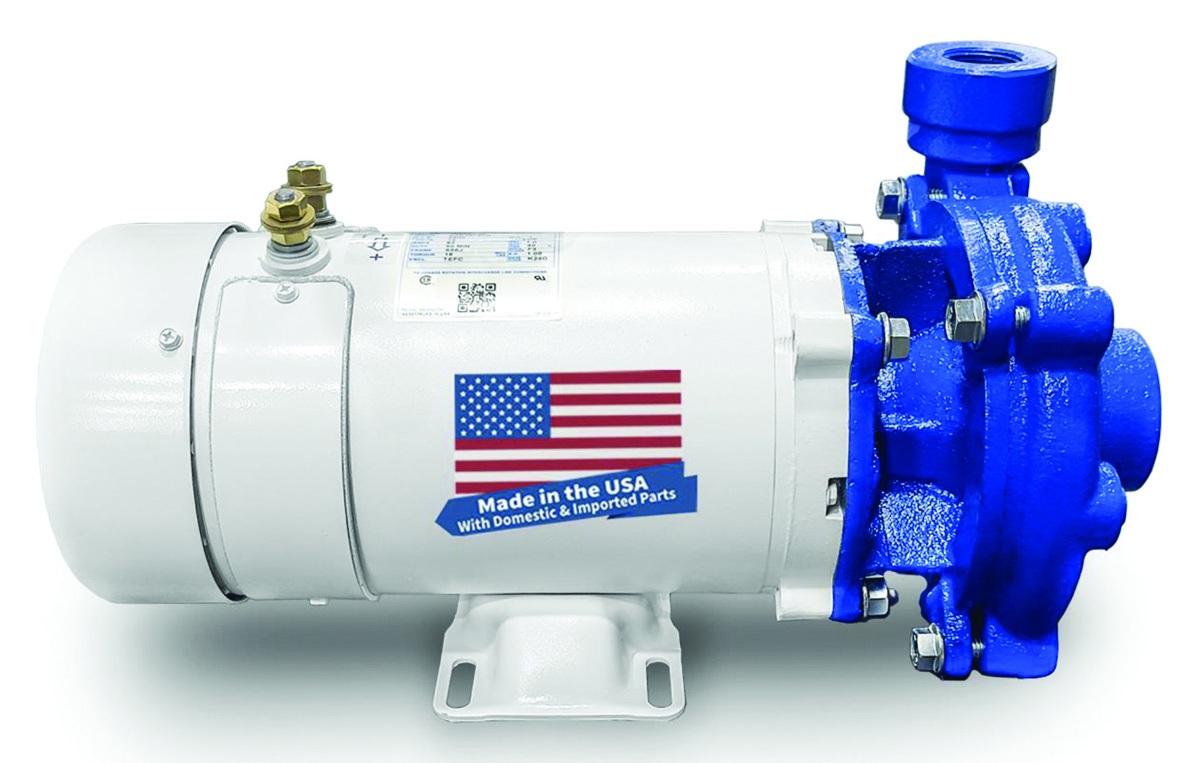

Moro USA DC Washdown Pumps
Moro USA DC Washdown Pumps have a maximum delivery rate of 20 gpm, 42 psi and are primarily utilized for filling sinks and cleaning portable restrooms. The centrifugal pumps are designed with corrosion-resistant materials for operating in wet conditions and can be used in other applications such as industrial, marine and water circulation. They have an epoxy-coated 12-volt DC motor, stainless steel impeller, four front drain plugs and a carbon/ceramic/Viton mechanical seal. They require installation of an in-line circuit breaker and a 12-volt solenoid. Models include the DCC cast iron washdown pump with stainless impeller, DCSC cast iron washdown pump with stainless steel impeller kit, DCS stainless steel washdown pump and the DCSS stainless steel washdown pump kit. 866-383-6304; www.morousa.com
Water Pumps

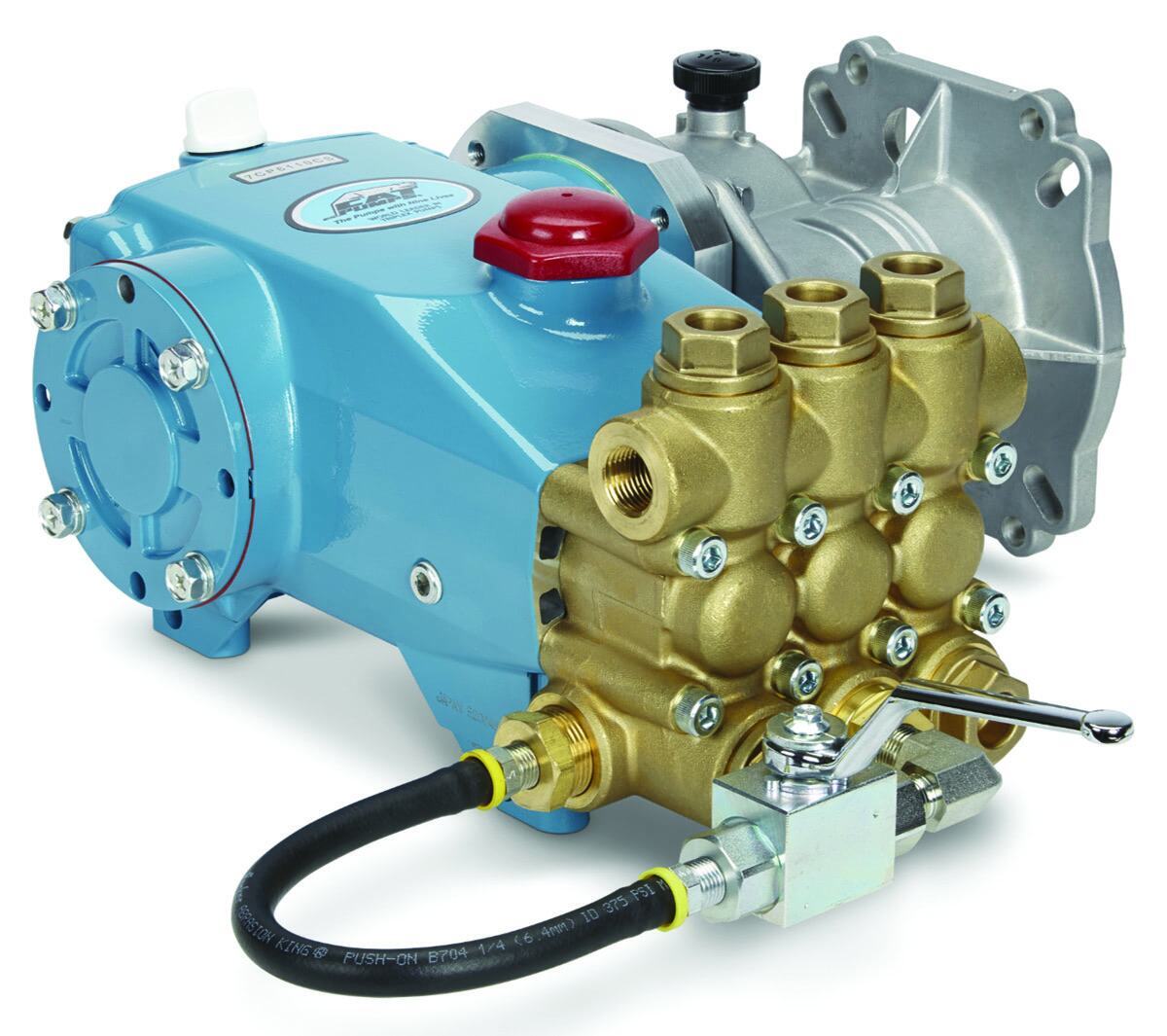

Cat Pumps Model 7CP6165CSG1
The Cat Pumps Model 7CP6165CSG1 is suitable for demanding sewer jetting applications. With a performance rating of 8 gpm at 3,500 psi, the combination of high performance, compact footprint and longevity helps jetters cut through challenging jobs. It converts to a jetting pump by adding a pulsator assembly, which eliminates the danger of deadheading the pump, prolonging the life of the seals and reducing unplanned downtime. A convenient handle allows for a quick changeover from cleaning to jetting modes. It uses an industrial-duty gearbox that attaches directly to 1- or 1 1/8-inch 3,265 rpm gas engines. Its gearbox allows for a smaller footprint and features hardened steel helical gears for smooth, quiet operation. The sealed housing provides independent gear lubrication, resulting in thousands of trouble-free hours. 763-780-5440; www.catpumps.com
