Hose and Fittings

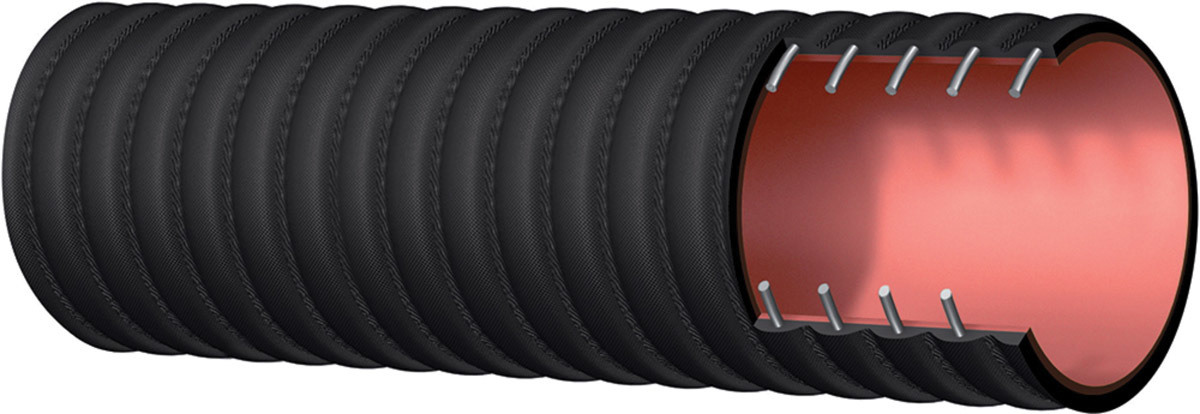

Kuriyama of America T704HA Series THE BOOMER

The corrugated T704HA Series THE BOOMER industrial sewer vacuum hose from Kuriyama of America is made with a 1/4-inch-thick red gum rubber tube designed for wet or dry applications where severe abrasion is a factor. The corrugated black conductive SBR/NR blend cover provides abrasion- and ozone-resistance. The rugged hose is suitable for dry or wet abrasive materials and can be grounded. All sizes are rated to full vacuum and a pounds-per-square-inch safety factor of 3-1 for 2 to 8 inch and 2.5-1 for 10 inch. The hose remains flexible in temperatures from 40 degrees below zero to 212 degrees F. It is available with soft-cuffed ends for easy installation and clamping. 847-755-0360;

Hose Reels

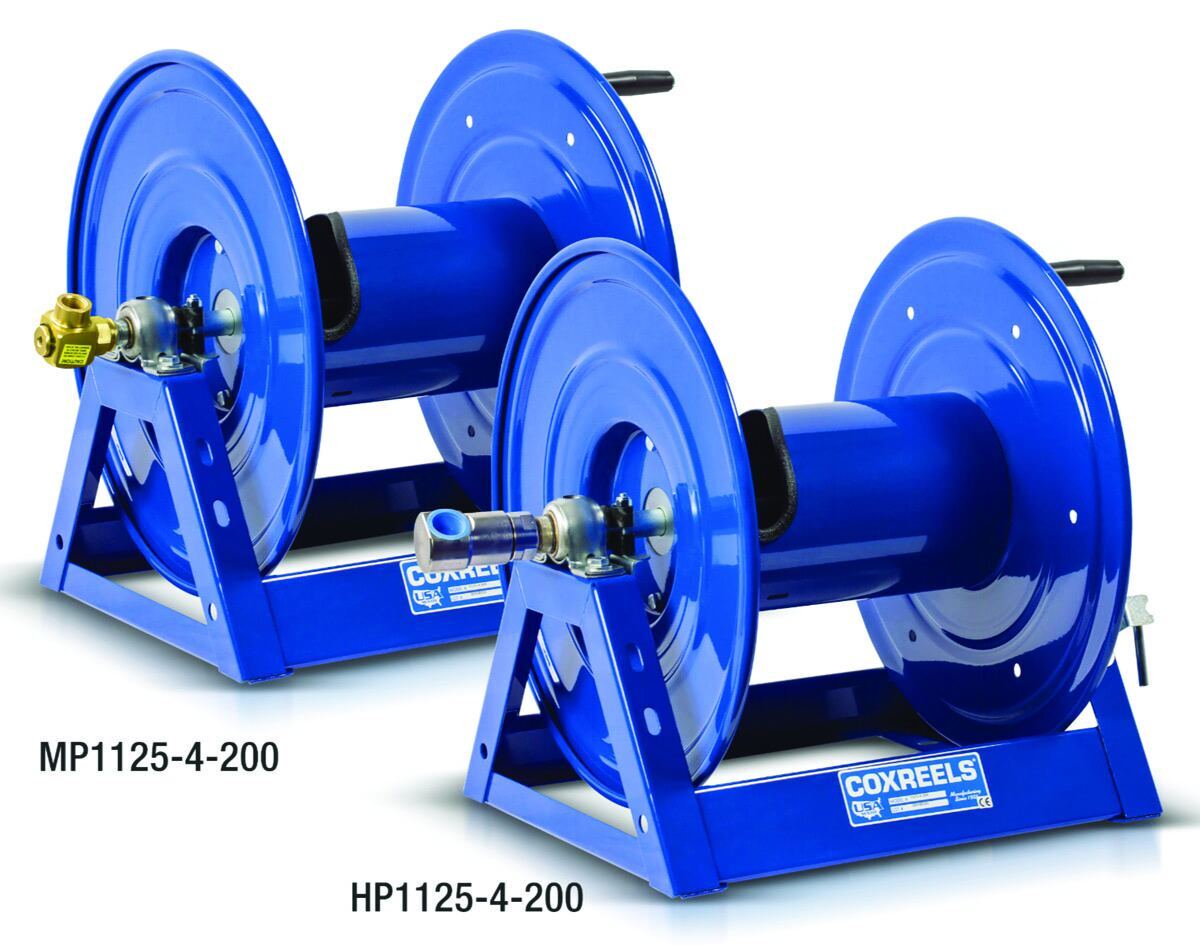

COXREELS 1125 Series

COXREELS 1125 Series reels have a sturdy one-piece all-welded A-frame base, a low-profile outlet riser and an open drum slot design that provides a noncrimping, flat, smooth hose wrap. It features professional heavy-duty grade steel construction, rolled edges and ribbed discs, and a long-lasting chip-resistant powder-coated finish. Two upgraded swivel options include medium pressure (up to 4,000 psi — solid brass) and high pressure (up to 5,000 psi — super swivel). They are available in hand crank, bevel crank and air/electric/hydraulic motor. The motor-driven hose reel is operated by a reliable, direct gear drive providing quiet and smooth retraction. The gear drive provides added safety features, including a simple drive system with fewer moving parts and pieces, minimizing workplace injury. 800-269-7335;

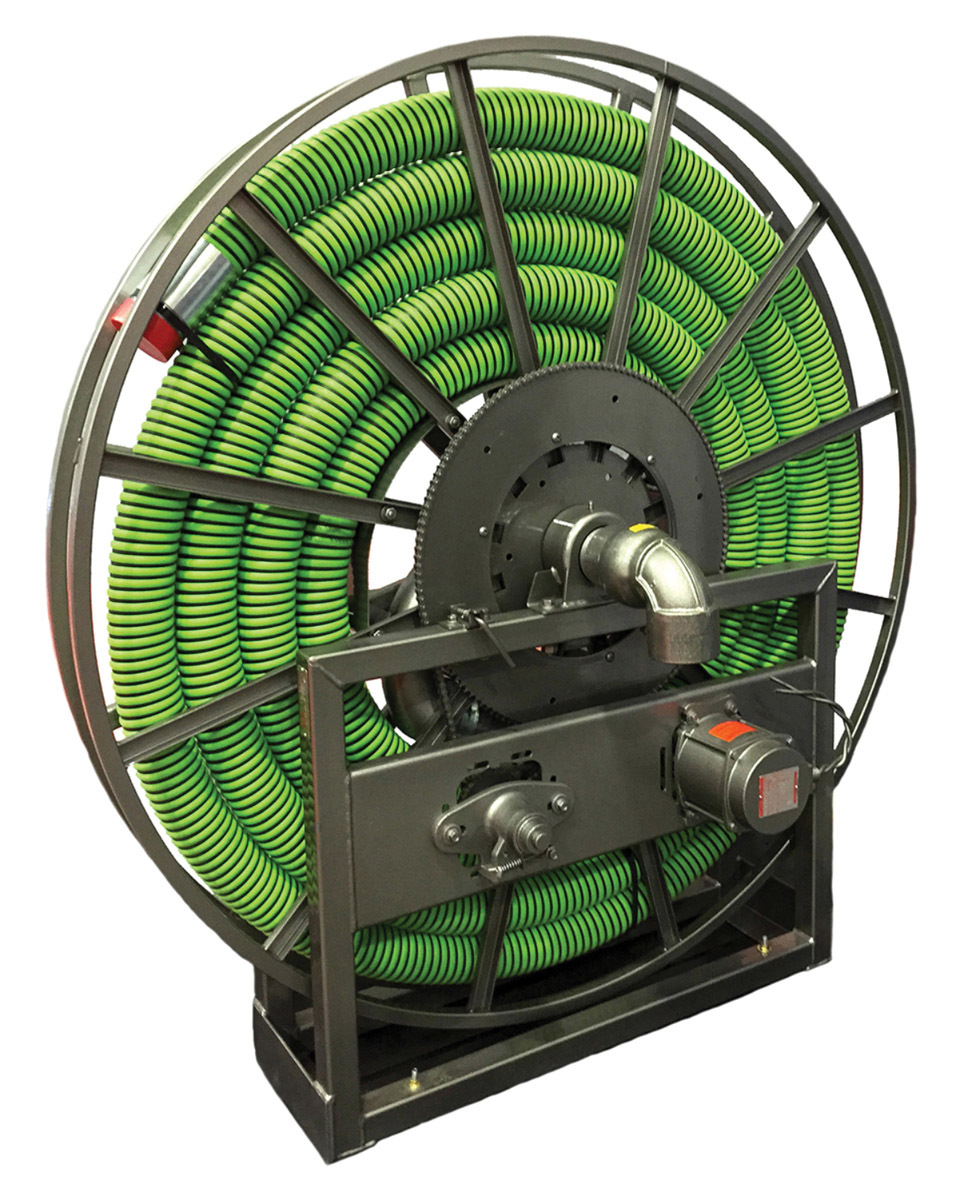

Hannay Reels VAC5000 Series

The Hannay Reels VAC5000 Series is a live hose reel that may be used for vacuum and suction applications on septic service trucks or trailers. This series is designed to provide quick, safe and effortless rewinding of hoses, either by hand, or with a power rewind option. It offers a variety of mounting configurations depending on tank/truck size constraints and length of hose and can provide easy access to the hose from both sides of the vehicle. The reels protect the life of the hose and make a difficult job cleaner, neater and faster. 877-467-3357;

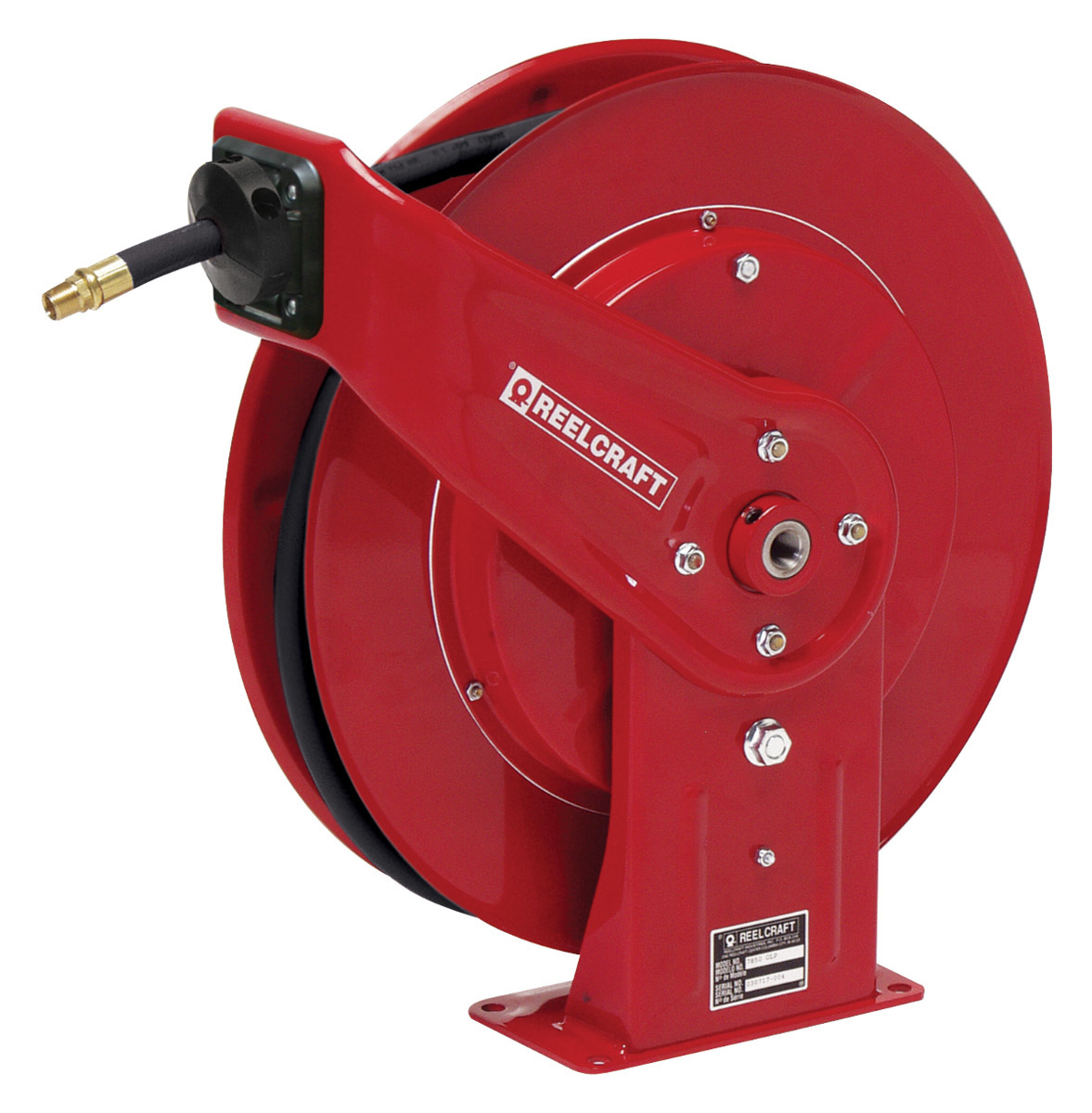

Reelcraft Industries Series PW7000

Series PW7000 hose reels from Reelcraft Industries are fitted with a nickel-plated, carbon steel AFLAS-sealed swivel specifically for pressure-wash applications. The reel holds up to 50 feet of 3/8-inch I.D. hose. Its rigidity, compact design and powder-coat finish make it suitable for outdoor, all-weather and truck-mount applications. The guide arm adjusts to seven positions for ceiling, wall, truck, bench or pit mounting. The reel comes in standard red, but other colors are available. 800-444-3134;

Truck-Mounted Jetters

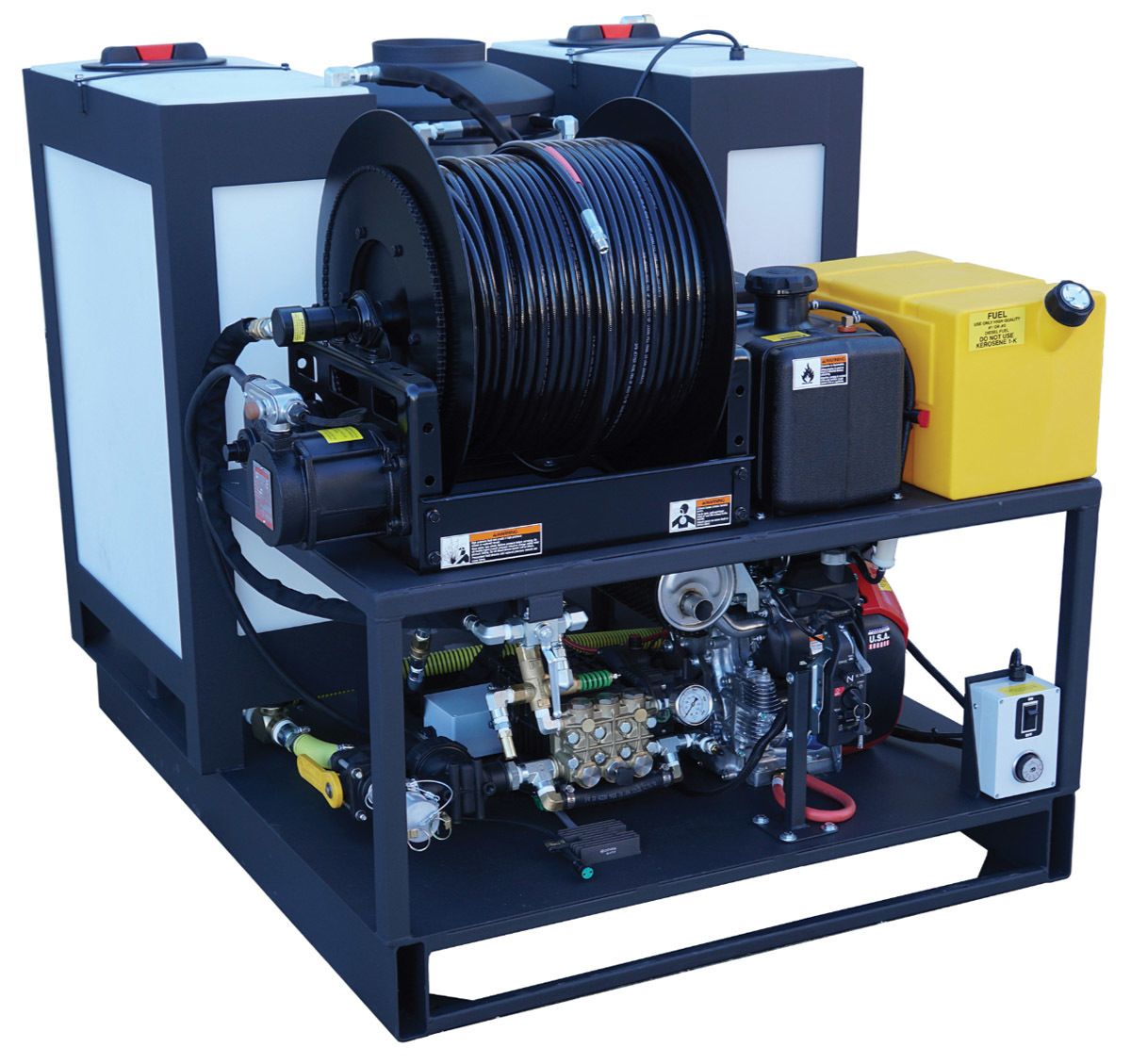

Cam Spray CV Series

The CV Series cargo van drain jet from Cam Spray offers diesel-fired hot water for additional jetting power. Several models are available up to 4,000 psi and 12 gpm. A triplex plunger pump with power pulse valve provides an extra push when needed. Air purge and recirculation to the tank are provided for freeze protection. A 5-gallon fuel tank provides hours of runtime. It comes with a heavily built, powder-coated frame with full deck and 130-gallon water capacity; a 12-volt DC reel with 2-1 clutch drive allowing for free spooling; and a powered hose return. It is controlled by a push button or foot switch. Accessories include a four-nozzle set, storage box, tip cleaner, tiger tail, safety shield, rubber gloves, high-visibility safety vest, 50-foot washdown hose and trigger gun. 800-648-5011;

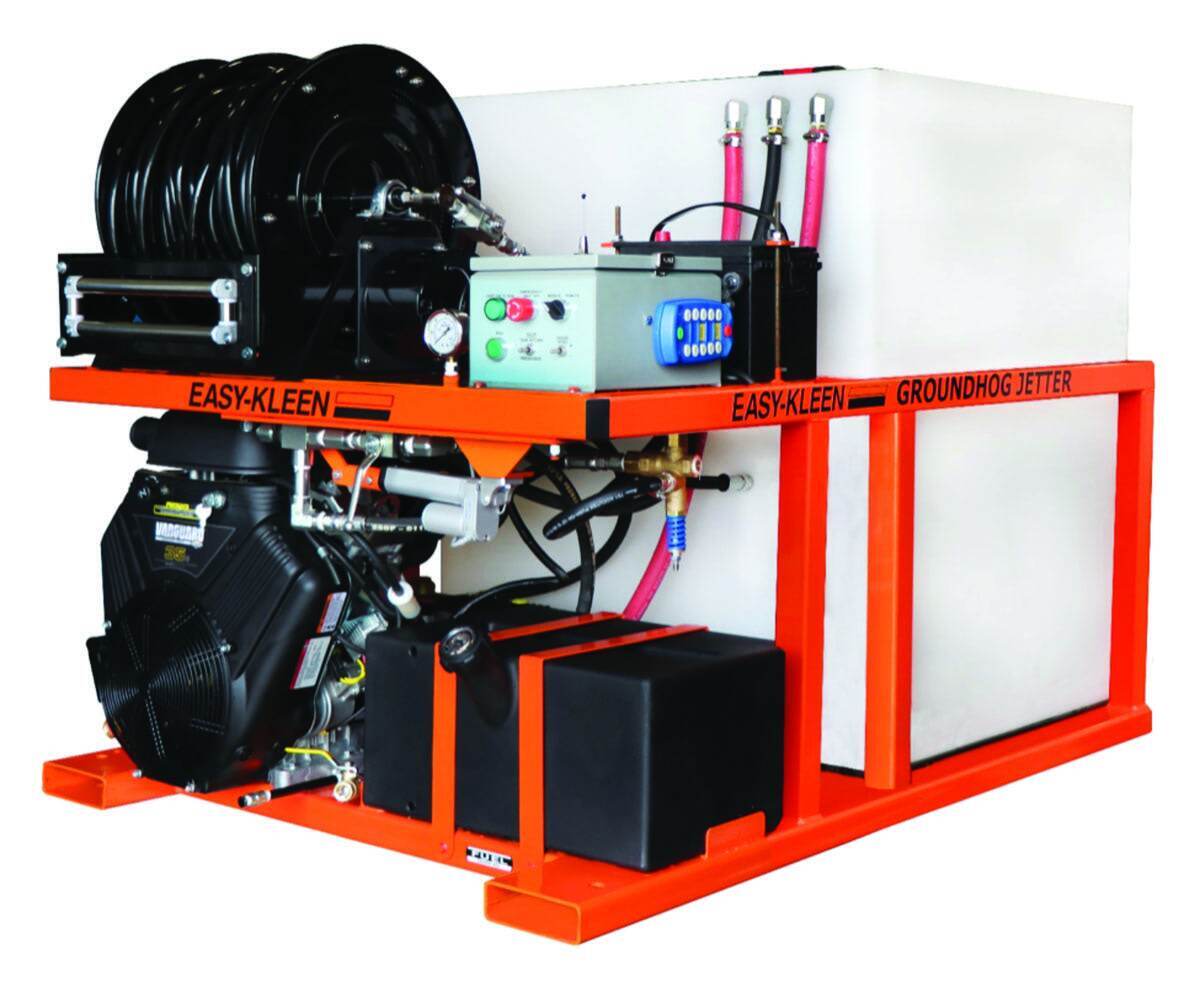

Easy Kleen Pressure Systems Groundhog Jetter

The Groundhog Jetter from Easy Kleen Pressure Systems is designed to blast through clogged pipes with a 35 hp Vanguard engine providing 12 gpm at 3,500 psi. It is compact and can be transported in a pickup truck or van, with trailer options available. It includes a fully welded, powder-coated, 2-inch steel tube frame, drilled and tapped, which houses the 200-gallon water tank. It comes with an accessible breather and 10-gallon fuel tank, General Pump with gearbox drive, 12-volt-powered hose reel with 300 feet of 3/8-inch jetter hose, hose guides, a super swivel and foot-pedal control, emergency shut-off valve and hour meter. Optional remote features include hose reel-in, motor off/speed control and pressure on/off. 800-315-5533;

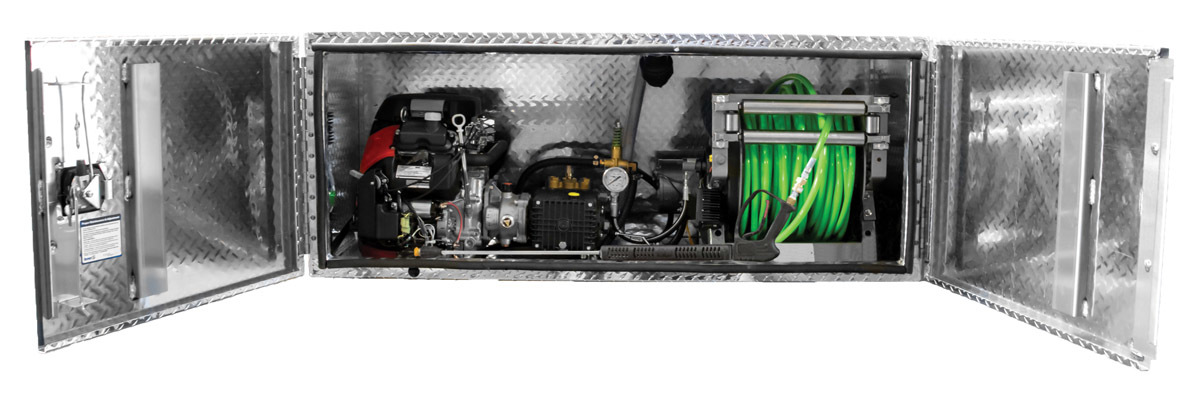

Moro USA Toolbox Mount Jetter Package

The Moro USA 10 gpm, 3,000 psi Toolbox Mount Jetter Package is designed for servicing household lines and/or grease traps, along with portable restroom cleaning. It uses 10 gpm, allowing its water supply to come from most household sources. The system is sufficient to provide flushing and jetting on routine grease trap servicing, according to the maker. 866-383-6304;

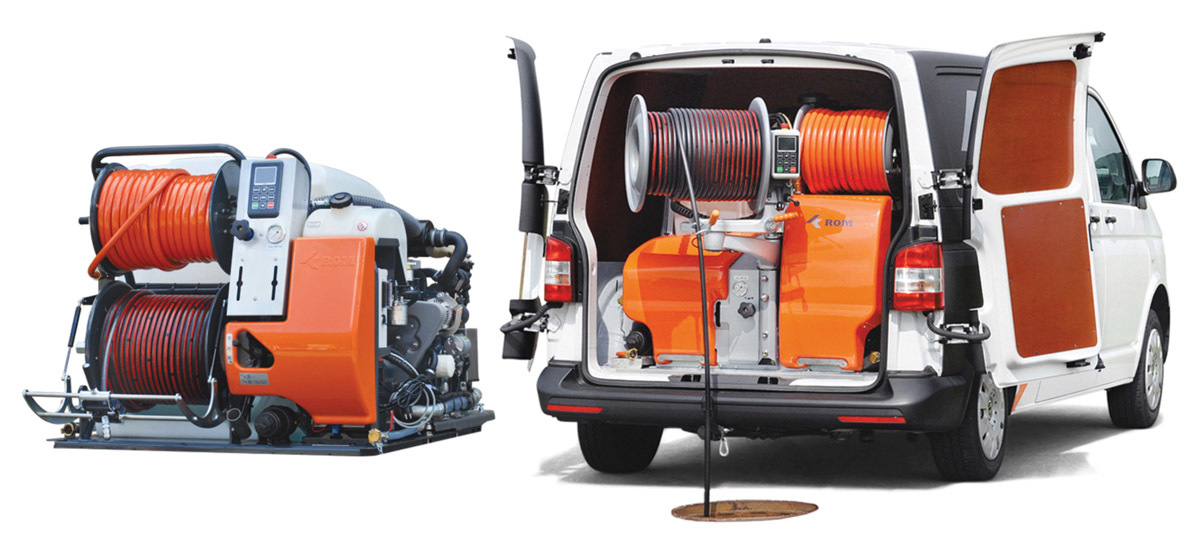

MyTana Compact Jetters

MyTana’s compact skid- or truck-mounted jetters are suitable for unblocking and cleaning house connections and sewer lines, providing the flexibility to take on residential and light industrial work. They can be customized with many options. The Compact Pro is suitable for work in lines up to 20 inches. It includes 270 feet of 1/2-inch hose on a hydraulic reel and delivers water flow up to 18 gpm or cleaning pressure up to 3,000 psi. The Economic fits medium-duty commercial vehicles for work in lines up to 24 inches, with water flow up to 26 gpm or pressure up to 3,000 psi. A hydraulic hose reel swivels 225 degrees and holds 400 feet of 1/2-inch hose. The units are built by ROM. 800-328-8170;

Vacuum Pumps/Blowers

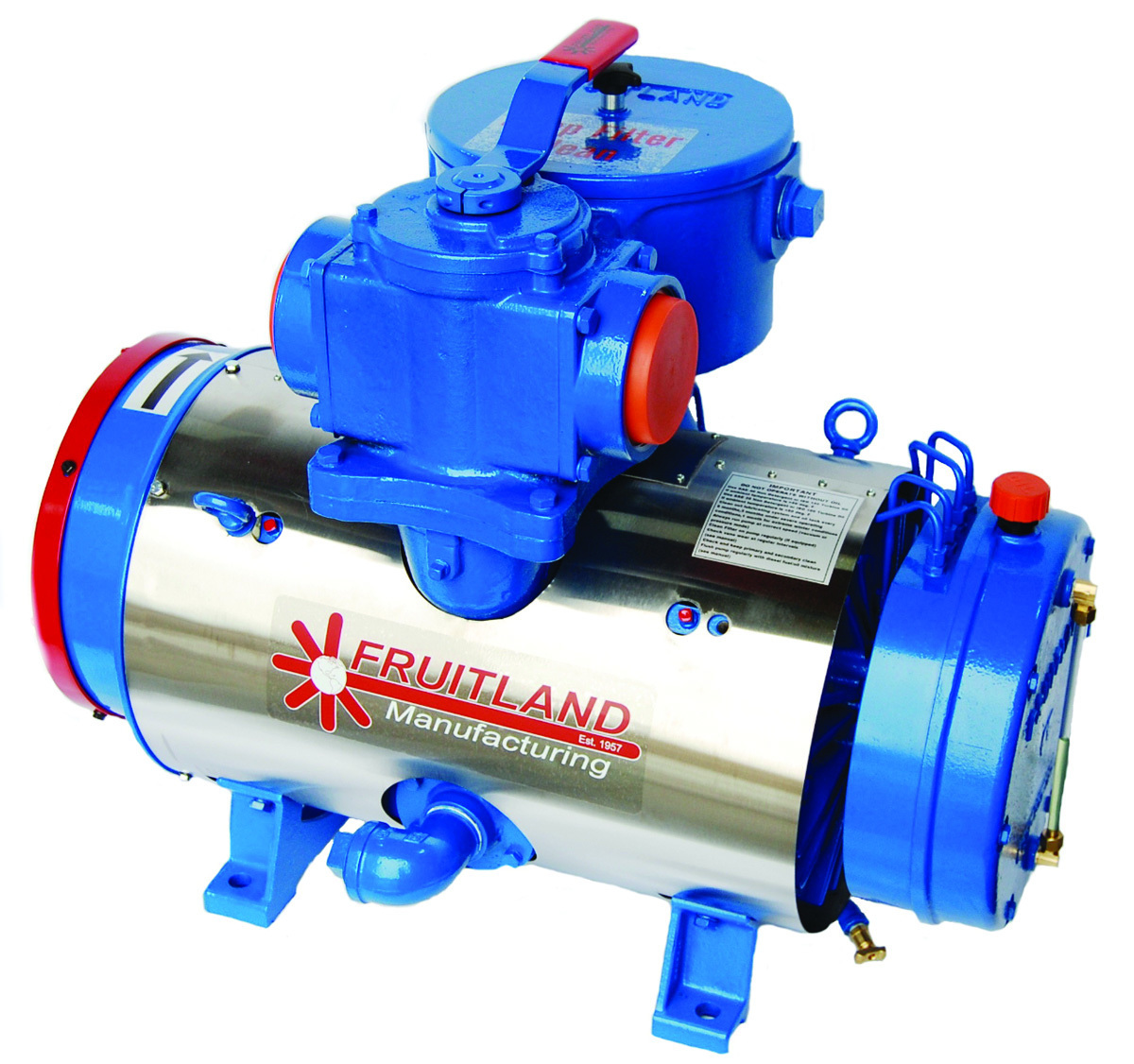

Fruitland 870 Series

Fruitland’s 870 Series pump allows vacuum levels of 28.5 inches Hg and continuous vacuum of 27 inches Hg. Additionally, it is capable of providing 30 psi pressure for offloading. Oil consumption is 1 gallon for 18 hours of operation, which provides cost savings and reduces environmental impact, according to the maker. Fruitland is less restrictive on the type of oil used, allowing customers to buy locally available, nonproprietary oil. The pump delivers 510 cfm (free air) through 4-inch porting. 905-662-6552;

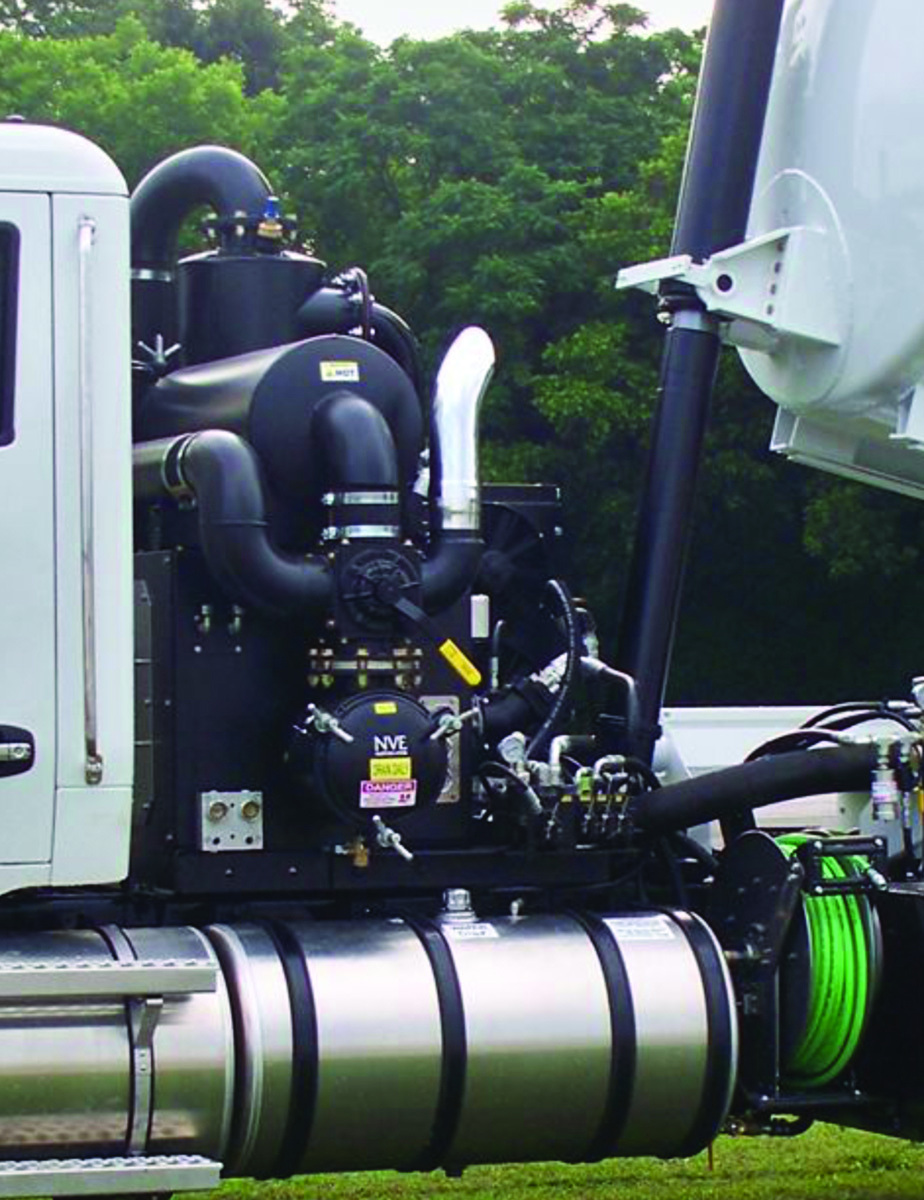

National Vacuum Equipment Challenger 1600

The Challenger 1600 from National Vacuum Equipment is a 1,600 cfm tri-lobe blower designed for continuous duty at maximum vacuum. It employs rotors designed to significantly improve vacuum efficiency and reduce mechanical noise. The blower has a ballast air-cooling design and typical maximum vacuum of 27 inches Hg. 800-253-5500;

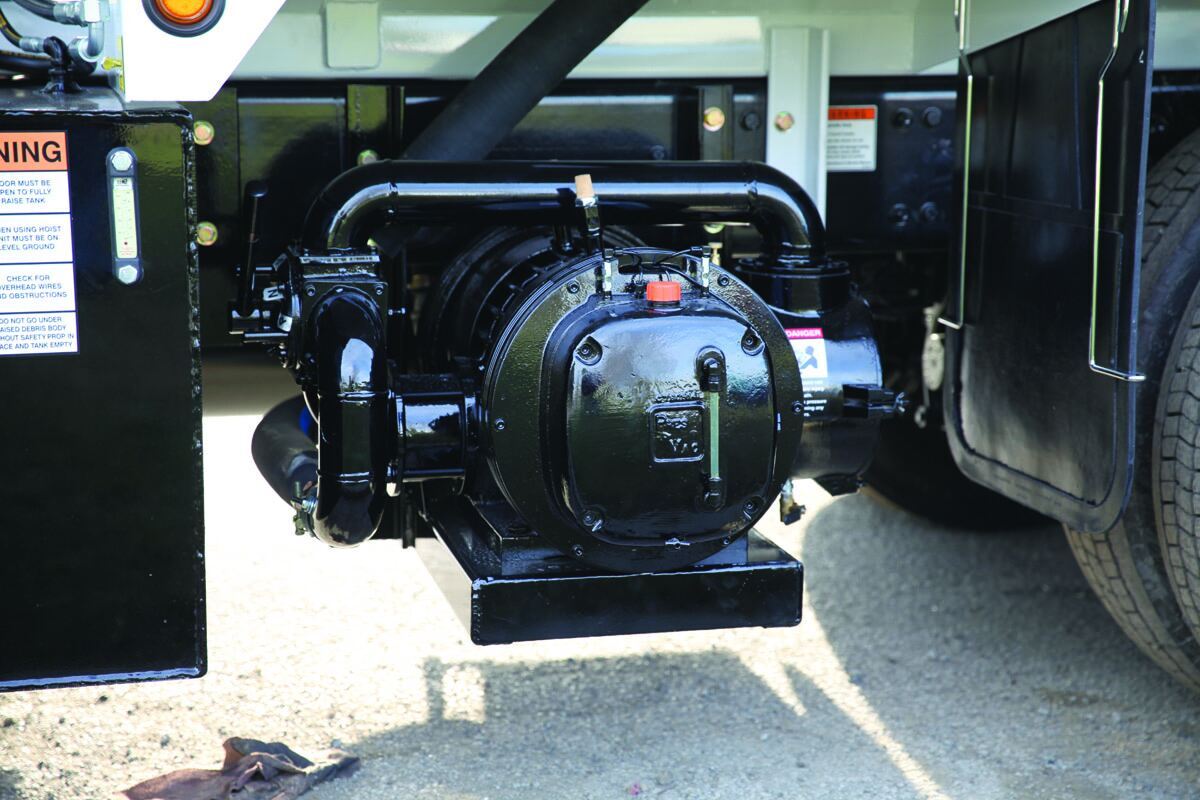

Presvac Systems PV750

The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin-ballast ports efficiently cool the pump, according to the maker. The solid housing with deep cooling ribs allows for greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger to aid in heat reduction. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763;

Wallenstein Vacuum 753 Series

The 753 Series vacuum pump from Wallenstein Vacuum incorporates wide vanes that allow up to an inch of wear, designed for longer service life. It provides 422 cfm airflow at 1,200 rpm and is precision-machined to provide vacuum levels up to 28 inches Hg. Options include air-, liquid- or dual-cooling systems where air injection is combined with liquid cooling. A pump-flushing port is included on the top valve for convenient maintenance. The quick-access housing end plate allows for easy internal inspection with no bearings to pull. Oil lubrication is via a mechanical piston pump driven by shaft rotation or available with a sight-feed valve oil regulator system using vacuum/pressure to draw oil with no moving parts. 800-801-6663;

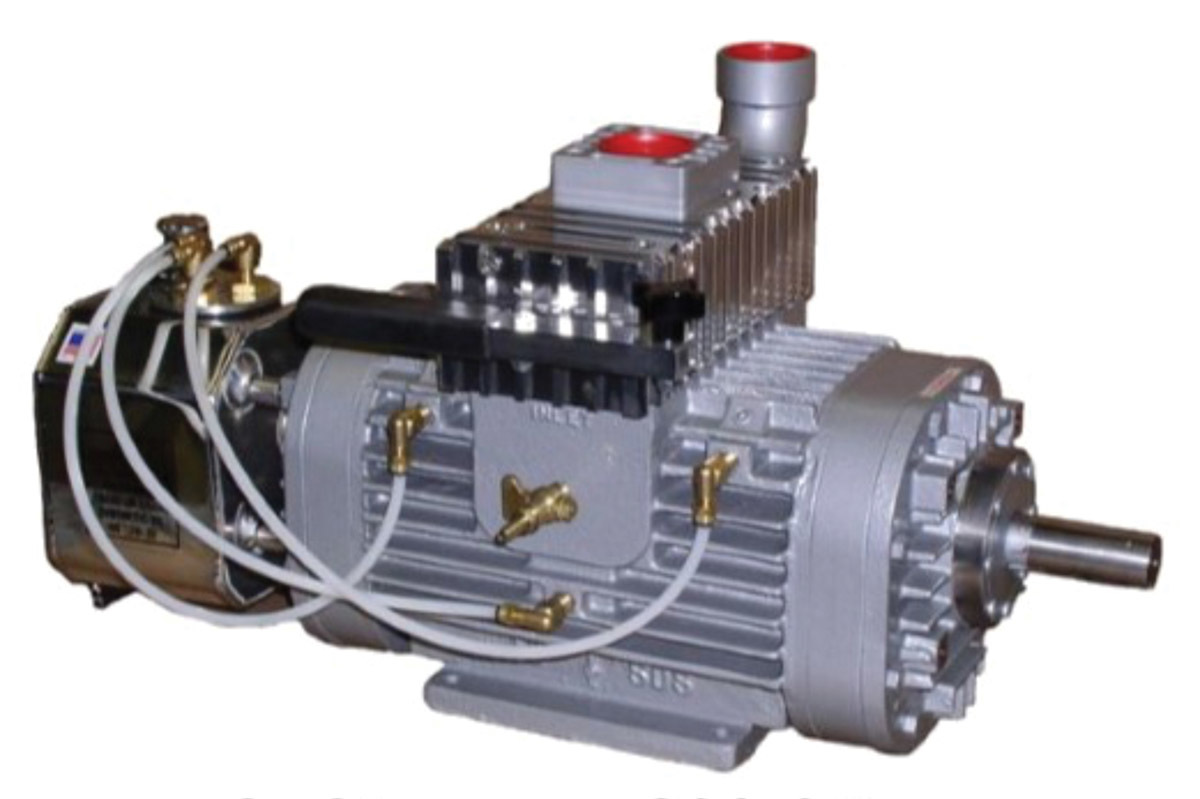

Westmoor Conde SDS Ultra

The Conde SDS Ultra vacuum pump from Westmoor pumps at 230 cfm and has an automatic oiling system that never needs adjusting. It incorporates the Conde Slide Valve (changeover valve), which is compact and low-profile and works easily, according to the maker. It is offered with either a pump-mounted or remote oil reservoir, with sealed high-temperature maintenance-free bearings. It can be driven by a variety of power sources including gas or diesel engines, PTO, right-angle drive or hydraulic pump. The unit is double-shafted and can be set up for either clockwise or counterclockwise rotation. 800-367-0972;

Vacuum Tank Parts/Components

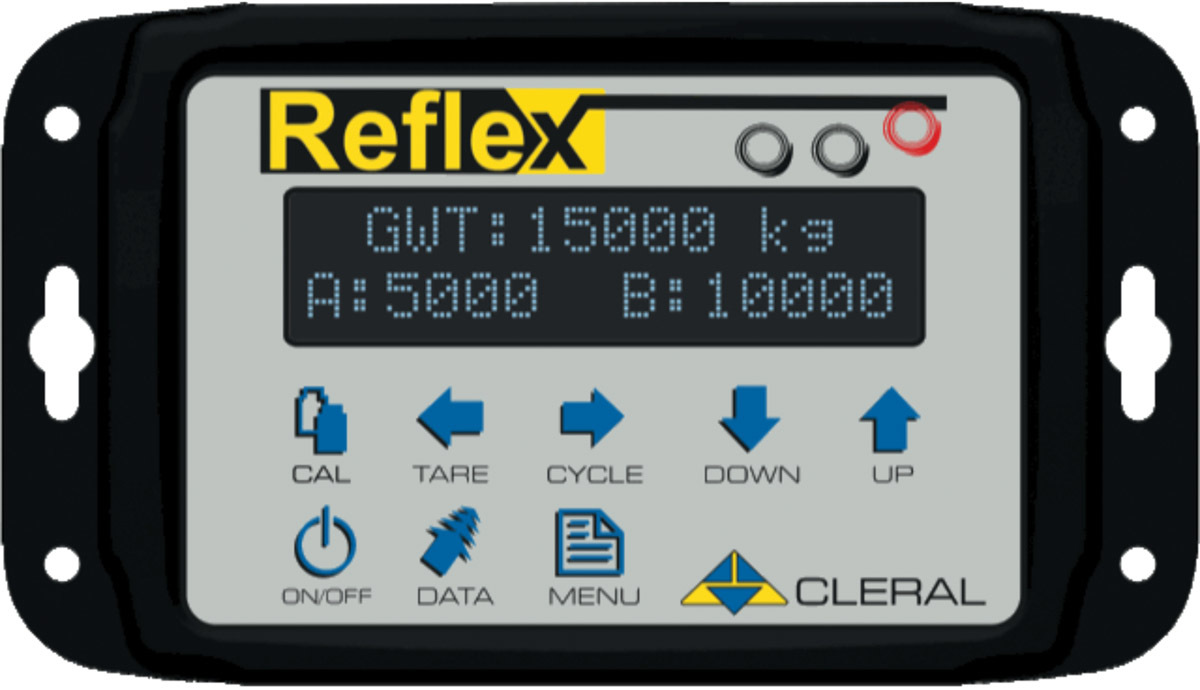

Cleral USA On Board Scales Reflex

Reflex onboard scales from Cleral USA On Board Scales are a crucial feature to have on any hydroexcavation, vacuum or pumper unit. Scales can tell operators when the vehicle has reached a maximum legal weight limit for the vehicle or for individual axle limits. The scale also helps drivers avoid excess wear and tear daily. The system can easily be installed on both new and existing vehicles with both mechanical and air ride suspensions. It displays both gross vehicle weight and individual axle weights and includes options like Target (for turning off a function on the vehicle when a preset weight is reached) or has an alarm to alert the operator to approaching weight limits. 866 901-7372;

Vacuum Trucks/Tanks

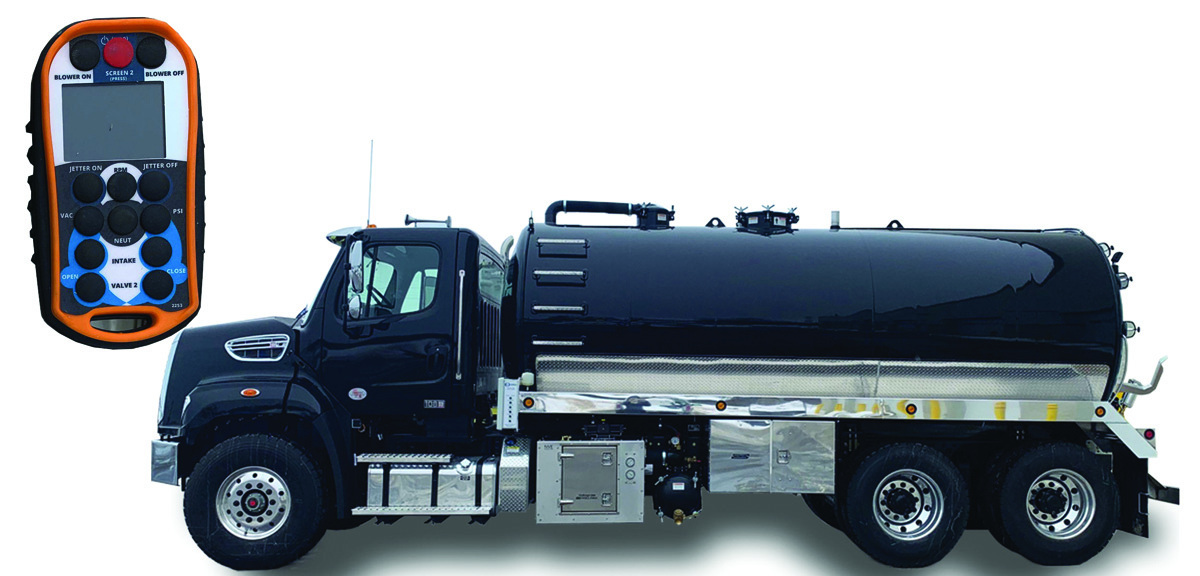

Imperial Industries’ Freightliner 108SD

Imperial Industries’ Freightliner 108SD includes a fully remote-controlled vacuum system. It comes with a 4,200-gallon painted aluminum tank with a National Vacuum Equipment Challenger 4310 blower (940 cfm). Functionality includes full control of the tank’s PTO and pneumatic valves, providing operators with the ability to switch between vacuum, neutral and pressure modes without leaving a septic tank access point. The bottom third of the tank is double-plated, and the tank is painted black with a diamond plate chip guard, full-flanged and dished heads for baffles, a hot shift PTO, one 4-inch vacuum inlet with lever valve, one 6-inch discharge with piston valve with a handle, three 5-inch sight glasses on the rear tank head, full-length aluminum hose trays, a SeeLevel indicator, a 24-by-24-by-24-inch aluminum toolbox, U.S. DOT LED light package, two rear LED work lights and an adjustable stainless steel rear bumper. 800-558-2945;

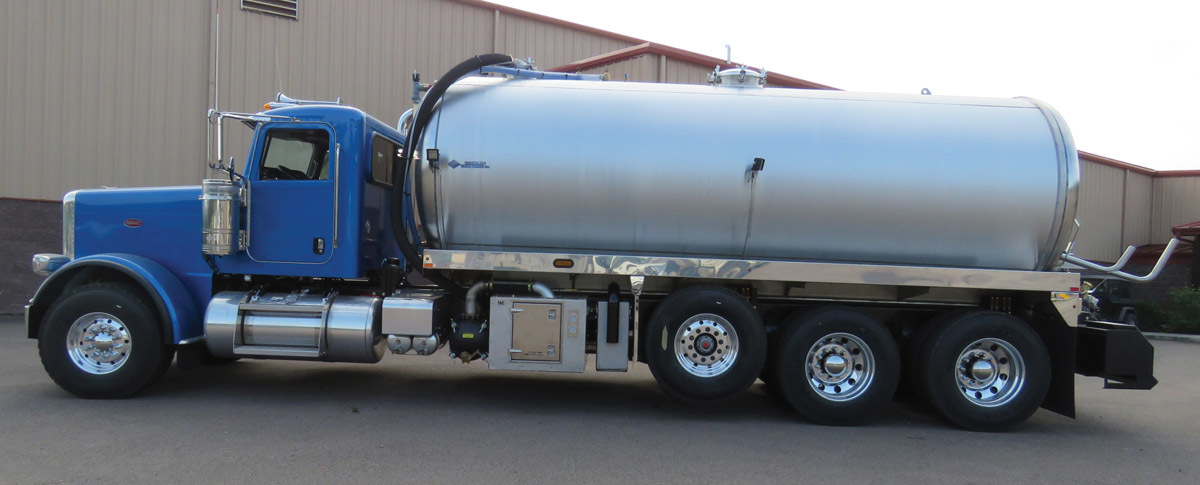

ITI Trailers & Truck Bodies 5,000/500 Vac Truck

The 5,000/500 Vac Truck from ITI Trailers & Truck Bodies has a 5,500-gallon stainless steel tank that holds 5,000 gallons of waste and 500 gallons of freshwater. It is mounted on a Peterbilt 389 Cummins X15 Eaton Fuller 18-speed chassis with a 20K steerable lift. It includes a DOT bumper with integrated toolboxes and a pintle hitch, Whelen work lights in the front and rear, National Vacuum Equipment 4310 Pro Pak Blower, 14-gallon stainless steel secondary, a full-length curbside platform with ladder, 2-inch sight tubes on both compartments, a 6-inch heater dump valve, polished stainless steel hose trays, a CAT Pumps Model 3560 water pump offering 25 gpm and 3,000 psi, a shaft drive PTO driver jetter, and a Hannay electric rewind hose reel complete with 300 feet of 1/2-inch 3,000 psi hose, all mounted in curbside stainless steel toolbox. 888-634-0080;

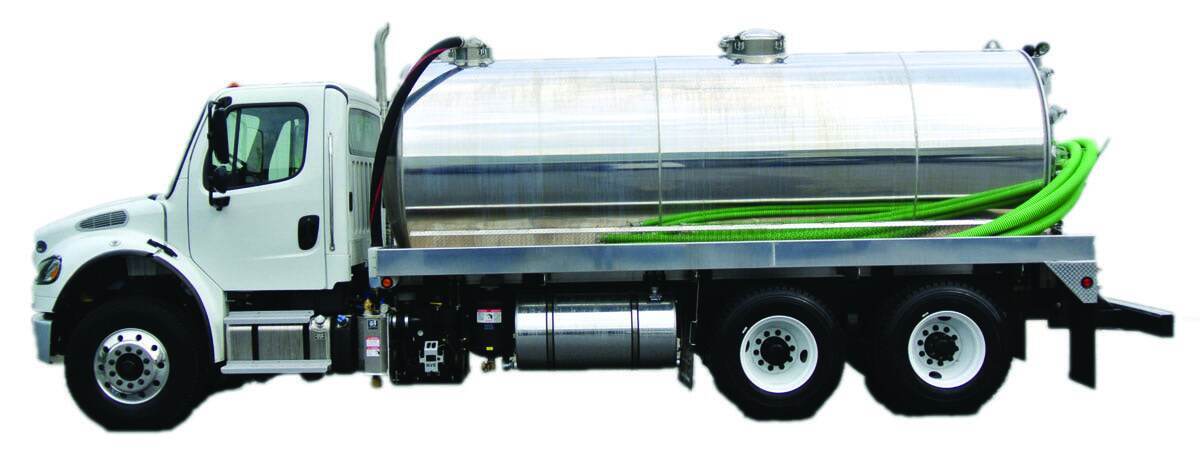

KeeVac Industries septic trucks

KeeVac Industries septic trucks have tanks constructed from marine-grade aluminum, stainless steel or steel. These tanks are mounted onto the customer’s choice of chassis for a complete service solution. A variety of safety lighting packages are available. Custom sizes are available with engineered drawings. A variety of vacuum pumps and water pumps are available. 866-789-9440;

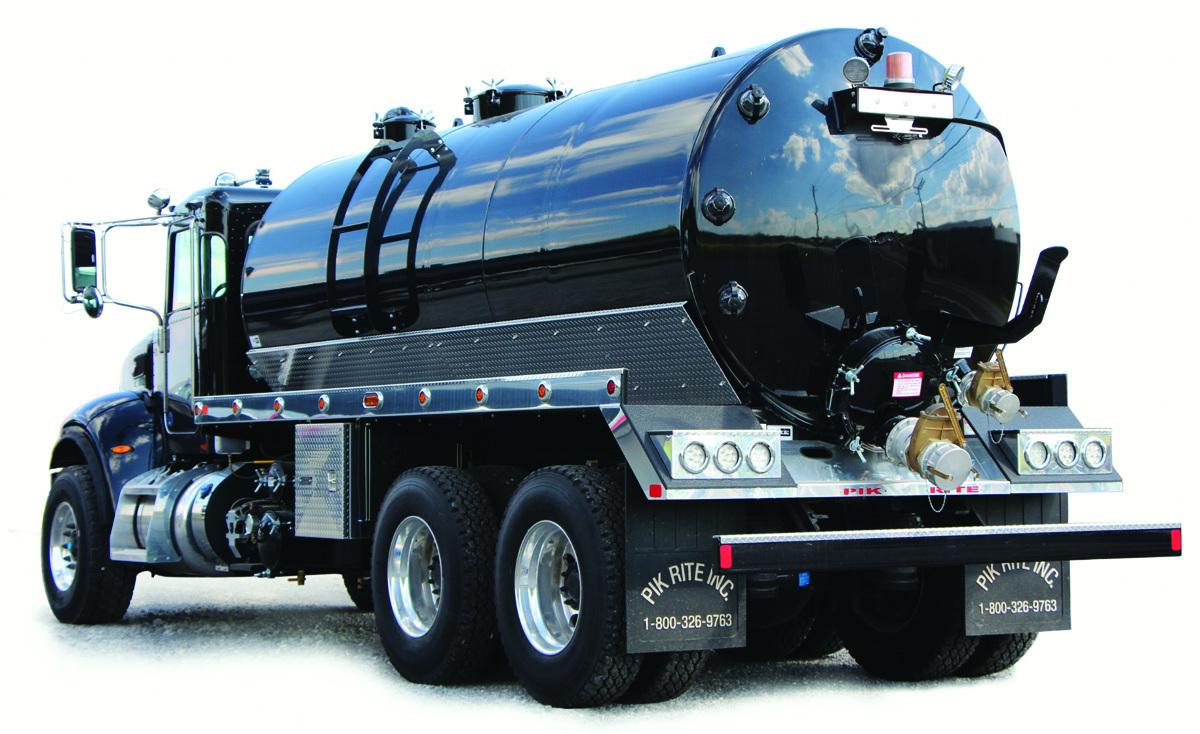

Pik Rite steel 3,600-gallon vacuum tank

The Pik Rite steel 3,600-gallon vacuum tank is designed for strength and reliability. Its 3-inch internal plumbing keeps the exterior clean and simple. The vacuum pump mount is attached to both frame rails and easily supports pumps from any major manufacturer. It has four sight eyes for the waste compartment. The tank interior is equipped with walk-through baffles and a 20-inch rear manway for easy clean-out. The LED running light kit is installed with a fully molded wire harness. Operator work lights and a strobe light are mounted on the top rear lighting bracket. Polished aluminum hose trays and low hose hooks are coated with protective liner. 800-326-9763;

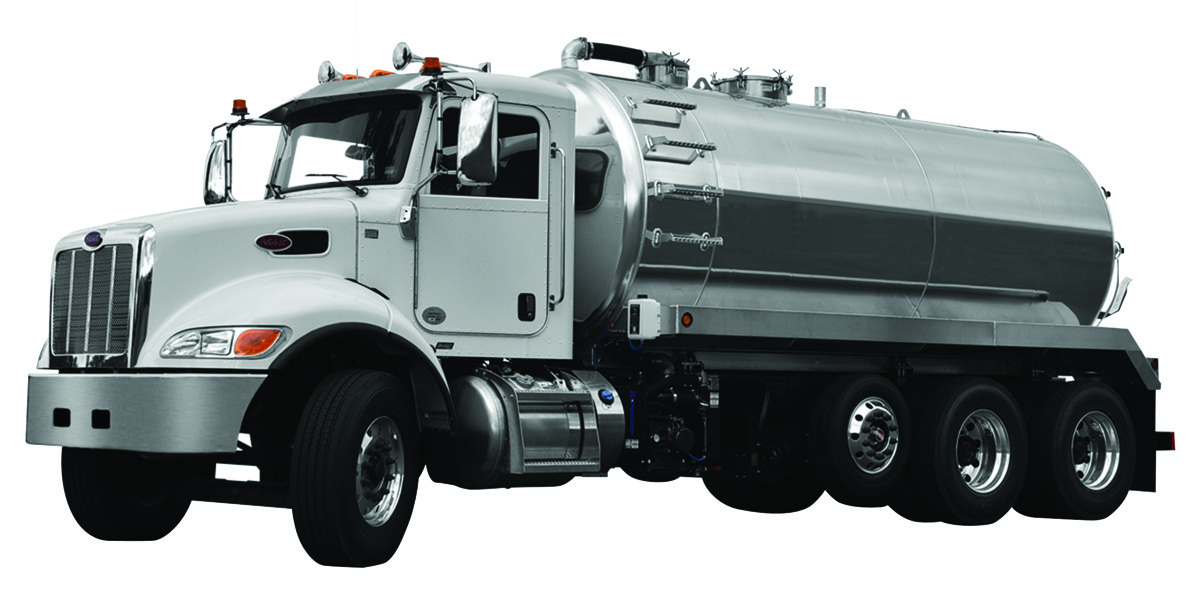

Satellite Vacuum Trucks MAL 4000

MAL 4000 trucks from Satellite Vacuum Trucks are large enough to pump four or five average-sized septic tanks before dumping, and their open frames provide additional room for storage. The units are mounted on a Freightliner chassis that includes a 114SD/DD13 engine offering 410 hp and 1,550 ft-lbs of torque, a Fuller FRO-15210c 10-speed manual transmission from Eaton Vehicle Group, 18,000-pound front axle and 40,000-pound rear axles on an air-ride suspension with full-locking differentials. Additional features include a rib-free exterior, diesel flush kit, full doubler plate, multiple manways and backup camera. 800-883-1123;

Vacutrux SepticTrux

SepticTrux from Vacutrux are available on chassis from 33,000 to 86,000 GVWR single axle, tandem or tri, with tank sizes from 1,800 to 5,400 gallons. Vacuum systems are powered by pumps from Elmira Machine Industries/Wallenstein Vacuum. 800-305-4305;
