Vacuum pumps for the septic services industry provide powerful and efficient solutions for handling waste management tasks. These pumps are designed for continuous operation, often featuring rotary vane systems and cooling mechanisms to ensure durability in extreme conditions. With options for various cfm capacities, vacuum and pressure capabilities, and both portable or stationary configurations, they are versatile enough to meet the demands of different applications in the field. Check out some product options below.

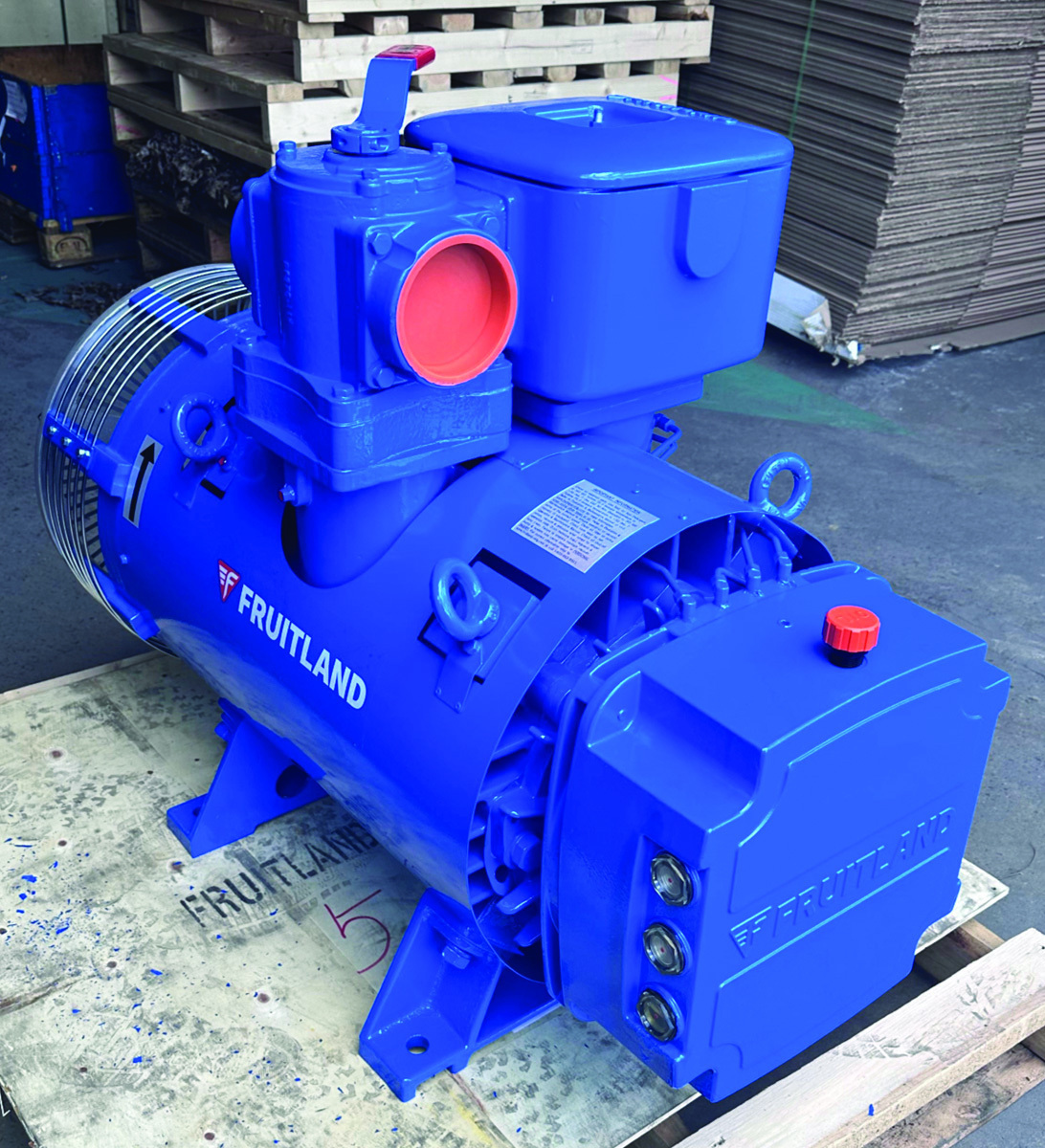

Fruitland 1400
The Fruitland 1400 is the company’s largest, most powerful rotary vane pump. It is fan-cooled for increased free airflow over its predecessor, the 1200, producing 910 cfm. It is lighter and significantly quieter than the 1200, and features air injection for continuous operation. It includes improved designs of both the integrated oil reservoir and filter pod, making it suitable for long, heavy and deep pulls. 800-663-9003; www.fruitlandmanufacturing.com

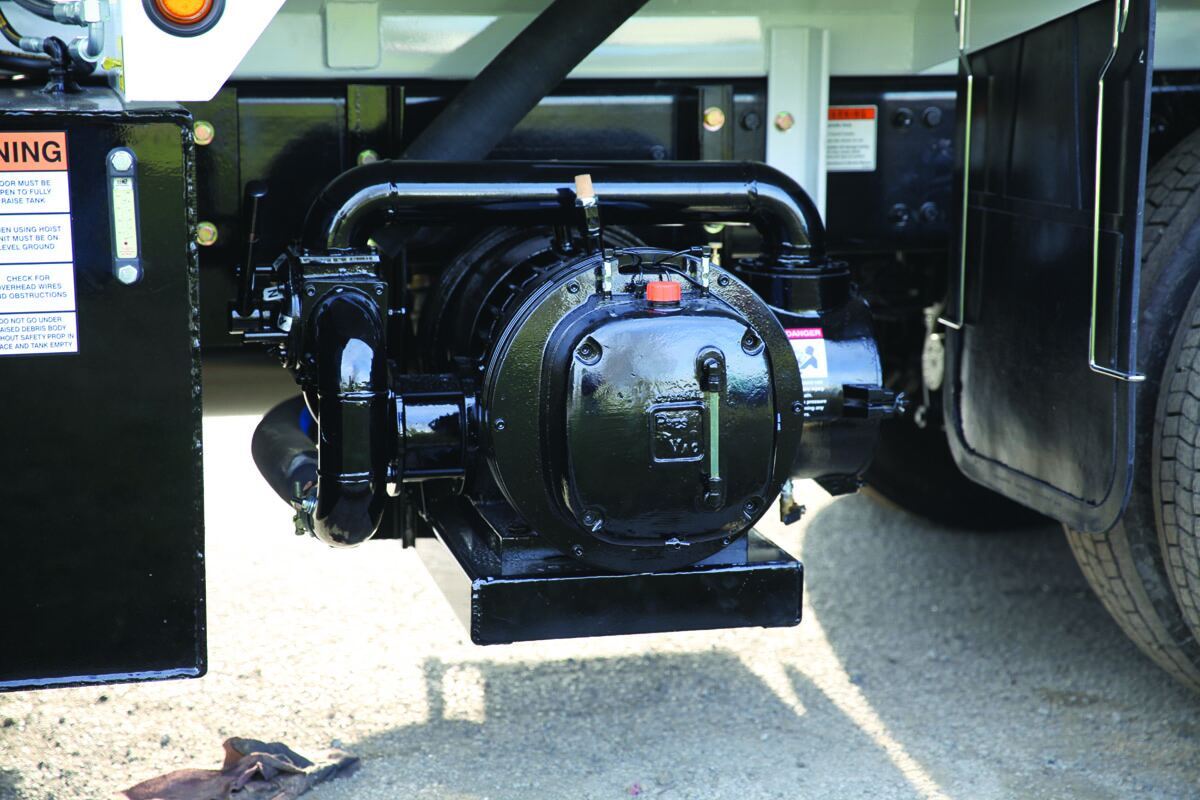

Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763; www.presvac.com

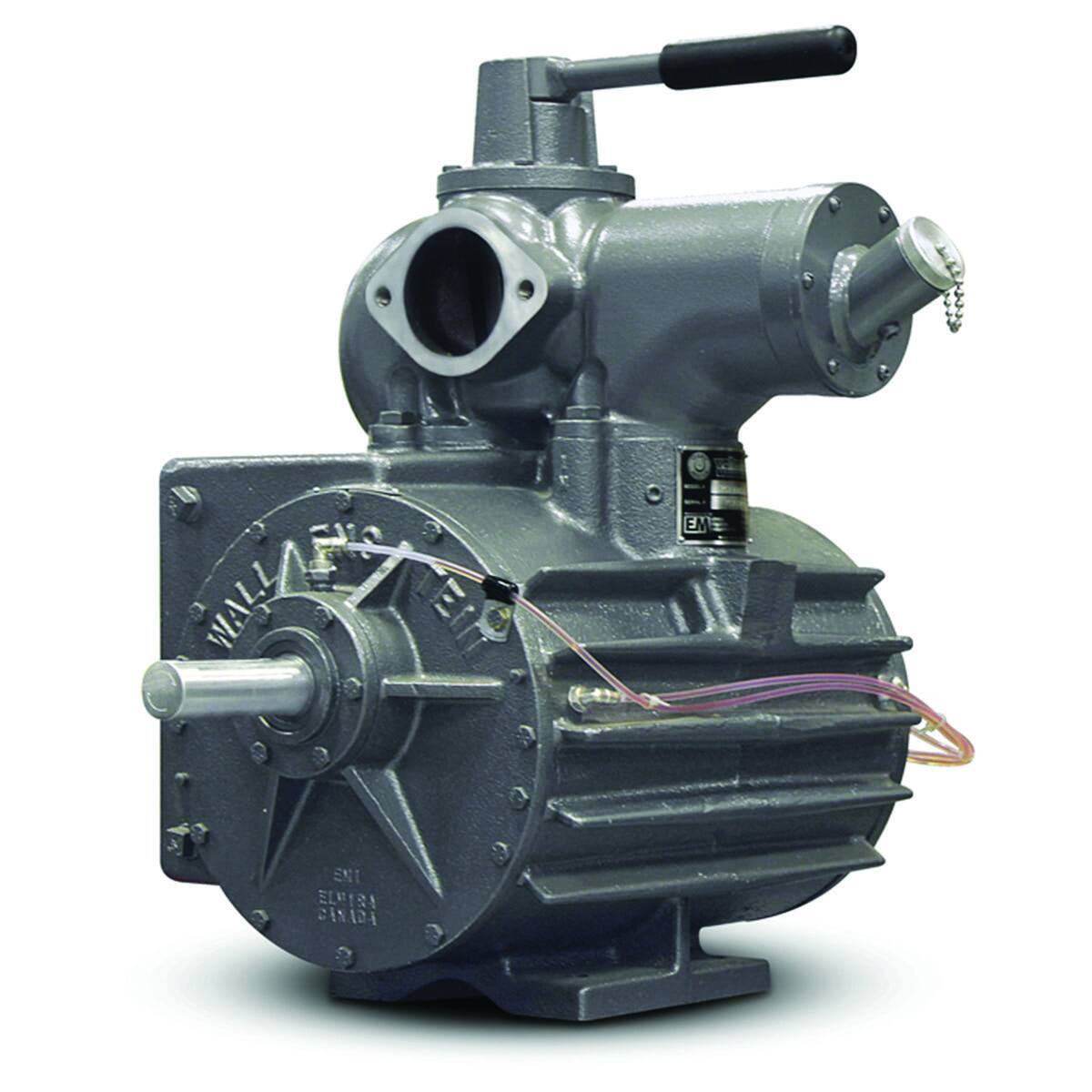

Wallenstein Vacuum 753 Series
The 753 Series vacuum pump from Wallenstein Vacuum is designed for long service life, incorporating wide vanes that allow up to an inch of wear. It provides 422 cfm airflow at 1,200 rpm and vacuum levels up to 28 inches Hg. Options include air-, liquid- or dual-cooling systems where air injection is combined with liquid cooling. A pump-flushing port is included on the top valve for convenient maintenance. The quick-access housing end plate allows for easy internal inspection with no bearings to pull. Oil lubrication is via a mechanical piston pump driven by shaft rotation or available with a sight-feed valve oil regulator system using vacuum/pressure to draw oil with no moving parts. 800-801-6663; www.wallenstein.com

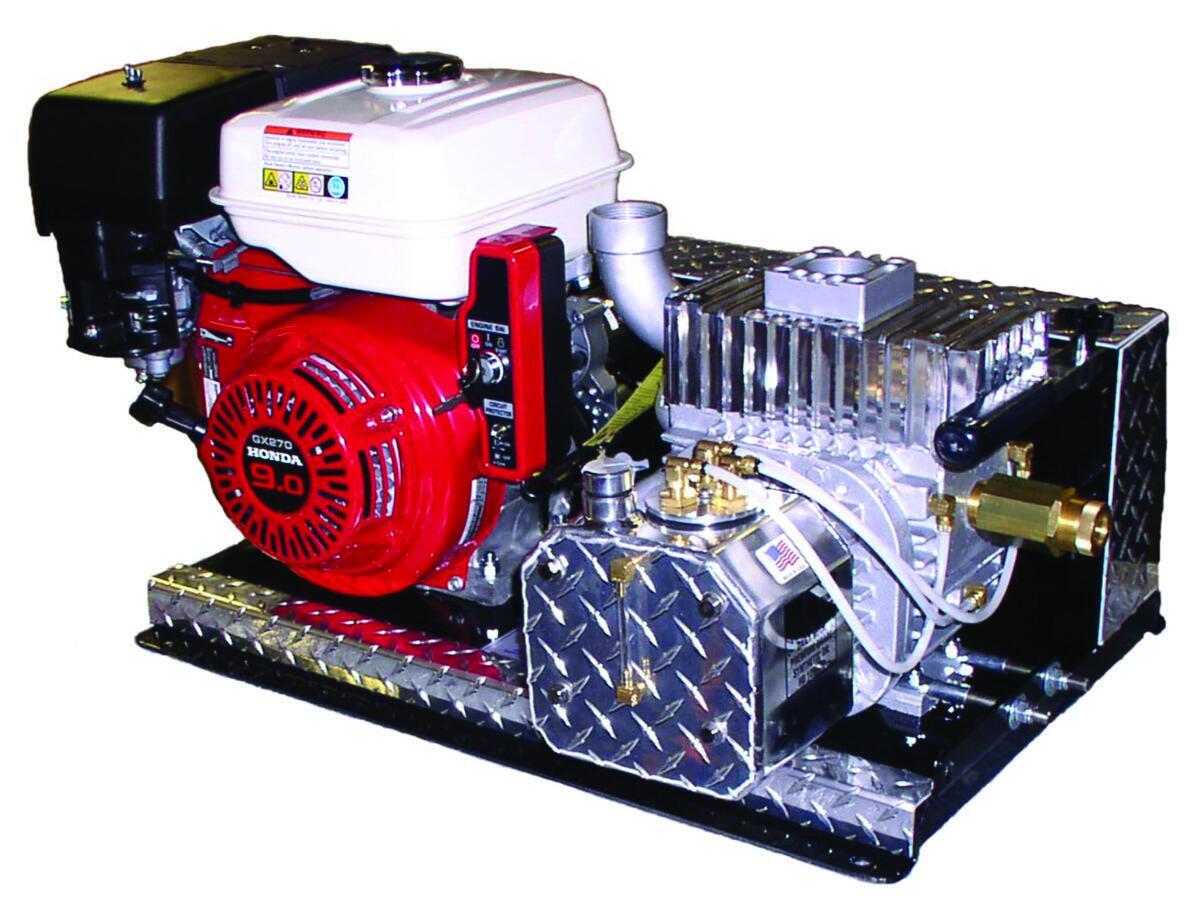

Westmoor Conde PowerPaks
Westmoor Conde PowerPaks are preassembled gasoline or diesel-powered vacuum pump units. They are easy to install, according to the maker, and include a heavy-duty steel base with aluminum diamond plate trim and belt guard. Rigid assembly is designed to minimize vibration and maximize power. They are available with either vacuum only or vacuum/pressure pumps. A range of cfm options matches the PowerPak to the tank size and application. Units are powered by Honda GX Commercial Series gasoline engines or Hatz industrial air-cooled diesel engines. Units can be transferred to another tank system when needed. 800-367-0972; www.westmoorltd.co
