Industrial + Get AlertsBLOWERS
National Vacuum Equipment Challenger 1600
The Challenger 1600 from National Vacuum Equipment is a 1,600 cfm tri-lobe blower designed for continuous duty at maximum vacuum. It employs rotors designed to improve vacuum efficiency and reduce mechanical noise. The blower has a ballast air-cooling design and typical maximum vacuum of 27 inches Hg. 800-253-5500; www.natvac.com
COMMUNICATION EQUIPMENT

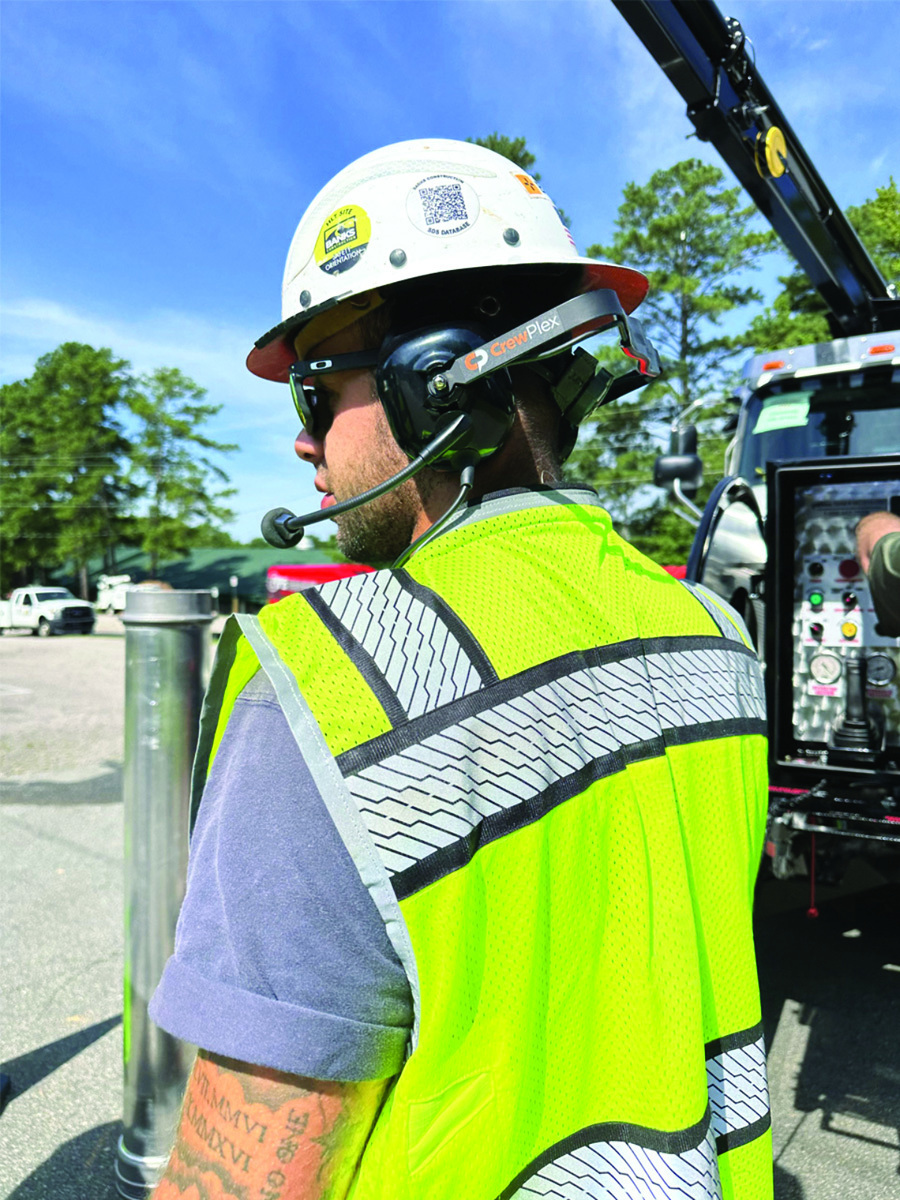

CrewPlex
CrewPlex is a hands-free communication solution to help crews overcome the challenges of continuous communication in environments where noise, distance and task complexity can impact safety and productivity. It enables the user to connect the entire vacuum truck, camera truck and support personnel team with one system. Users can talk and hear each other in real time without delay and without voice triggering or pushing a button. Ideal audio quality provides better communication in all environments, especially in vacuum truck operations where noise levels can exceed 100 dB. Available connectivity to two-way radio systems keeps workgroups in touch with a supervisor and extends the communication reach of an entire work crew. 334-321-1400; www.crewcom.com
HOSE REELS

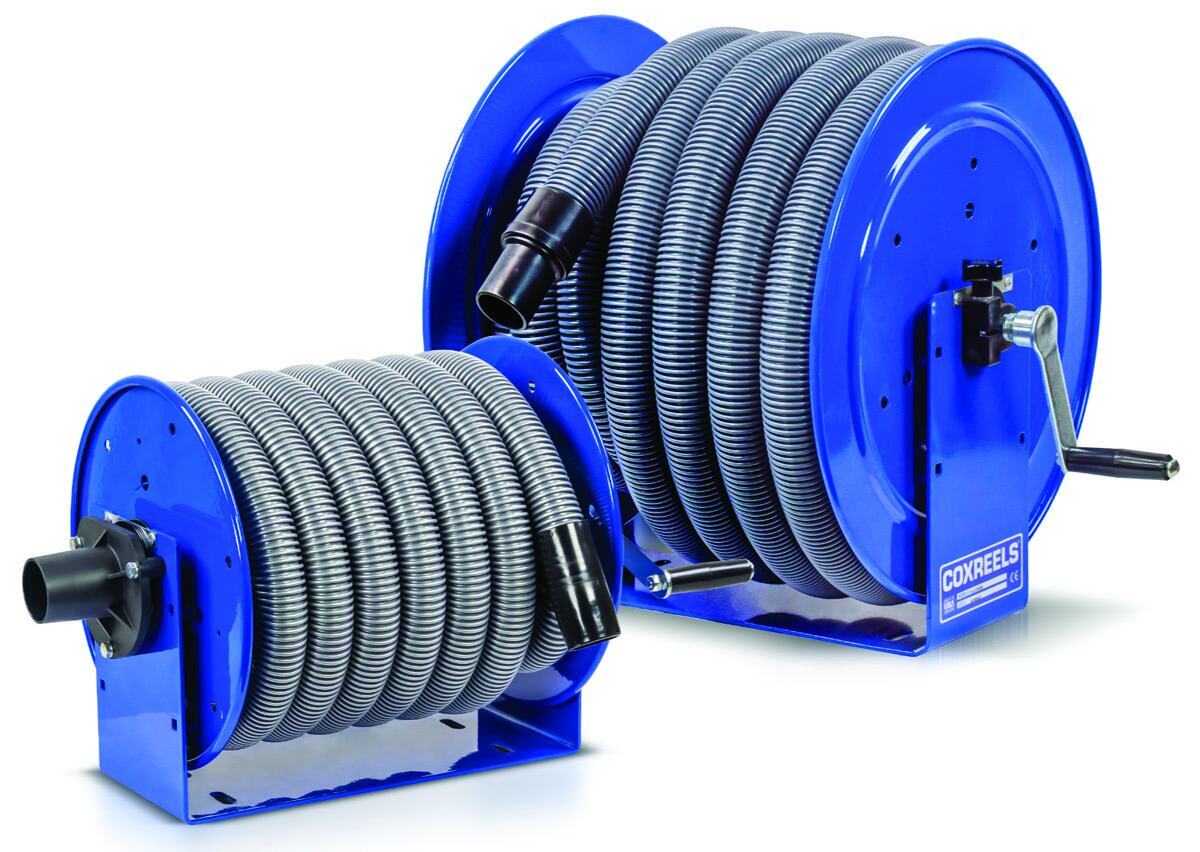

Coxreels V-100 Series
The Coxreels V-100 Series product line has been expanded with the new 1 1/4-inch vacuum hose reel V-112-735 without hose and the V-112H-735 with hose. The new model is a smaller frame size featuring 12-inch-diameter discs instead of the original 17-inch-diameter discs and is designed for use with 35 feet of 1 1/4-inch vacuum hose. The outlet connecting to the hose remains 1 1/2 inches and our 1 1/4-inch hose comes equipped with 1 1/2-inch slip cuffs on both ends for maximum flow. In addition to the new models, the swivel has been improved on the entire product line. The new swivel design still allows for the connection of multiple hose sizes by using the inside and the outside of the housing, but a greater gradual taper has increased the amount of compatible inlet hose cuffs. 800-269-7335; www.coxreels.com

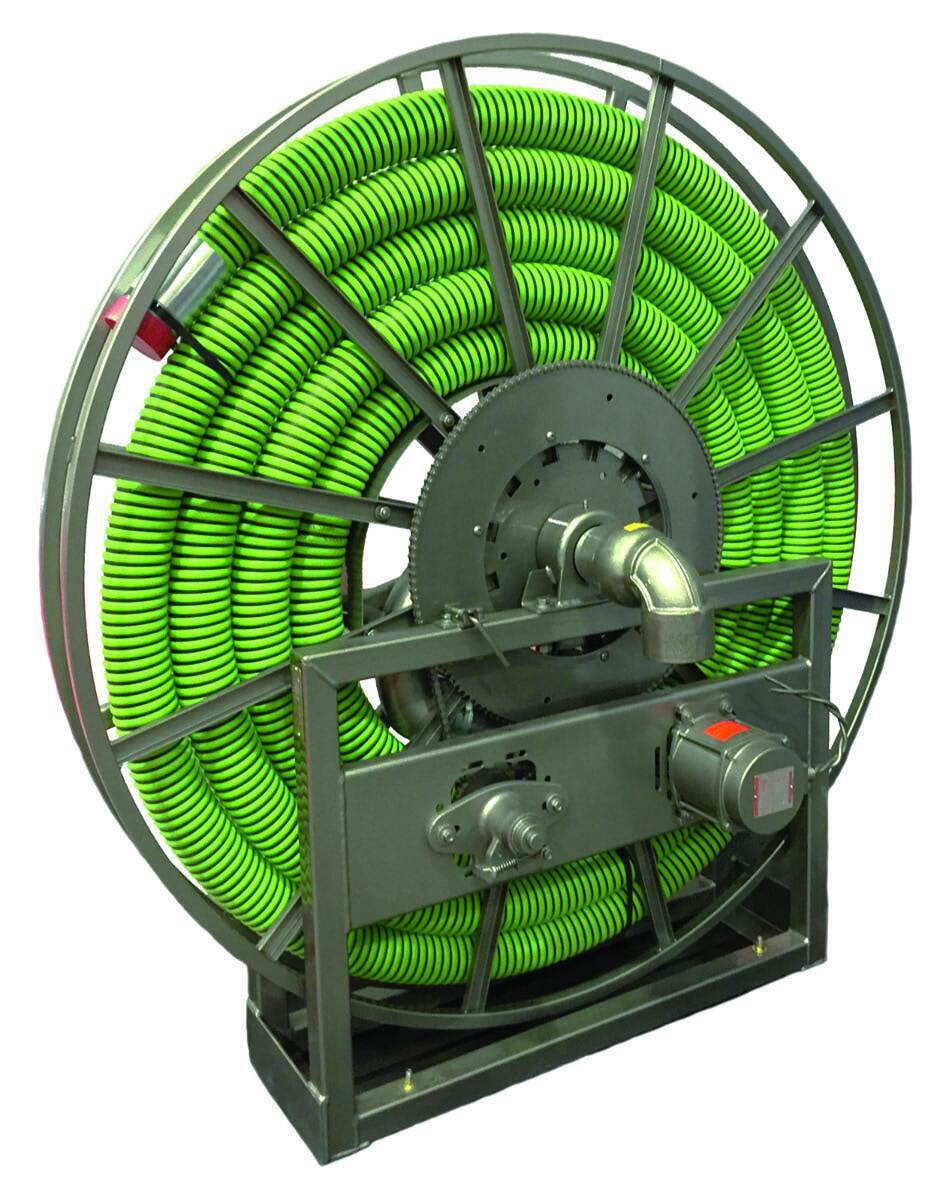

Hannay Reels VAC-5000
The VAC-5000 from Hannay Reels combats tangled, unorganized hose. Designed to handle 2- through 4-inch I.D., the heavy-duty reel picks up and rewinds bulky hose effortlessly, according to the maker, with either a gear-driven crank rewind or a chain-and-sprocket drive powered by an electric, hydraulic or compressed air motor. With a narrow footprint and a single wrap configuration, it provides simple, flexible transverse mounting options on vehicle cabs, tanks or frames. No matter where the reel is mounted on the vehicle, operators can maintain easy access to the hose from both sides. 877-467-3357; www.hannay.com
HYDROEXCAVATION TOOLS

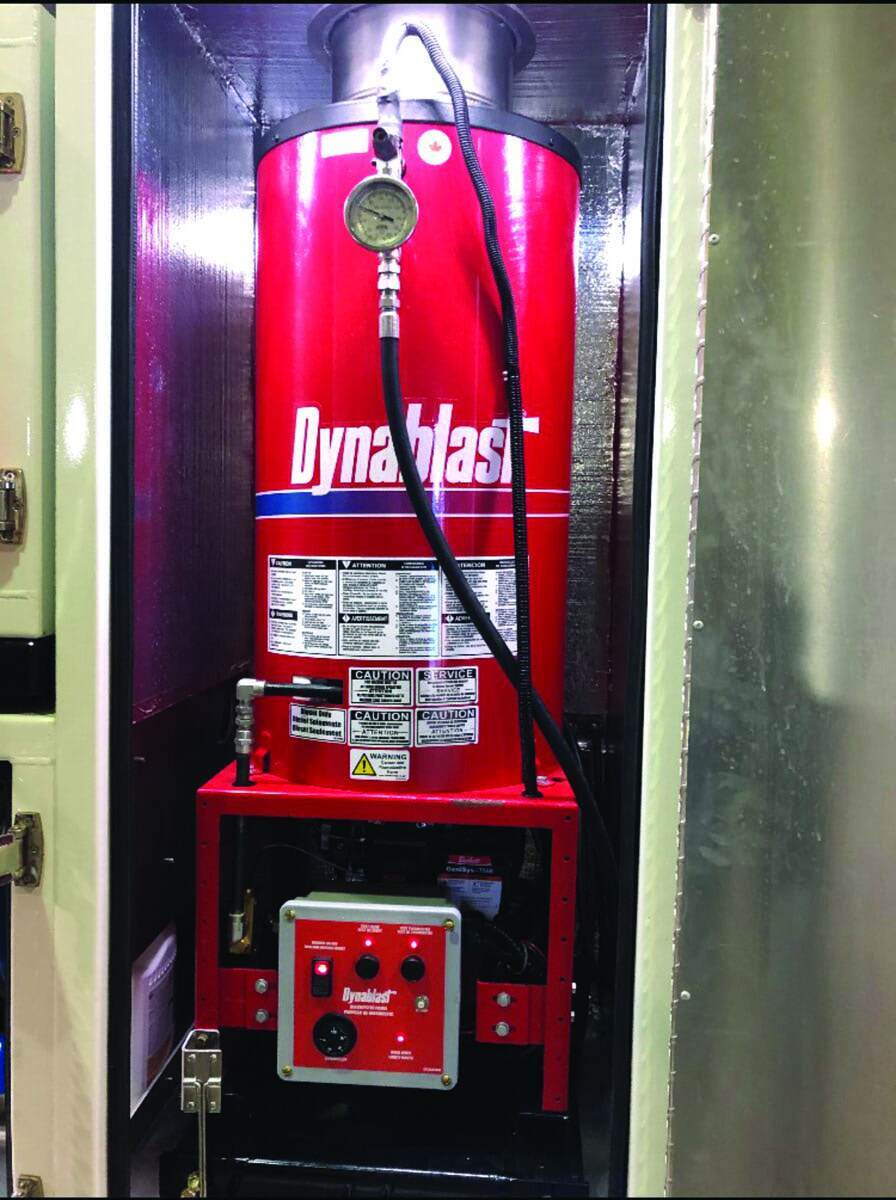

Dynablast HV420F-12VRED
The Dynablast HV420F-12VRED hydrovac water heater produces 420,000 Btu with an output temperature of 175 degrees F at 5 gpm, making it suitable for colder climates and improved digging in clay-filled areas. All models come with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, a stainless steel target plate for increased coil life and a design with serviceability in mind utilizing momentary override control. A 19-by-19-inch footprint makes it suitable for compact installations. 905-867-4642; www.dynablast.ca

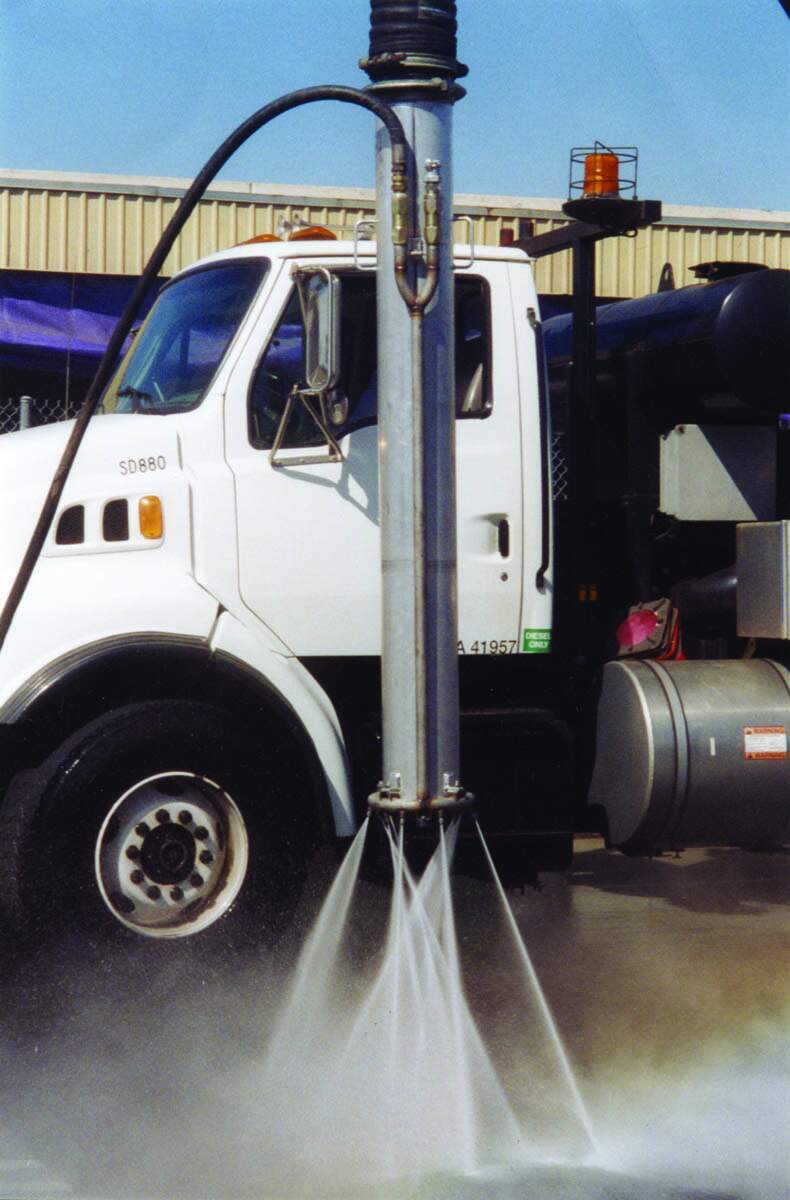

Soil Surgeon hydroexcavating tool
The Soil Surgeon hydroexcavating tool fits any sewer combination truck equipped with a telescoping 6- or 8-inch boom. The tool has a 1-inch water connection. The operator controls water pressure and power through truck controls. It has a 6-foot Tuff-Tube with handles to guide the unit down for potholing or side to side for trenching. Six jets boring inward cut the soil, while six boring outward bring the tube down. 949-363-1401; www.soilsurgeoninc.com

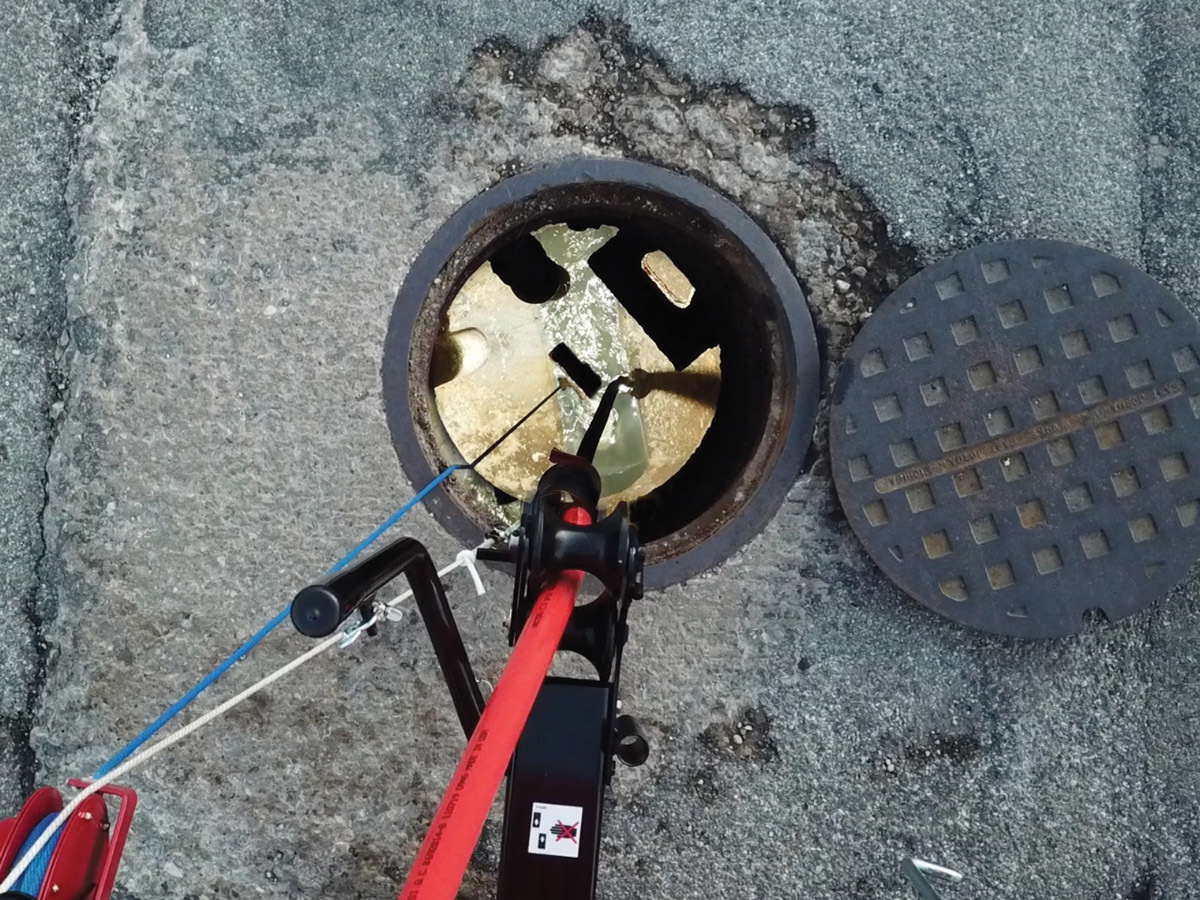

Vactor Mfg. H.A.L.O.
The H.A.L.O. hands-free accessory light option from Vactor Mfg. was designed for safety and efficiency, according to the maker. Explosion-proof, waterproof and hands-free, it is operator-oriented and may be used for many applications. It offers up to 14 hours run time and includes a 50-foot retractable corded reel. It is available on Vactor’s 2100i, Water Recycler, 2100i CB, iMPACT and Ramjet Truck Series. 815-672-3171; www.vactor.com
HYDROEXCAVATION UNITS

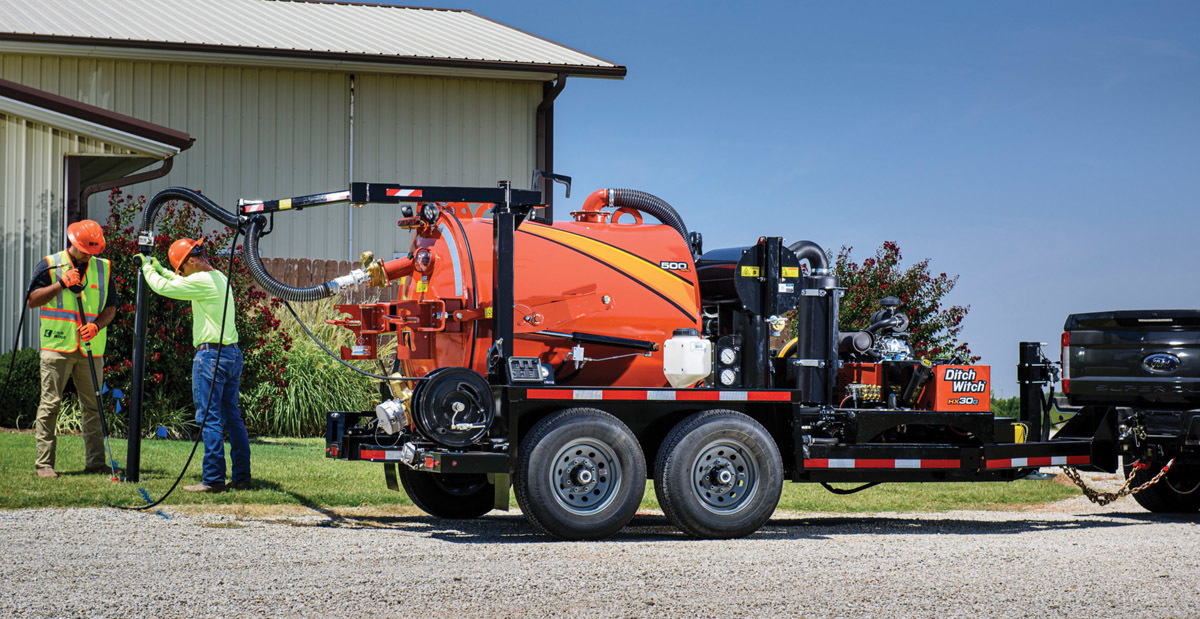

Ditch Witch HX30G
The HX30G from Ditch Witch offers power in a low-profile design to help increase productivity. It is powered by a 31 hp Vanguard gas engine for suction power and water pressure to remove slurry and expose water/sewer lines for easy repair. It has a 542 cfm blower, 3,000 psi water pressure capacity and 4.2 gpm water flow, for efficiency and precision on the job site. It comes with a 500- or 800-gallon tank for a variety of job requirements. The machine is also available in a variety of trailer configurations, including the Ditch Witch VT9 trailer — which, when equipped with the 500-gallon tank, does not require a CDL to transport. 800-654-6481; www.ditchwitch.com

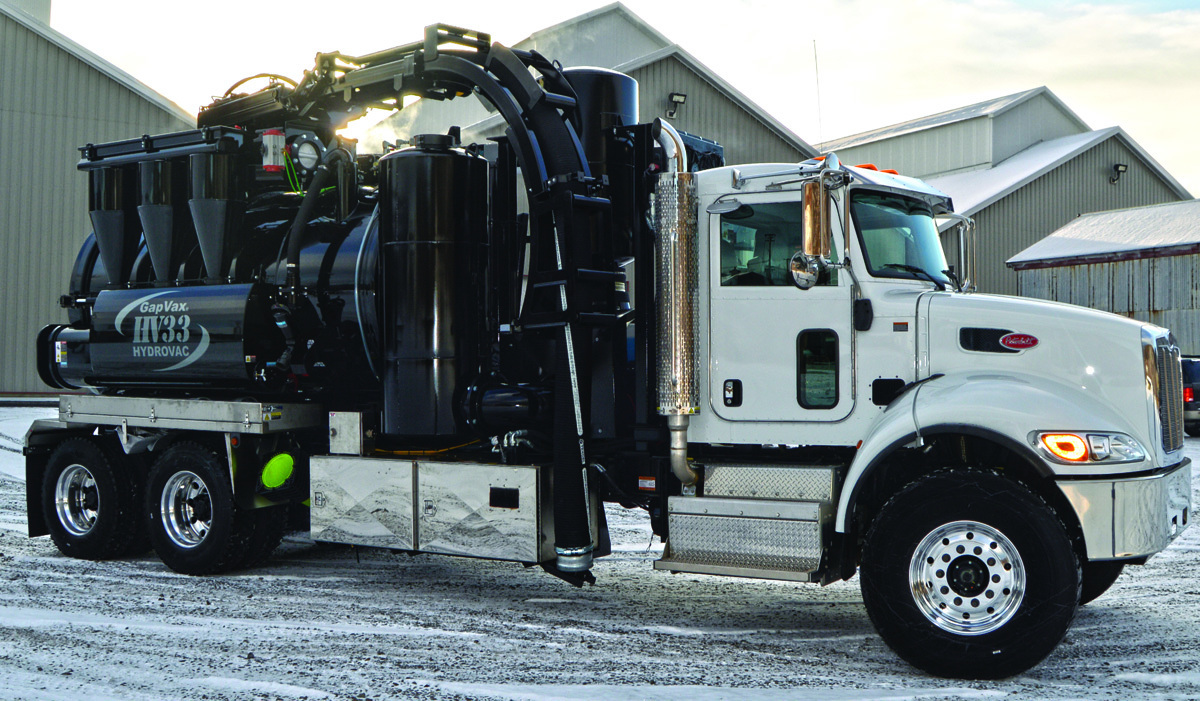

GapVax HV33
Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate. 888-442-7829; www.gapvax.com

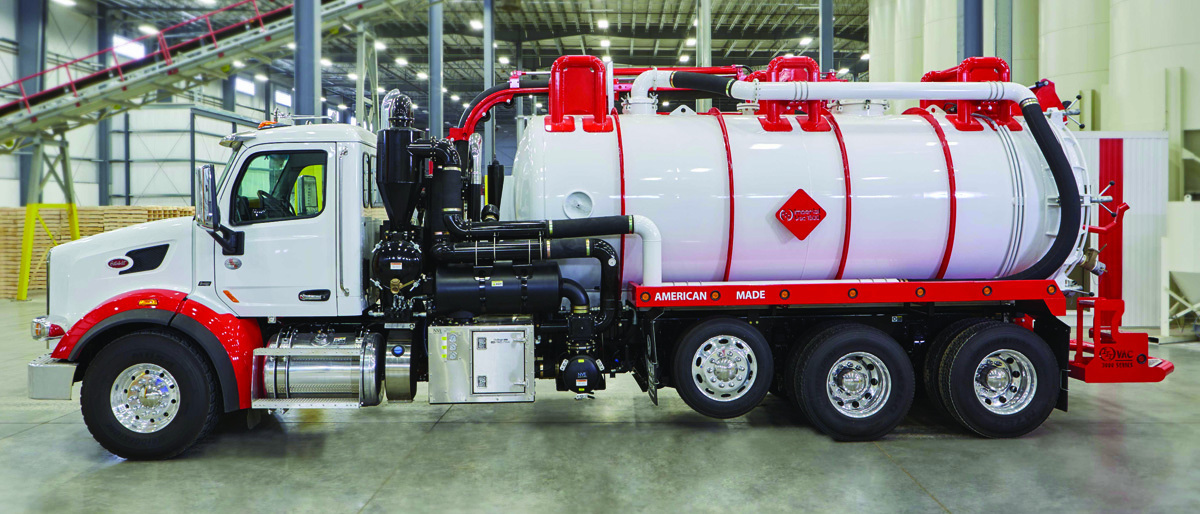

Imperial Industries Hydro 3600 Hybrid Excavator
The Hydro 3600 Hybrid Excavator from Imperial Industries is short and compact for maneuverability in tight spaces. It is user-friendly, efficient and can be operated easily by a single person and is designed to minimize time spent on the job site, according to the maker. It includes a 3,600-gallon hauling capacity (customizable sizes available), optional water capacity, code and noncode availability, a three-stage lift hoist with built-in vibrator and full opening rear door for easy dumping, 20 gpm jetter up to 4,000 psi (adjustable), a National Vacuum Equipment 1600 blower and a moisture trap and grit ridder. Options include a 16-function remote control for easy operation of the boom, jetter, blower and vacuum. 800-558-2945; www.imperialind.com

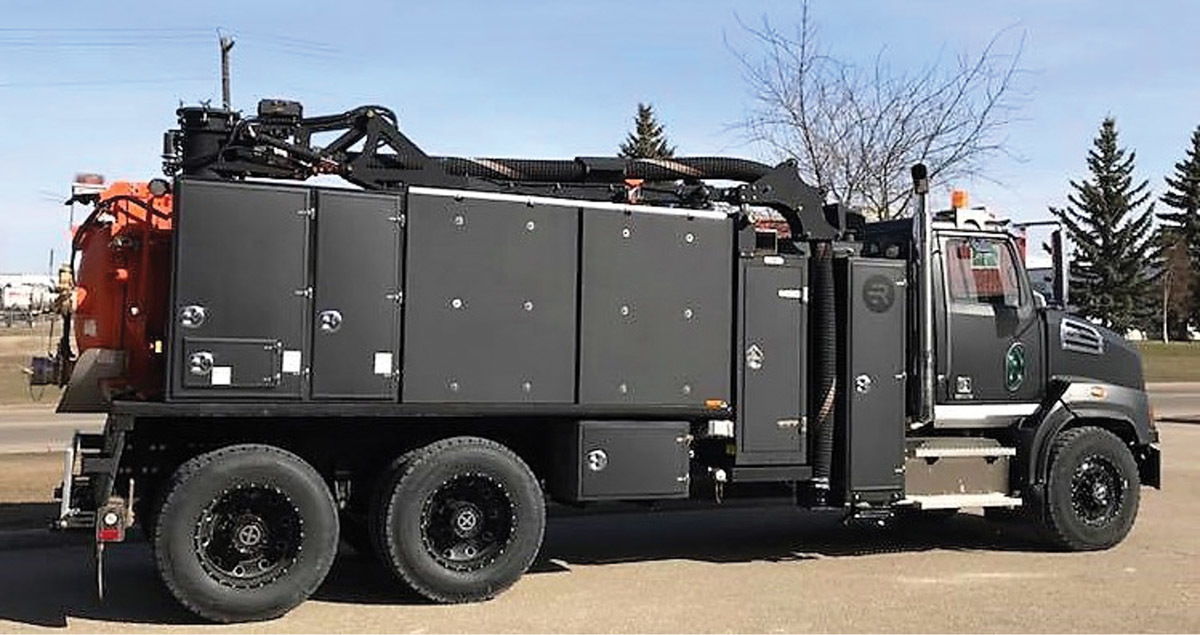

Rival Hydrovac T7 Tandem
The T7 Tandem from Rival Hydrovac was designed primarily to be loaded with debris and driven within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights both in the cab and on the wireless remote to confirm weights prior to travel. It is operator-friendly and the operating system is engaged through one PTO switch. The remainder of the operation occurs from the rear panel or the wireless remote. Components are of a high performance design and the unit will dig at levels competitive to large units. 403-550-7997; www.rivalhydrovac.com

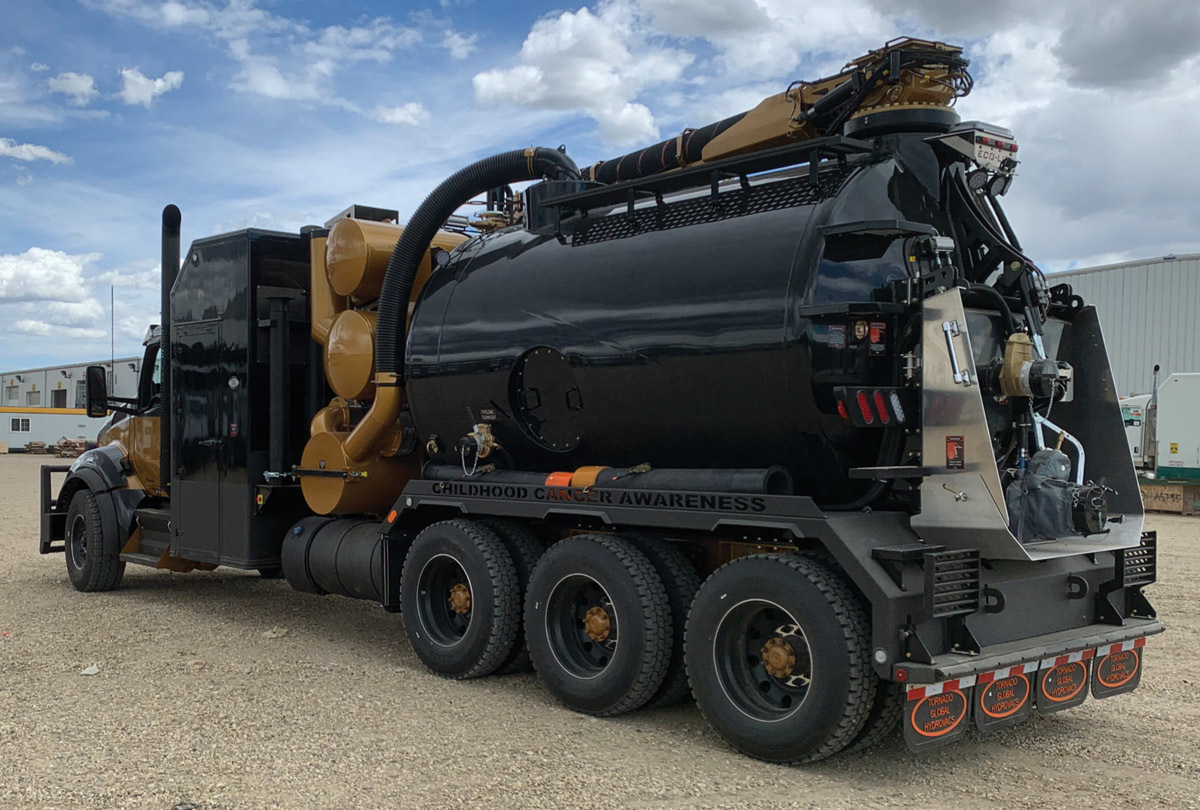

Tornado Global Hydrovacs F4 ECO-LITE
The F4 ECO-LITE from Tornado Global Hydrovacs has a 12-cubic-yard mud tank and holds 1,550 gallons of freshwater. The unit is more than 7,000 pounds lighter than the company’s older models and offers more than double the payload. The boom has a 342-degree rotation and 26-foot reach. The smaller F3 ECO-LITE is a 10-cubic-yard, 1,250-gallon tandem-axle unit that more than doubles older payload capacities. It features an 8-inch boom and 3,800 cfm blower. 877-340-8141; www.tornadotrucks.com
Transway Systems
Terra-Vex HV65

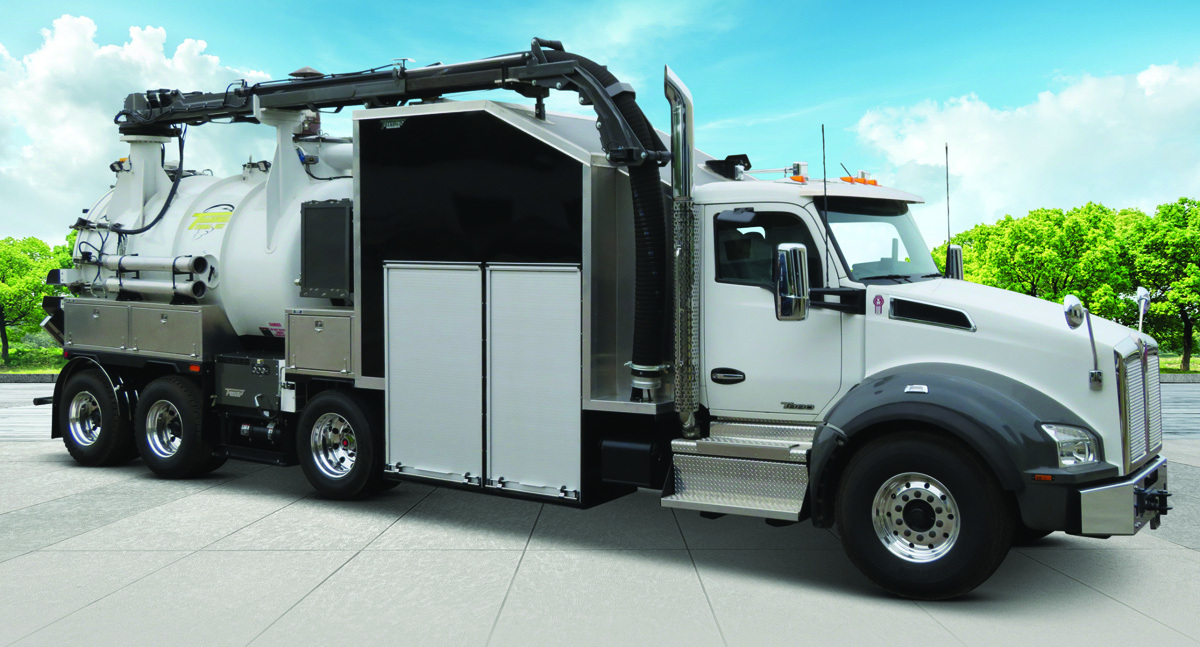

The Transway Systems Terra-Vex HV65 is an ideal single-operator unit, capable of performing all functions from one remote control. The blower, water tank, boiler, jetter system and wands are housed in an insulted, sound-dampening enclosure with a thermostat-controlled heater. It includes large, winter-friendly roll-up doors with ample inside storage. An onboard air compressor complements many features available from the manufacturer. 800-263-4508; www.transwaysystems.com

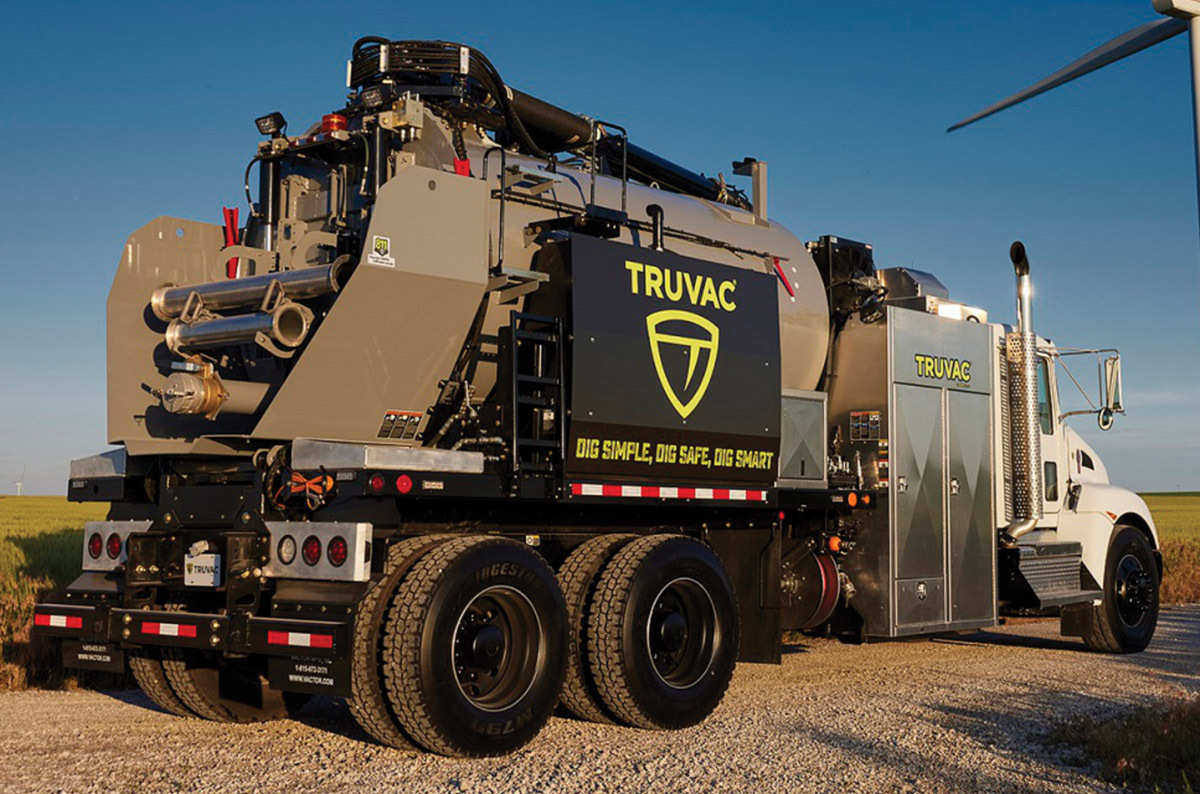

TRUVAC FLXX
The TRUVAC FLXX is a vacuum excavator built to perform for utilities and contractors installing, replacing and repairing underground infrastructure, utilizing both air and hydroexcavation options for all conditions. This machine offers more power and maneuverability to work in tight urban settings where street excavation jobs can include supporting, repairing and installing a city’s water, sewer, power and telecommunications infrastructure. It has the highest legal payload capacity in a midsize truck with a 10-cubic-yard debris body. In addition, it offers Park-n-Dig, an always-connected water source; safe and precise digging with the DigRight one-touch flow control technology; a water heater to dig in all types of weather/material conditions; a 22-foot boom reach with 340-degree rotation; and a DigFast option to maintain peak vacuuming performance and a clear airstream in the vacuum tube. 800-627-3171; www.truvac.com

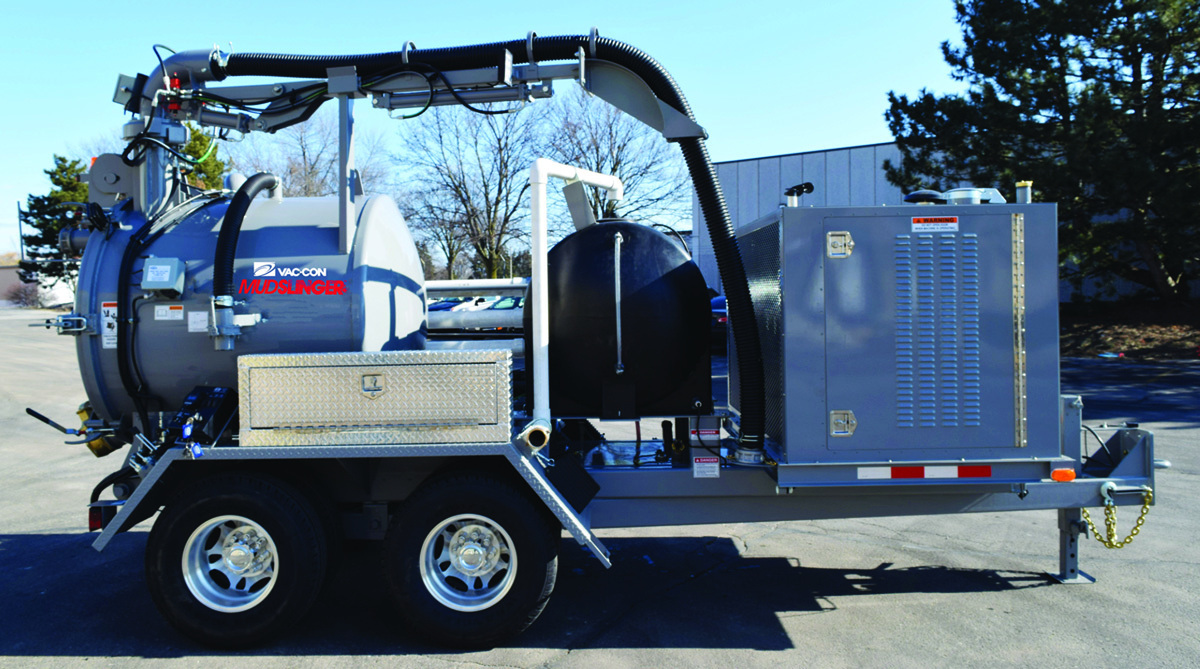

Vac-Con Mudslinger
MS800
The Mudslinger MS800 trailer-mounted hydrovac from Vac-Con offers the power, suction and capacity of a truck hydroexcavator on a pull-behind trailer. It includes the choice of Tier 4 diesel or gas engine options providing up to 1,190 cfm and 16 inches Hg with a PD blower and 325 gallons of water. It has an 845-gallon debris tank and a 9-foot boom with 24 inches of hydraulic extension for a full range of motion. It is designed as a standalone unit, but can also provide support to construction, HDD and public utility fleets. A variety of applications include daylighting, potholing, culvert and manhole cleaning, and utility locating. 904-284-4200; www.vac-con.com

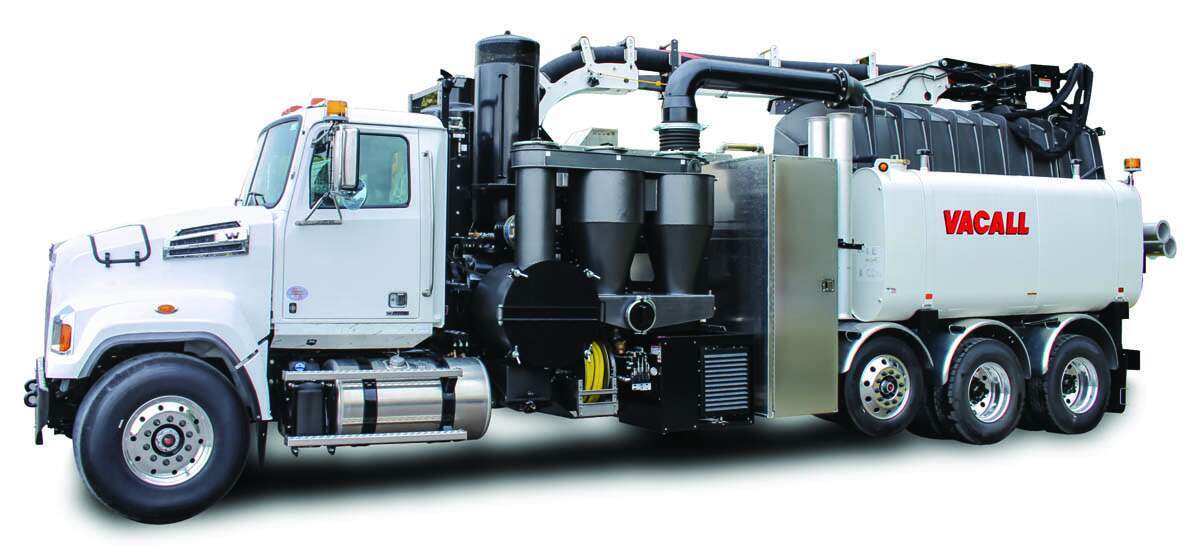

Vacall AllExcavate2
Vacall AllExcavate2 machines offer high-pressure water and air jetting and standard intelligent controls, plus easy startup and operation, according to the maker. Water pumps generate 24.5 to 120 gpm and pressures to 3,000 psi with optional air excavation at 185 cfm and dual psi of 110 and 150. The water system, wand, control panel, tools and worker apparel are protected in a heated compartment for cold weather operation. A standard AllSmartFlow CANbus intelligent control system allows for precise boom and reel adjustments, with a programmable LCD display that monitors engine, water- and airflow and vacuum performance. Aluminum water tanks carry 1,000 to 1,300 gallons. Galvanized debris tanks are available with 10- and 13-cubic-yard capacities. They use one engine to power the chassis and excavation functions. 800-382-8302; www.vacall.com

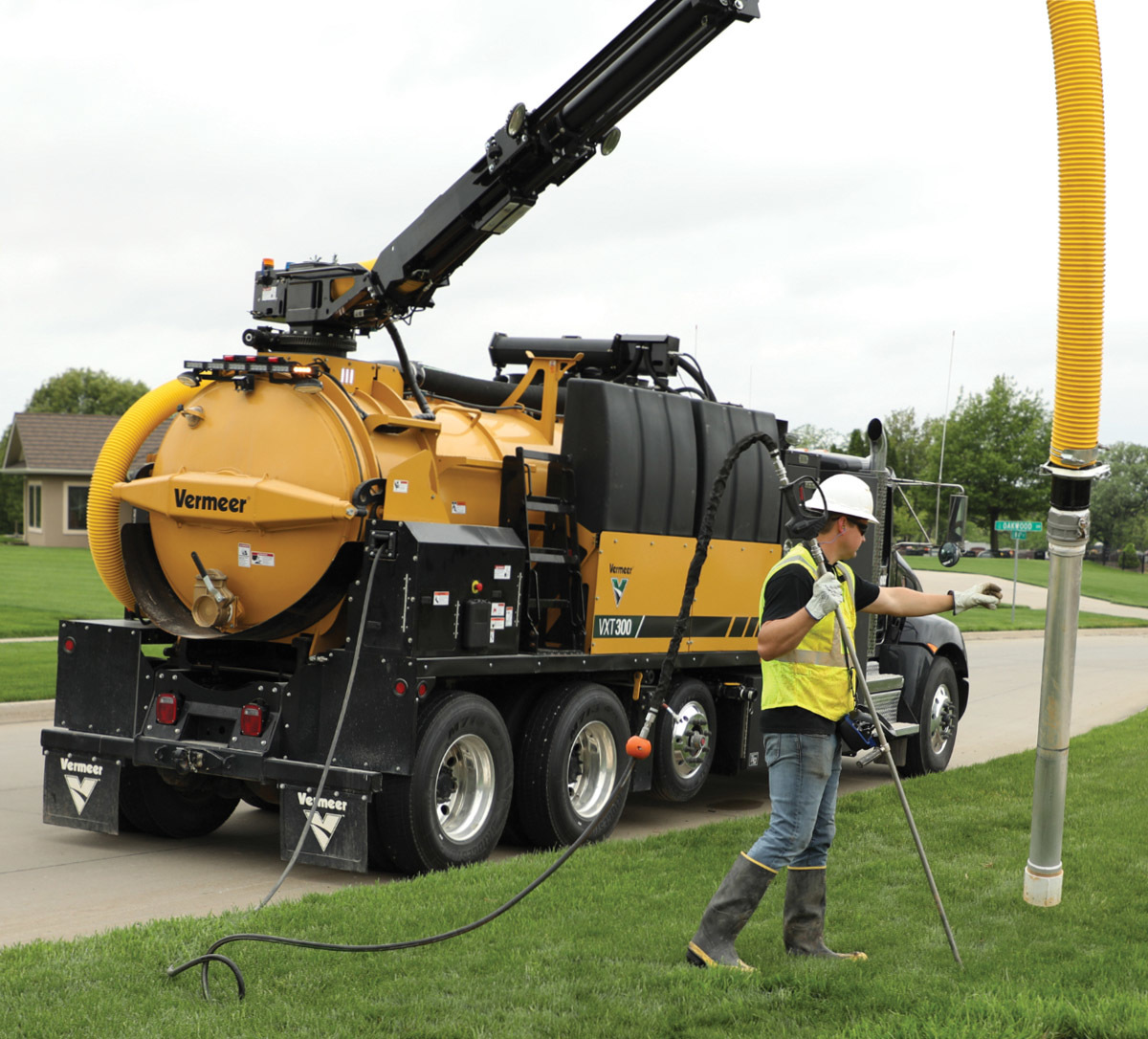

Vermeer VXT300
Vermeer’s VXT300 truck vac is outfitted with an 8-cubic-yard spoil tank, 6-inch dig tube and the ability to carry up to 800 gallons of water so crews can maximize productivity on the job. It is designed with a low overall height of 11.5 feet to efficiently transport spoils from the job site to the dumpsite. The vac truck is built on a Kenworth T370 truck chassis with a 350 hp diesel engine and a six-speed automatic 3,000 RDS Allison transmission. The truck’s PTO drive powers its Roots 624 vacuum blower with a maximum flow of 3,500 cfm and maximum suction of 18 inches Hg. The water pump capable of producing 10 gpm at 3,000 psi for productivity on large jobs as well as when digging at deeper depths. 800-837-6337; www.vermeer.com
JET/VAC COMBO UNITS

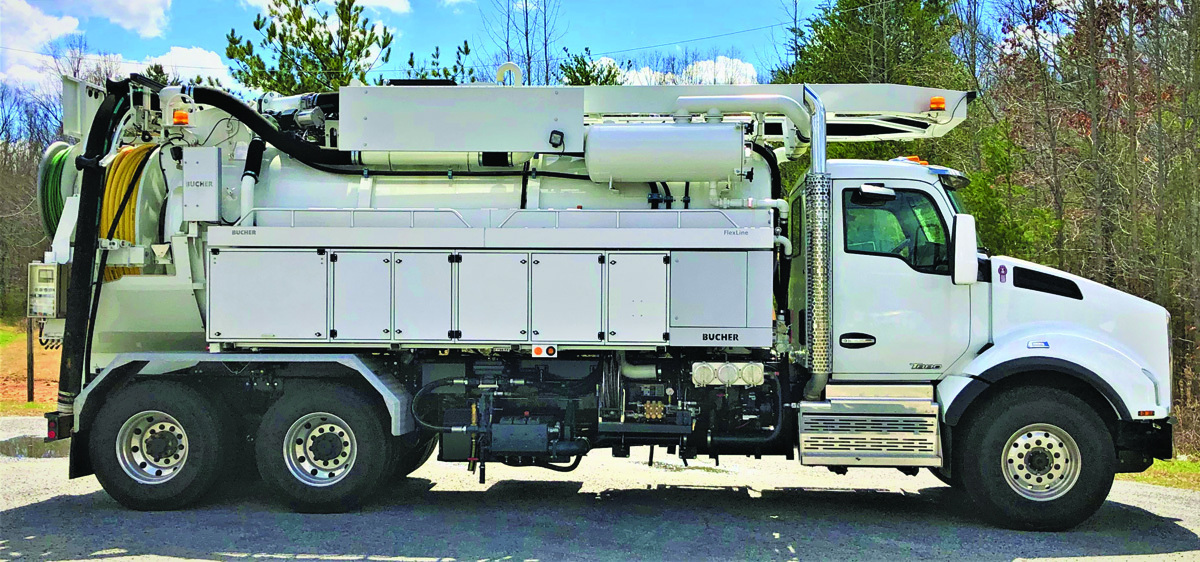

Bucher Municipal North America FlexLine
The FlexLine C120 and now also the more agile C60 from Bucher Municipal North America are available. The combination sewer cleaners are used for preventive cleaning, emergency cleaning of mains, septic, collection tanks and hydroexcavation. They offer 8- and 15-cubic-yard capacities, 7.2 and 14.5 psi, a jetting hose reel with more than 492 feet of capacity, a 5-inch suction hose with 7-foot extension, a hydraulic end cover that opens upwards, automatically minimizing obstructions on roads and sidewalks, two control panels placed for easy operation, and a 5,100 psi at 5 gpm hydroexcavation pump. 704-658-1333; www.buchermunicipal.com/us/en

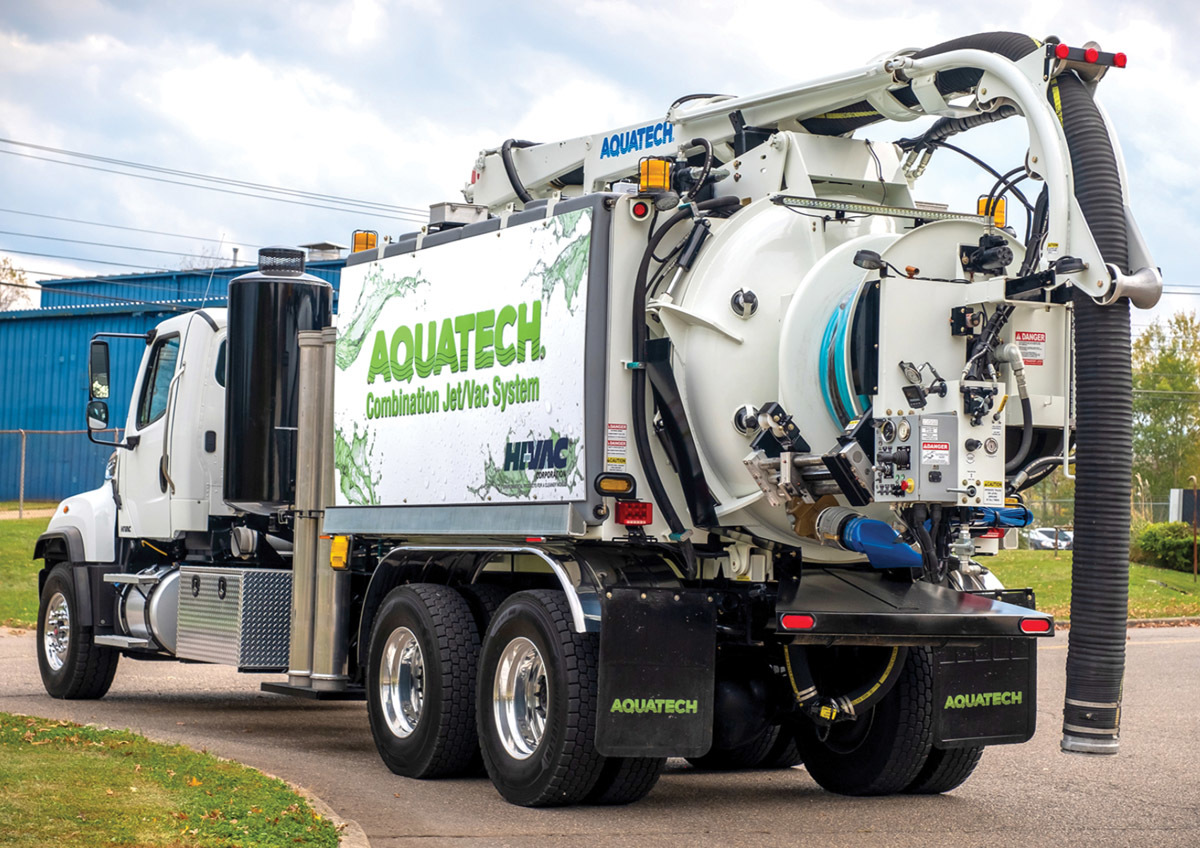

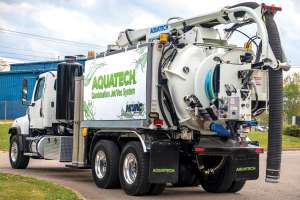

Hi-Vac Aquatech B Series
The versatile Aquatech B-Series from Hi-Vac goes from sewer cleaner to hydroexcavator with no loss in performance, according to the maker. Its rear-mounted hose reel allows operation from the safest area possible regardless of manhole location, and provides an unobstructed view for the driver. The rear-mounted reel also allows 180-degree hydraulic articulation. It has a durable horizontal transfer case that delivers consistent power with fewer parts and less downtime. A high-performance 27-inch Hg blower means faster, more productive vacuum loading. The one-piece vacuum hose is designed without multiple 90-degree angles to eliminate clogs. A 360-degree, top-mounted boom design allows for greater payload capacity and fewer returns to the dumpsite. It operates at 84 dBA, which is well within OSHA’s 90 dBA/8-hour time-weighted exposure limit. 740-374-2306; www.aquatechinc.com

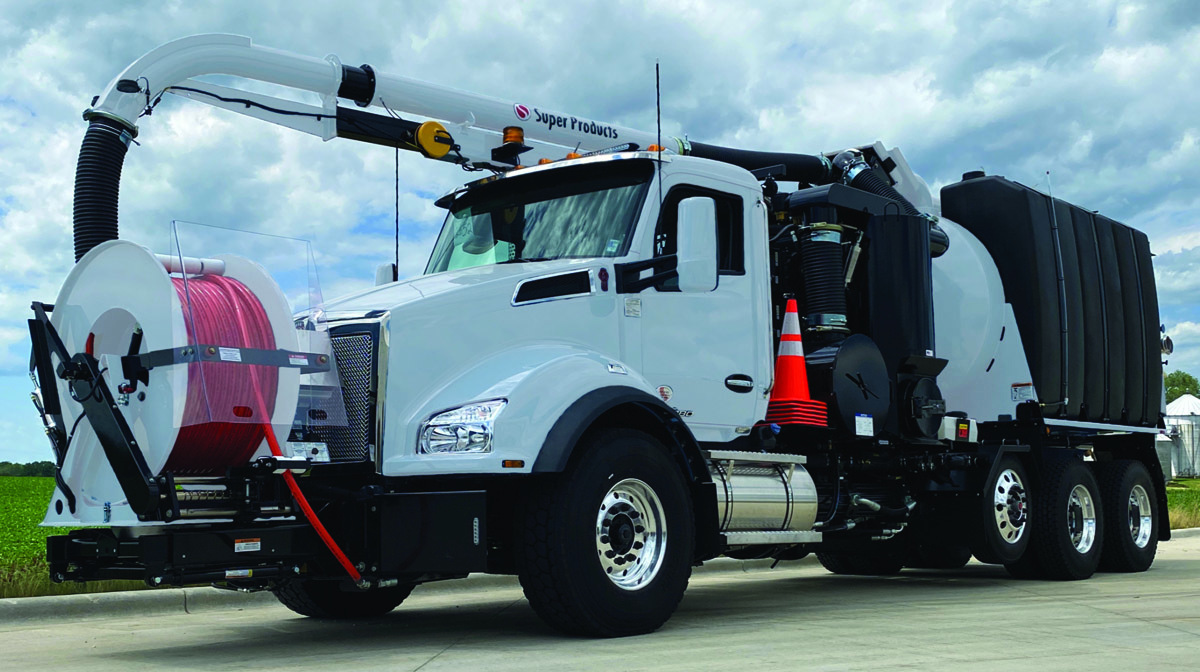

Super Products Camel Max Series
The versatile Camel Max Series combination sewer cleaner from Super Products comes in a variety of model configurations: 900 Dump, 1200 Dump, 1200 Eject and 1200 Wastewater Recycle. All 1200 models come standard with a high dump subframe, eliminating the need to back up a ramp for debris removal. The 1200 Dump is capable of dumping into a 42-inch container while maintaining a low overhead height and a low center of gravity for increased stability. The 1200 Eject allows operators to have the only controlled way to dump safely into a 48-inch container without additional containment products. The 1200 Wastewater Recycle enables operators to clean sewers without freshwater, and is capable of cleaning nearly 3,000 feet of sewer pipe per day and saving 60,000 gallons of water per week. 800-837-9711; www.superproducts.com
VACUUM PUMPS

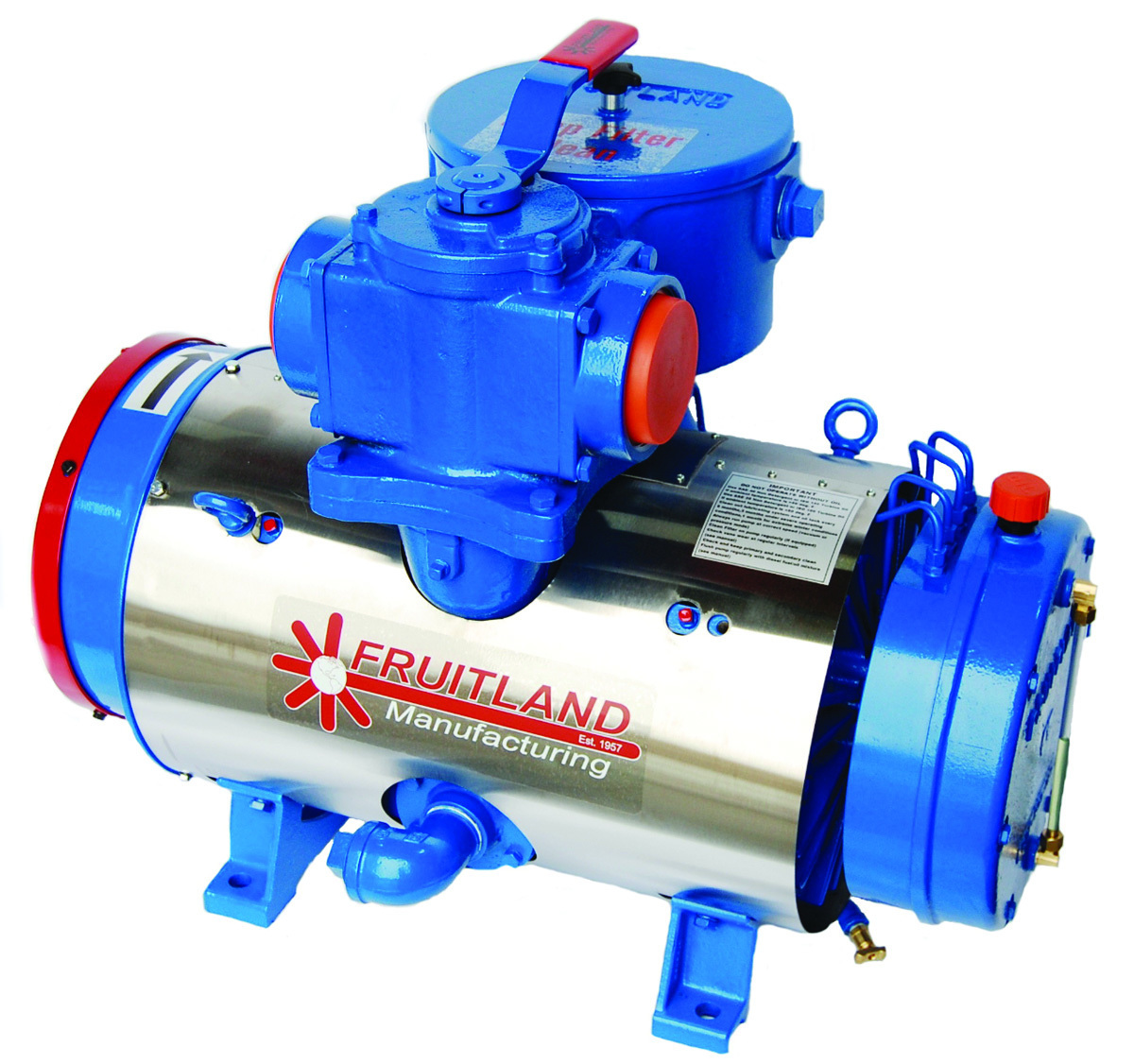

Fruitland 870 Series
Fruitland’s 870 Series pump allows vacuum levels of 28.5 inches Hg and continuous vacuum of 27 inches Hg. Additionally, it is capable of providing 30 psi pressure for offloading. Oil consumption is 1 gallon for 18 hours of operation to reduce consumption and environmental impact. Locally sourced, non-proprietary oil may be used. The pump delivers 510 cfm (free air) through 4-inch porting. 905-662-6552; www.fruitlandmanufacturing.com

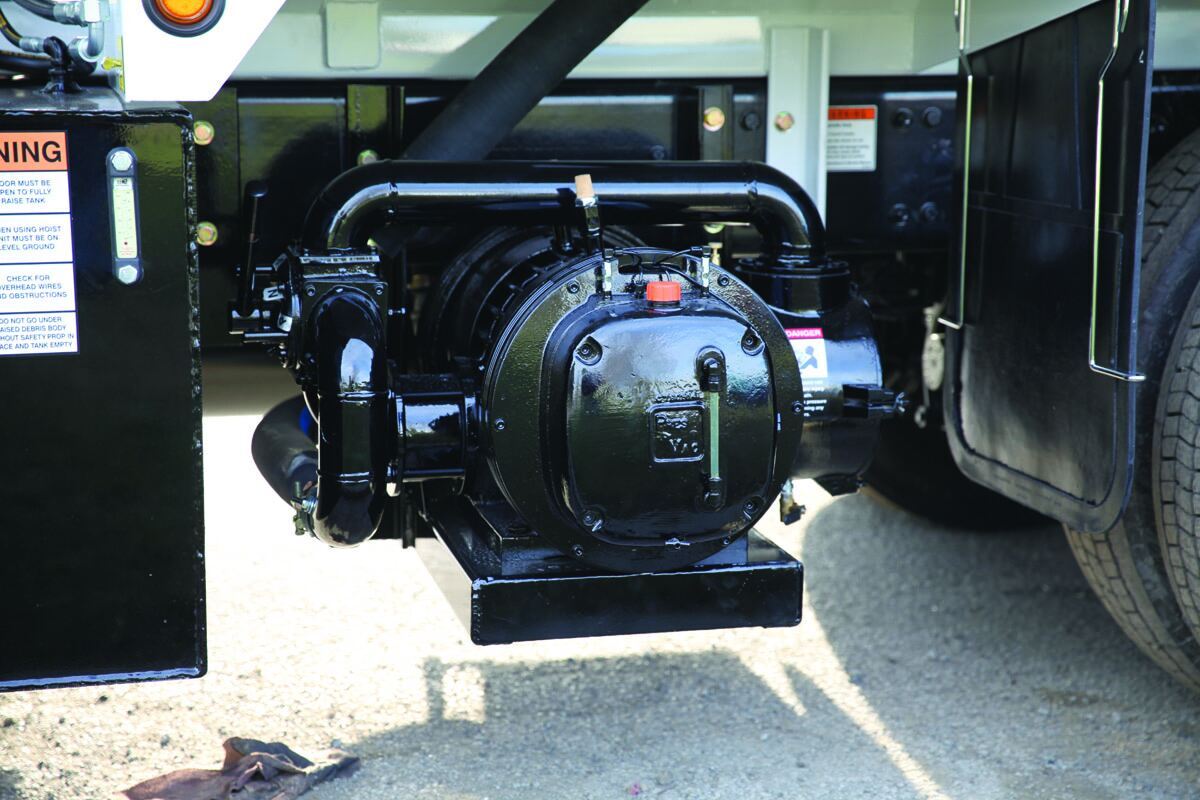

Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763; www.presvac.com

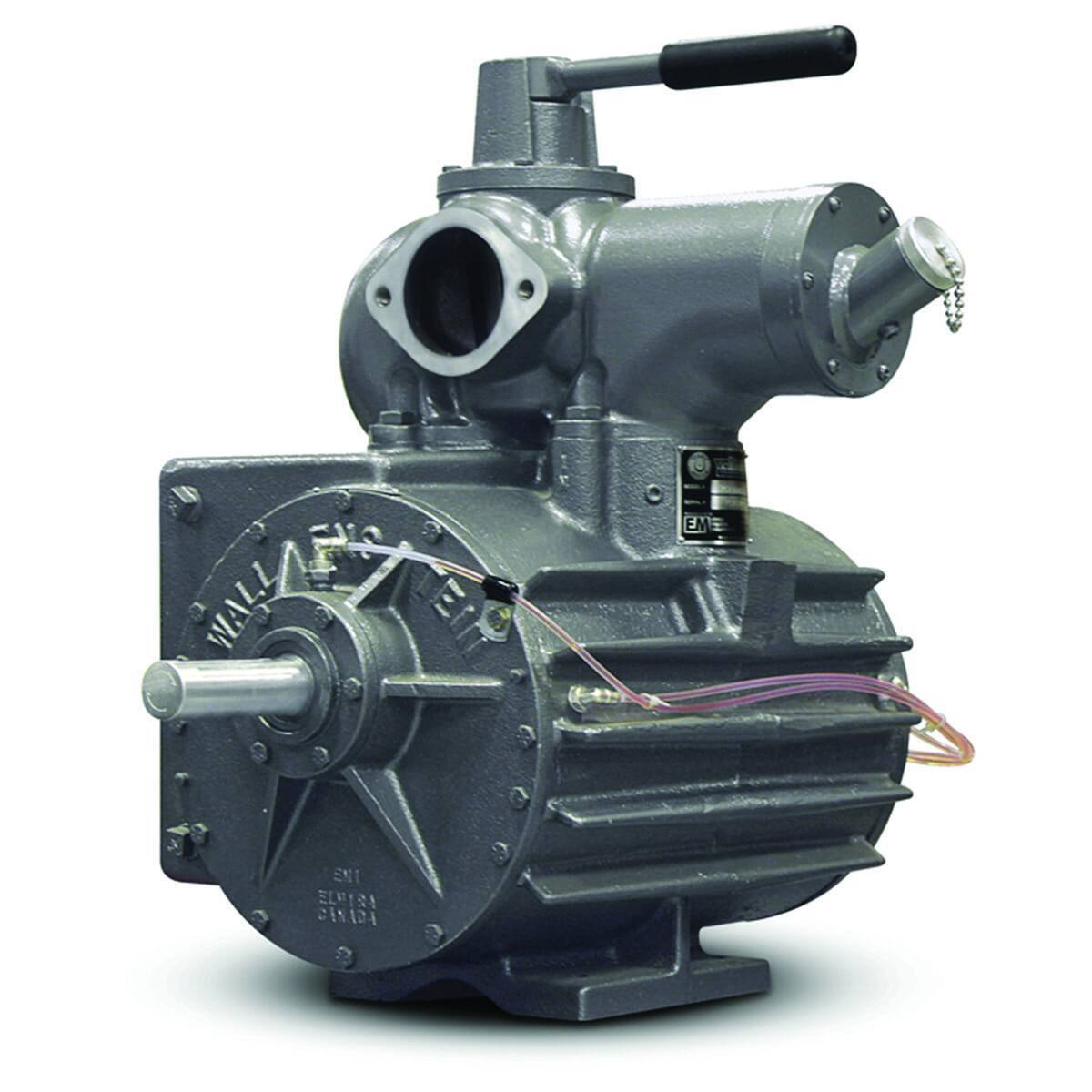

Wallenstein Vacuum 753 Series
The 753 Series vacuum pump from Wallenstein Vacuum is designed for longer service life, incorporating wide vanes that allow up to an inch of wear. It provides 422 cfm airflow at 1,200 rpm and vacuum levels up to 28 inches Hg. Options include air-, liquid- or dual-cooling systems where air injection is combined with liquid cooling. A pump-flushing port is included on the top valve for convenient maintenance. The quick-access housing end plate allows for easy internal inspection with no bearings to pull. Oil lubrication is via a mechanical piston pump driven by shaft rotation or available with a sight-feed valve oil regulator system using vacuum/pressure to draw oil with no moving parts. 800-801-6663; www.wallenstein.com

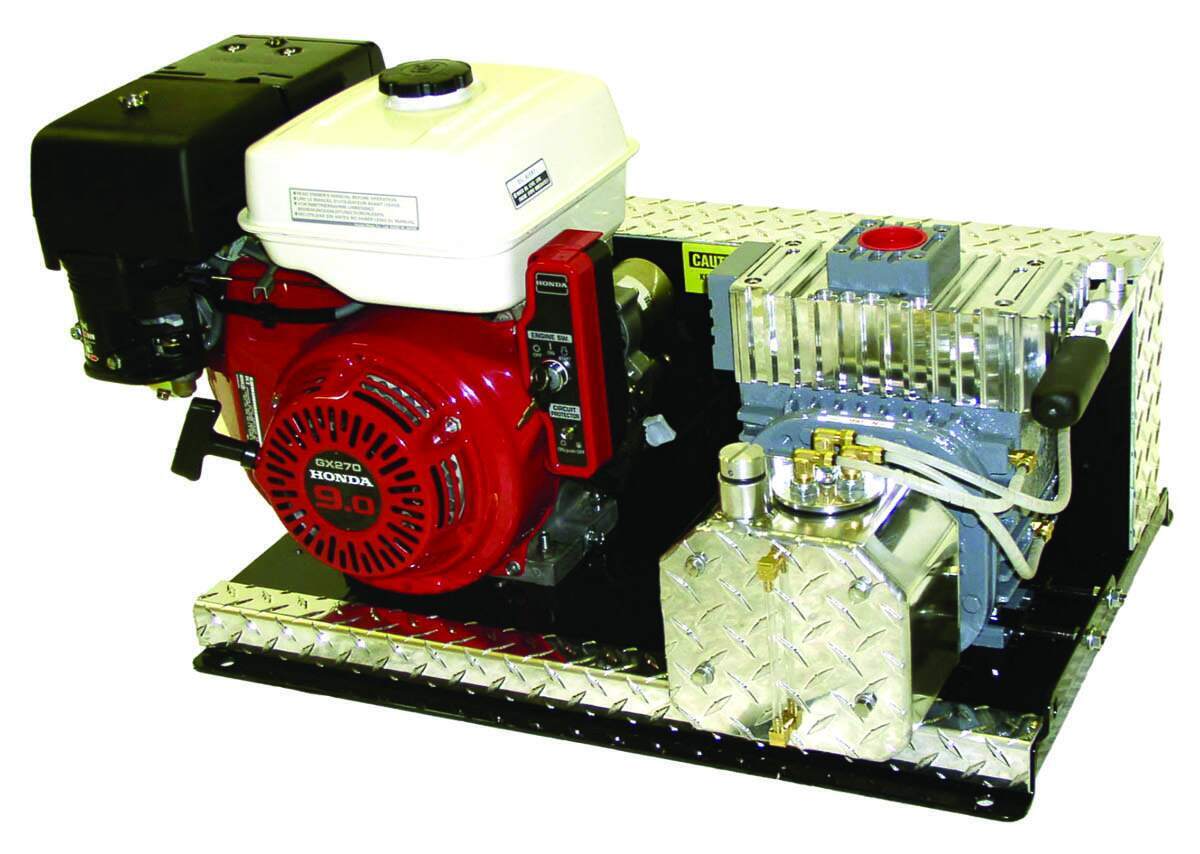

Westmoor Condé PowerPaks
Westmoor Condé PowerPaks are preassembled gasoline or diesel-powered vacuum pump units. They are easy to install, according to the maker, and include a heavy-duty steel base with aluminum diamond plate trim and belt guard. Rigid assembly is designed to ensure minimum vibration and maximum power. They are available with either vacuum only or vacuum/pressure pumps. A wide range of cfm options ensure the PowerPak is matched to the tank size and application. Units are powered with optional Honda GX Commercial Series gasoline engines or Hatz industrial air-cooled diesel engines. Units can be easily transferred to another tank system when needed. 800-367-0972; www.westmoorltd.com
WATER PUMPS

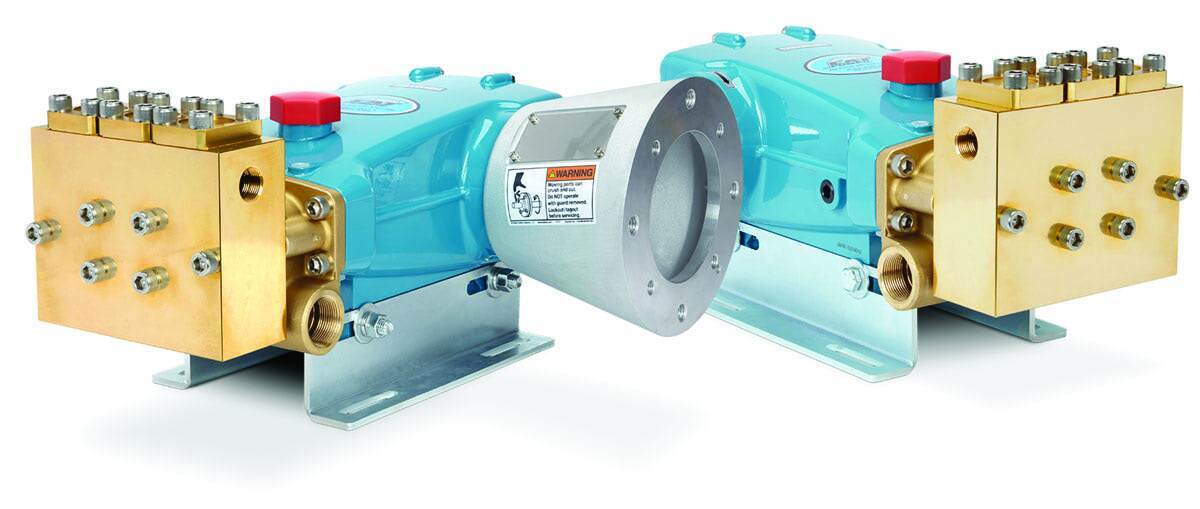

Cat Pumps Models 2560 and 2565
Cat Pumps Models 2560 (16 gpm at 3,000 psi) and 2565 (20 gpm at 2,500 psi) hydroexcavating pumps are constructed for continuous-duty applications. BH versions have a machined-bearing cover to mate with Cat Pumps’ 76SAEC.25FR hydraulic bell housing, allowing the 2560BH and 2565BH to be directly driven by an SAE C hydraulic motor. The compact direct drive allows for a space-saving footprint, and is simple to install and maintain, according to the maker. 763-780-5440; www.catpumps.com
