Pumps + Get AlertsDesigned to handle demanding applications in the septic services industry, vacuum pumps come in various models to suit different operational needs. Key features across the board include high vacuum levels for effective suction, significant airflow capacity for rapid waste removal and efficient cooling systems to ensure longevity under continuous use. Options for oil lubrication and cooling systems vary, catering to diverse environmental and maintenance preferences. Furthermore, lightweight designs and durable construction materials enhance portability and reduce maintenance requirements. Check out some product options below.

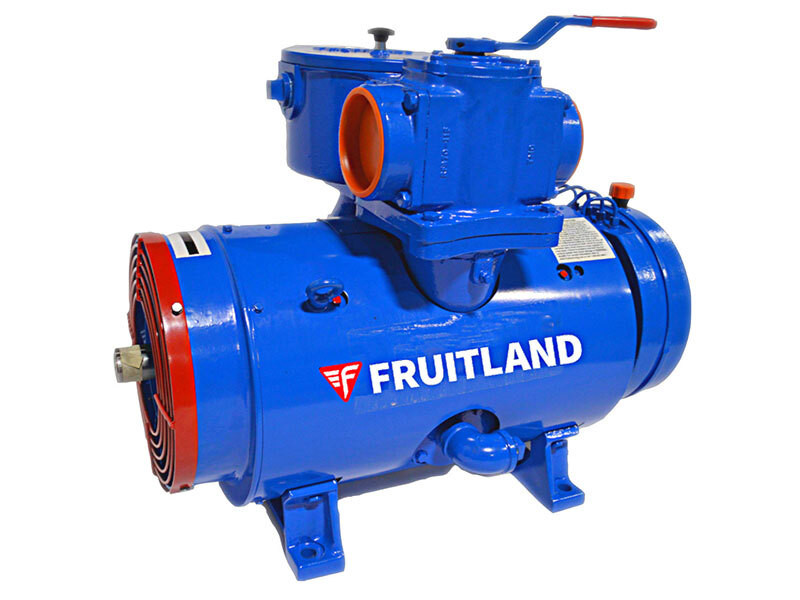

Fruitland 870 Series
Fruitland’s 870 Series pump allows vacuum levels of 28.5 inches Hg and continuous vacuum of 27 inches Hg. It is capable of 30 psi pressure for offloading. Oil consumption is 1 gallon for 18 hours of operation to reduce environmental impact. Locally sourced, non-proprietary oil may be used. The pump delivers 510 cfm (free air) through 4-inch porting.
905-662-6552; www.fruitlandmanufacturing.com

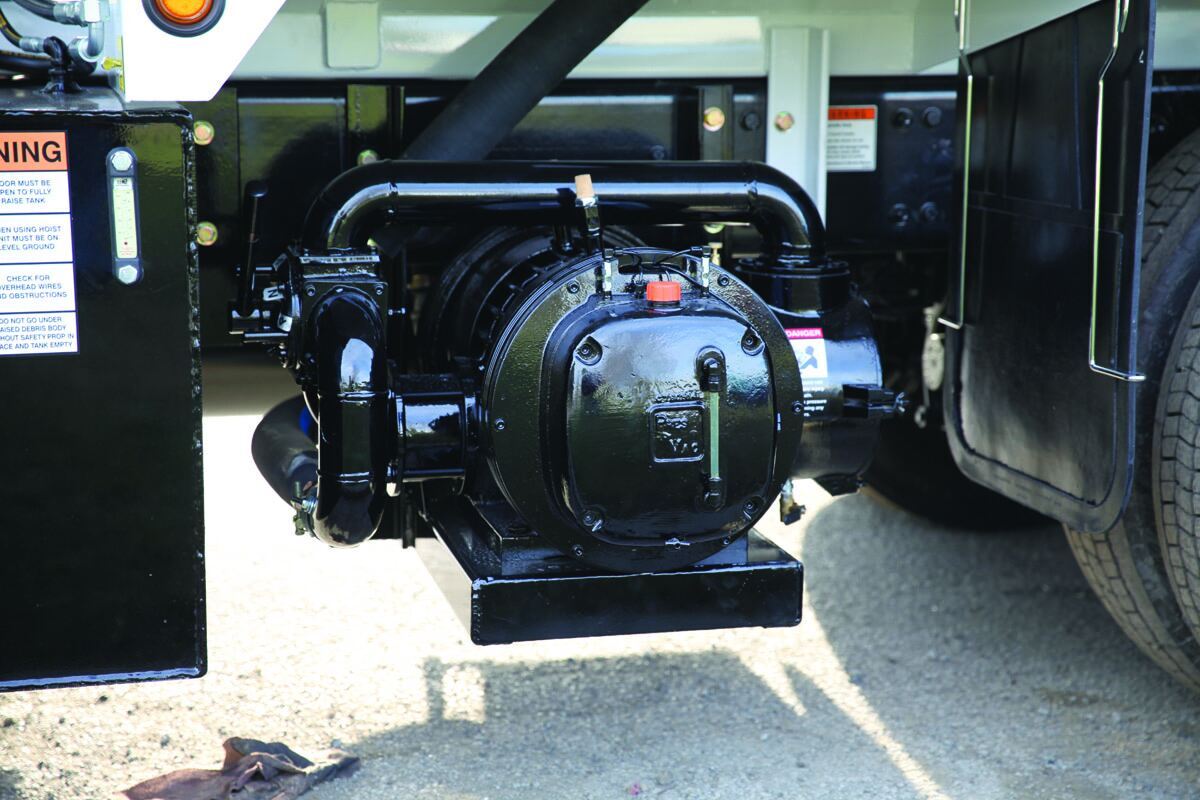

Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications.
800-387-7763; www.presvac.com

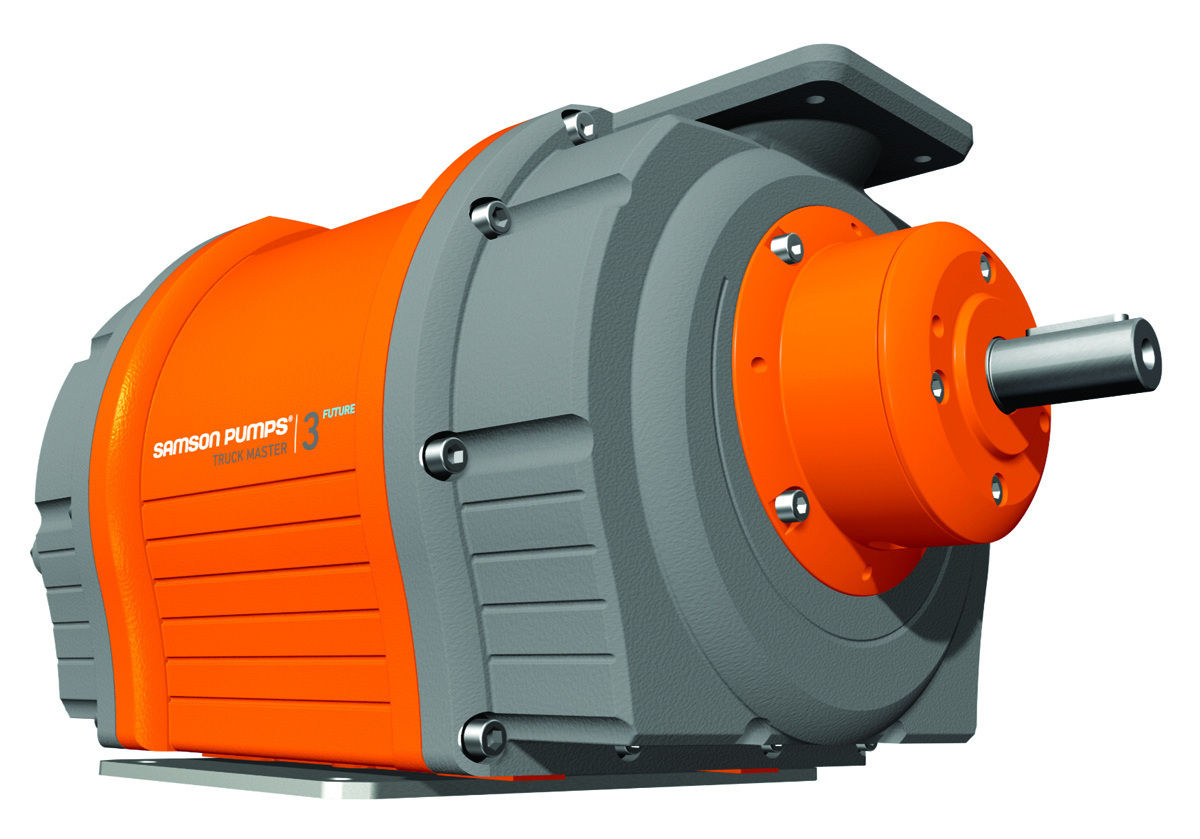

Samson Pumps Truck Master 3 Future Series
The Truck Master 3 Future Series liquid ring vacuum pump from Samson Pumps has a capacity up to 412 CFM and generates 27.1 Hg in vacuum, along with air speed approximately 125 feet per second in a 3-inch suction hose. It weighs in at 216 pounds. It provides a combination of ideal water handling capabilities, a nonclogging design, self-priming capability, high suction power, lightweight, durability, low maintenance and silent operation.
Wallenstein Vacuum 753 Series
The 753 Series vacuum pump from Wallenstein Vacuum is designed for longer service life, incorporating wide vanes that allow up to an inch of wear. It provides 422 cfm airflow at 1,200 rpm and vacuum levels up to 28 inches Hg. Options include air-, liquid- or dual-cooling systems where air injection is combined with liquid cooling. A pump-flushing port is included on the top valve for convenient maintenance. The quick-access housing end plate allows for easy internal inspection with no bearings to pull. Oil lubrication is via a mechanical piston pump driven by shaft rotation or available with a sight-feed valve oil regulator system using vacuum/pressure to draw oil with no moving parts.
800-801-6663; www.wallenstein.com

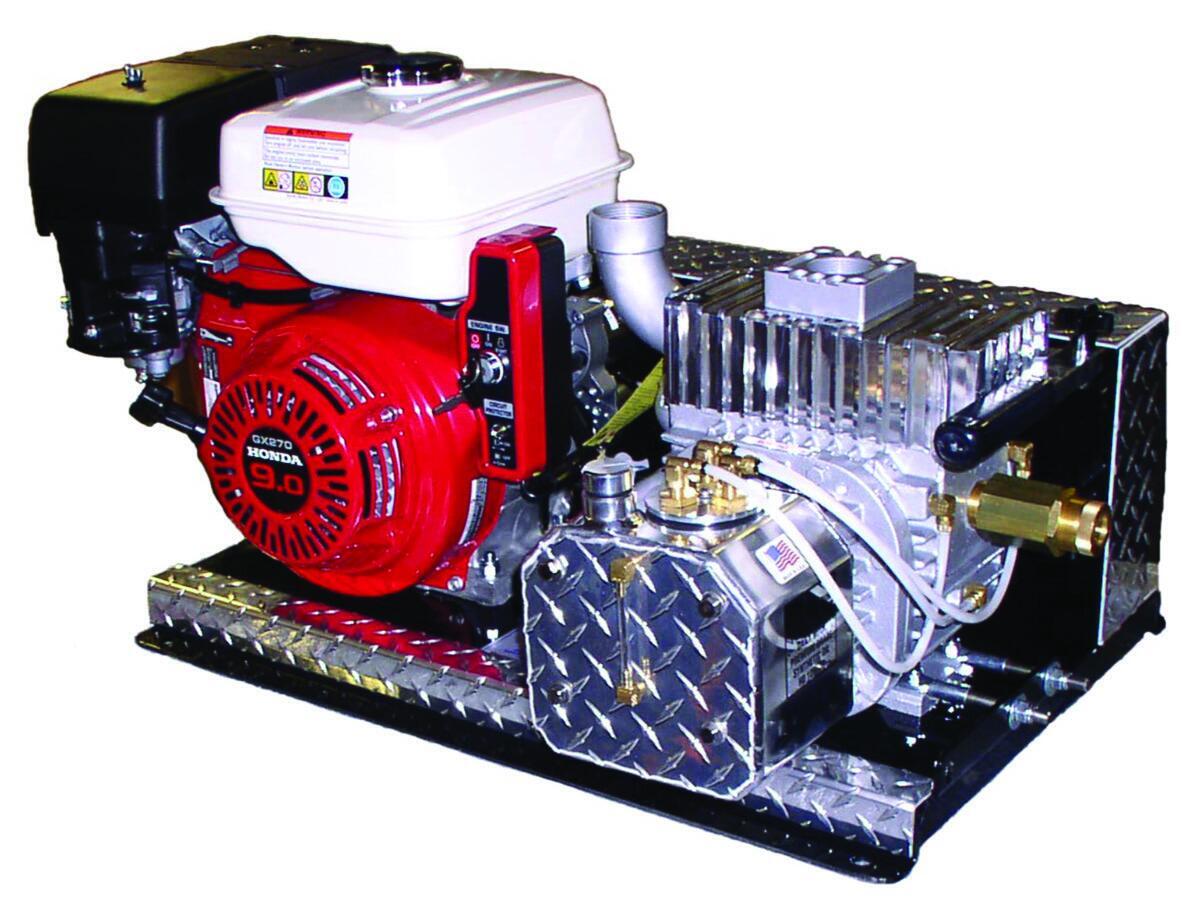

Westmoor Conde PowerPaks
Westmoor Conde PowerPaks are preassembled gasoline or diesel-powered vacuum pump units. They are easy to install, according to the maker, and include a heavy-duty steel base with aluminum diamond plate trim and belt guard. Rigid assembly is designed to ensure minimum vibration and maximum power. They are available with either vacuum only or vacuum/pressure pumps. A range of cfm options ensure the PowerPak is matched to the tank size and application. Units are powered with optional Honda GX Commercial Series gasoline engines or Hatz industrial air-cooled diesel engines. Units can be easily transferred to another tank system when needed.
800-367-0972; www.westmoorltd.co
