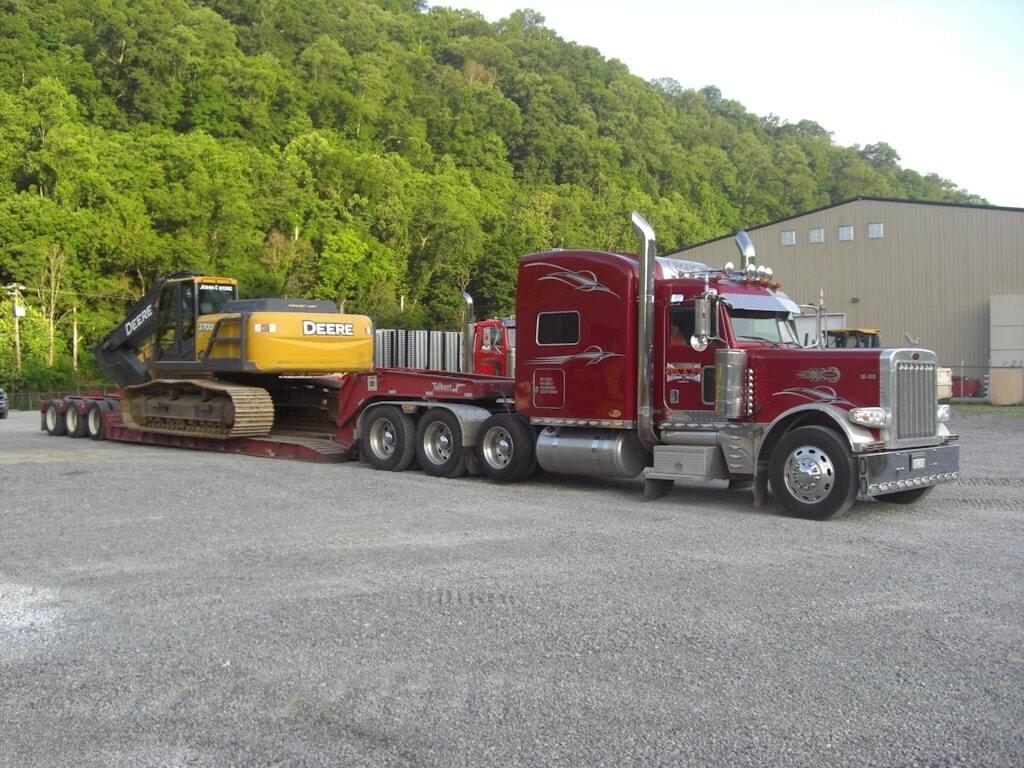

Finding the Right Trailer for Excavator Transport

Take into consideration everything from equipment weight to configuration and capacity when selecting a trailer

Finding the Right Trailer for Excavator Transport

Interested in Accessories?

Get Accessories articles, news and videos right in your inbox! Sign up now.

Accessories + Get Alerts

Selecting the right excavator isn’t a decision to be taken lightly. Finding the machine that fits an operation’s needs takes research. It’s a long process, but the result is, hopefully, a machine that will safely increase productivity for years to come.

Selecting a trailer to transport an excavator is an equally important decision with just as many variables to consider.

Here are five tips to keep in mind when sizing a trailer for an excavator.

1. Equipment weight and dimensions

The first step in sizing a trailer for any hauling job is determining the weight and dimensions of the load. Start by determining the length, height, width and weight of the machine. Be sure to keep in mind that the information on the spec sheet might not include the dimensions and weight with added accessories.

When making initial calculations, ensure a suitable truck to handle hauling the excavator before moving on to the trailer. A tri-axle tractor and a quad-axle tractor will have different hauling capabilities.

Excavators have some special considerations. Certain machines have adjustable widths for operation or transportation mode. Be sure to figure out which mode will be used during transport as it may take time to make the necessary adjustments to convert between the two. For safety reasons, one half of the track width must be on the deck, excluding the outriggers. While the standard 8-foot, 6-inch trailer might work on paper in transport mode, one must be honest in how trailers will be loaded from job to job.

The boom is another piece that requires special consideration. Operators need to consider which boom is required, as there are various available lengths, where the boom will sit on the trailer and how it will be cradled. A low-enough position of the boom is critical for keeping the load within height restrictions. Some top-tier manufacturers offer customizations such as a rear bridge design that eliminates interference with boom placement and makes transportation safer and easier.

After determining the weight and dimensions, it’s time to look at trailer deck designs. Manufacturers usually offer three deck configurations — flat, raised center and beam. While the primary focus might be on the excavator, a trailer often hauls a variety of types of equipment. Backhaul equipment should also be included in calculations. An expert can determine the best trailer to meet all hauling needs. Here’s a brief overview on deck designs to get started.

Flat — This is the standard deck design. It offers the most versatility for moving more than just excavators. However, it also has the highest deck height and might not be ideal for taller excavators.

Raised Center or “RC” — This deck offers a lower deck height than a flat deck. Not all excavators will fit nicely over the raised center, though, and extra blocking might be required to make sure the equipment sits safely on the trailer. This reduces efficiency when loading and unloading.

Beam — Equipment straddles a central beam with this deck design, meaning it has the lowest ground clearance of the three. The main drawback is the lack of deck for accessories or smaller components.

2. Trailer capacity rating

While knowing the overall weight of the excavator is imperative, it is also important to know where that weight is concentrated. An excavator might have a 10-foot track, but all the weight might be in the 8-foot span between the front idler and the final drive.

Still, whether all the weight is in 8 or 10 feet shouldn’t be a problem for a 26-foot, 50-ton lowboy, right? Not exactly. The length of deck calculated in the capacity rating varies between manufacturers. One trailer might need the entire deck length for that 50 tons, while another handles that same weight in half the deck length. So, if most the excavator’s weight is concentrated in 8 or 10 feet, a trailer with a half deck load concentration rating offers the best solution. Failing to pay attention to how the capacity rating is calculated can lead to overloading the trailer, which can result in stress fractures and ultimately trailer failure.

3. Loading configurations

Today’s trailers offer a variety of loading configurations. While tag-a-long trailers that unload off the back are an accepted option for small excavators in tight spaces, safety can be a concern. Driving an excavator over the back of the trailer is no easy feat and requires a careful and experienced driver to prevent damaging the trailer and minimize the risk of tipping the excavator. Removable goosenecks reduce the safety risk by eliminating the need to drive up and over the trailer axles. This configuration saves time, hassle and expense while also extending the life of the trailer. However, keep in mind that a removable gooseneck requires ample space for loading and unloading.

4. Regulations

Knowing where a trailer is headed is as important as knowing what it’s hauling; this is especially true when hauls extend across international borders.

Roads and bridges originally designed to carry lighter vehicles present many challenges for hauling modern equipment as they are not necessarily designed for the weight and size of the extra-large loads required for certain hauls. Correctly sizing a trailer that allows the most capacity with the smallest profile will increase an operator’s options.

It is important to check regulations and secure the required permits for each region of operation. In the end, a 100-mile haul might require significant route planning to ensure sufficient maneuverability and weight allowances. Being prepared beforehand will limit downtime on the road.

5. Trailer construction

Not all trailers are created equal. It’s important to consider the quality of a trailer, not just the price tag. Working with a custom manufacturer offers the best results when it comes to safety, value and peace of mind. A trusted manufacturer will work to understand the client, not just the load. They will consider not just the excavator, but everything the client needs to haul, the territories of operation and the specific challenges they face. The manufacturer will use that information to design a trailer that offers maximum flexibility, versatility and strength.

Also consider the construction materials. Look for materials like heavy-duty T-1, 100,000 psi minimum yield steel for extreme durability and longevity. Apitong flooring is another good choice because it stands up better than traditional oak and pine decking. Investing in higher-quality materials and components can double the life of the trailer, significantly enhancing ROI.

About the author: Troy Geisler is the vice president of sales and marketing for Talbert Mfg. He has more than 15 years of experience in trailer sales, including five years with Talbert. Troy earned his bachelor’s degree from Purdue University in West Lafayette, Indiana.
