Product Focus: Septage Disposal Management

Product Focus: Septage Disposal Management
Bright Technologies 0.6-meter skid-mounted belt filter press

Interested in Disposal?

Get Disposal articles, news and videos right in your inbox! Sign up now.

Disposal + Get Alerts

Dewatering Equipment

Bright Technologies, Division of Sebright Products, 0.6-meter skid-mounted belt filter press

The compact 0.6-meter skid-mounted belt filter press from Bright Technologies, Division of Sebright Products, has stainless steel frame and roller construction as well as radius wedge zone and wing roller for sludge dewatering. Components include a sludge pump, polymer system and washwater booster pump. Options include a sludge flowmeter, air compressor and discharge conveyors. The compact walk-around skid design can be utilized in as little as a 10-by-20-foot floor area. The Boerger rotary lobe sludge pump has a convenient maintain-in-place design. Cake solids of up to 35% can be achieved. Rates of 25 to 50 gpm work well with small applications or when a processor has outgrown dewatering containers, according to the maker. 800-253-0532;

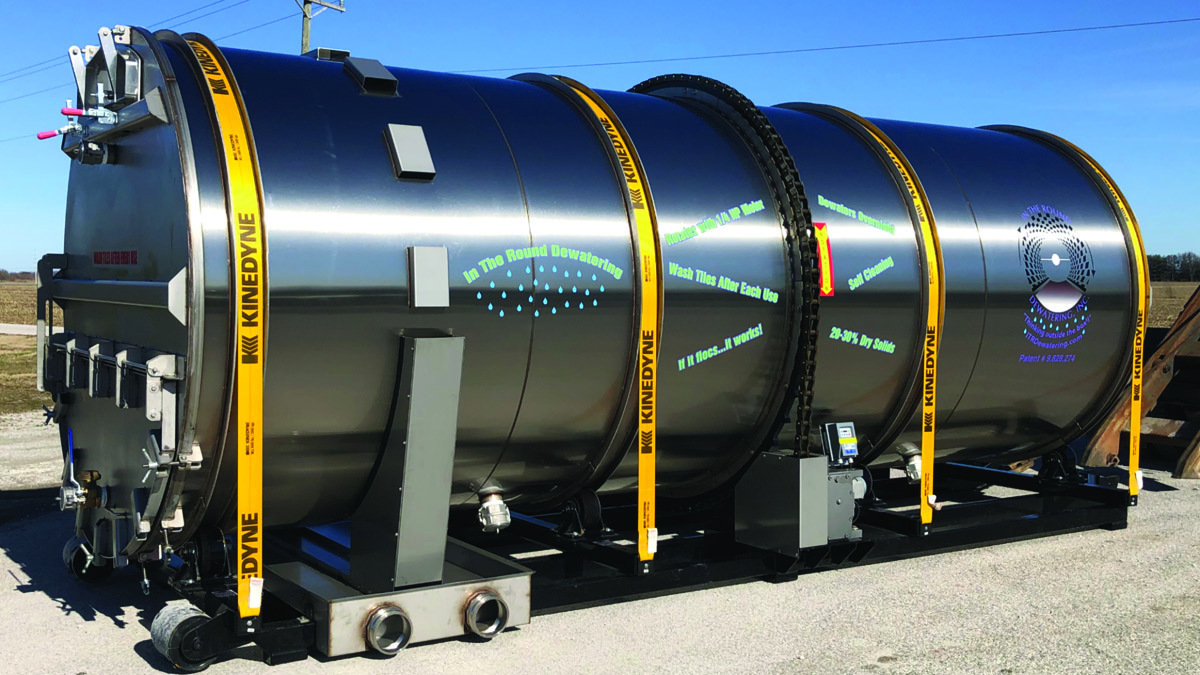

In the Round Dewatering horizontal drum

The horizontal biosolids dewatering system from In the Round Dewatering features a stainless steel drum with perforated plastic tile lining. The drum is mounted on a roll-off frame for easy transport and unloading. Trays contain discharge water. An 18,000- to 25,000-gallon batch is mixed with polymer before being filtered in the rotating drum, which is driven by a 1/2 hp variable-speed electric motor with a heavy-duty chain and sprocket. Turning eliminates crusting and wet pockets to produce uniform, consistent results. The dewatered material dumps easily, and the drum is self-cleaning. 317-563-2072;

Dewatering/Bypass Pumps

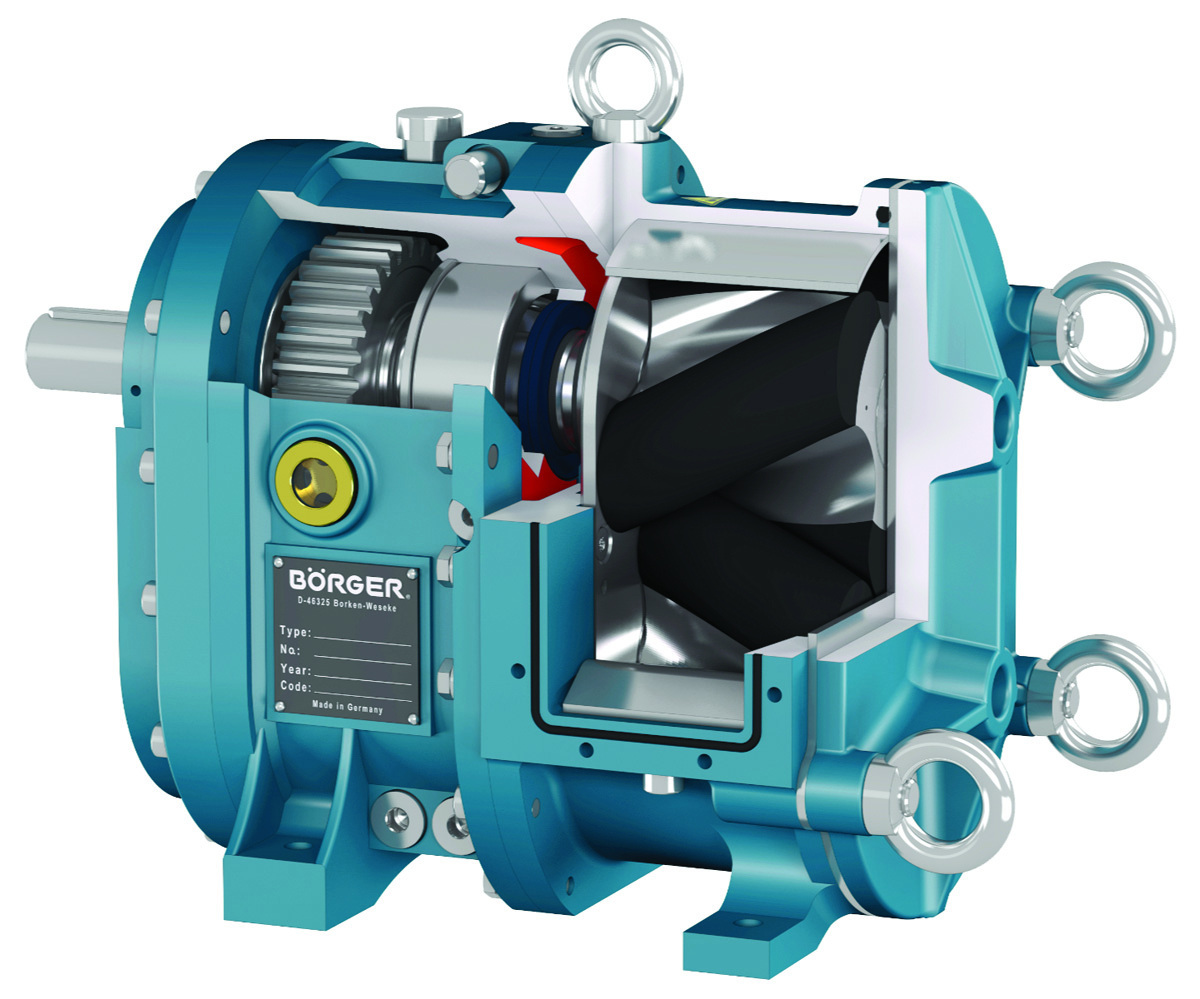

Boerger BLUEline Rotary Lobe Pumps

Boerger BLUEline Rotary Lobe Pumps are engineered for low maintenance and high performance. The pumps feature pulsation-free operation and dry-run capabilities, which is key to avoiding downtime. They were designed with maintenance in place, which means they can be serviced without having to take them offline. It is heavy-duty, self-priming, valveless, positive-displacement pump that can be used for loading and unloading by reversing the flow direction. 612-435-7300;

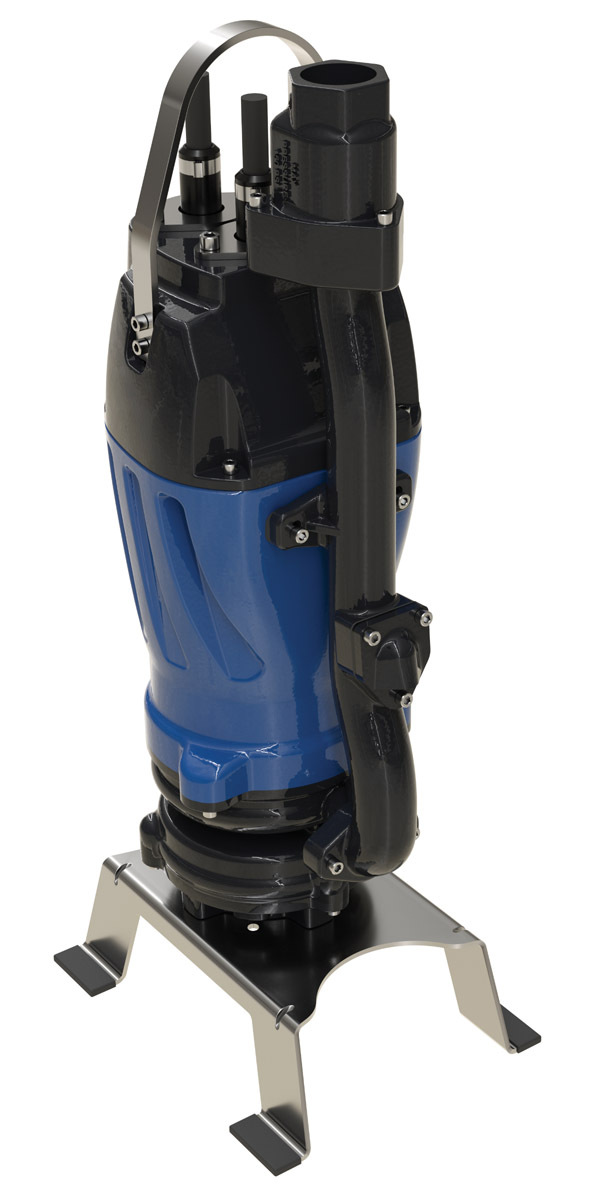

Crane Pumps & Systems Barnes RAZOR

The 2 hp Barnes RAZOR grinder pump from Crane Pumps & Systems is a suitable for light commercial and residential solids-handling applications. It is designed with axial cutting technology to efficiently reduce solids like flushable wipes, diapers and other nonbiodegradable items. Maintenance is convenient with only a single tool needed for disassembly. The plug-and-play cord also provides easy servicing without requiring removal of epoxy in the conduit. Unlike non-clog pumps with large discharge sizes, its 1.25-inch discharge is suitable for preconfigured packaged systems and turnkey solutions. It is available in the Barnes EcoTRAN Pressure Sewer System, allowing superior waste grinding in tough terrain. It provides a practical and environmentally safe alternative to traditional gravity systems, according to the maker. Numerous configuration options are available. 937-778-8947;

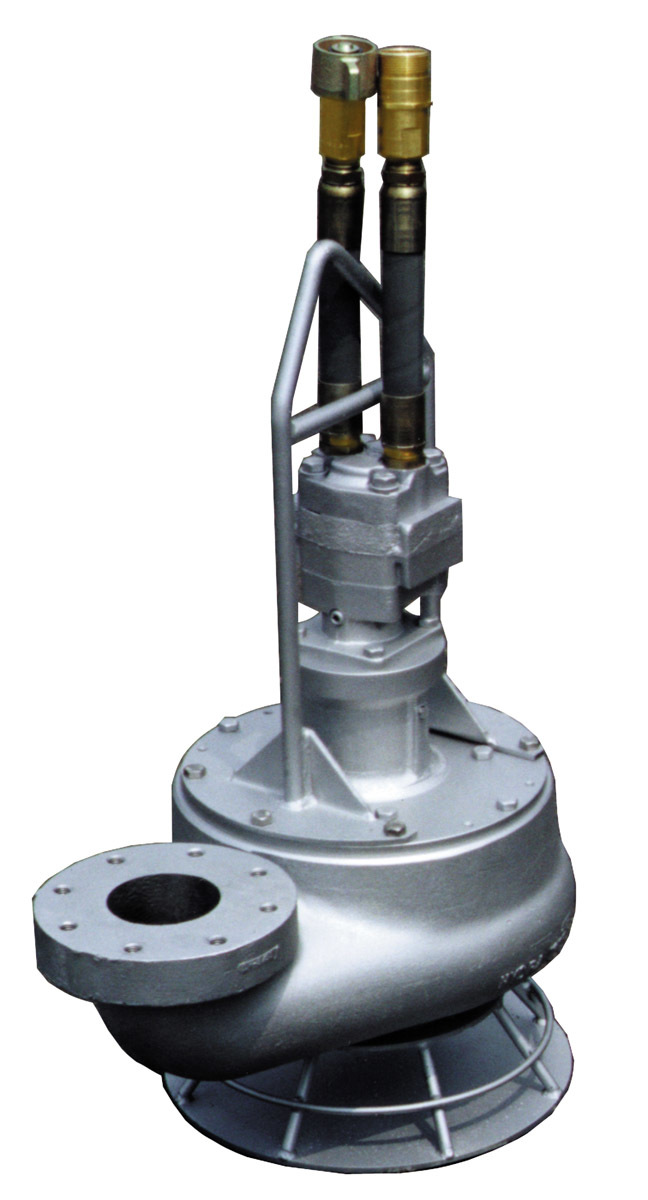

Hydra-Tech Pumps S4THL

The S4THL 4-inch hydraulic drive vortex impeller trash pump from Hydra-Tech Pumps offers 3-inch solids handling and head capabilities up to 210 feet. The durable sludge pump is primarily used for oil refinery waste, sewage digester clean-out, wastewater and sludge pumping and desilting applications using divers. It can be bolted directly into a pipeline or fitted with a suction hose for underwater dredging. Combined with HT50 to HT75 power units, the S4THL is capable of flows up to 1,000 gpm. The safe and variable-speed hydraulic drive submersible pump can be used where electric power is hazardous or impractical. 570-645-3779;

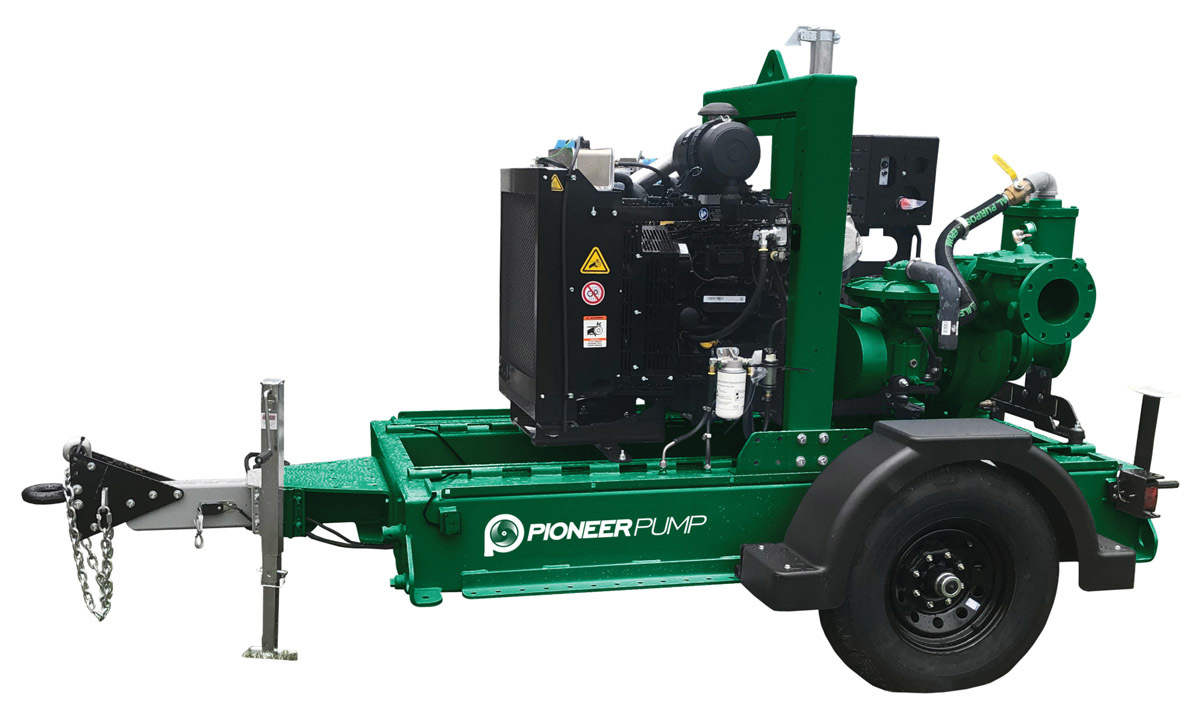

Pioneer Pump Diesel-Driven Pump Packages

Pioneer Pump, a brand of Franklin Electric, offers a comprehensive range of diesel-driven pump package options for fixed and portable installations. The packages are built for tough environments and are available with vacuum-assisted priming, self-priming and standard centrifugal pump ends. Available in sizes up to 30 inches and 44,000 gpm, they are designed to provide high flow, head and efficiency. The trailer packages are DOT compliant and available in open and enclosed, skid and trailer configurations. Each package configuration offers easy access to what matters. 503-266-4115;

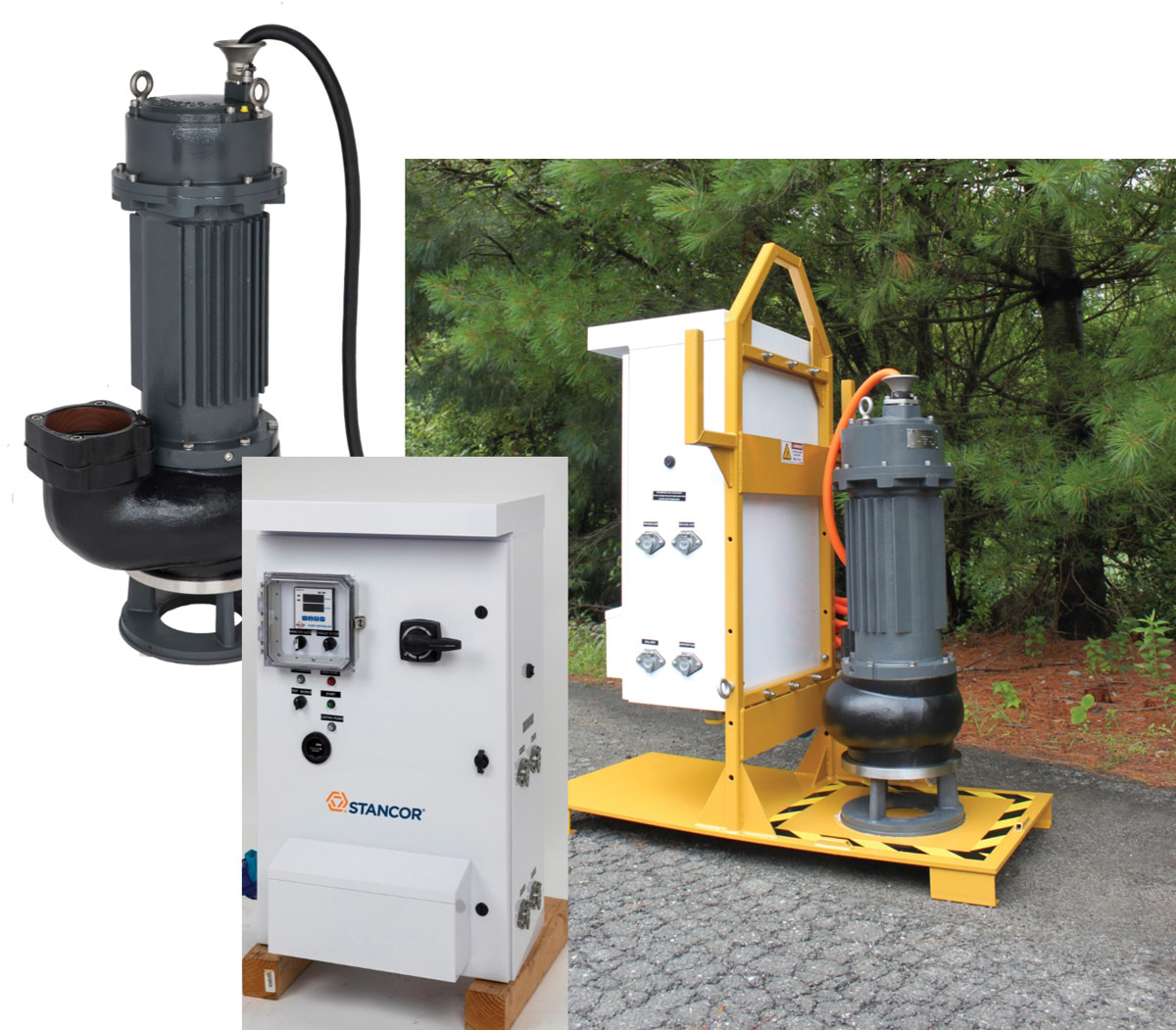

Stancor, An Industrial Flow Solutions Company Raider S3000-TS4P

The Raider S3000-TS4P V6 electric submersible trash pump from Stancor, An Industrial Flow Solutions Company is designed with a custom volute in ductile iron to fit down 21-inch manholes for sewer bypass pumping applications, making it suitable for confined space entry. The pump offers a max flow of 1,200 gpm and max head of 65 feet, and is designed with a ductile iron Vortex-style impeller that can pass 4-inch solids. It can be packaged with an optional 30 hp VFD control and pump stand for a complete mobile system for turnkey installation and transportation. The VFD control is factory programmed and tested, includes a PID loop to vary the frequency of the pump to achieve a pre-determined flow rate and can run pumps rated between 10 and 30 hp. Full control customization is available and can include floats and/or transducer for maintaining optimal liquid level. 860-631-3618;

 Roll-Off Containers

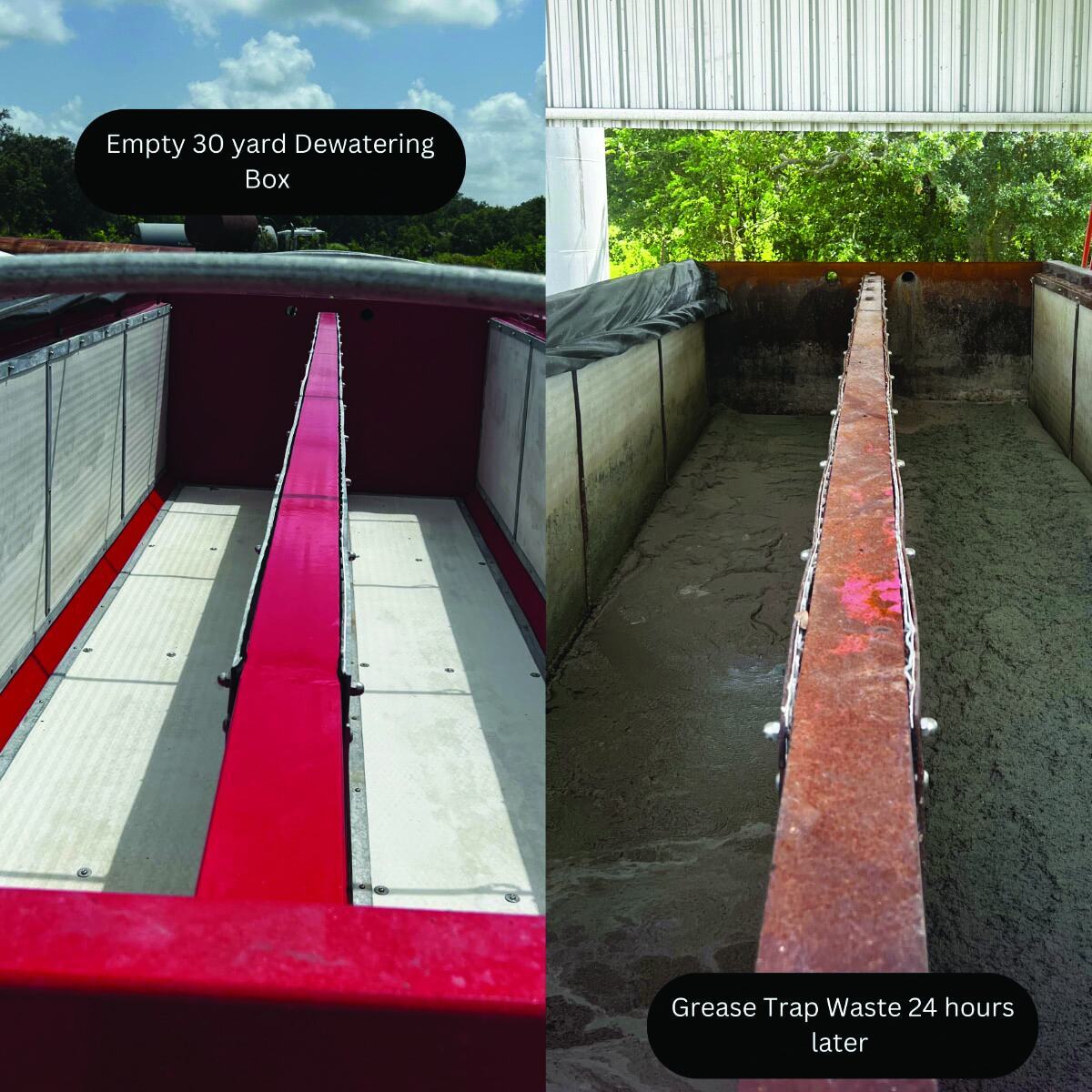

AQUA-Zyme Disposal Systems ADS

The ADS 30-yard open-top roll-off dewatering unit from AQUA-Zyme Disposal Systems can be filled with 22,000 to 25,000 gallons of biosolids at 1% to 2% solids in about two hours. After draining for 24 hours, the unit can be picked up using a standard-capacity roll-off truck and transported for solids disposal. Sludge volume can be reduced by 80% with reductions to 98% in BOD, COD, FOG and TSS. Effluent is clear, the unit has few moving parts, and the size of filter media can be selected according to job requirements. Standard equipment includes a roll-over tarp system; side, floor and center screens; 1/4-inch floor plate; 7-gauge side plates; four door-binder ratchets; eight drain ports; two inlet ports; and a long-handle scraper. Units are also available in a 15-yard size. 979-245-5656;

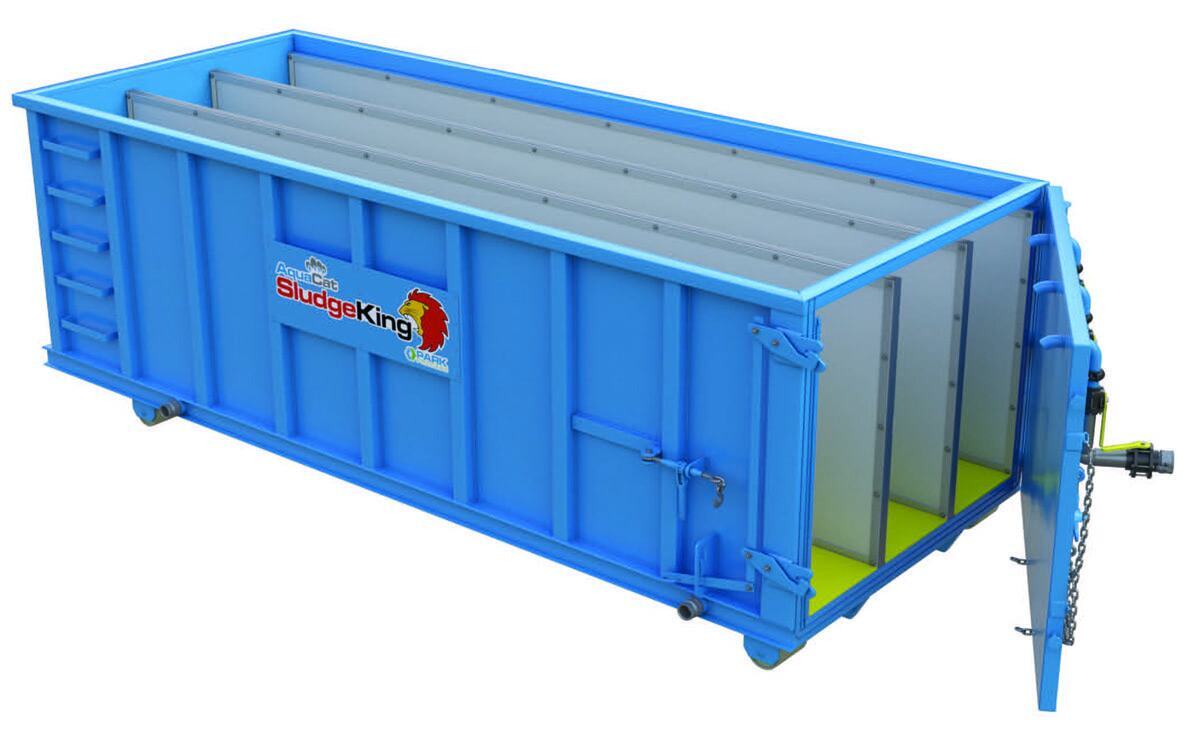

Park Process Sludge King II

The Sludge King II roll-off dewatering container from Park Process incorporates an engineered design that eliminates trapped water in the bottom of the filter cake. The second center- wall filter increases filter area by 33% producing drier cakes in less time. The plastic floor panels that cover the floor space between wall filters and center-wall filters serve three purposes: They hold down the bottom of the filter elements, help to eliminate standing water and facilitate the dumping of filter cake. The inlet manifold is split into three inlets, each with a ball valve, allowing the incoming flow to be distributed evenly into three compartments formed by the two center-wall filters. 855-511-7275;

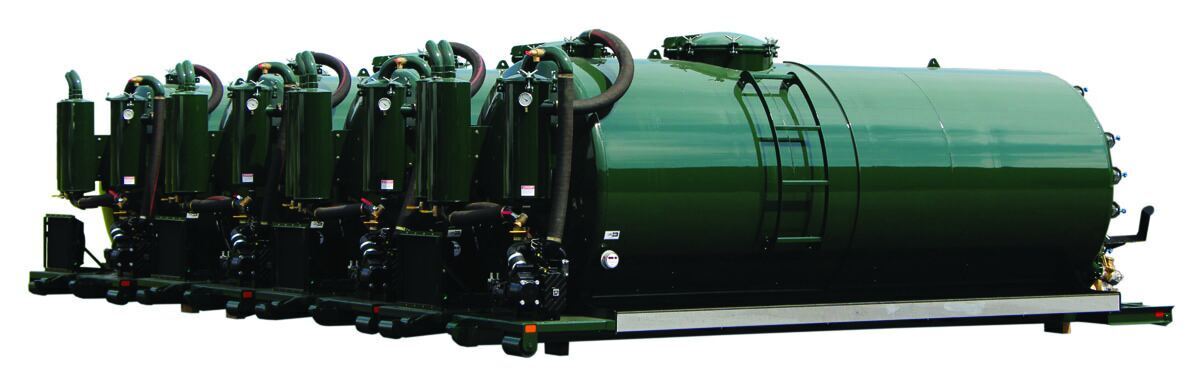

Pik Rite self-contained roll-off unit

Pik Rite self-contained roll-off units are fully operational at the pumping site without a chassis. The heavy-duty front platform holds the user’s choice of pump and a Kohler 25 hp electric-start engine. The tank is set up with a level indicator, rear sight eyes, 36-inch top manway, 20-inch rear manway, 3-inch intake with an internal 3-inch standpipe and a 4-inch discharge. The low-profile, 12-inch primary shut-off is paired with a 10-gallon secondary shut-off. Spray-on protective liner protects hoses and promotes durability. Work lights and a safety beacon are mounted on the rear tank head, and a ladder is mounted on the side. Polished aluminum hose trays and custom paint finish are standard. Other customizable options are available. 800-326-9763;

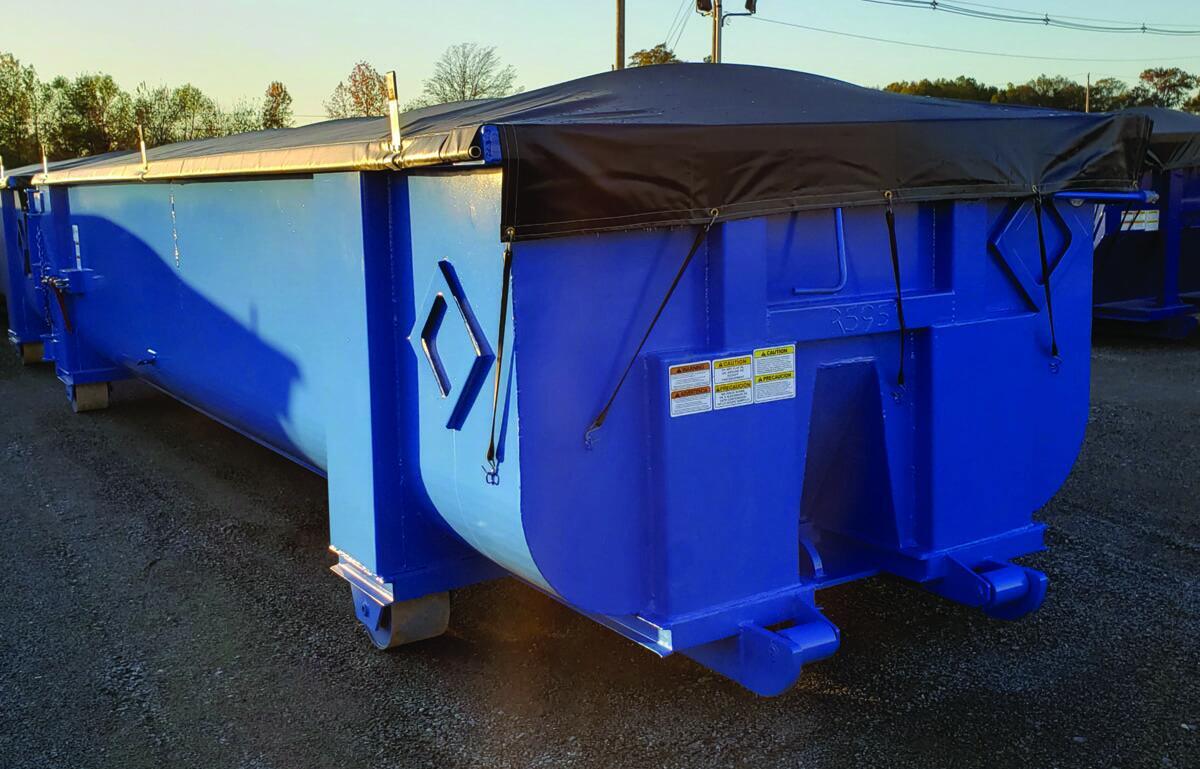

Pinnacle roll tarp sludge container

Roll tarp sludge containers from Pinnacle come standard in 20-, 25-, 30- and 40-cubic-yard capacities. The radius-bottom containers have 1/4-inch floors and 3/16-inch sidewalls. All containers are water-tested to the top of the container for 30 to 45 minutes and come standard with a side-roll tarp. Custom sizes, dewatering baskets and other modifications are available. All are blasted prior to painting, and the shell is powder coated. 256-840-8031;

 Screens/Strainers/Screening Systems

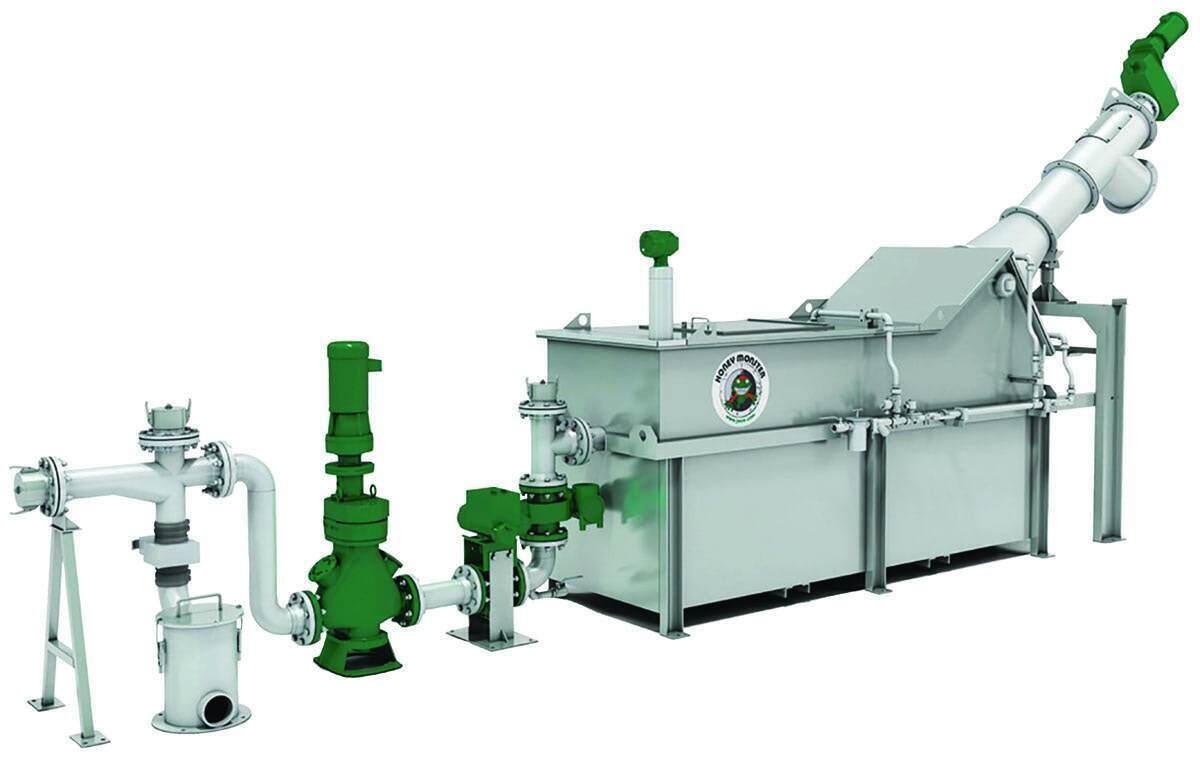

JWC Environmental Honey Monster

The Honey Monster septage receiving station and FOG receiving system from JWC Environmental is designed to ease the management of septage waste for the wastewater plant operator and the hauler. It quickly screens and processes septage, grease, FOG and sludge from vacuum trucks. The automated septage acceptance plant provides for cleaner handling of septage truck waste by reducing and separating unwanted solids such as rocks, rags, clothing, plastics and other trash, according to the maker. The combination of grinding, solids removal, washing and dewatering allows a typical septage truck to unload in 5 to 15 minutes. It is completely enclosed to ensure safety, vector control and containment of foul odors. The optional MonsterTrack metering and control system uses a flowmeter to track septage and provide accurate billing data for the facility and a receipt for the hauler. 800-331-2277;

Lakeside Equipment Raptor Septage Acceptance Plant

Remove debris and inorganic solids from septage tanks, grease traps, sludge, leachate and industrial waste with the fully automated Raptor Septage Acceptance Plant from Lakeside Equipment. It includes the Raptor Fine Screen, which compacts and dewaters the captured screenings to a solids content of 40%. The screen’s rotating rake teeth fully penetrate the cylindrical screen bars, which prevents plugging and blinding from grease and small debris. This allows for faster unloading times. The Raptor Acceptance Control System is a security access station that can be integrated with the SAP to allow authorized haulers to unload their waste at the facility. Adding the data management and accounting system with the RACS station provides capabilities to track and invoice customers. 630-837-5640;

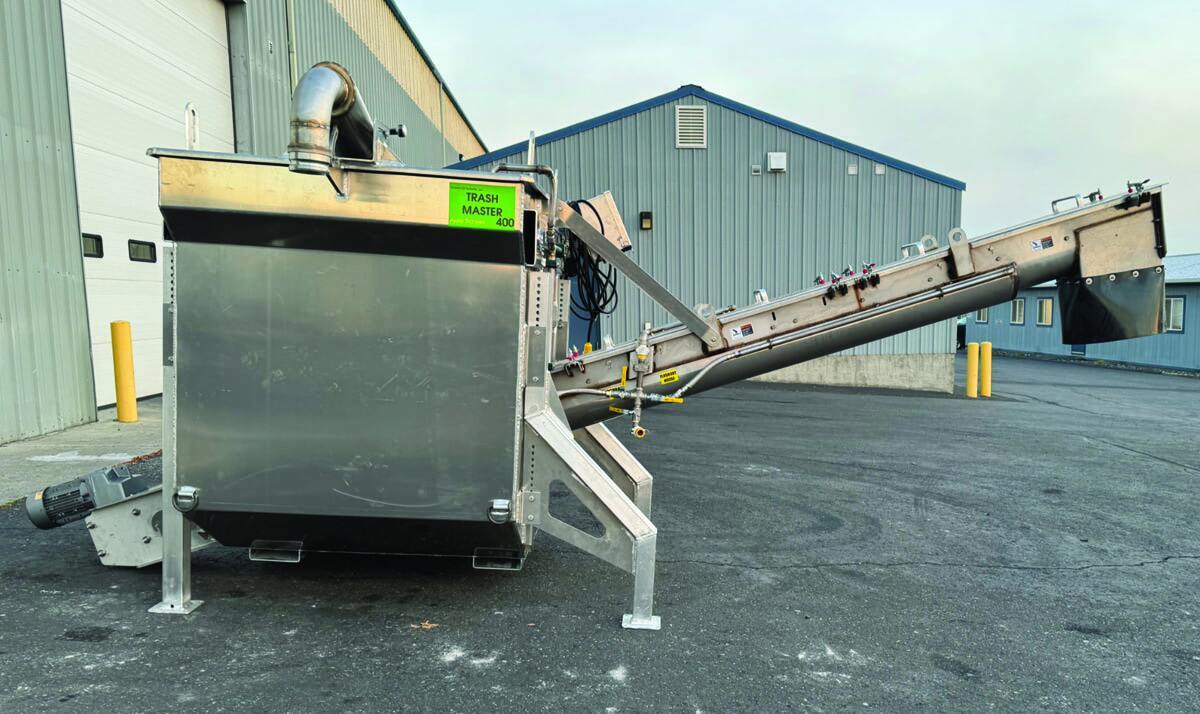

ScreencO Systems Trash Master 400 Auto Screen

The Trash Master 400 Auto Screen from ScreencO Systems uses gravity to separate trash from the flow stream through a 4-inch inlet with a fan spreader to power-offload vacuum trucks. It has an aluminum hopper with a 6-inch outlet cam and 3/8-inch gapped 1/4-inch bar screen that meets U.S. EPA 503 regulations. A stainless steel U-channel with plastic-lined titanium UHMW provides for years of wear, with a high-strength alloy steel 8 1/2-inch shaftless screw that moves trash to a waste container. The stainless steel U-channel has slotted drain holes and a center channel bar screen for cleaner and dryer trash. A custom-built stainless steel bar rake is included for easy maintenance. A front spray bar with a 1-gpm nozzle keeps the unit clean and free of buildup. A 2 hp NORD gear reduction drive with Lenze variable-frequency drive control accomplishes a variable-speed screw from 6 to 30 rpms. 208-790-8770;
