Looking Good

Jetters and inspection systems take the guesswork out of tough cleaning jobs
Looking Good
Amazing Machinery

Amazing Machinery

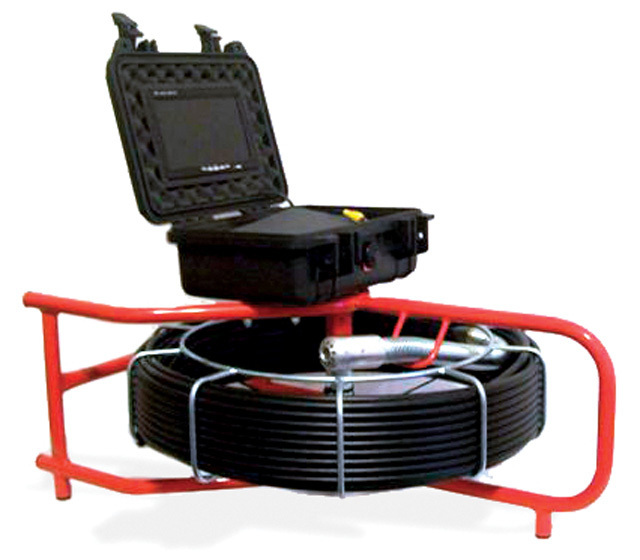

The Quick View camera inspection system from Amazing Machinery has a 1 3/8-inch color camera head (waterproof to 500 feet) with stainless steel body, sapphire lens and built-in 512 Hz sonde transmitter. The system records to an SD card. Features include a 7-inch flat-screen LCD monitor in an ABS case, 10 white LED lights, dimmer control and 11-inch steel spring leader. The system has a 130-foot, 3/8-inch push cable with 20-inch lay-flat storage reel. The component-based system enables the camera head, recorder or monitor to be changed if damaged. 800/504-7435; www.amazingmachinery.com.

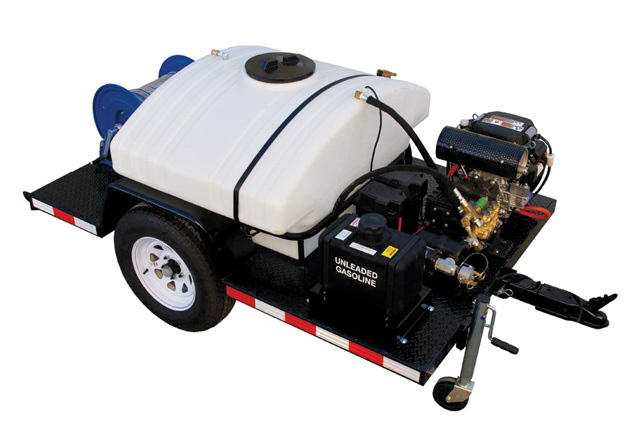

Cam Spray

The EJT series economy trailer jetter from Cam Spray is powered by a 28 hp Honda engine with 5-gallon fuel tank and available in 7 gpm at 4,000 psi or 11.5 gpm at 2,700 psi models. Both feature a manual reel with 250 feet of 3/8- (7 gpm model) or 1/2-inch hose (11.5 gpm model). Designed to clean 6- to 10-inch lines, features include three-plunger pump with stainless steel valves and ceramic plungers, power pulse valve, air purge and recirculation for freeze protection. The closed tube frame trailer has a full metal deck on a 3,500-pound axle and includes road-ready wiring and lights with 2-inch ball hitch. Other features include 150-gallon water tank with auto shutoff if tank runs dry, four-nozzle set, storage box, tip cleaner, Tiger Tail hose, safety face shield, rubber gloves and safety vest. 800/648-5011; www.camspray.com.



Cyclops Electronics Inc.

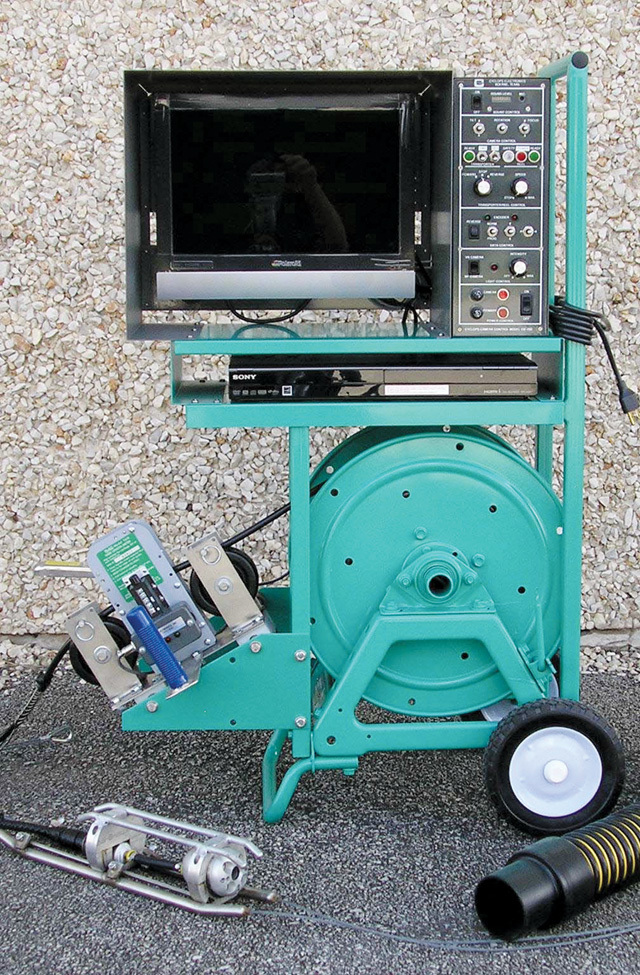

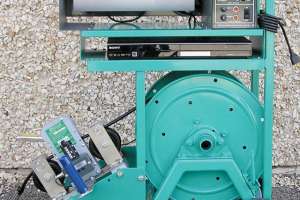

The Basic Valu-Pac push camera system from Cyclops Electronics Inc. includes an MF Series camera that can be pushed up to 150 feet in 3-inch and larger lines. The camera also can be used on a skid or transporter to inspect lines up to 18 inches in diameter. The camera system comes with 500 feet of TV/Tow cable, 15-inch color LCD monitor, DVD recorder/player, all-in-one controller, on-screen footage with three-line data entry and adjustable skid (5 to 18 inches). 830/249-9756; www.cyclopstv.com.



Ditch Witch

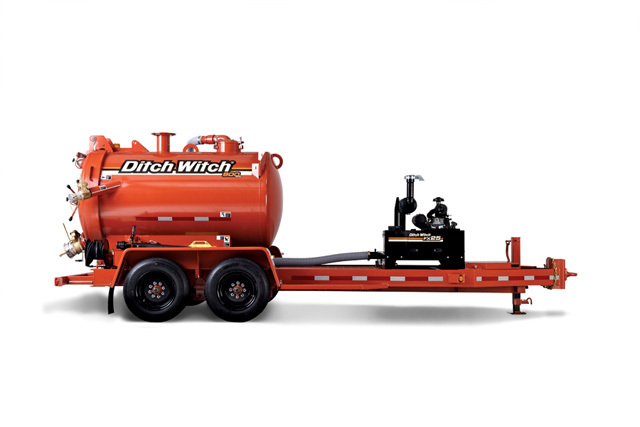

The FX25 vacuum excavator from Ditch Witch has a 500-gallon spoils tank and is powered by a 31 hp Briggs & Stratton Vanguard gasoline engine. It can perform a variety of cleanup and soft excavation tasks, including potholing, valve box and utility vault cleanout, storm drain cleaning, exposing buried utility lines, HDD site cleanup, water leak repair, commercial and residential debris cleanup and posthole digging. Options include 80- or 200-gallon water system with 3,000 psi water pressure. 800/654-6481; www.ditchwitch.com.

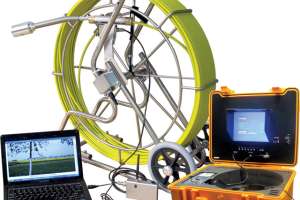

Forbest Products Co.

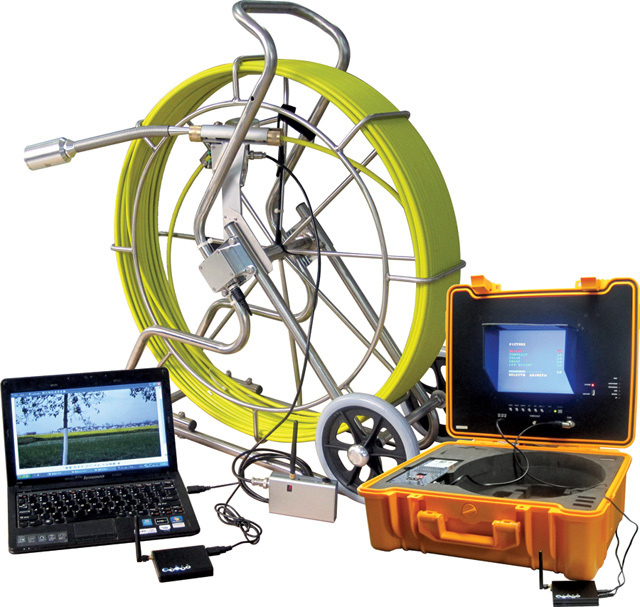

Wireless video inspection cam-eras from Forbest Products Co. can transmit images up to 500 feet to control stations or laptop computers for viewing over the Internet, enabling multiple users at various locations to simultaneously view video from a single camera. 650/757-4786; www.forbestusa.net.



GapVax

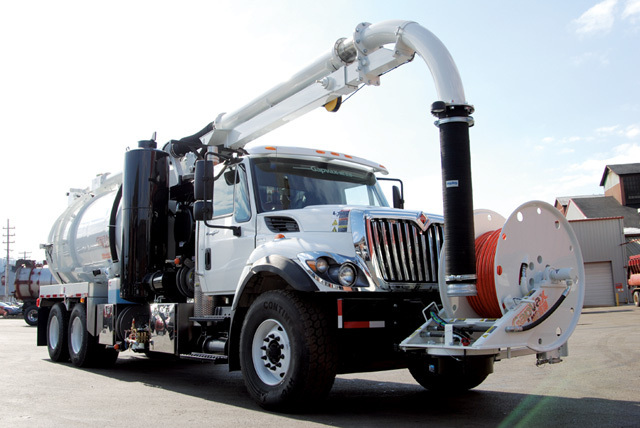

The MC Series wet-only combination vacuum jetter from GapVax is made of 3/16-inch ASTM A572 Grade 50 Exten steel and features a 5- to 12-cubic yard debris body (stainless steel available) with stainless steel water tank that can hold up to 2,000 gallons. Other features include unitized water and debris tank with double subframe. A double-acting, single-lift cylinder provides a 50-degree dump angle. Pump options range from 3,500 to 5,000 cfm with up to 27 inches Hg. The standard water pump is rated at 80 gpm at 2,000 psi. Other pumps are available. The unit has a front-mounted telescopic boom with dual lift cylinders that reach 26 feet with a 270-degree rotation. The front-mounted hose reel can hold 800 feet of 1-inch hose. Options include washdown system, hydroexcavation package, extra storage, heated boxes, liquid level load indicators, remote pendants and wireless remotes for boom. 888/442-7829; www.gapvax.com.



Graco Inc.

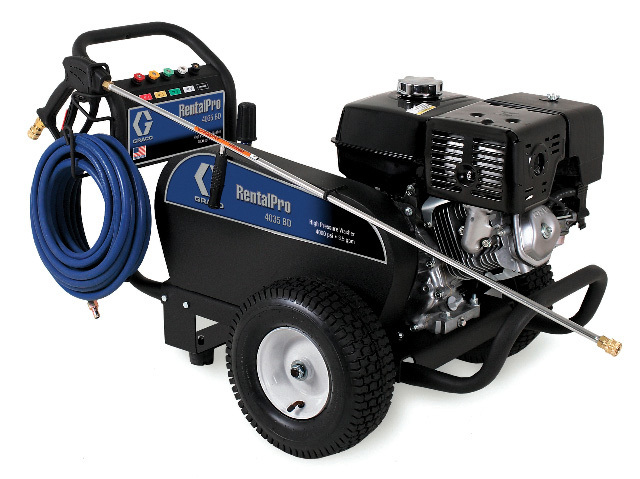

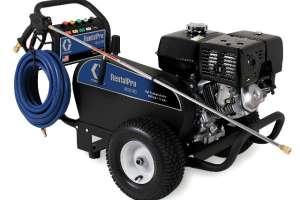

The RentalPro 4035 BD cold-water pressure washer from Graco Inc. is made for heavy- to severe-duty applications. Available with a Briggs & Stratton or Honda engine, the 191-pound unit delivers a maximum output of 4,000 psi and flow rate of 3.5 gpm. Features include a double belt-drive design that protects the TX Series pump from engine heat, decreasing bearing wear and extending the life of the unit. A thermal relief valve further protects the pump. The unit includes professional-grade trigger gun, 50-foot hose, five tips and tip holder. 877/898-1241; www.rentalpro.graco.com.

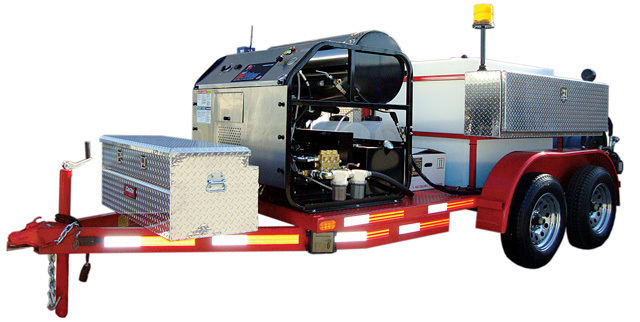

Hot Jet USA

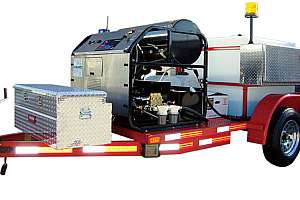

The The Hot Jet II hot water jetter from Hot Jet delivers 8.5 gpm at 3,600 psi. Designed to clean up to 10-inch sewer lines, the jetter has a high-torque, electric, variable-speed hose reel, diesel-fueled variable temperature burner, 300 feet of 3/8-inch jetter hose, premium General Pump, 330-gallon water tank, soap injection, antifreeze system, diamond-plate toolboxes and custom-built, 7,000-pound rated trailer. Other features include safety strobe lighting, rear LED lights, 2-inch fast fill and garden hose fill, custom drilled nozzle set and Tiger Tail hose. 800/213-3272; www.hotjetusa.com.

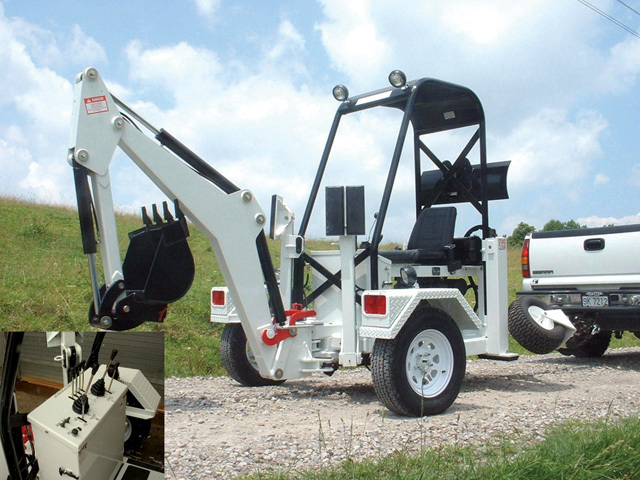

R. H. & M. Machine Co.

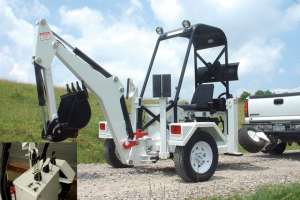

The Go-for-Digger compact towable backhoe from R. H. & M. Machine Co. can be towed at highway speeds without the need for a trailer. It weighs 2,800 pounds and is 77.5 inches wide with a length of 168 inches in towing position. Features include two independent hydraulic drive motors for jobsite mobility, four independent stabilizers for leveling and stabilizing the machine and ROPS canopy for operator safety. The backhoe has a digging force of 4,500 pounds and digging depth of 8 feet. Powered by an 18 hp Kohler engine, the stabilizer spread in operating position is 80 inches; the boom can swing 145 degrees. 304/296-7000; www.gofordigger.com.

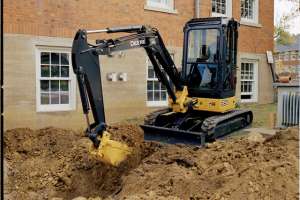

John Deere

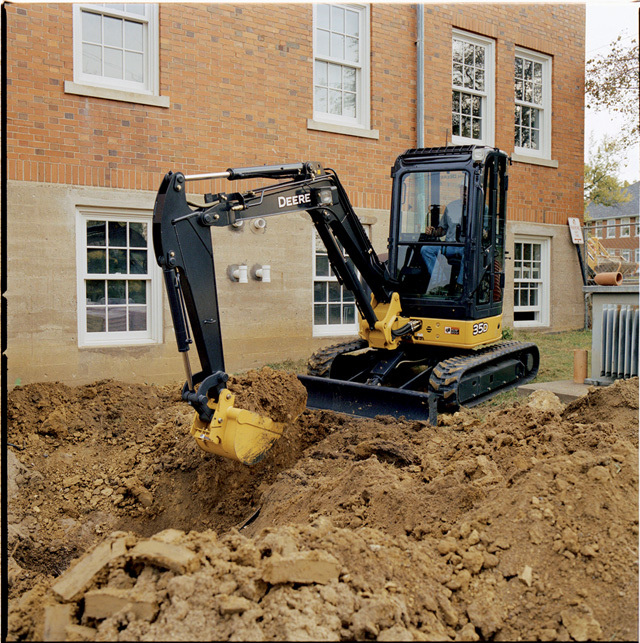

The 35D excavator from John Deere is powered by an IT4 emissions certified 28.6 hp engine. It has an independent swing boom and 360-degree rotation. Designed to work in tight locations, the excavator has a standard quick coupler and auxiliary hydraulics. It has a maximum digging height of 16 feet, digging depth of 10 feet and digging reach of 17 feet, 1 inch. Weighing 3,520 pounds, the excavator has a transport length of 15 feet, 3 inches, height of 8 feet, 1 inch and width of 5 feet, 9 inches. Compatible with many John Deere Worksite Pro attachments, the optional angle blade expedites grading and backfilling. www.deere.com/wps/dcom/en_US/products/equipment/excavators/35d/35d.page?



Ratech Electronics Ltd.

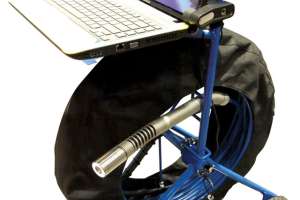

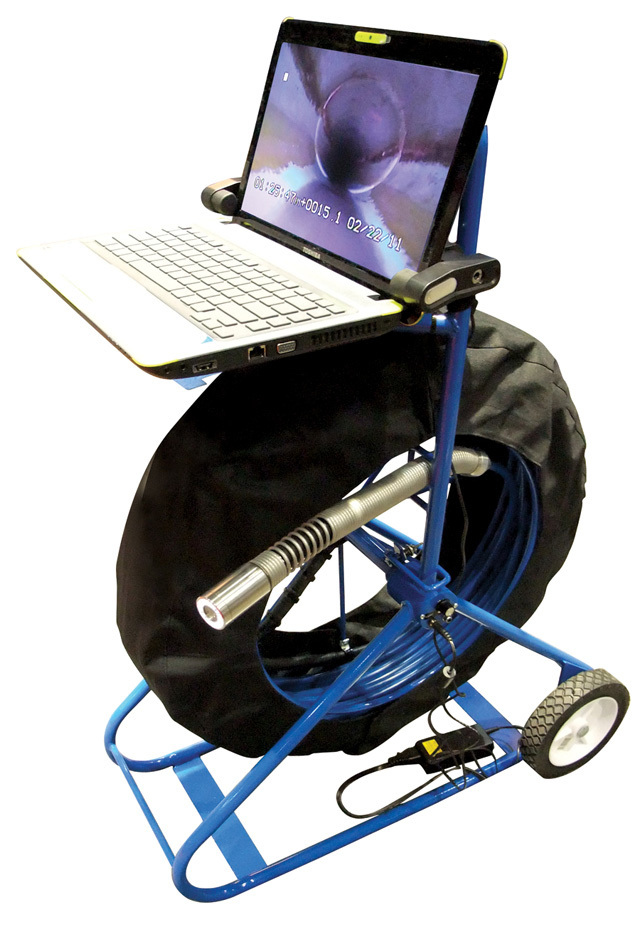

The Plumber’s Inspector PC-Xi inspection system from Ratech Electronics Ltd. is an all-in-one system for pipes down to 2 inches in diameter. The lightweight system incorporates all recording capabilities using your laptop. The laptop mounts on a swivel stand on the cable reel and is removable. The system records mpeg video and jpeg still photos of inspections to the laptop’s hard drive, USB port, flash drive or to the built-in DVD recorder. Built-in custom software enables users to record defects and provide customers with a final report. Also included is an on-screen display overlay distance counter, time, date and eight pages of memory. Features include LED lights, condenser microphone, AC/DC switchable, variable light intensity control, 1.375-inch self-leveling color camera with scratch-resistant sapphire lens and 200 feet of Gel-Rod cable. Longer lengths are available. 800/461-9200; www.ratech-electronics.com.



Shark electric, gas drain cleaners

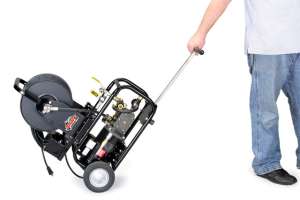

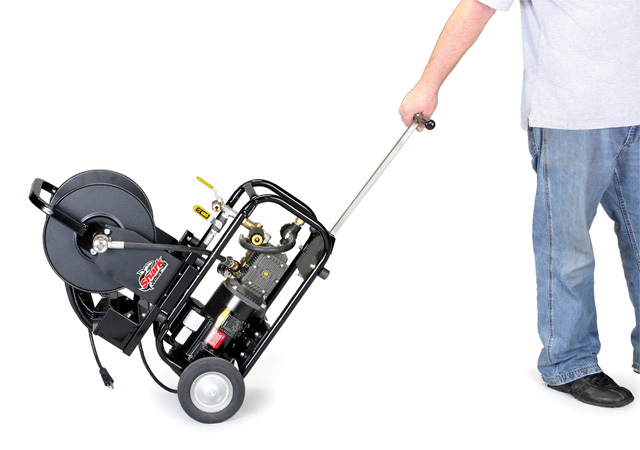

Seven models of gas and electric drain cleaning jetters from Shark deliver up to 3,000 psi. The electric hand-carry and two portable units operate on 115 volts. Designed for indoor use on 2- to 4-inch pipes, the electric models deliver 1,500 psi and feature a steel roll cage chassis, triplex pumps and Baldor motors. The gas models are powered by Honda and Vanguard engines and deliver from 4 to 8 gpm and up to 3,000 psi. Three gas models are gear driven and one is a portable direct-drive unit. 800/771-1881; www.sharkpw.com.

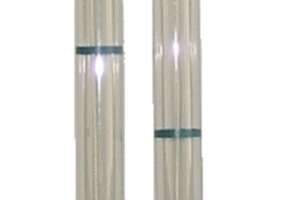

Sim/Tech Filter INC.

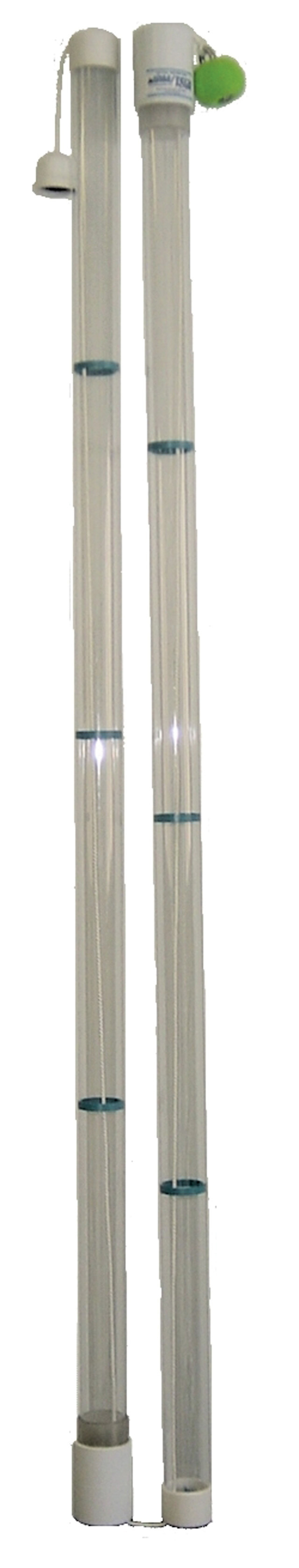

The TruCore sludge sampler from Sim/Tech Filter INC. is designed for use in thicker sludge common to septic tanks. The 1 3/8-inch inside diameter and restriction-free tube enables samples to be taken quickly without creating excessive turbulence. Capacity per foot is approximately 10 ounces. Made of polycarbonate, the sampling tube is clearly marked every foot. It comes as an 8-foot unit or as two 4-foot units that join together. Custom sizes and configurations are available Options include a customizable extension kit for deeply buried tanks. 888/999-3290; www.simtechfilter.com.

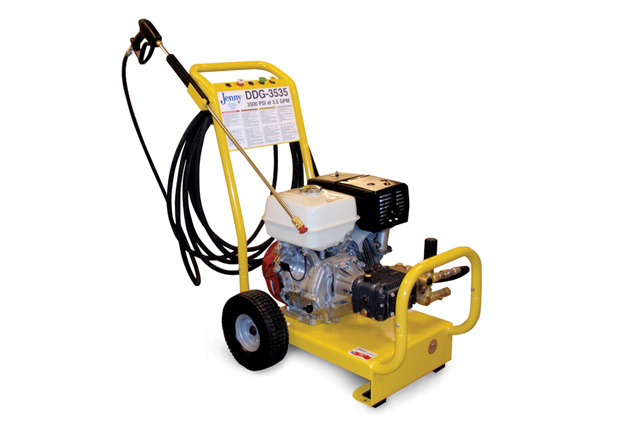

Jenny Products Inc.

Four Steam Jenny direct-drive, cold pressure washers from Jenny Products Inc. are powered by 9- or 13-hp Honda GX Series engines and feature a triplex ceramic plunger pump. Available with pressure ratings between 3,000 and 4,000 psi, flow rates range from 3 to 4 gpm. A customizable option enables users to choose a unit with pressure and flow ratings based on specific needs. Standard features include thermal pump protection, unloader valve and high-pressure relief valve. The unit automatically shuts down if low oil levels are detected. The powder-coated chassis is made from seven-gauge steel. Other features include insulated trigger gun with safety lock, quick-connect nozzles, high capacity inline water strainer, gun/wand holders, hose reel mounting adapter and dual rubber isolators. 814/445-3400; www.steamjenny.com.

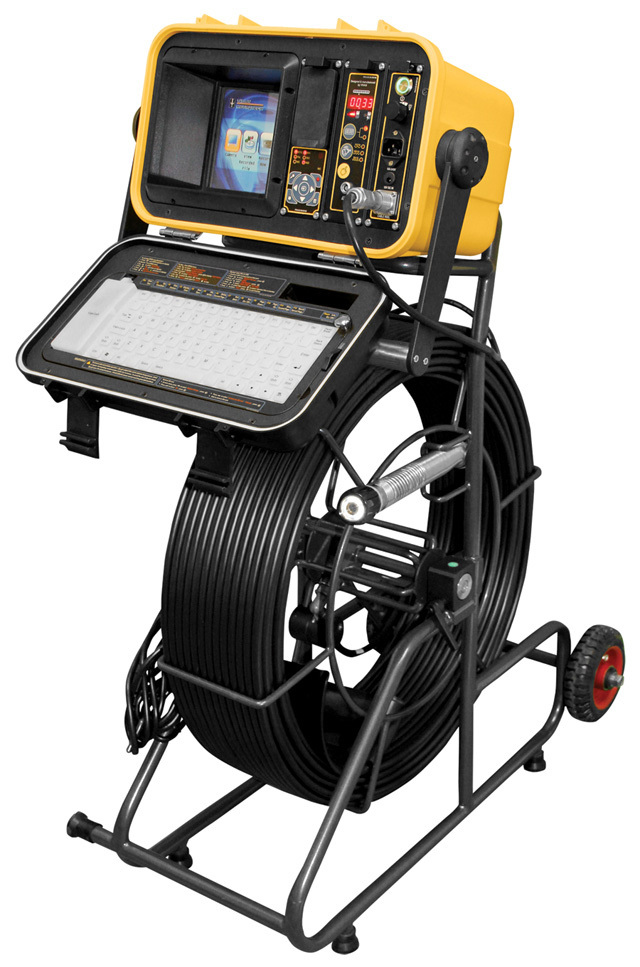

Vivax-Metrotech Corp.

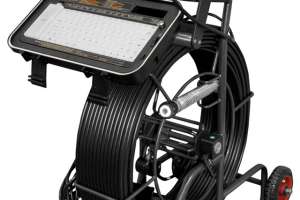

The vCam inspection system from Vivax-Metrotech Corp. includes modular control module with 8-inch color LCD monitor, dual frequency transmitting sonde, digital recording to the internal hard drive or SD card, full function keyboard, internal microphone, AC/DC power, rechargeable batteries, USB interface, RCA jacks for both video and audio, distance counter and camera LED brightness control. The modular system is fully serviceable. A range of reels enable the system to inspect 3- to 12-inch pipes from distances of 60 to 400 feet. All reels are fitted with field serviceable camera terminations. 800/446-3392; www.vxmt.com.



Water Cannon

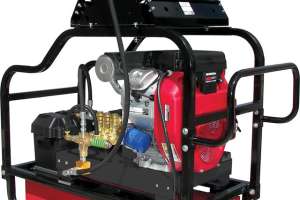

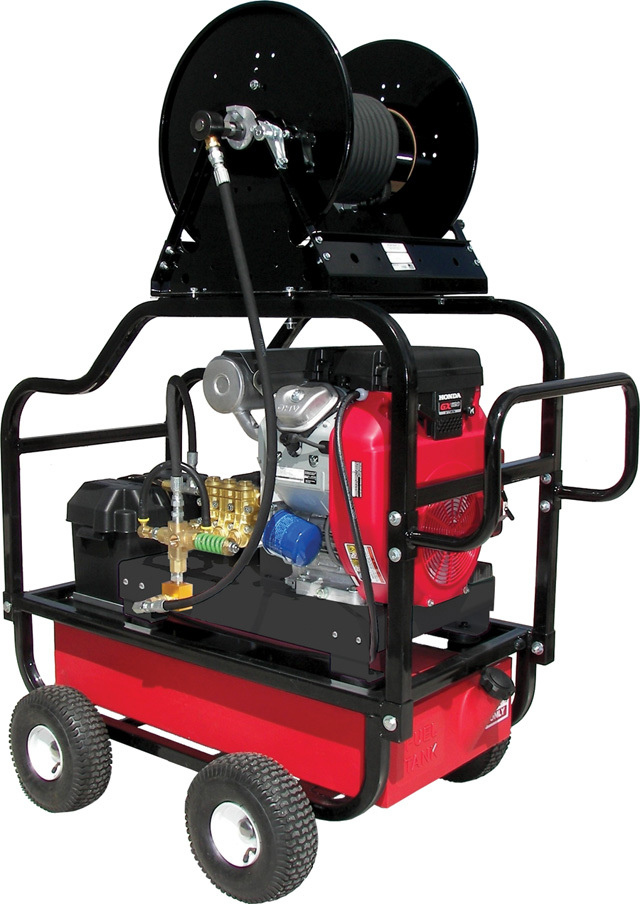

The XT jetter package (models 17HJ39, 17HJ45 and 17HJ47) from Water Cannon is available with power up to 5.5 gpm and pressure to 4,200 psi. The jetter also functions as a drain cleaner and high-power pressure washer. Powered by a Honda GX 630 engine, the unit is available with an Annovi Reverberi or General Pump. Features include hydro pulse for pulsation on demand, adjustable throttle for operating pressure from 100 psi and up, ball valve shutoff, 15-gallon fuel tank, electric key start and portable wheel kit. Accessories include 300 feet of 3/8-inch Piranha jetter hose with an additional 125 feet of 1/4-inch hose, four stainless steel jetter nozzles and 50-foot super kit. 800/333-9274; www.watercannon.com.
