Reliable vacuum generation is at the heart of many mobile and stationary waste management operations, from septic services to general sanitation. Specialized vacuum pumps are engineered to provide powerful and consistent suction, capable of handling demanding conditions and a variety of materials. Units like those below feature robust construction, efficient cooling systems and durable components like long-lasting vanes to ensure extended service life and minimal maintenance. Take a look at some production options.

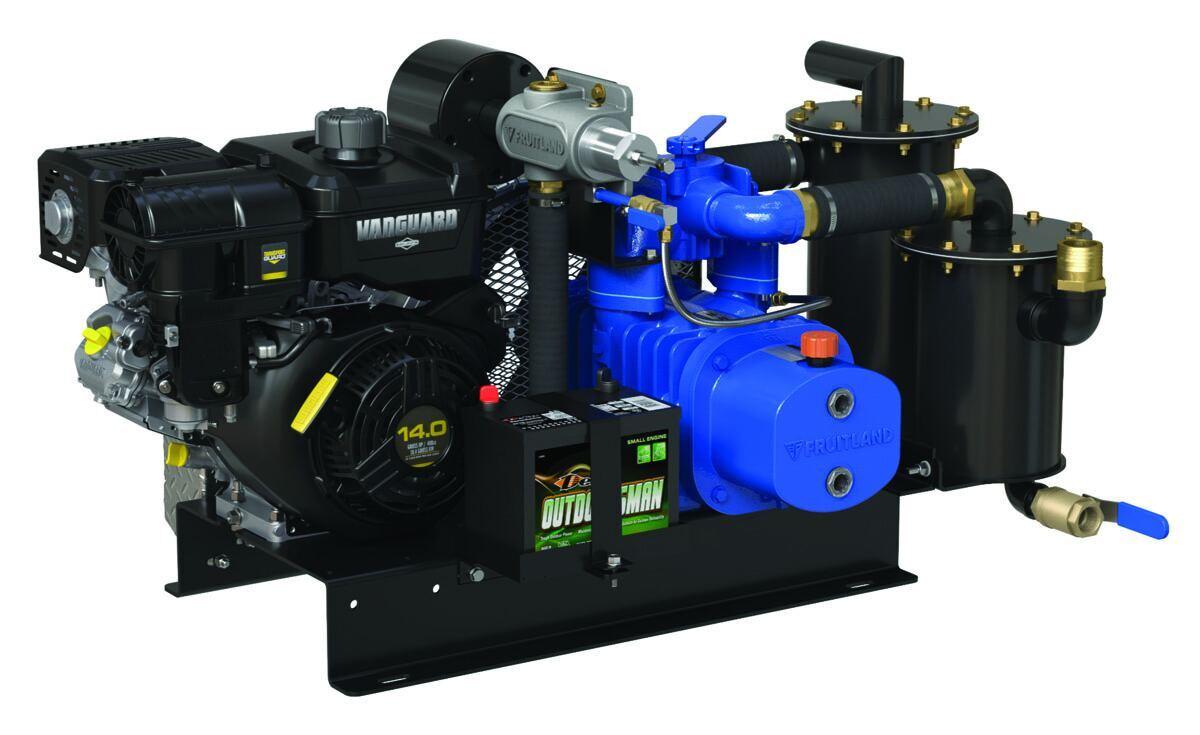

Fruitland ELIM G-SMF344
The Fruitland ELIM G-SMF344 gas engine driven system is ideal for smaller to medium-sized mobile vacuum systems like portable restroom, light sanitation and septic trucks, and is suitable for single-axle mobile applications where a truck-driven PTO is not an option. The system includes a 14 hp Briggs and Stratton Vanguard gas engine, Fruitland RCF344 vacuum pump, standard bolt-in truck mount, secondary shutoff, muffler, air injection and an air filter. Options include pressure washers, air injection systems, additional oil tanks and flushing kits. 800-663-9003; www.fruitlandmanufacturing.com

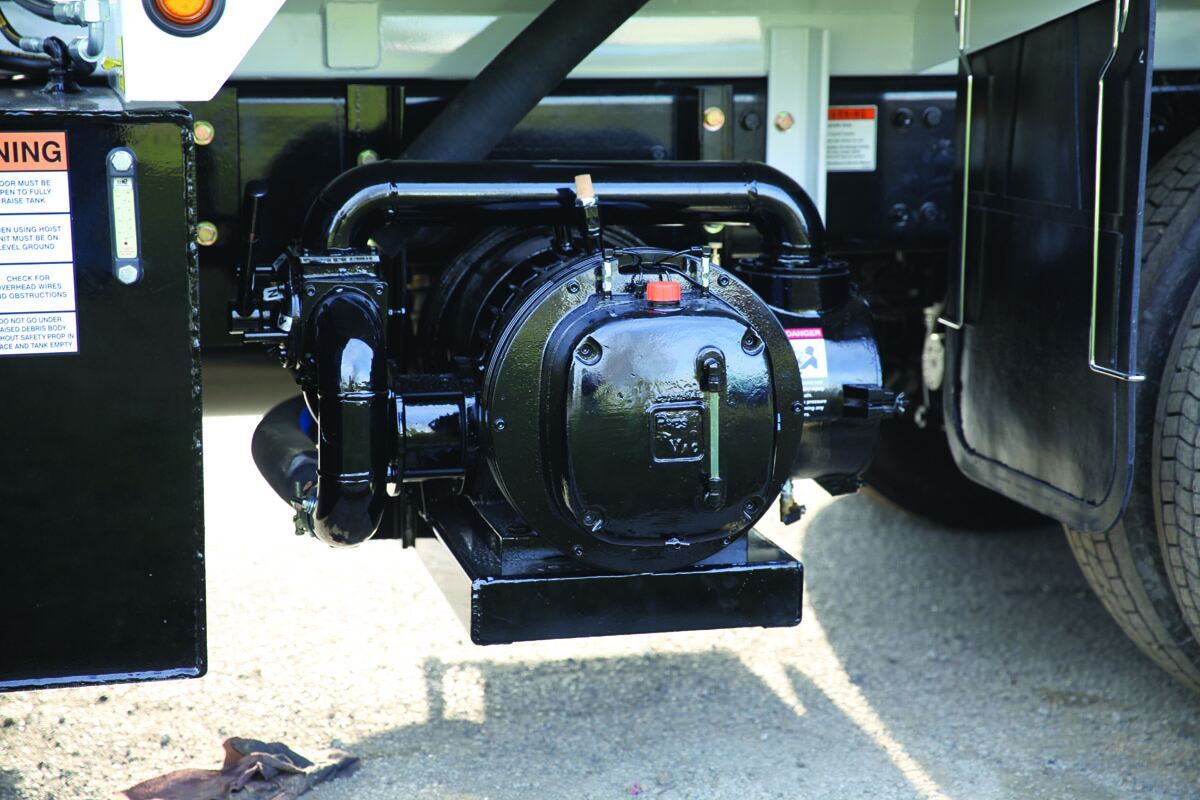

Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications. 800-387-7763; www.presvac.com

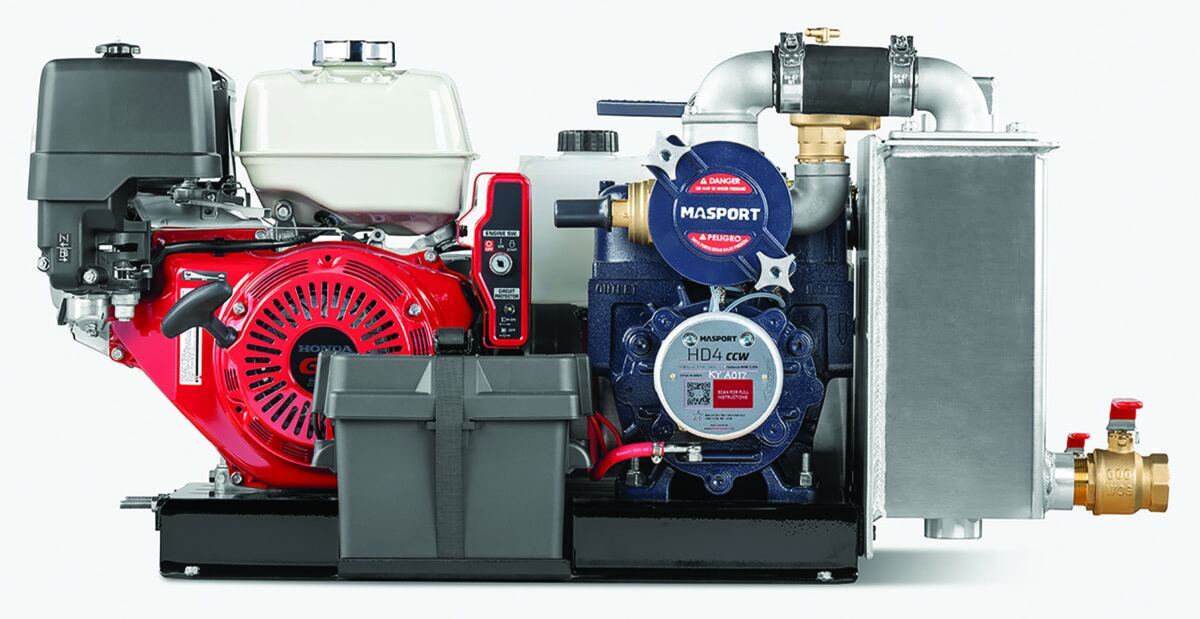

Satellite Masport HD4
Satellite integrates the powerful Masport HD4 vacuum pumps into truck systems. Built to tackle even the toughest jobs, this pump consistently achieves an impressive 27 inches Hg (intermittent) suction. Featuring rugged heavy-duty bearings, long-lasting Viton oil seals and Kevlar vanes, it is a powerhouse of durability and reliability. Its high-temperature oil lines are transparent for easy monitoring, ensuring peak performance every time. With its versatile double-end shaft, the pump can be driven both clockwise and counter-clockwise, offering incredible flexibility for any system configuration. O-ring end covers guarantee a leak-free seal for ultimate peace of mind. 800-883-1123; www.satelliteindustries.com

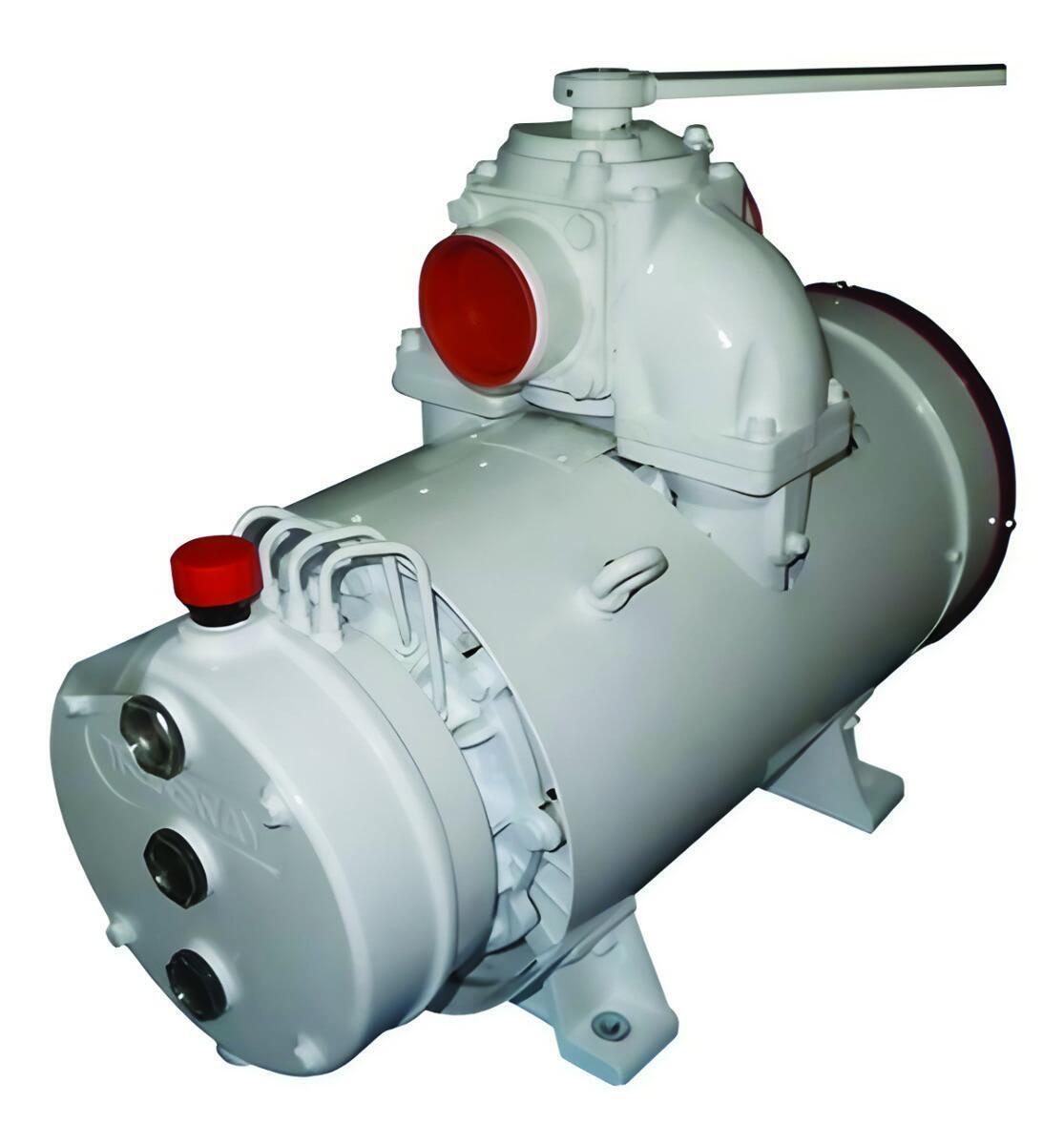

Transway TSI500
The TSI500 from Transway is an industrial grade rotary vane vacuum pump designed for consistent performance in septic and vacuum applications. Delivering approximately 320 cfm at up to 28.5” Hg, it operates at 1,400 rpm and requires 34 bhp. Built for continuous-duty use, it features automatic oil lubrication, fan cooling and durable fiber vanes engineered for long service life. The pump is equipped with integrated vacuum and pressure relief valves, nonreturn valve and wear-check ports to support preventative maintenance. It is housed in a robust, service-friendly design with easy access to key components, making vane replacement and flushing procedures straightforward in the field. 800-263-4508; www.transwaysystems.com
Wallenstein Vacuum 753 Series
The 753 Series vacuum pump from Wallenstein Vacuum is designed for long service life, incorporating wide vanes that allow up to an inch of wear. It provides 422 cfm airflow at 1,200 rpm and vacuum levels up to 28 inches Hg. Options include air-, liquid- or dual-cooling systems where air injection is combined with liquid cooling. A pump-flushing port is included on the top valve for convenient maintenance. The quick-access housing end plate allows for easy internal inspection with no bearings to pull. Oil lubrication is via a mechanical piston pump driven by shaft rotation or available with a sight-feed valve oil regulator system using vacuum/pressure to draw oil with no moving parts. 800-801-6663; www.wallenstein.com

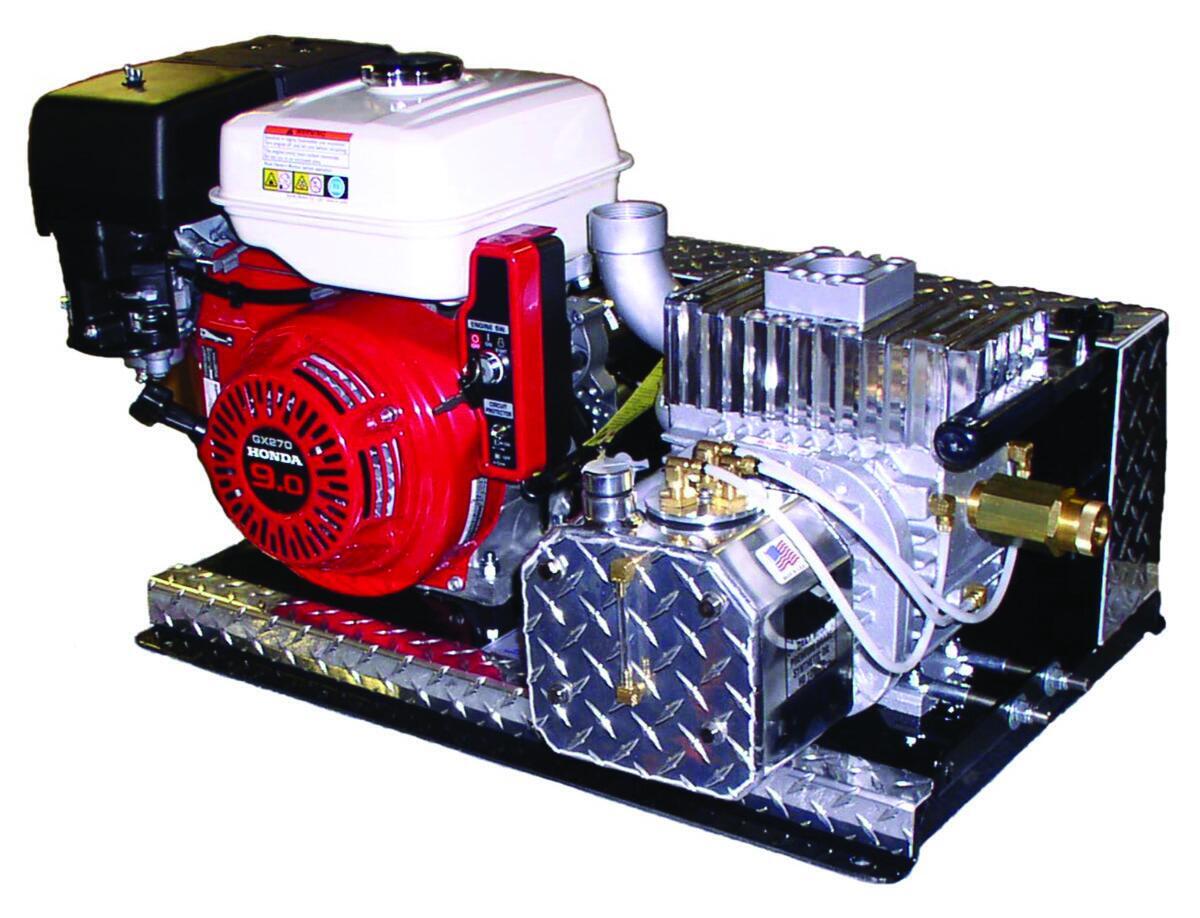

Westmoor Conde PowerPaks
Westmoor Conde PowerPaks are preassembled gasoline or diesel-powered vacuum pump units. They are easy to install, according to the maker, and include a heavy-duty steel base with aluminum diamond plate trim and belt guard. Rigid assembly is designed to minimize vibration and maximize power. They are available with either vacuum only or vacuum/pressure pumps. A range of cfm options matches the PowerPak to the tank size and application. Units are powered by Honda GX Commercial Series gasoline engines or Hatz industrial air-cooled diesel engines. Units can be transferred to another tank system when needed. 800-367-0972; www.westmoorltd.co
