Strainers and screening systems are designed to handle high volumes of septic and portable restroom waste, ensuring efficient separation of solid debris from the liquid flow. These systems enhance the efficiency and reliability of waste management operations by preventing clogs, reducing maintenance and improving overall system performance. They are designed to handle high solids content, ensuring that large debris and foreign materials are effectively removed, protecting downstream equipment and processes. Advanced screening technologies offer high throughput capabilities and automated features, making them crucial for modern septic receiving and processing facilities.

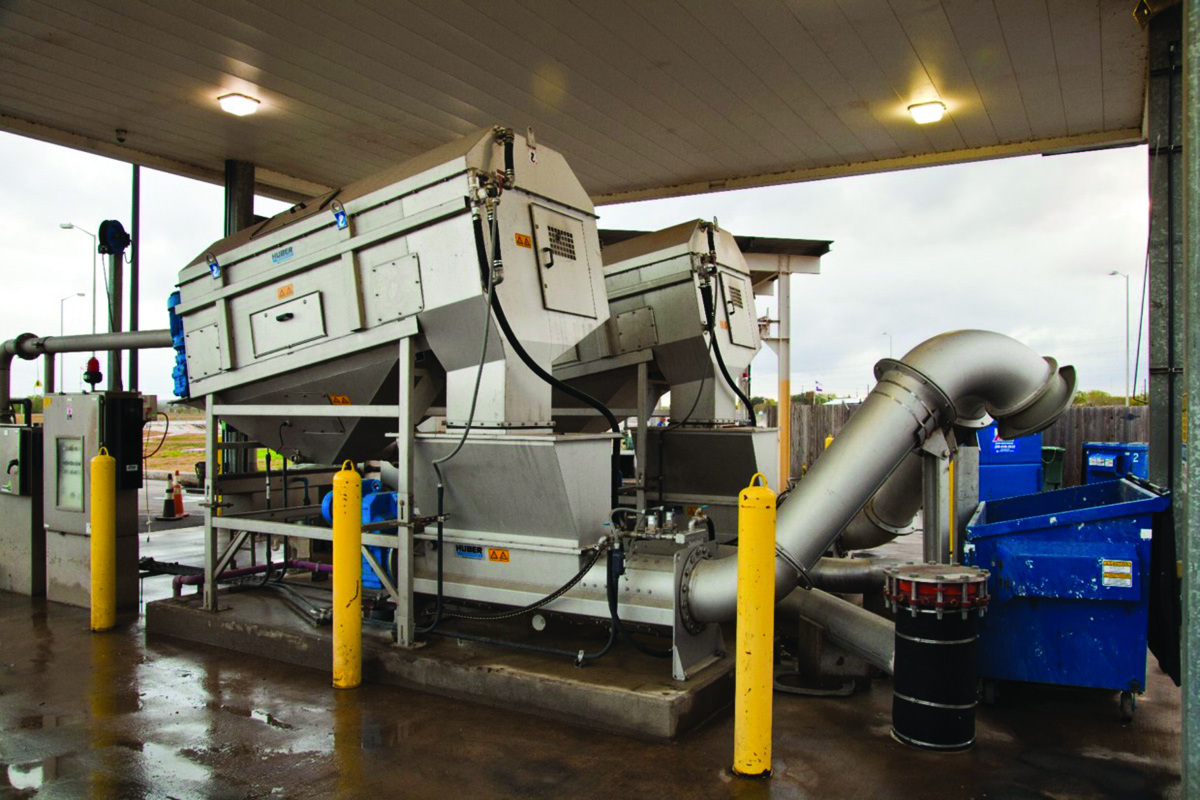

HUBER Technology RotaShield
The RotaShield coarse material separator from HUBER Technology provides protection for septage receiving and hauler dump stations. It incorporates a rotating perforated drum and wash bar to receive loads from septic tanks and portable restroom waste. The nonclog drum is designed to handle large foreign material often found in portable restroom waste. With high throughput capabilities (400, 700 and 1,000 gpm), waste haulers can unload faster and with less complications. In addition to the receiving wash drum, the systems are equipped with a quick cam lock connection, inlet flow meter, computer access, monitoring and billing software and options for further treatment of separated material. 704-949-1010; www.huber-technology.com

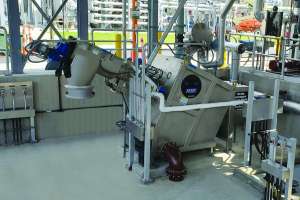

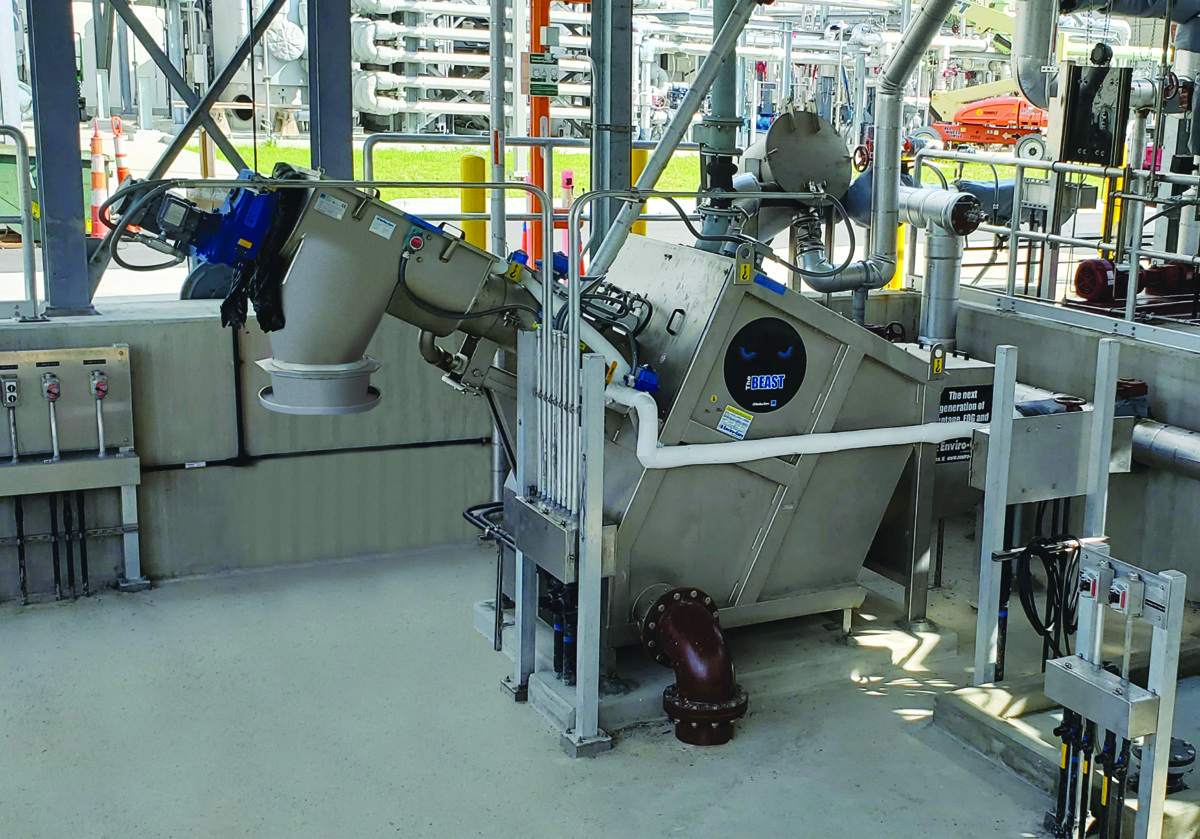

SAVECO North America BEAST
Designed for septage receiving and other high-solids applications, the SAVECO North America BEAST can be a solution for a facility’s high strength organic waste receiving program. It incorporates a dual-drive screening system that allows for independent operation of the screen and transport auger. This design allows the drum speed and auger speed to be controlled independently, allowing for shorter unload times, as well as higher capture efficiency. A sloped inlet and U-shaped flushing header keeps the screen inlet area free of sedimentation and debris buildup. The drum is supported from the top with an oversized slewing ring bearing, which also features an auto-lube system, decreasing routine maintenance requirements and downtime. It doesn’t require ancillary equipment such as rock traps or grinders, providing high performance and low lifecycle costs, according to the maker. 815-636-8306; www.savecowaterna.com

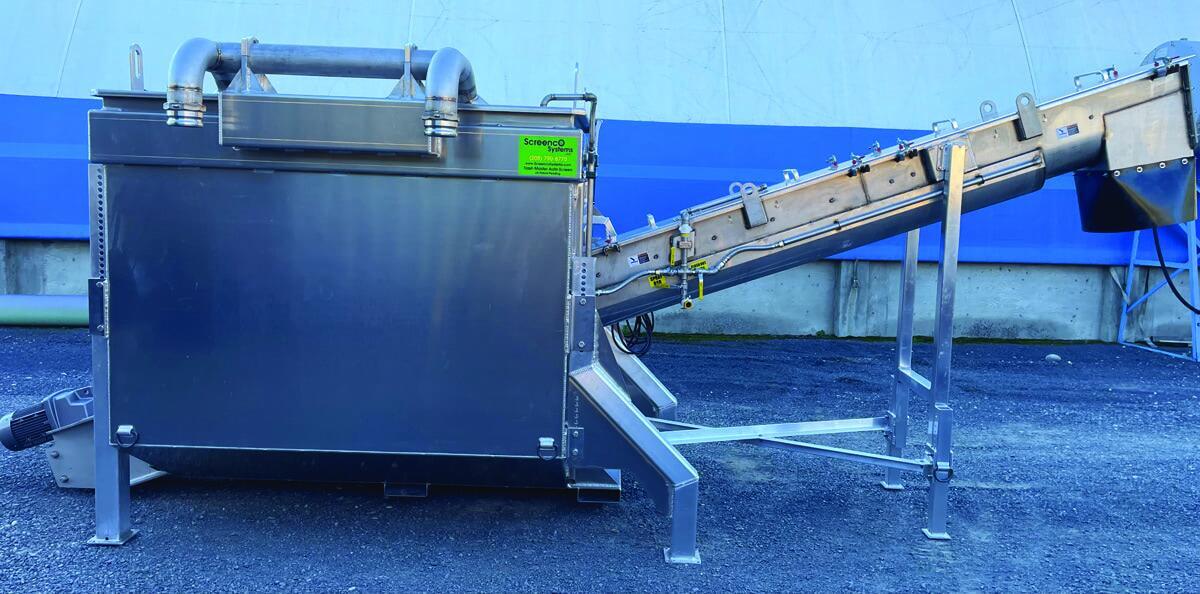

ScreencO Systems Trash Master 600 Auto Screen
The Trash Master 600 Auto Screen receiving station from ScreencO Systems uses gravity to separate trash from the flow stream through a 6-inch inlet with dual fan spreaders, off-loading trucks with a single 6- or two 4-inch cam inlets at a rate of up to 800 gpm. It includes an aluminum hopper with 8-inch outlet cam and 3/8-inch gaped 1/4-inch stainless steel bar screen. Its stainless steel U-channel is lined with Titanium UHMW with a high-strength alloy steel 11 1/2-inch shaftless screw conveyor. The U-channel has slotted drain holes and a center channel bar screen to promote cleaner, dryer trash. Custom-built cleaning tools are included. A hopper spray bar with 1 gpm nozzles keep the unit clean and free of buildup. The lower cover has two built-in nozzles for cleaning trash .It has a 3 hp Nord drive with VFD control, 220 single-phase power for plug-and-play functionality, adjustable legs, fork skids, and a OSHA-compliant catwalk. 208-790-8770; www.screencosystems.com
