In the septic service industry, robust and efficient vacuum pumps and blowers are essential for managing waste effectively. These units are designed to deliver high vacuum levels and substantial airflow, ensuring quick and thorough offloading and transfer of materials. Featuring advanced cooling systems, noise reduction technology and durable construction, pumps and blowers like the ones below provide reliable performance under demanding conditions.

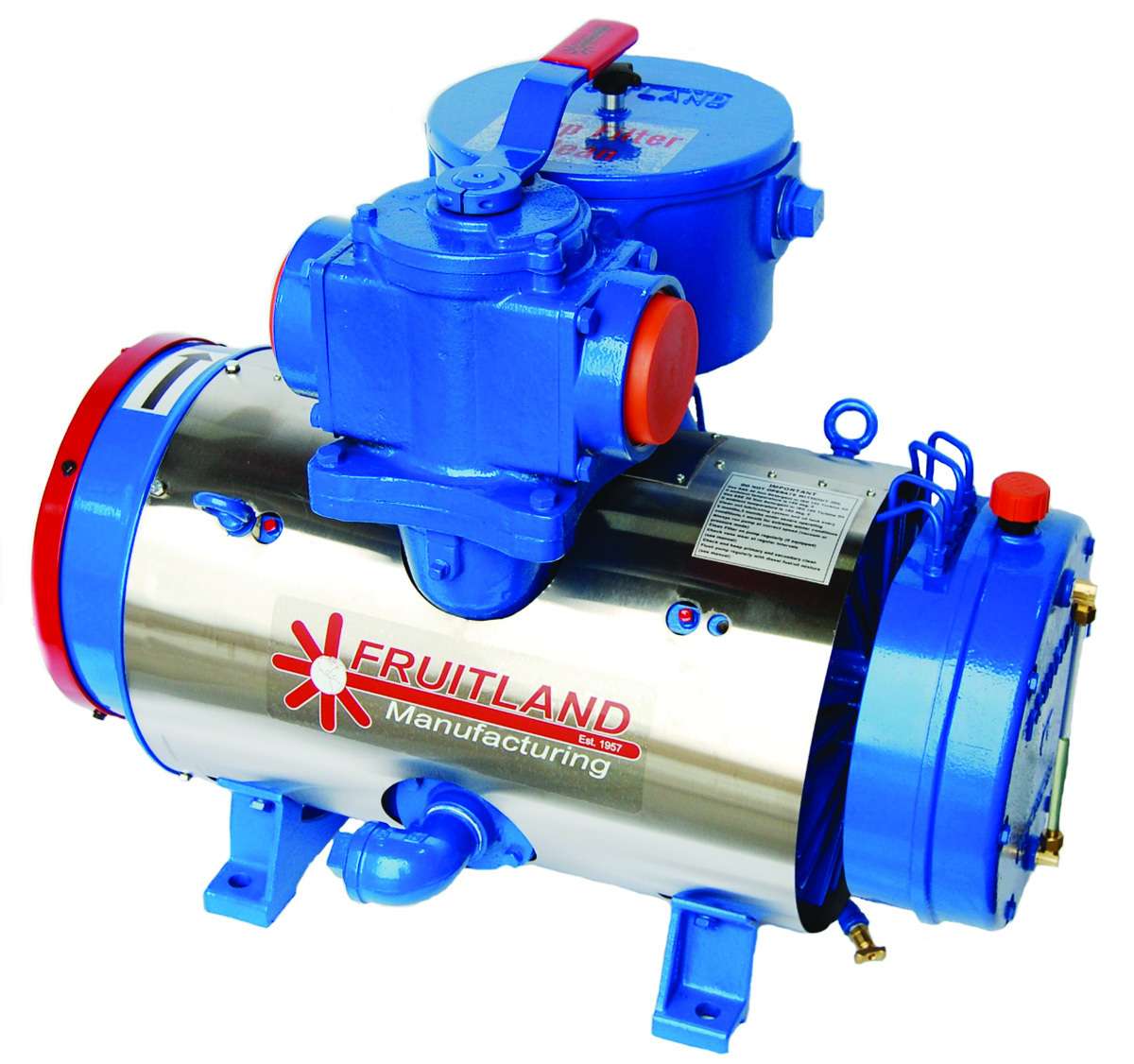

Fruitland 870 Series
Fruitland’s 870 Series pump allows vacuum levels of 28.5 inches Hg and continuous vacuum of 27 inches Hg. It is capable of 30 psi pressure for offloading. Oil consumption is 1 gallon for 18 hours of operation to reduce environmental impact. Locally sourced, nonproprietary oil may be used. The pump delivers 510 cfm (free air) through 4-inch porting.
905-662-6552; www.fruitlandmanufacturing.com

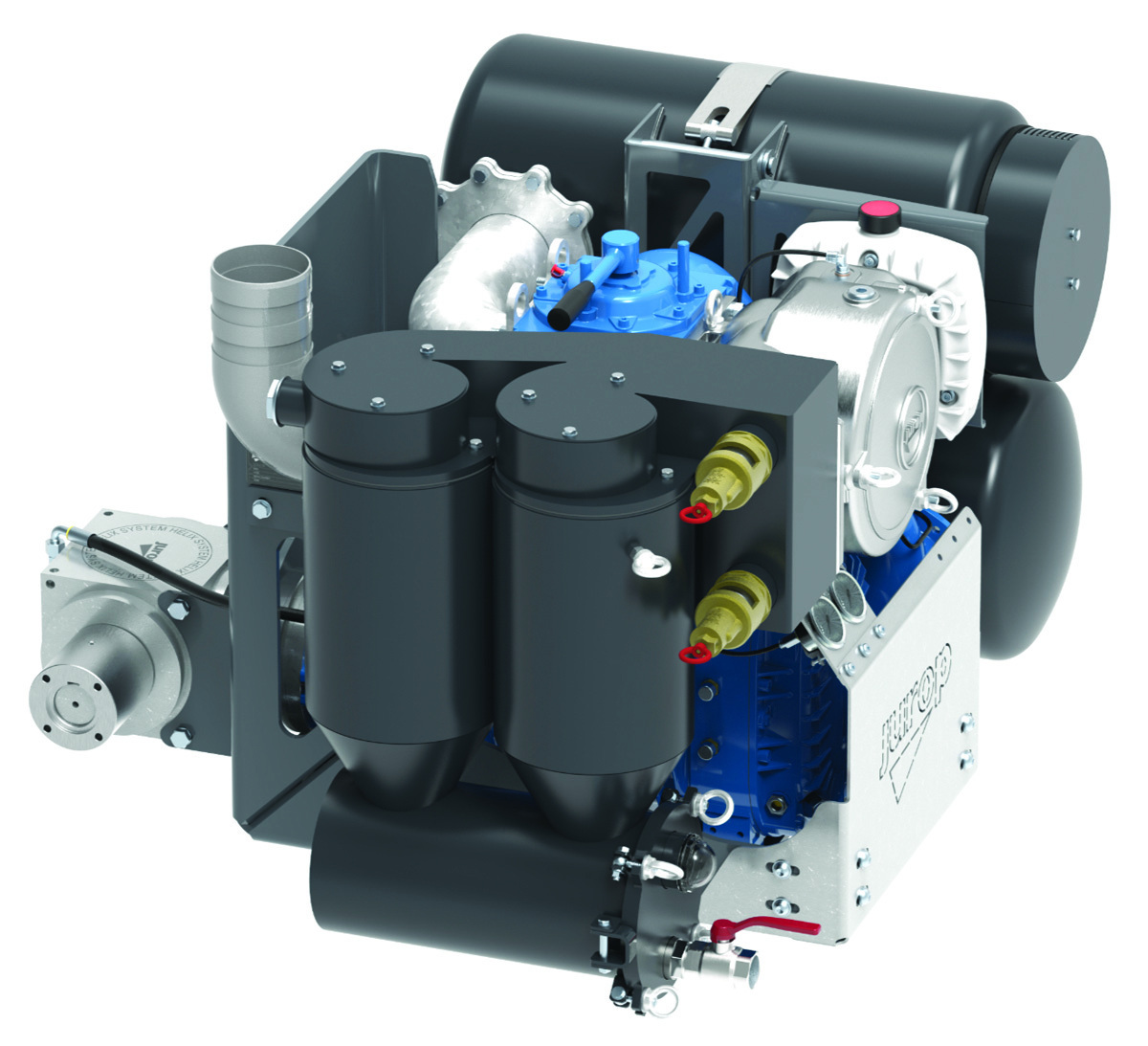

JUROP HELIX
HELIX blowers incorporate the third generation of JUROP helical tri-lobes with air injection porting designs and internal paths to decrease noise and heat. They eliminate the requirement to enclose the blower within a noise debating box. The frame rail-mounted HELIX 300 system delivers a true 1,089 cfm and 15 psi at 1,400 rpm input. The industrial-duty integrated gearbox eliminates everyday dilemmas with drive-coupling failures. The system includes electronic optical gearbox oil level sensors and an integrated thermostat providing safety for the system and team.

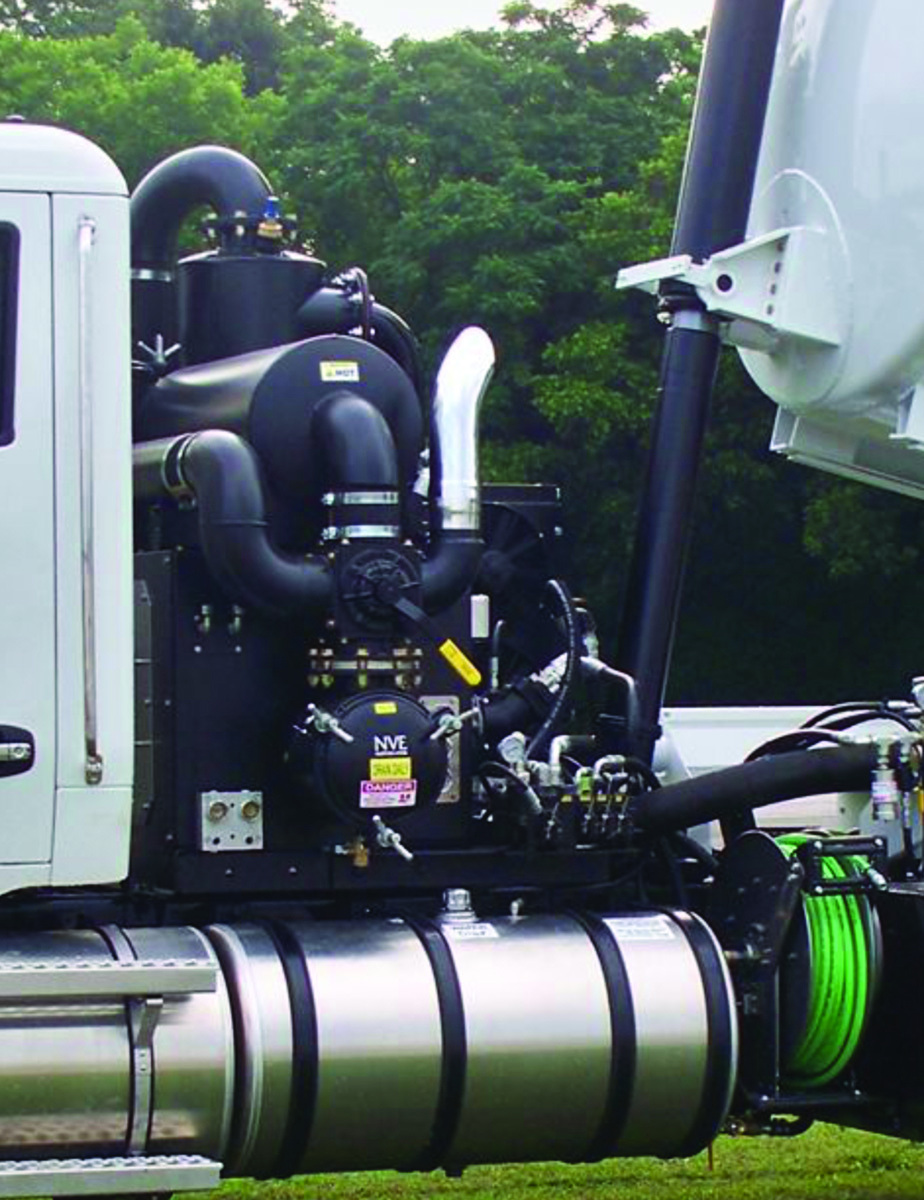

National Vacuum Equipment Challenger 1600
The Challenger 1600 from National Vacuum Equipment is a 1,600 cfm tri-lobe blower designed for continuous duty at maximum vacuum. Rotors are designed to improve vacuum efficiency and reduce mechanical noise. The blower has a ballast air-cooling design and typical maximum vacuum of 27 inches Hg.
800-253-5500; www.natvac.com

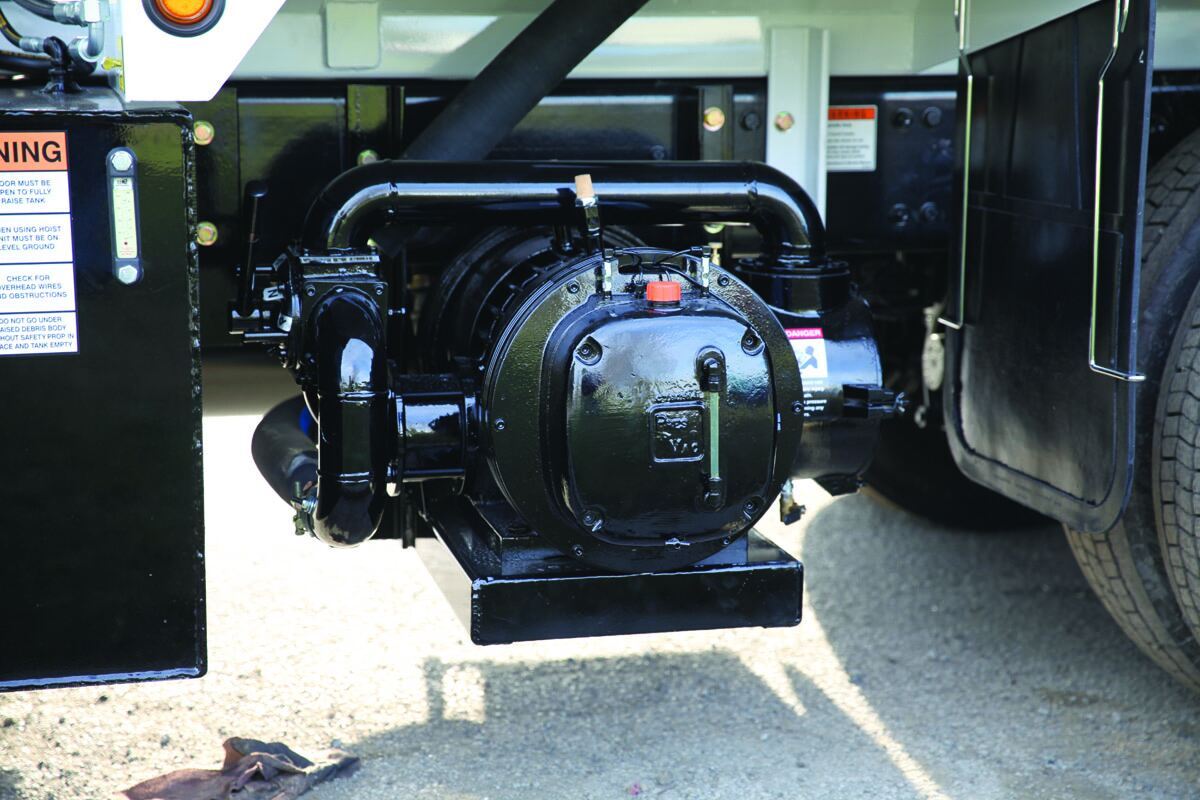

Presvac Systems PV750
The Presvac Systems PV750 rotary vane pump is designed for continuous full-vacuum operation in extreme conditions. It offers 400 cfm at free air, 350 cfm at 15 inches Hg, a maximum vacuum of 27 inches Hg and maximum pressure of 35 psi. Dual fans and twin ballast ports are designed to efficiently cool the pump. The solid housing with deep cooling ribs allows greater heat transfer from the vacuum chamber. Aluminum fans and shrouding work like a heat exchanger. Multiple manifold and drive options are available for truck, trailer or stationary applications.
800-387-7763; www.presvac.com
Wallenstein Vacuum 753 Series
The 753 Series vacuum pump from Wallenstein Vacuum is designed for longer service life, incorporating wide vanes that allow up to an inch of wear. It provides 422 cfm airflow at 1,200 rpm and vacuum levels up to 28 inches Hg. Options include air-, liquid- or dual-cooling systems where air injection is combined with liquid cooling. A pump-flushing port is included on the top valve for convenient maintenance. The quick-access housing end plate allows for easy internal inspection with no bearings to pull. Oil lubrication is via a mechanical piston pump driven by shaft rotation or available with a sight-feed valve oil regulator system using vacuum/pressure to draw oil with no moving parts.
800-801-6663; www.wallenstein.com

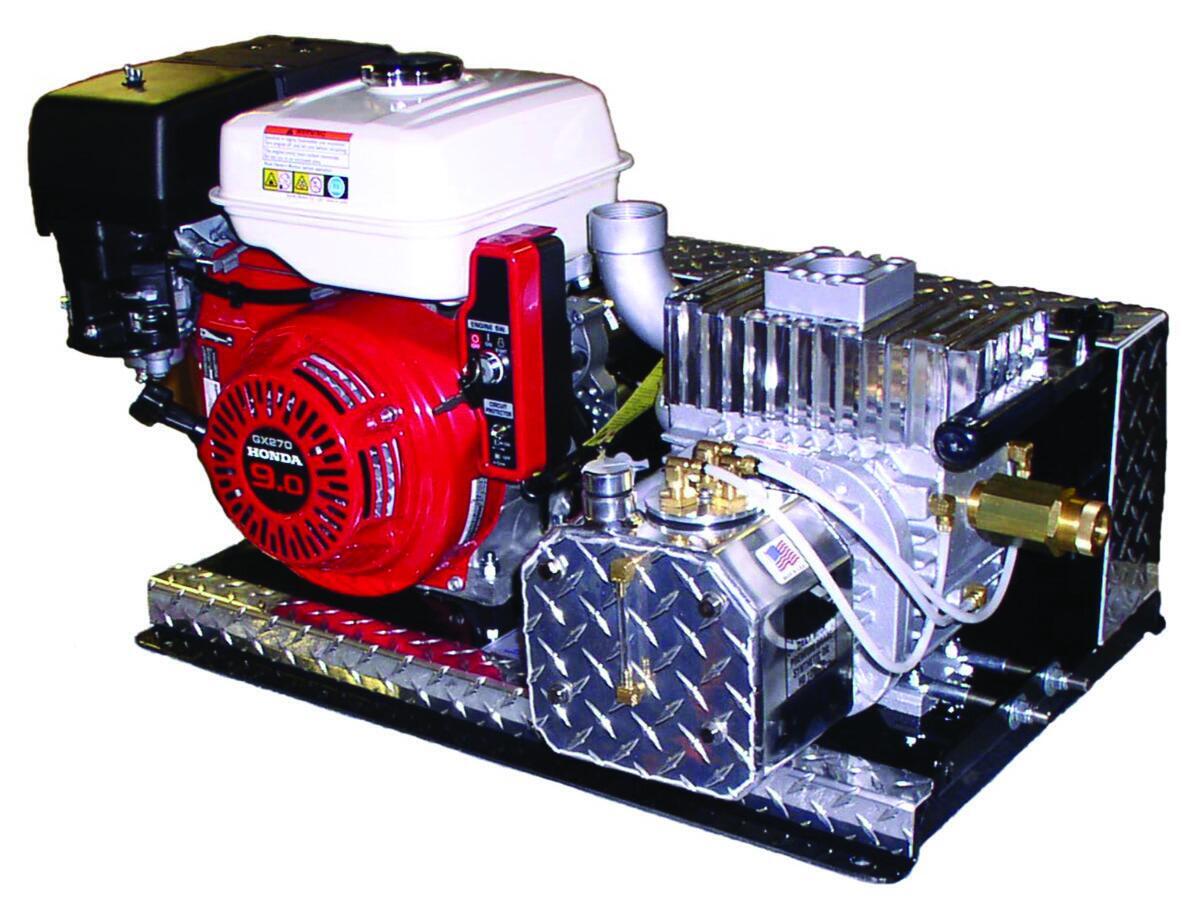

Westmoor Conde PowerPaks
Westmoor Conde PowerPaks are preassembled gasoline or diesel-powered vacuum pump units. They are easy to install, according to the maker, and include a heavy-duty steel base with aluminum diamond plate trim and belt guard. Rigid assembly is designed to ensure minimum vibration and maximum power. They are available with either vacuum only or vacuum/pressure pumps. A range of cfm options ensure the PowerPak is matched to the tank size and application. Units are powered with optional Honda GX Commercial Series gasoline engines or Hatz industrial air-cooled diesel engines. Units can be easily transferred to another tank system when needed.
800-367-0972; www.westmoorltd.co
